Sheet Metal Processing

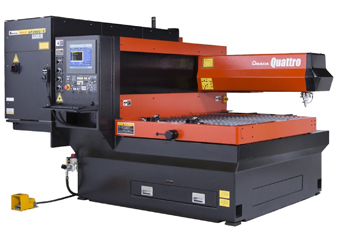

Quattro

Compact laser machine

Thorough pursuit of cost performance and ease of use

Space and energy savings

■ Features(1) : Smallest footprint of any laser for cutting 4 by 4 feet sheets: Mechanical and electrical equipment are combined into a one-piece structure, and a three-axis scanning system is installed.
■ Features(2) : Low running cost: A fast axial-flow oscillator is installed. Assist gas consumption is reduced. Optical parts have longer service life.
■ Features(3) : Easy operation and high performance: The skid table allows access from the front and both sides. The NC control panel is easy to operate.
■ Features(4) : Advantages derived from simple construction: Necessary and indispensable structures and devices are installed as standard (noncontact Z-axis tracking sensor, automatic assist gas changeover unit, and Clean Cut).

Processing scene YouTube movies

Material: SUS / Thickness: 1.5mm

	Rapid feed rate(m/min) X:Y:Z	Maximum processing size(mm) X × Y × Z	Oscillator	Maximum sheet thickness (mm)
Quattro	30:30:20	1250×1250×100	AF1000i-C (rated output: 1kW) AF2000i-C (rated output: 2kW)	SS: (Oxygen) 6.0(AF1000i-C) 12.0(AF2000i-C) SUS: (Nitrogen) 2.0(AF1000i-C) 5.0(AF2000i-C)

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
