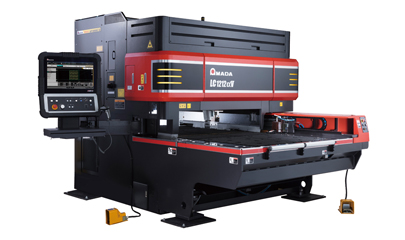

LC-αⅤ Series
2D Laser Machine
Pursued “ease of use” of the LC-α series
Realized high quality and stable process by new features ofαⅤ
AMADA's original table design Laser machine is renewed as 5th generation of LC-αⅤ. LC-αⅤ pursued “ease of use” of the LC-α series from customer's view point, and realized various upgraded features. High quality and stable production is realized by new features. All-round, compact easy-to-use Laser machine will support customer.
- ■ Features(1) : High speed and high quality process
- High performance 3.5kW Oscillator with higher beam-focusing capability realized high speed cutting, and improved the quality of cutting surface.
- ■ Features(2) : Ease of use
- Improved various features to reduce the set-up time, and achieved higher productivity and less load on operator.
- ■ Features(3) : Compact design while keeping operability and long size material processing.
- Traditional space-saving machine & oscillator all-in-one design.
- Long size material can be processed by re-positioning (Clamps hold the sheet at most suitable position) while avoiding dead-zone and achieving higher yield rate.
Processing samples
Material: SPCC /
Thickness: 6.0mm
Material: SUS304 /
Thickness: 1.0mm
Specifications
| Rapid feed rate (m/min) |
Max. process range |
Oscillator |
|
|---|---|---|---|
| LC-1212αⅤ |
80：80：60 |
2540×1270 |
AF2000i-C LU2.5 (rated output: 2kW) |
| LC-2415αⅤ |
3070×1550 |
*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
