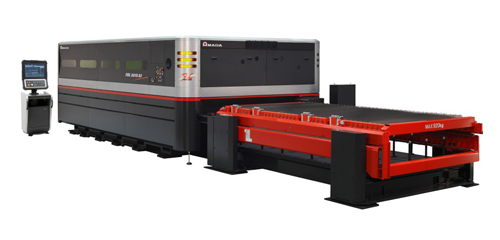

FOL-3015AJ
Fiber laser cutting machine
The revolution of laser cutting. Shift to high-energy efficiency era

AMADA, as laser machine manufacturer, has successfully developed Fiber Laser Oscillator for the first time in the world to process range expansion as well as for ecology.
AMADA Fiber laser has solutions for ‘High speed cutting’, ‘Less power consumption on cutting’, ‘Less power consumption on idle time’, ‘Expansion of material range’, ‘Less maintenance cost’ and for customer’s success of process range expansion.
- ■ Features(1) : Improvement of processing performance of High reflective materials /
Difficult-to-cut materials - Brass, Copper and Titanium is also possible to be cut
- ■ Features(2) : Low running cost
- Heat exchange efficiency on Fiber laser is far higher than that of CO2, which is less power consumption if same output power
- No laser gas required
- ■ Features(3) : Nozzle changer / Oil shot / Cooling cut device as standard accessory
- Achieving setup time reduction & continuous processing
- ■ Features(4) : Rapid and high quality maintenance response
- The regular maintenance of mirror cleaning, mirror change like CO2 is not necessary due to No optical parts inside the oscillator.
- AMADA service staff can maintain after service of both machine and oscillator because of own-developed oscillator.
Processing scene YouTube movies
Material: Copper / Thickness: 2mm
[ Please click here for more detailed movie of the FOL-3015AJ. (YouTube) ]
Processing samples
Material : AL5052
Thickness : 1mm

Material : SS400
Thickness : 16mm

Material : Copper
Thickness : 3mm

Material : Aluminum
Thickness : 16mm

Fiber Laser oscillator
In the case of CO2 laser oscillator, the excited laser light in the oscillator fully-filled with laser gas is extracted by output mirror and transmitted to process head by multiple reflective mirrors.
Fiber laser oscillator is monolithic structure, which does not have cavity resonator at oscillation part, and output power from multiple units are combined into 1 fiber cable and transmitted to laser processing head.
Specifications
Rapid feed rate |
Maximum processing size(mm) |
Oscillator |
Maximum sheet thickness |
|
---|---|---|---|---|
FOL-3015AJ |
340 |
3070×1550×100 |
AJ-4000 |
Stainless steel : 18 |
*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
