Card Case (Students504)
Students504
Encouragement Award

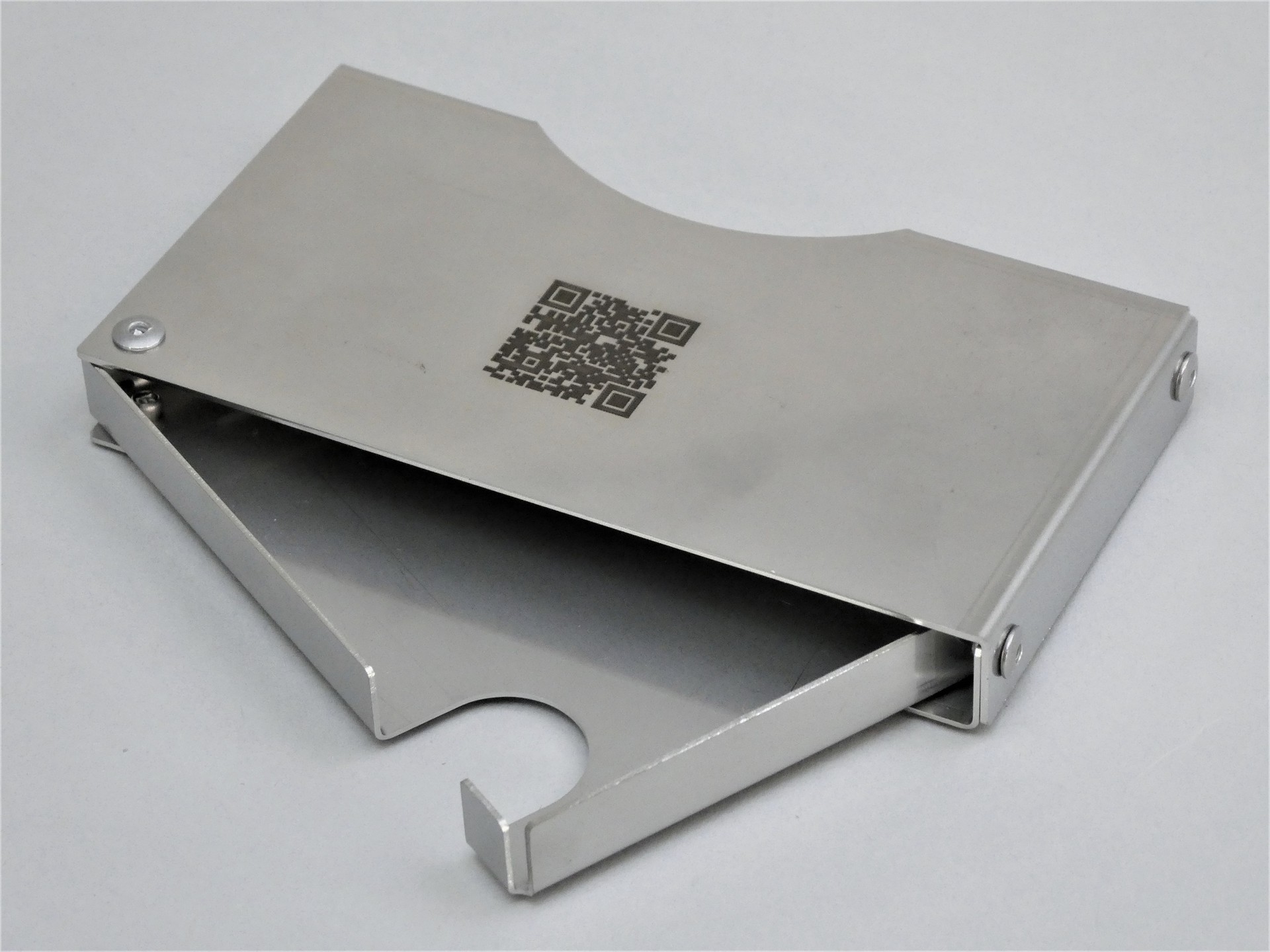

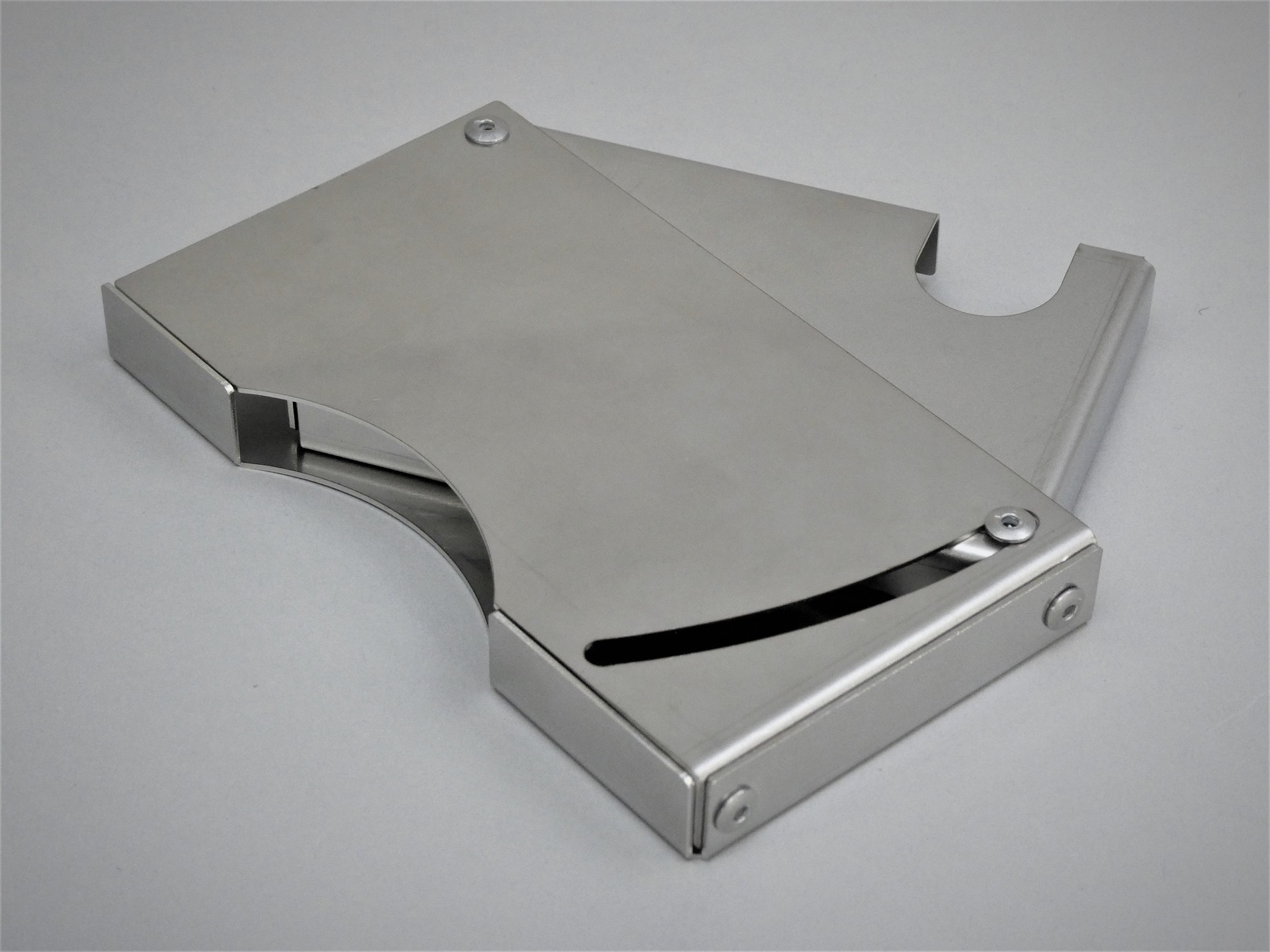

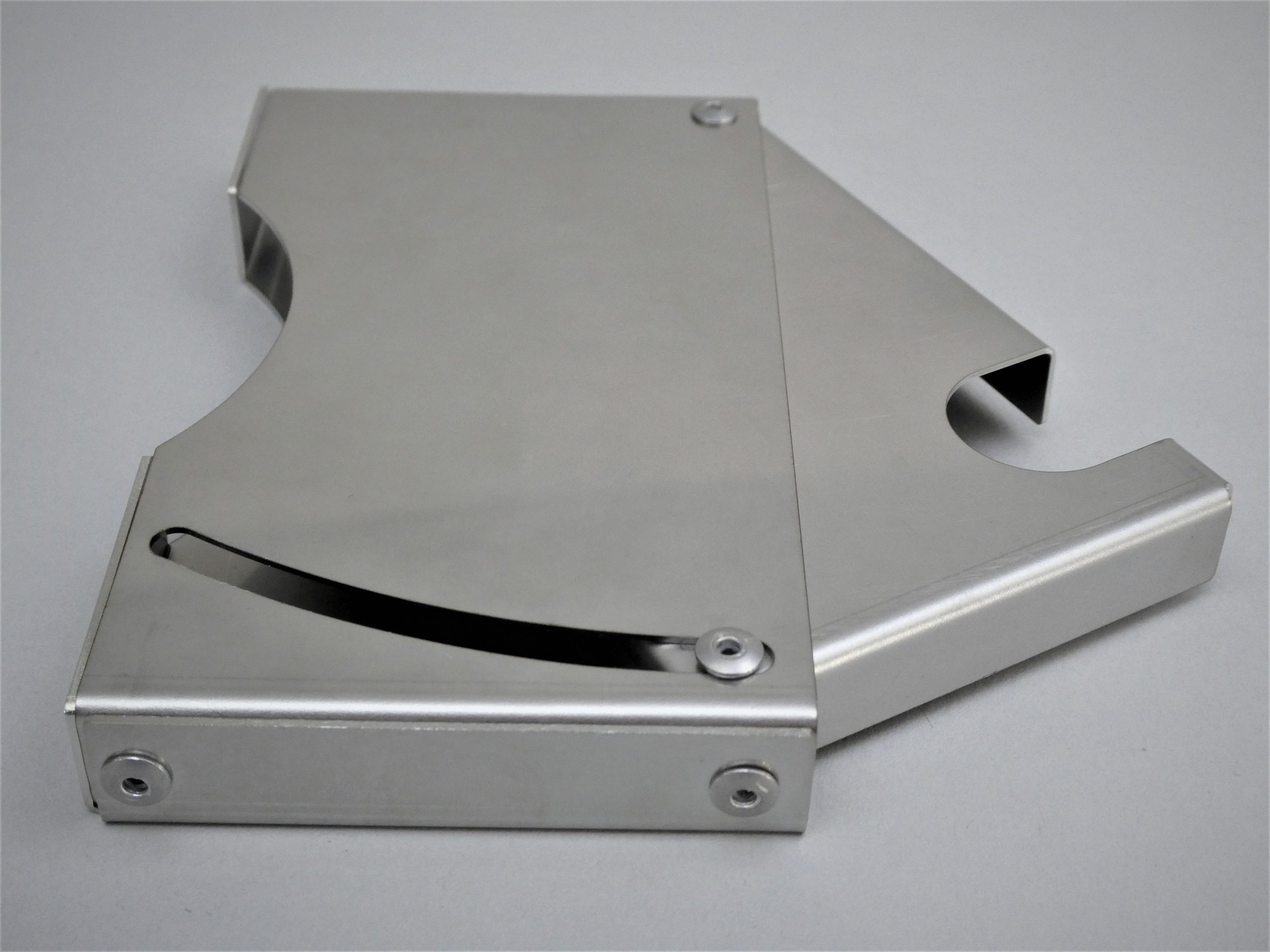

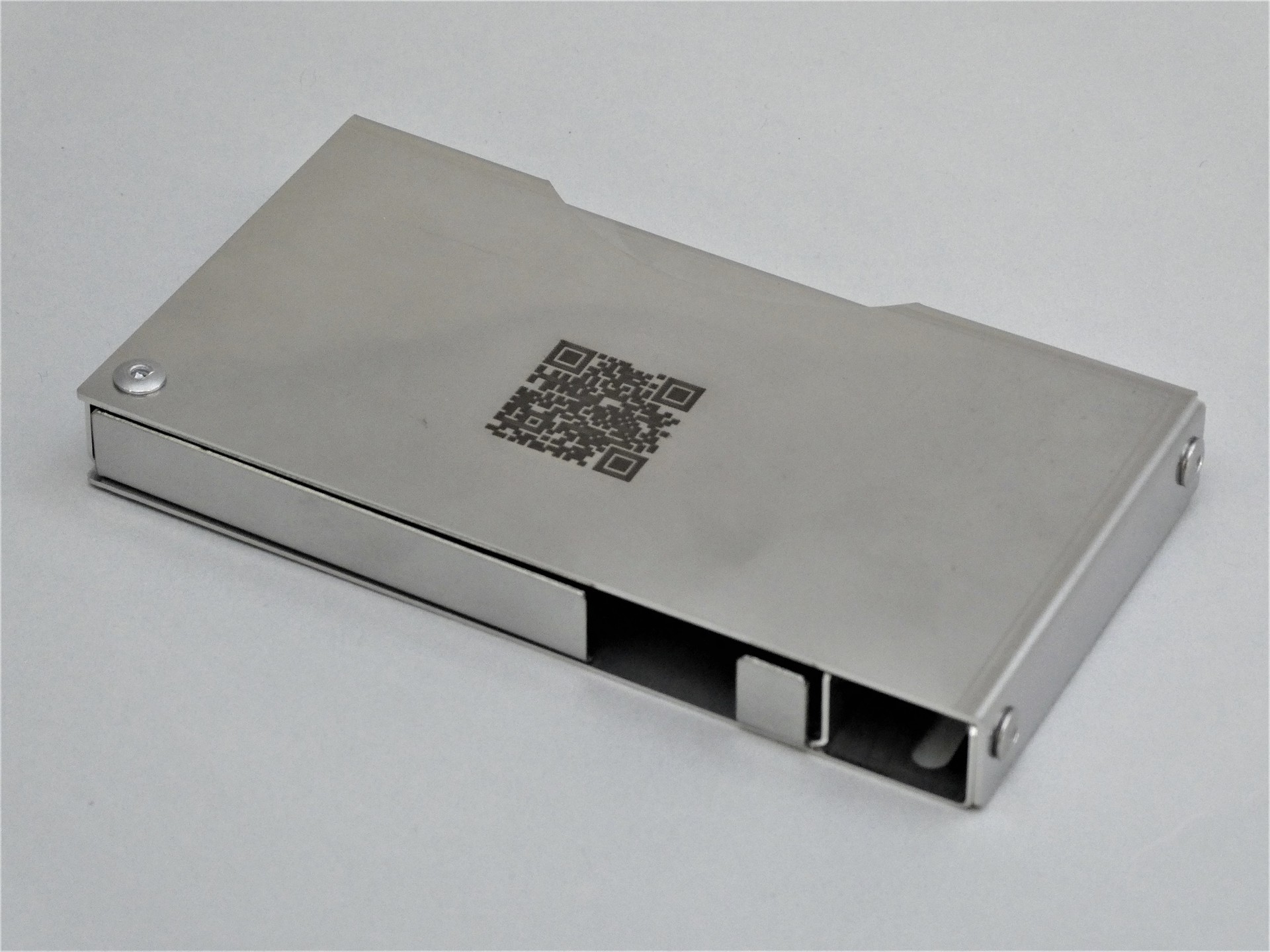

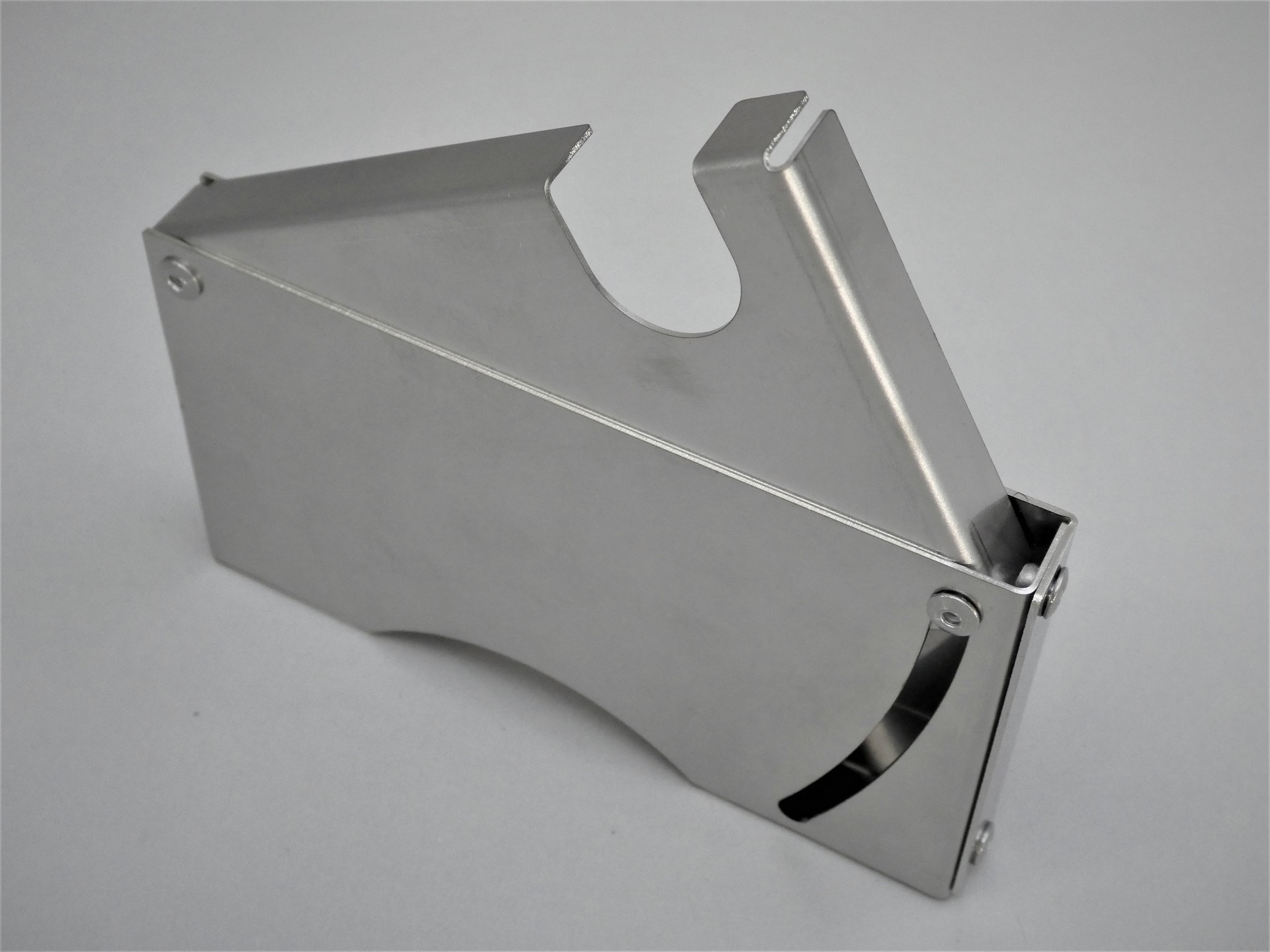

Card Case
栃木県立県央産業技術専門校 (Tochigi Pref. Japan)
-
・Size: W68 x D16 x H124 mm
-
・Accuracy: ± 0.2 mm
-
・Programming time: 600 min
-
・Processing time: 80 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.0 mm
-
・Type: Original work
Process
Planning
2D/3D Design
2D/3D Design
Programming
Laser-Cutting
Bending
Assembly
Calking Insertin
Strengths
レーザー加工機のマーキングでQRコードに挑戦した。
AP100でハッチングのパターンを複数回テストし現在の仕様となった。
本作品は板金実習の課題として製作した。
設計から組立.調整まで必要とする課題であるため、訓練効果が期待できる。
Reasons for choosing the theme: 学生がディスカッションを重ね、社会に出た際に使える実用性が高いものとしてCard Caseを製作することとした。
Reasons for choosing the material: 塗装しないため、錆に強い材料としてステンレスを選択した。
Most important points: 名刺を取り出しやすいような可動角度となるように調整した。また、指が入りやすいようにUノッチの大きさを決めた。
Most difficult points: 可動部がスムーズに動くように弧状長穴の寸法を微調整した。また、スムーズにスライドさせるため、クリアランス調整用の治具を作成し組み立てをした。
What I noticed when actually processed it from the drawing: 想定していた以上にスライド部の動きが固かったため、スライド部のクリアランス調整が必要だった。
