Student's Fabrication Bronze Award

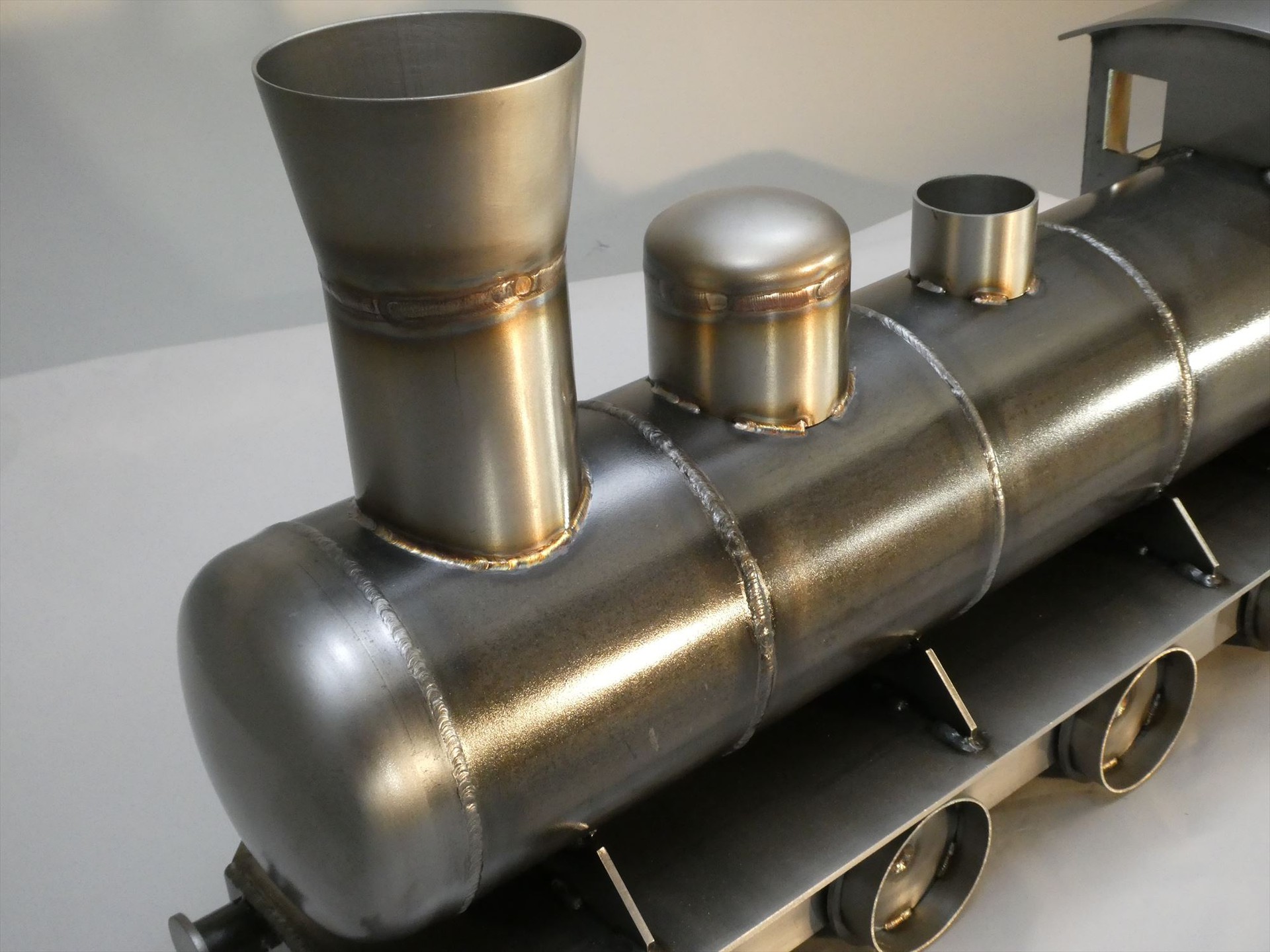

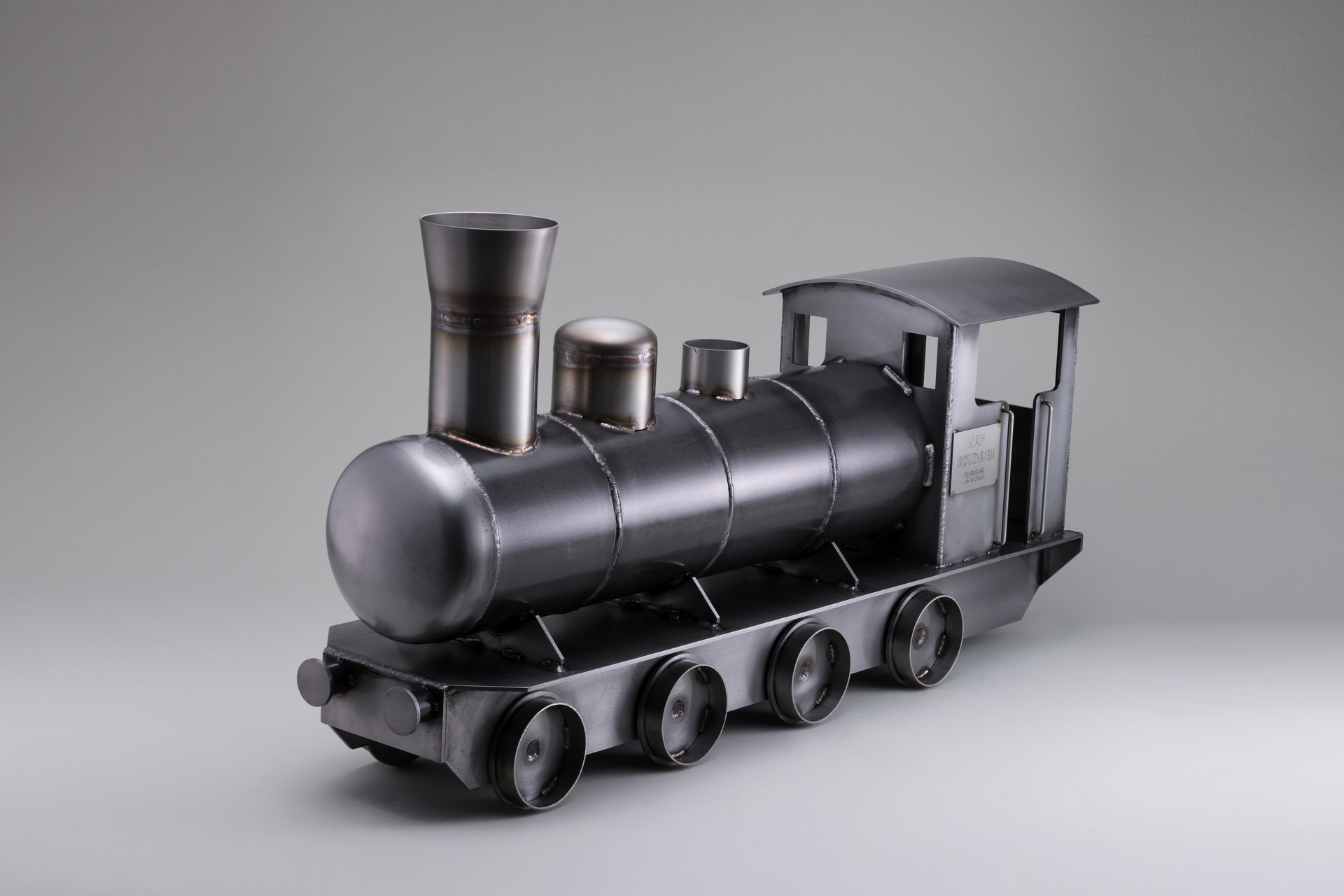

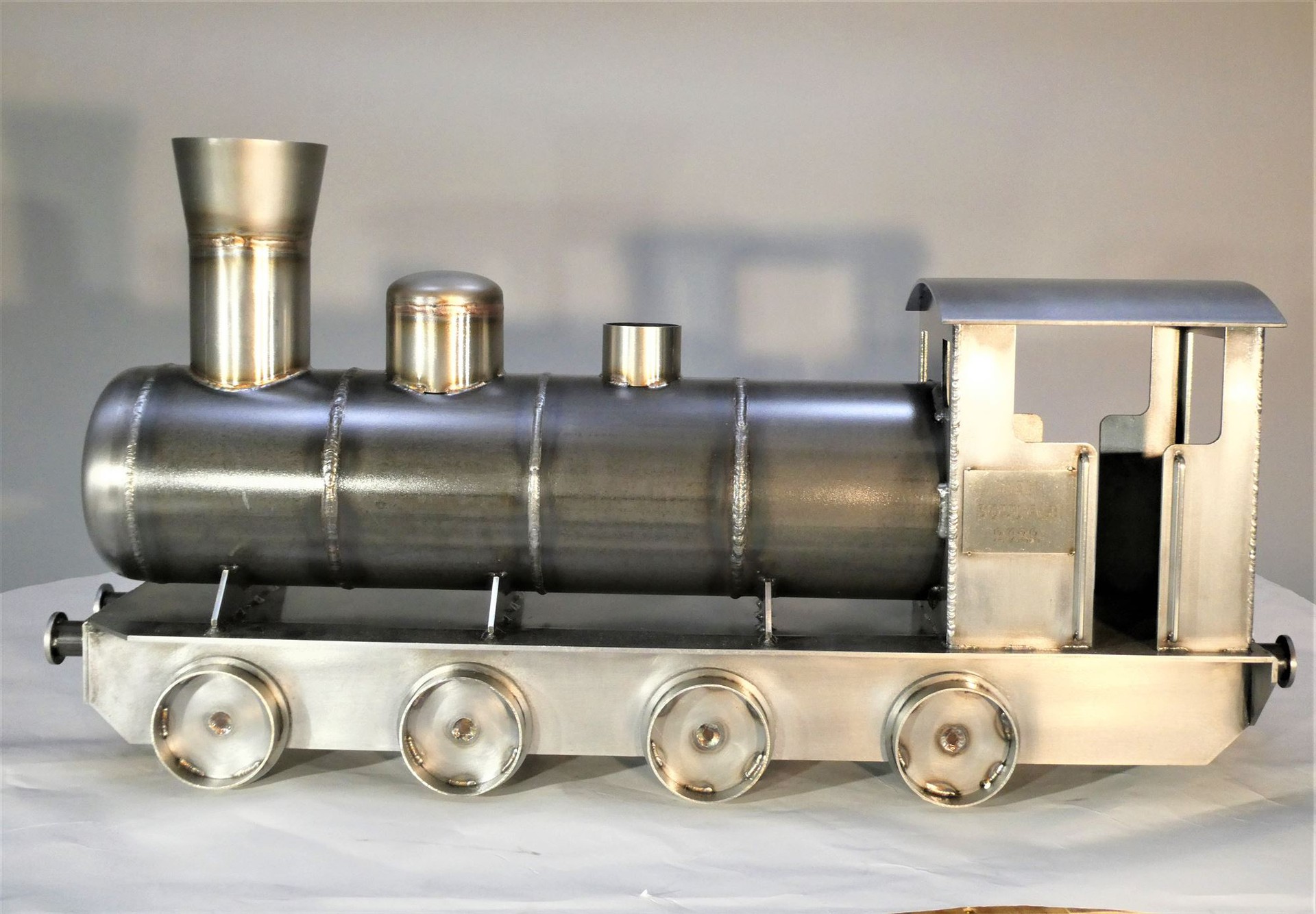

La Locomotive

Fab'Academy - Pôle formation UIMM // Nan (France)

  • ・Size: W926 x D230 x H479 mm

  • ・Accuracy: ± 0.5 mm

  • ・Programming time: 4500 min

  • ・Processing time: 4500 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS430)

  • ・Thickness: 2 / 3 / 4 mm

  • ・Type: Original work

Process

  • Planning

  • Welding

  • Welding

  • Welding

  • Painting

Strengths

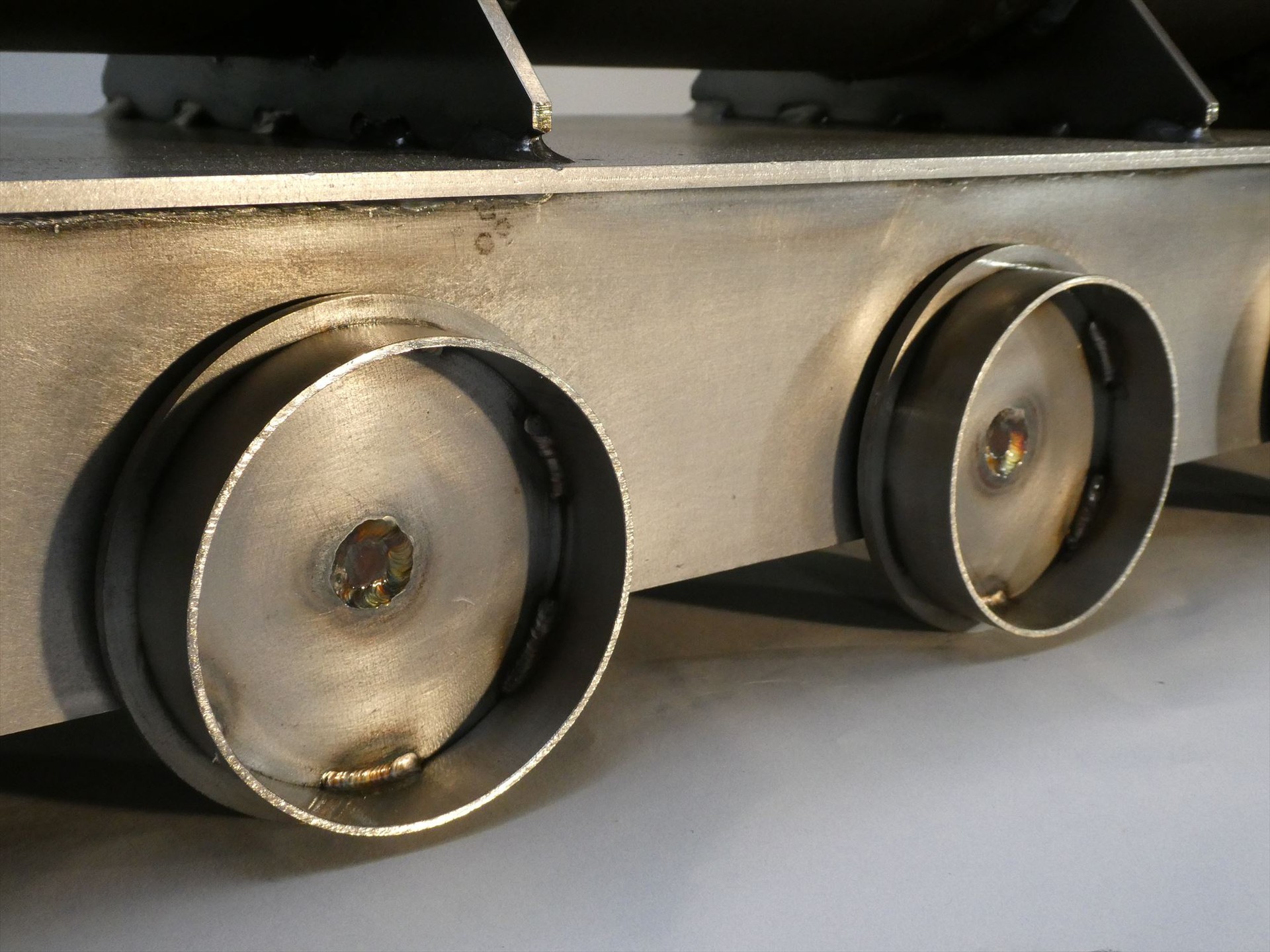

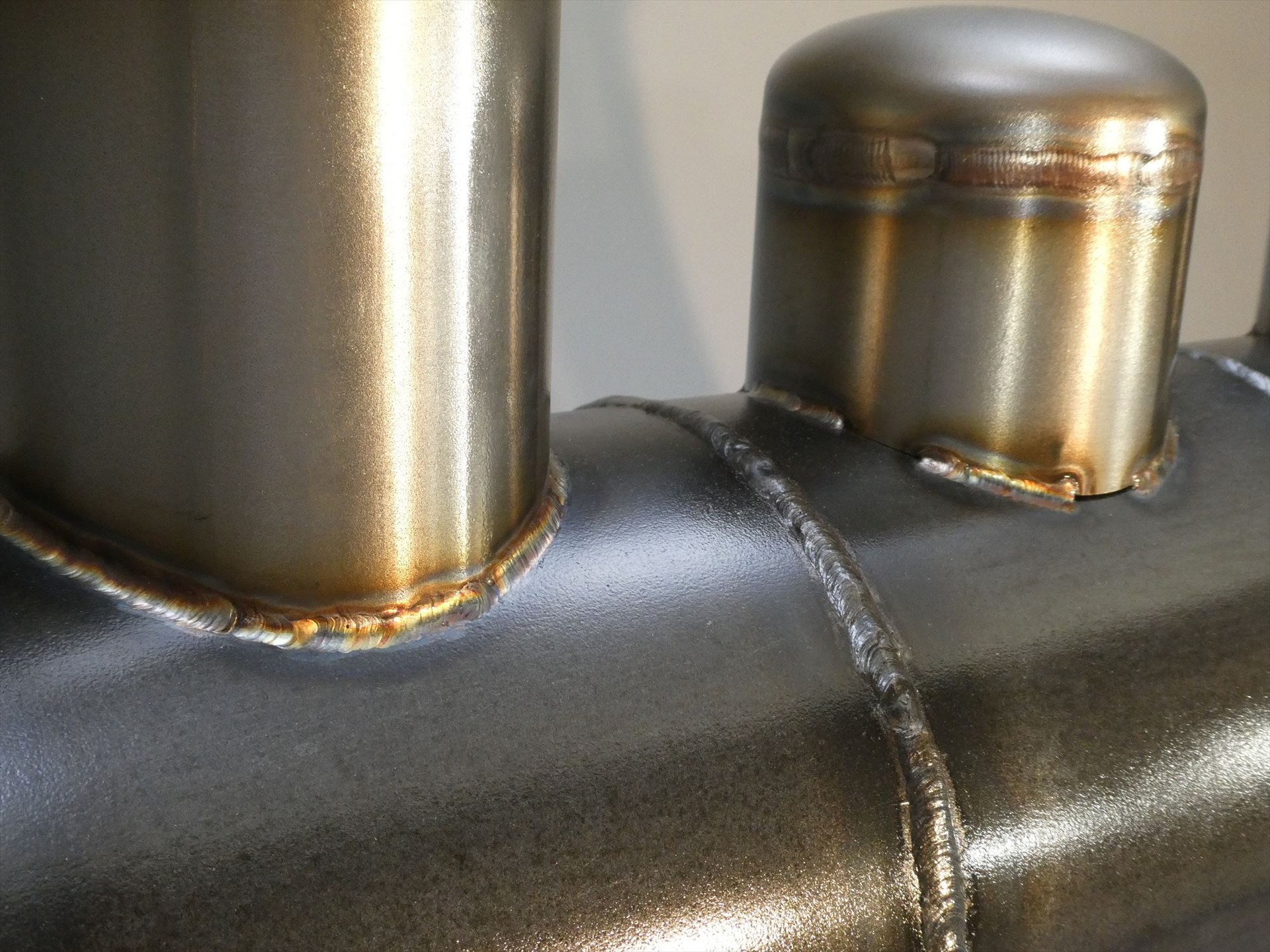

As part of the competition of the best apprentices of France I had to make this piece with techniques of welding on steel or stainless steel imposed and inert.

The direction of the welds and the welding technology were imposed for each assembly of sub-assemblies.

I had the obligation to carry out the DMOS in order to explain my welds and the parameters used.
