Parts045

Technical Encouragement Award

Holder

WALSER+CO.AG (Swizerland)

  • ・Size: W361.8 x D281.8 x H145 mm

  • ・Accuracy: ± 0.1 to 0.3 mm

  • ・Programming time: 15 min

  • ・Processing time: 2 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 2 mm

  • ・Type: Production work

Process

  • Programming

  • Bending

Strengths

Setup Time 5h (300min)

Processing with special tooling and Stamp holder 200mm

14 x bending and 2 x with prepressing

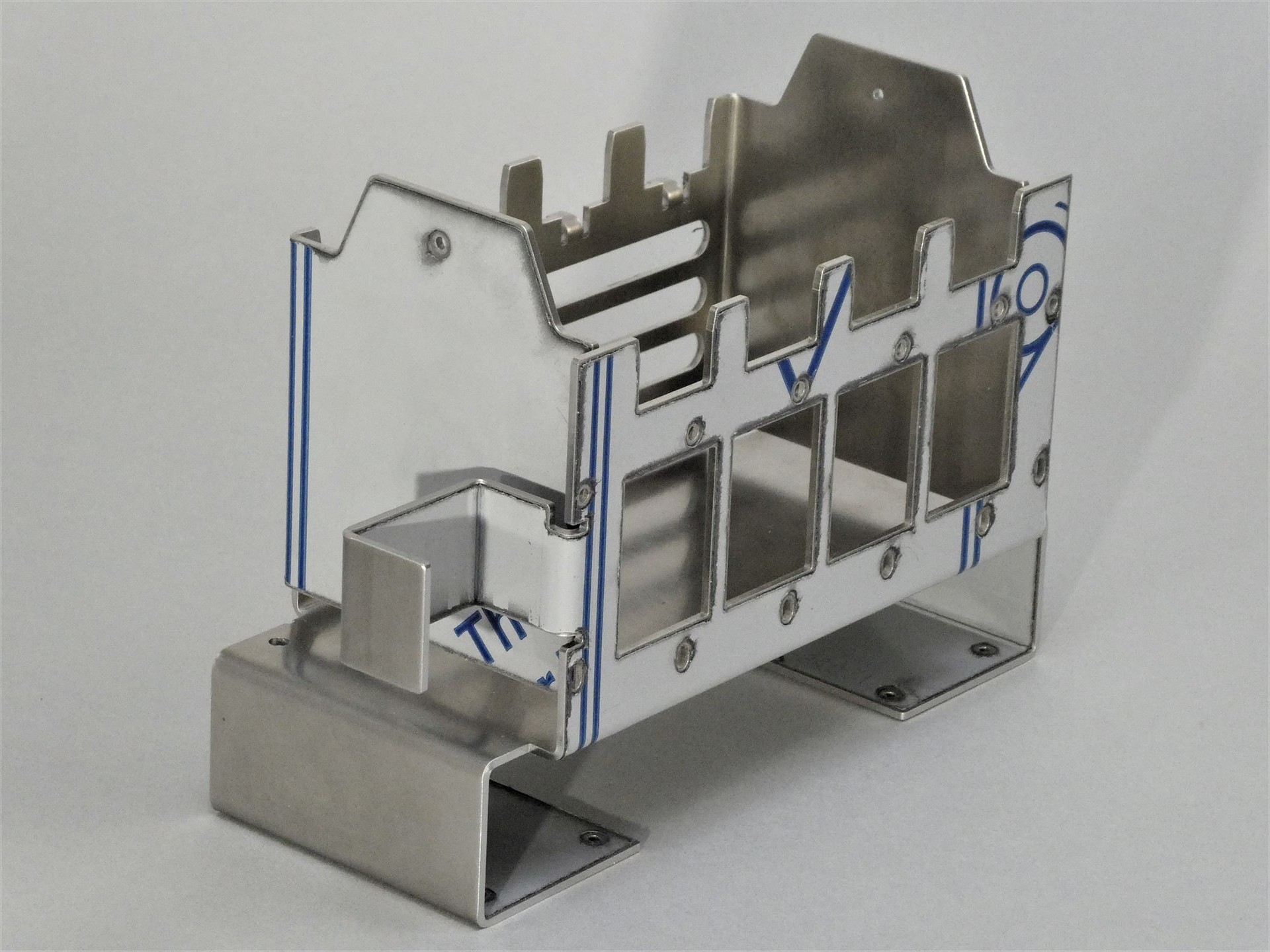

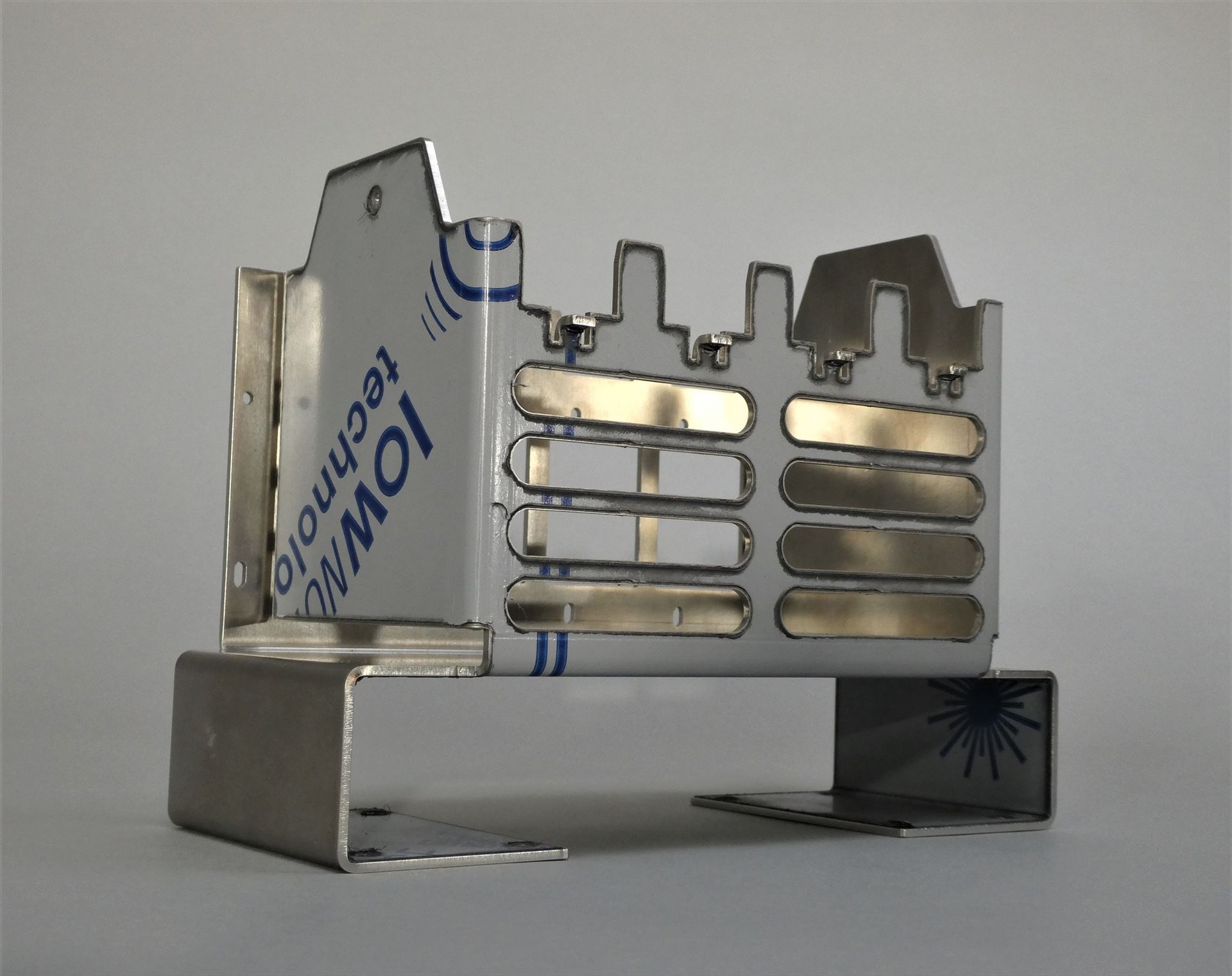

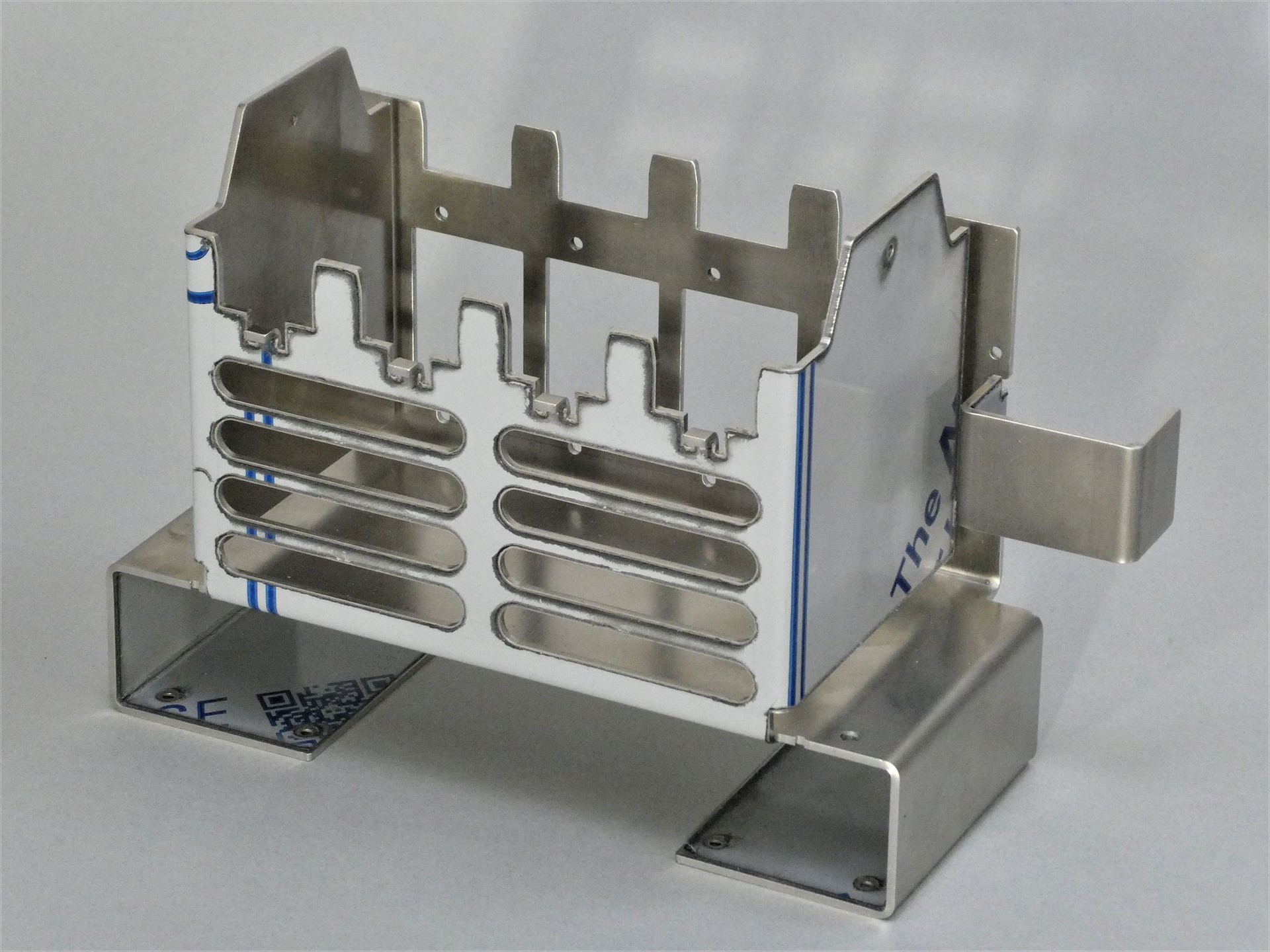

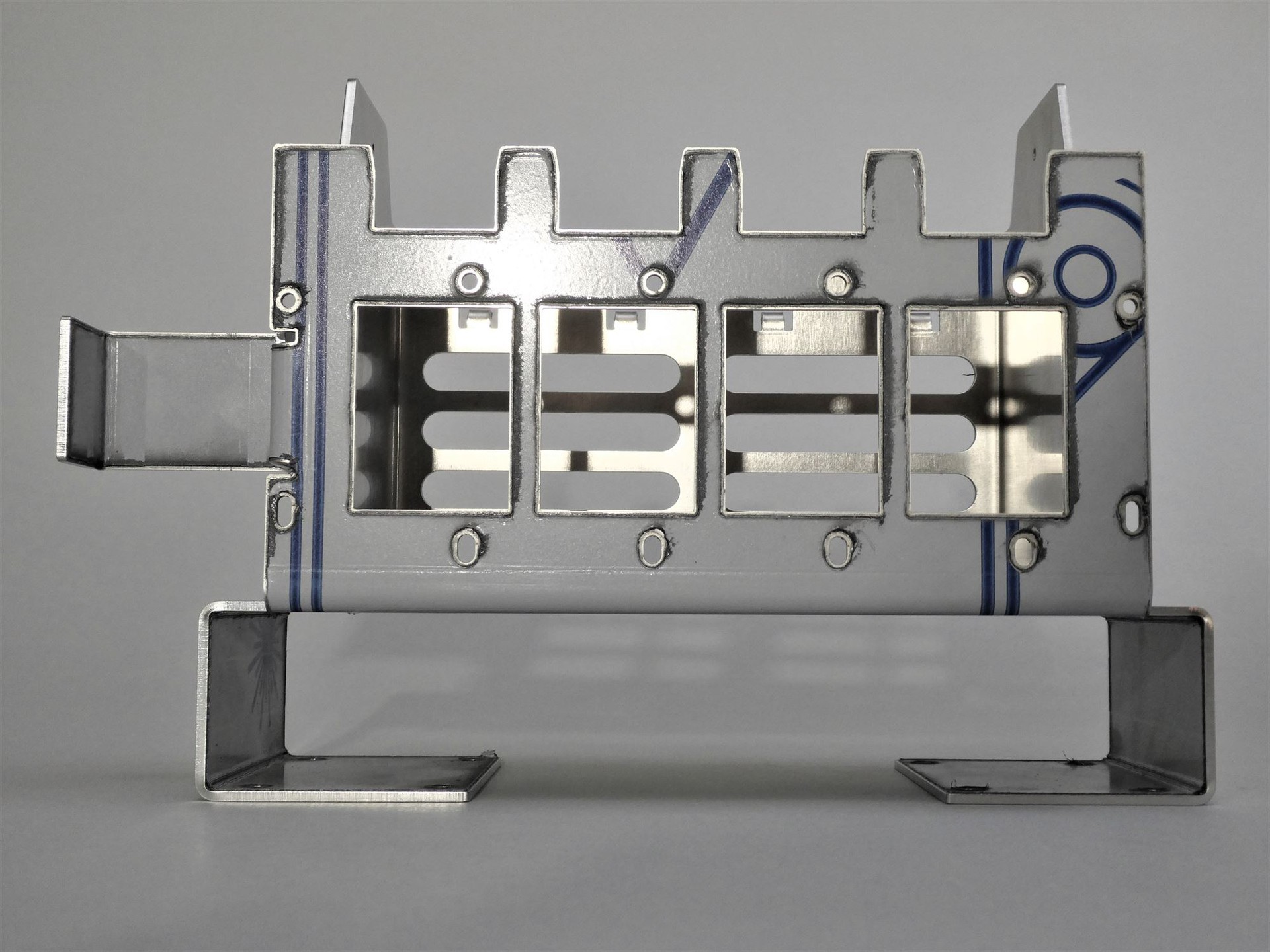

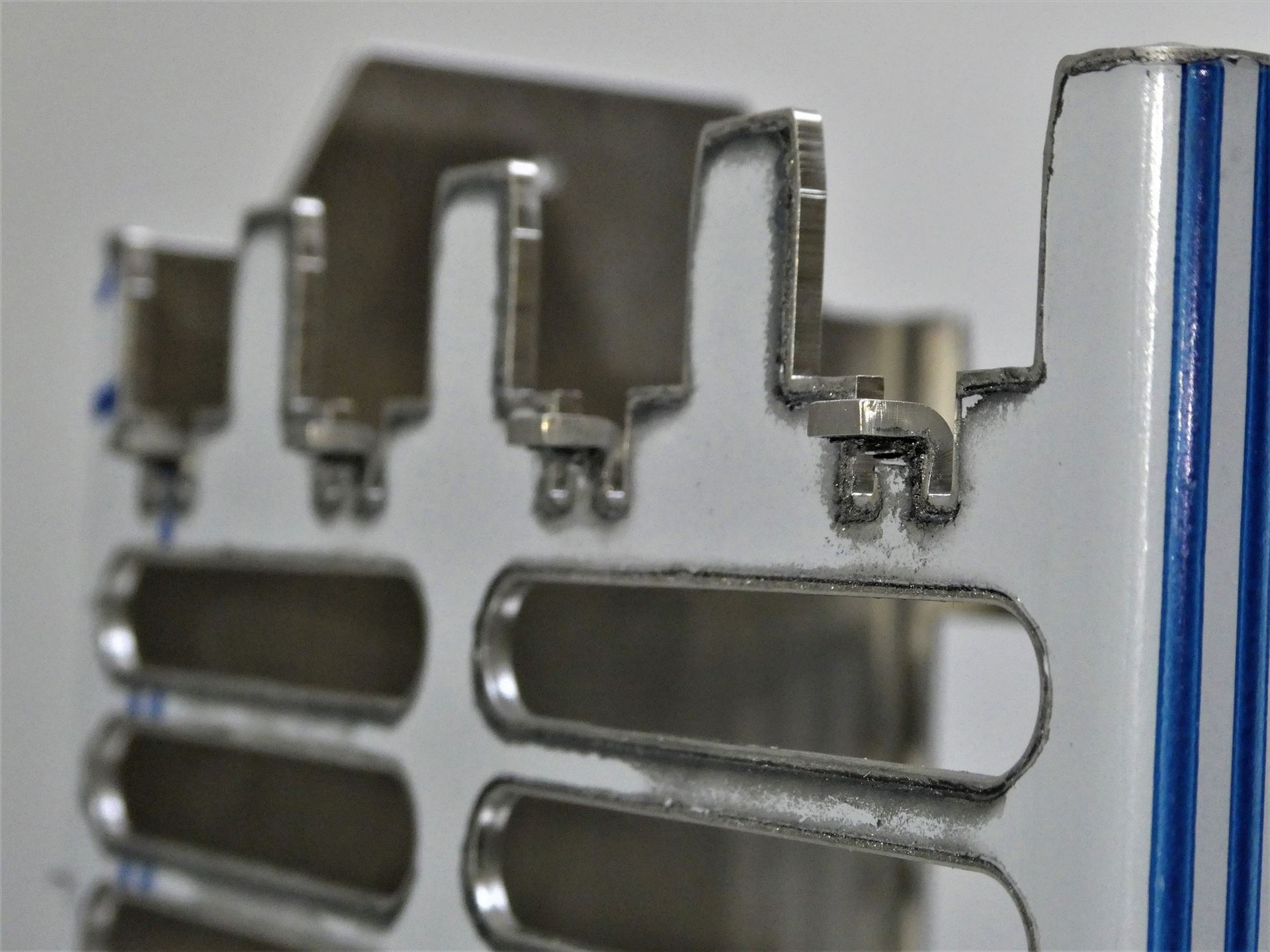

The customer has made special tool for this part as you can see from the photos
