35th Precision Sheet Metal Technology Fair

Sheet metal parts (64 entries)

360° Viewer

Parts036

Technical Encouragement Award

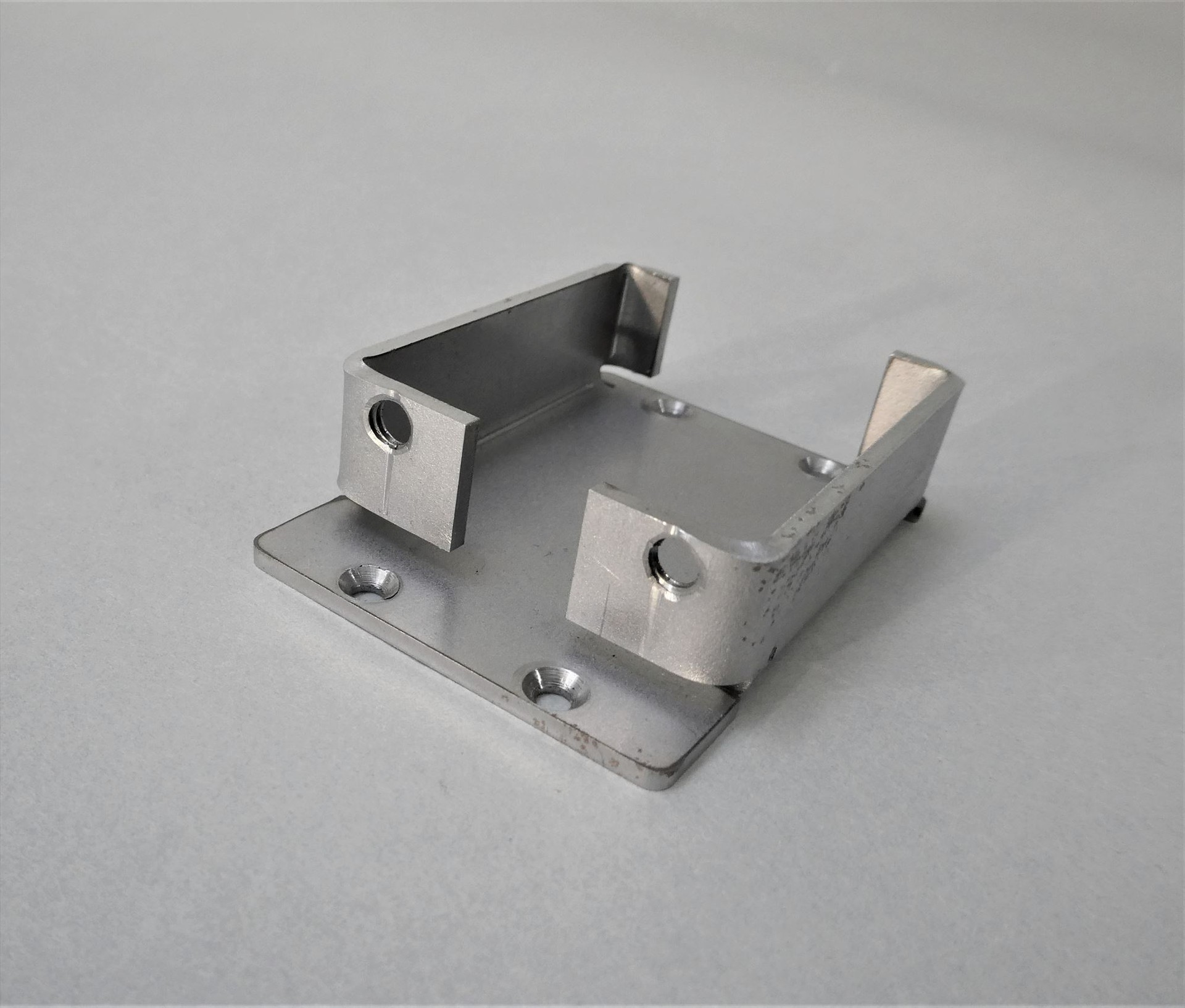

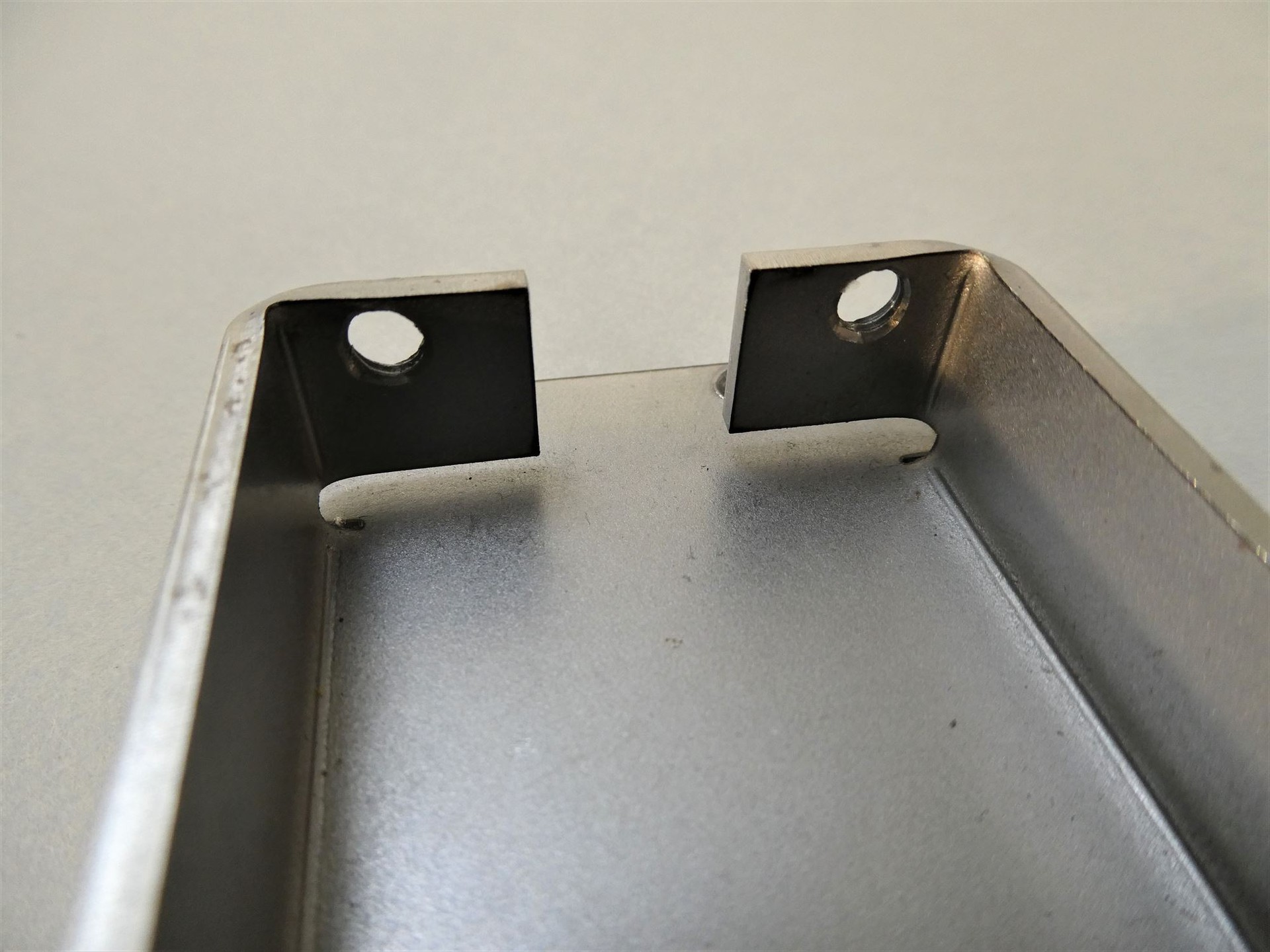

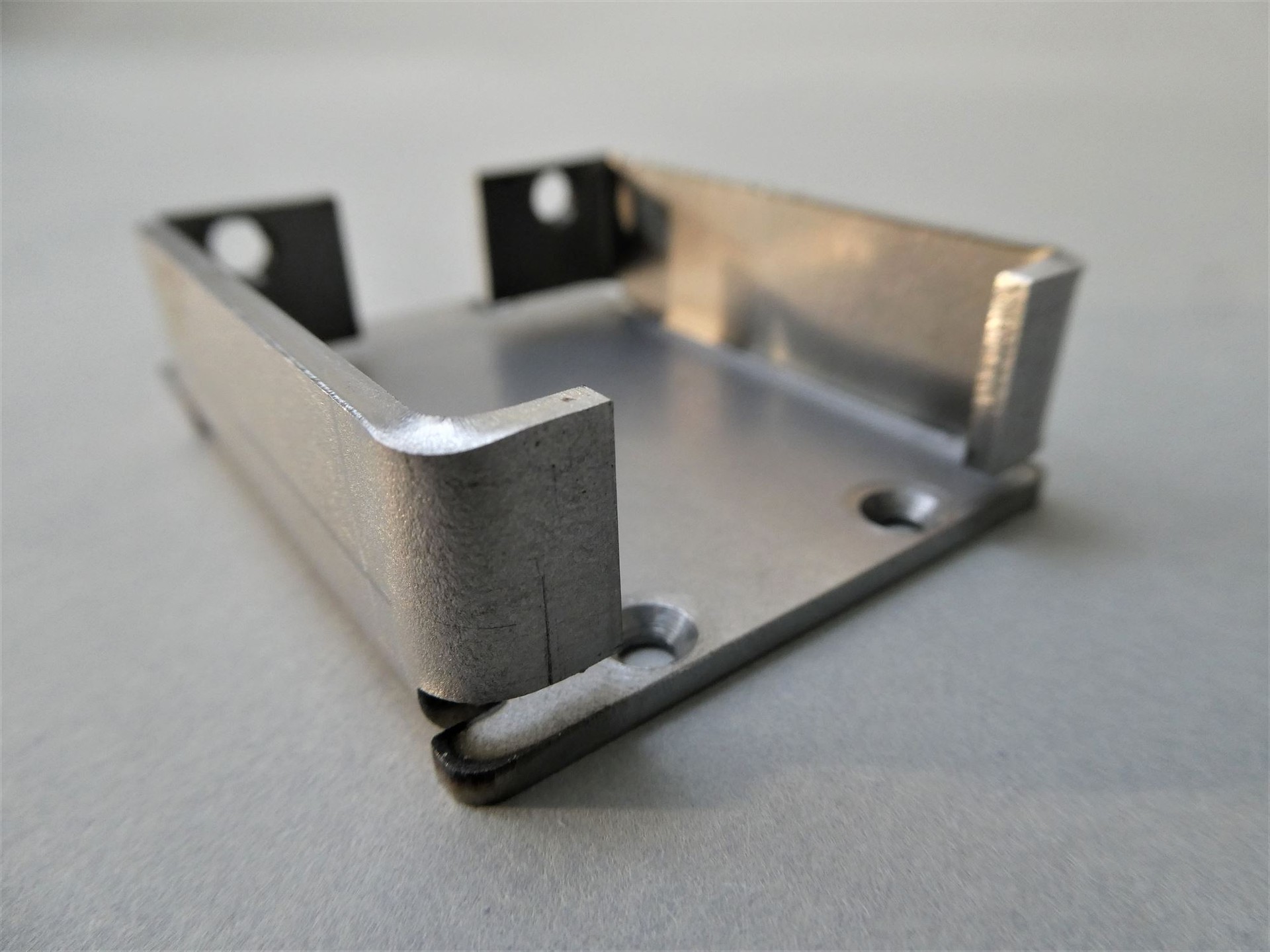

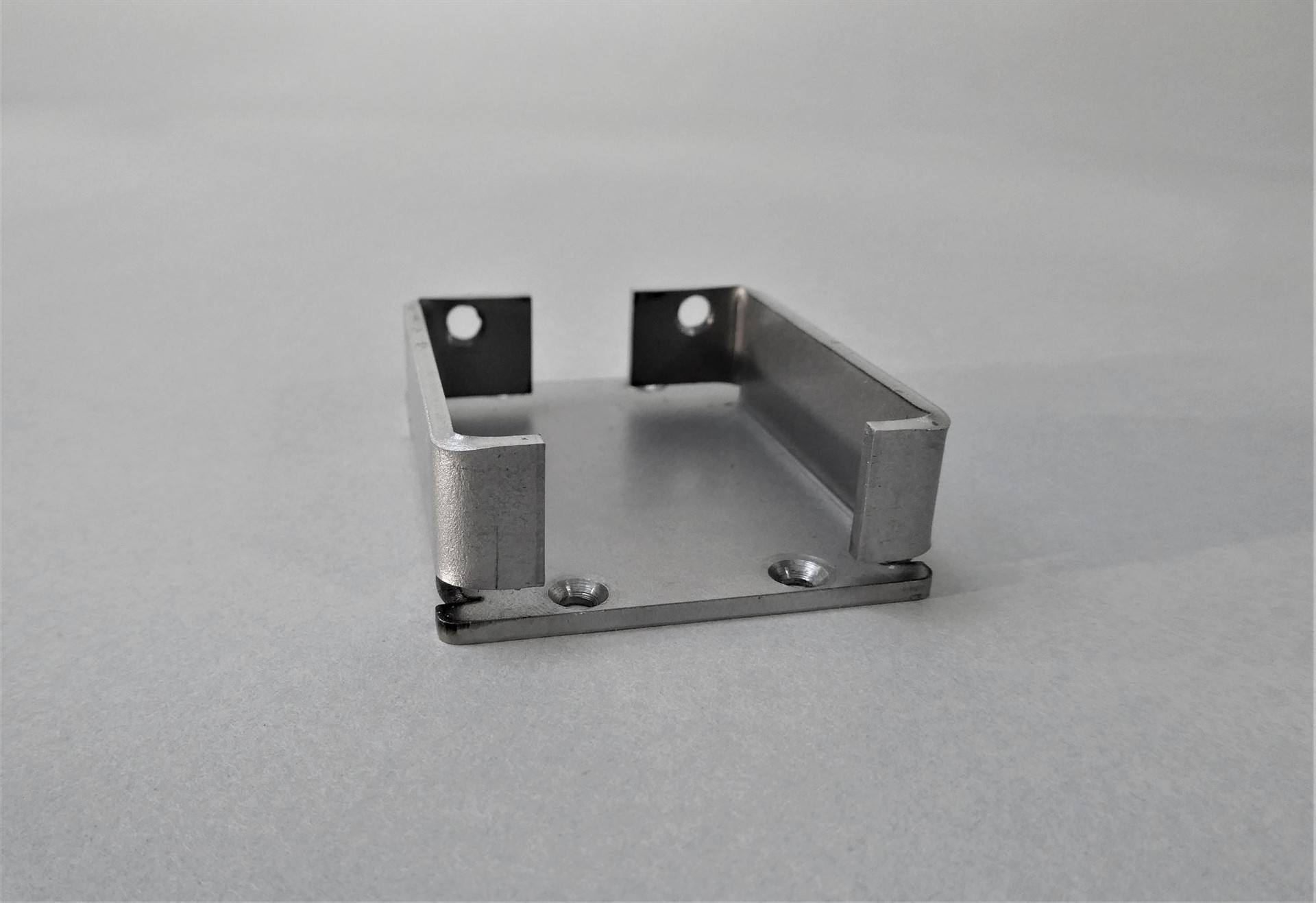

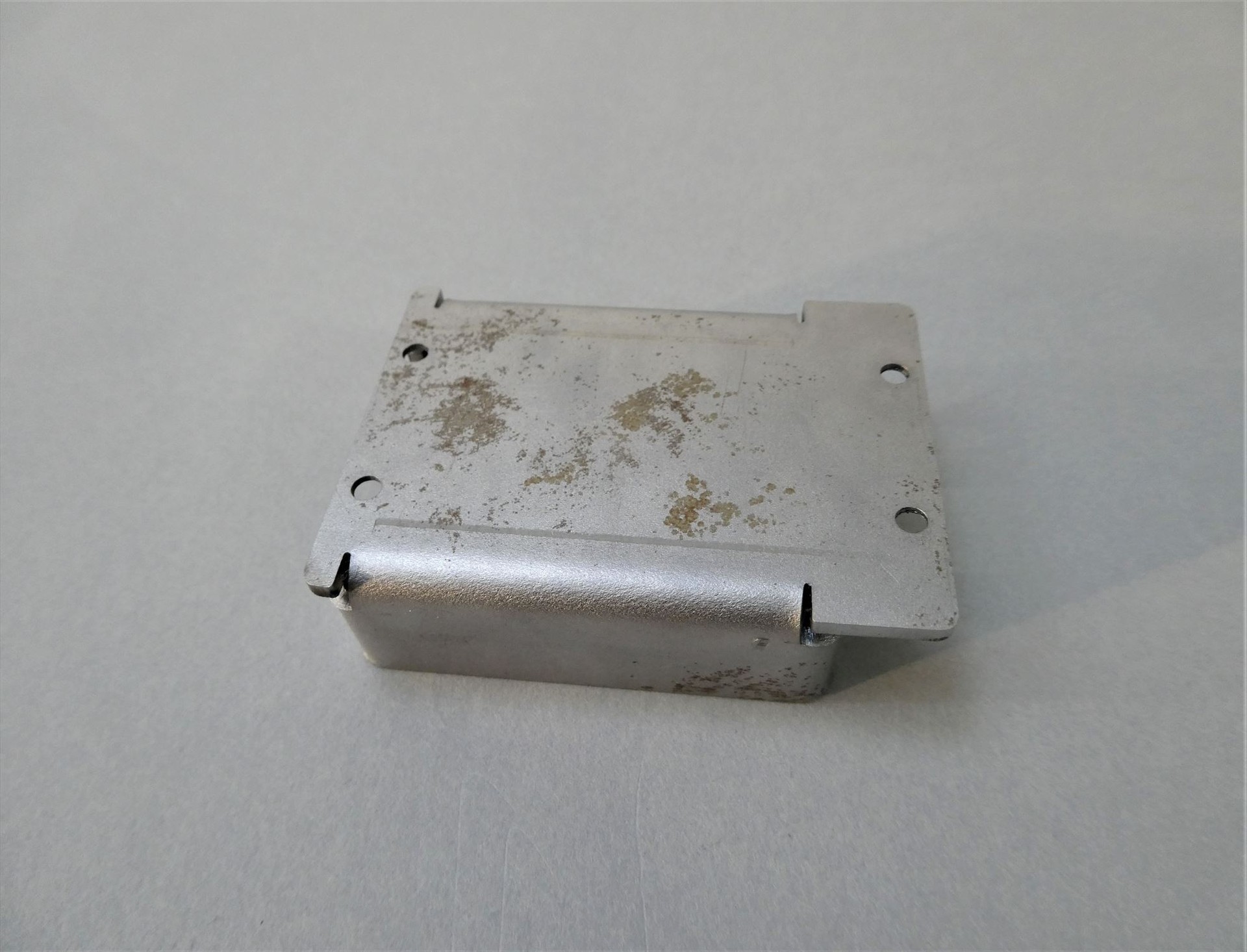

Box End

Alphin Pans Ltd (UK)

  • ・Size: W40 x D60 x H15 mm

  • ・Accuracy: ± 0.2 mm

  • ・Programming time: 5 min

  • ・Processing time: 1 min/quantity

  • ・Quantity: 8000

  • ・Material: CR4

  • ・Thickness: 1.5 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Punch & Laser

  • Counter Sink

  • Tapping

  • Bending

Strengths

Using EML to Eliminate secondary operations - Tapping and Countersink

EG for fast times to bend
