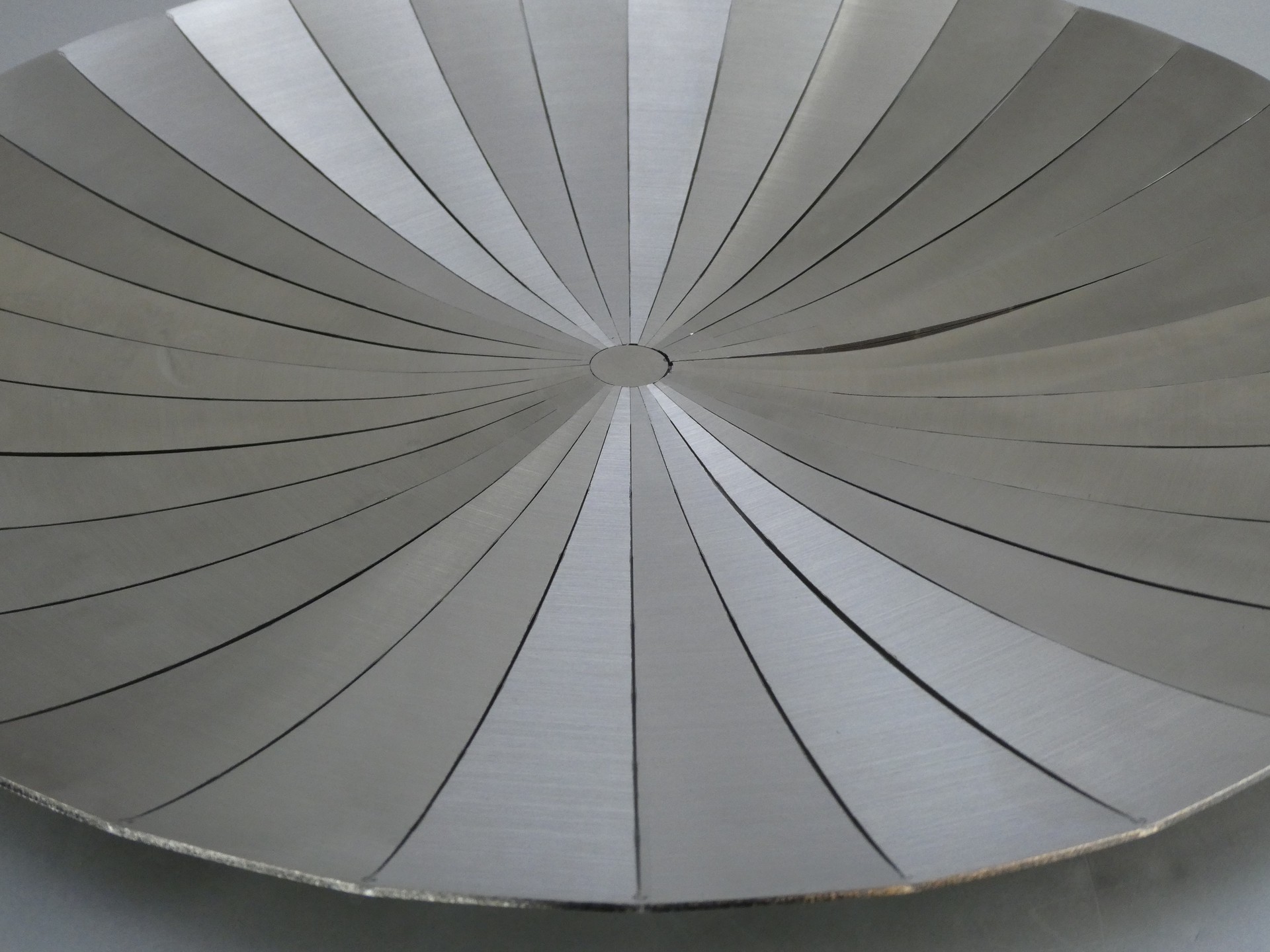

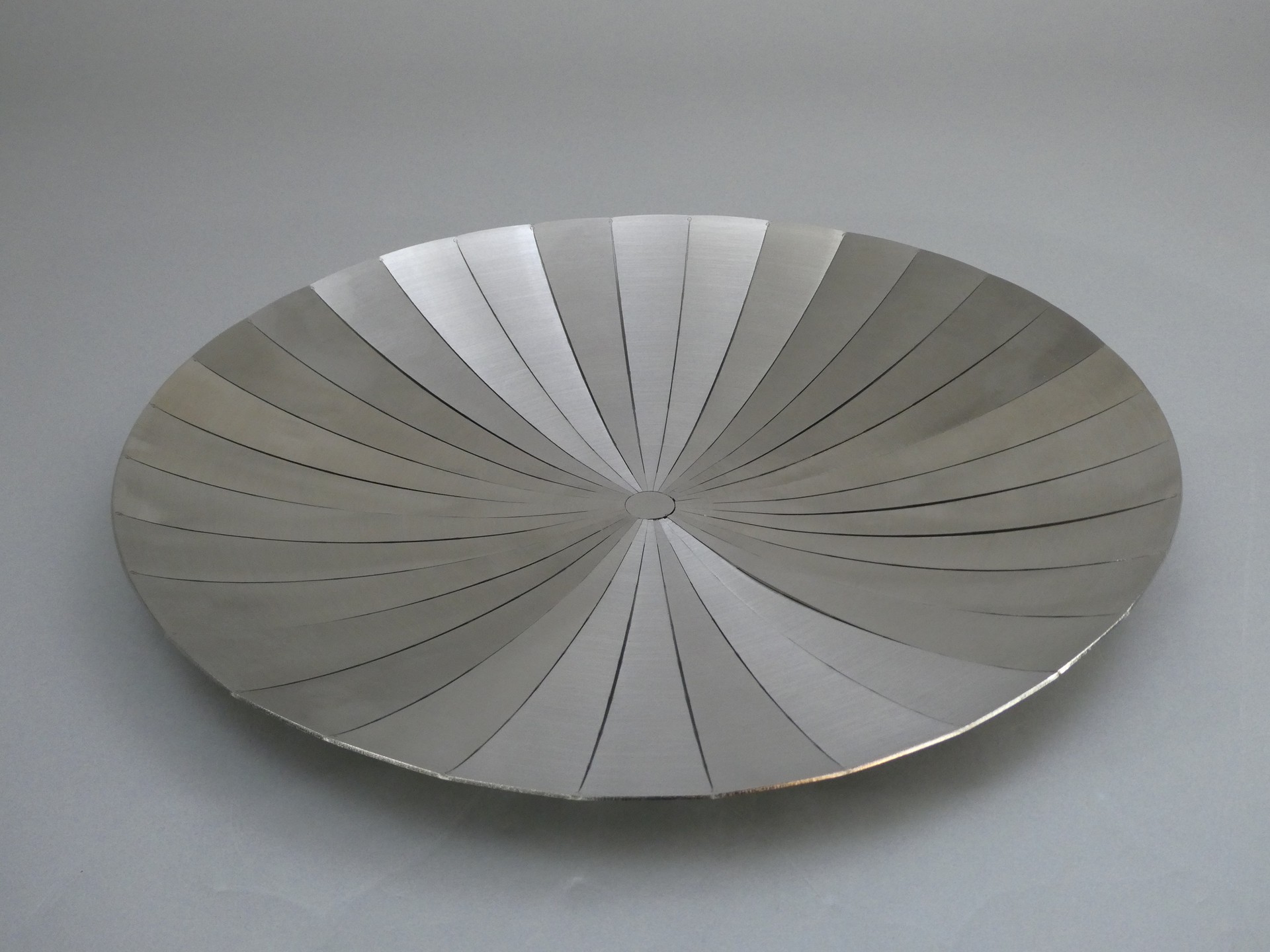

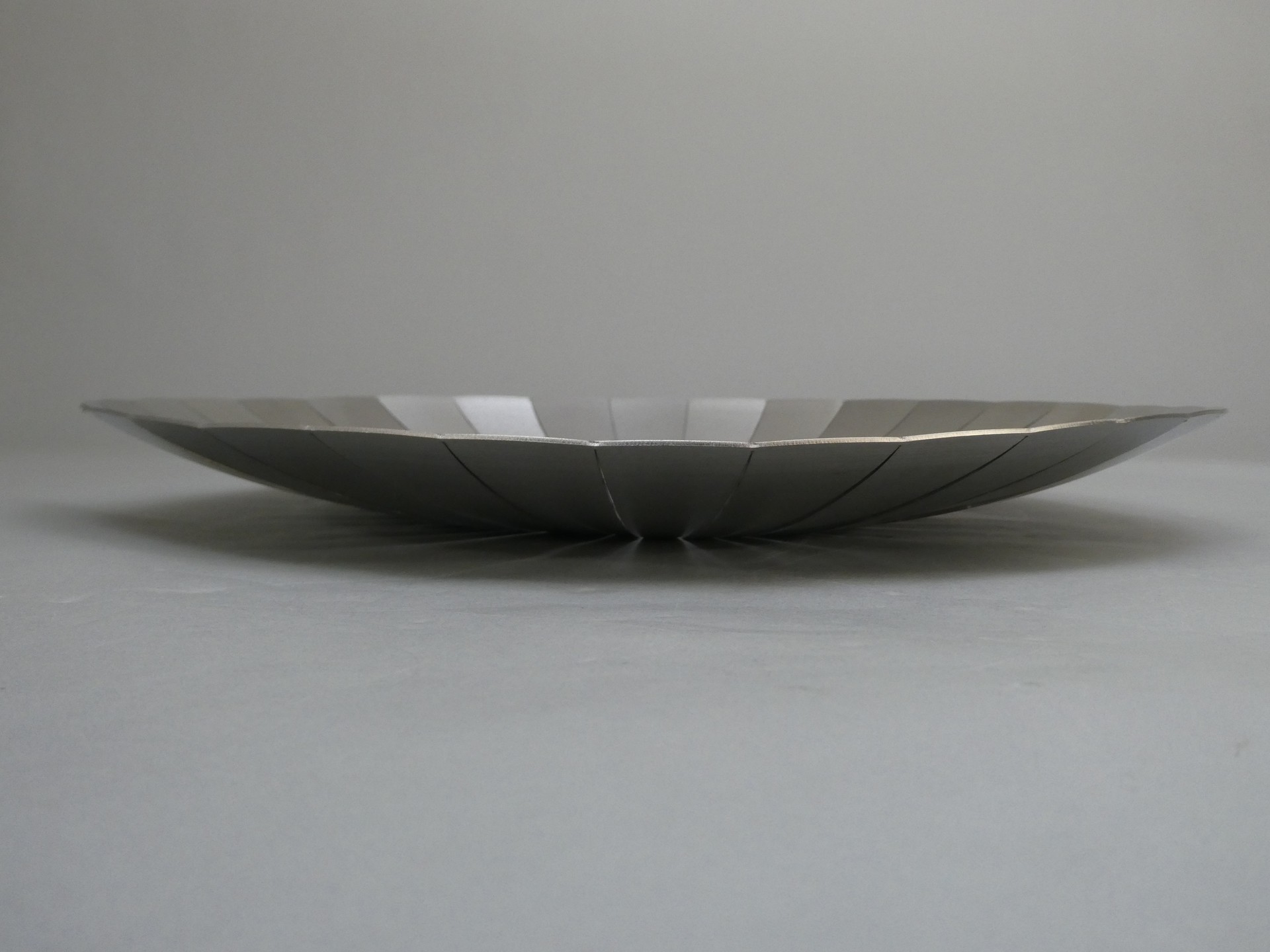

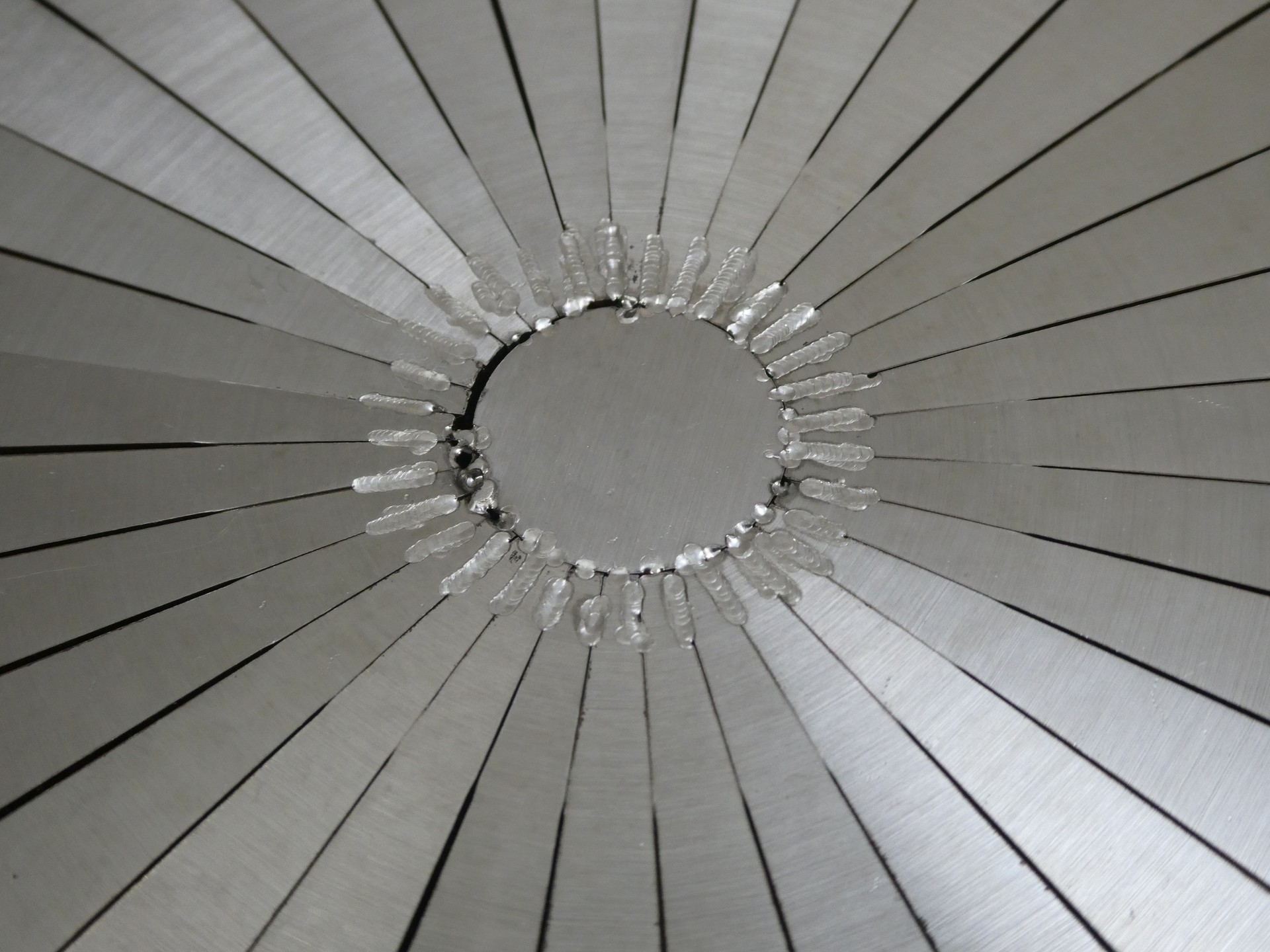

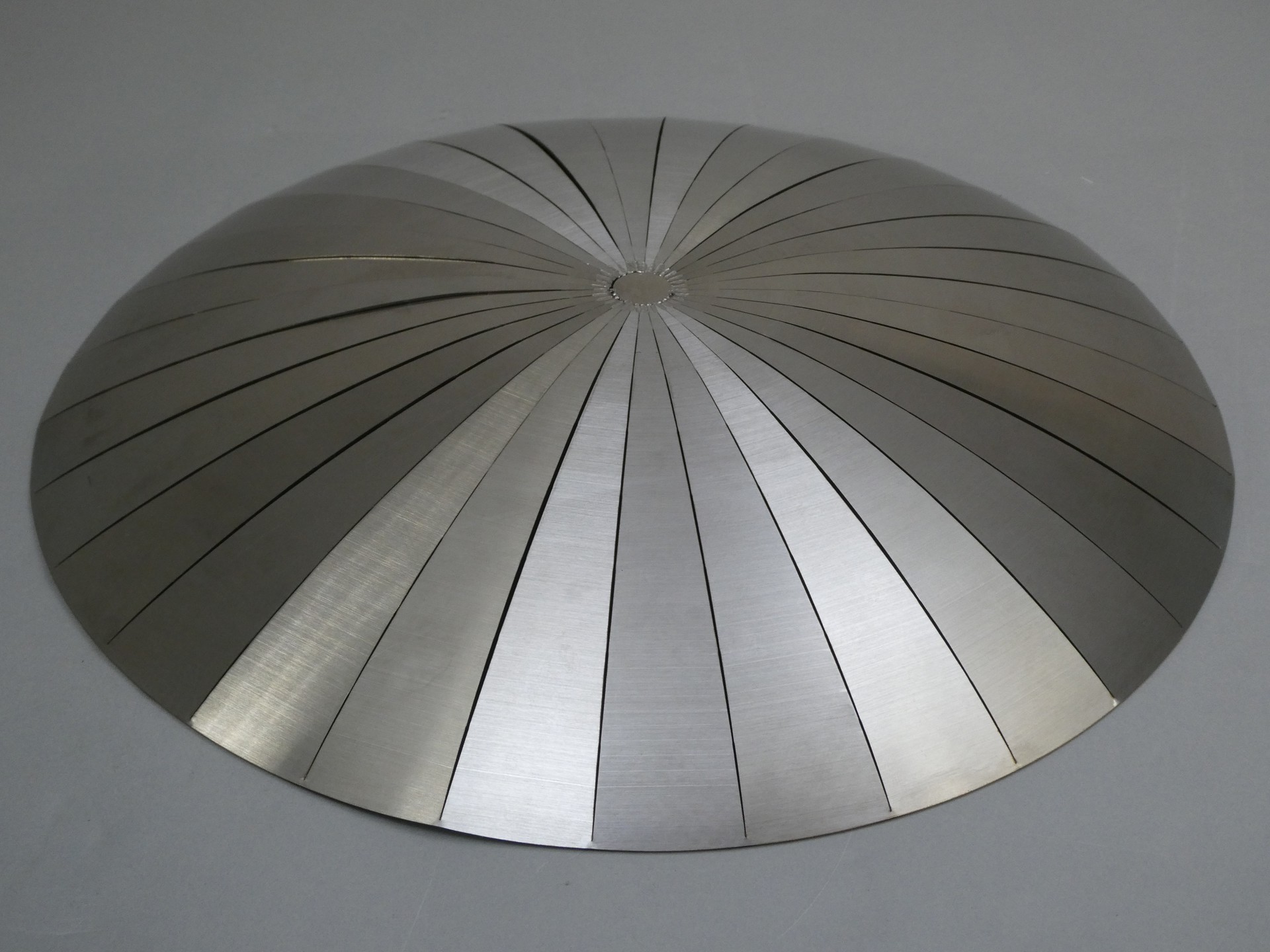

Bonfire plate (Parts035)
Parts035
Technical Award
Special Encouragement Award
Bonfire plate
山口金属曲板工業 株式会社 (Yamaguchi Pref. Japan)
-
・Size: W400 x D400 x H50 mm
-
・Accuracy: ± 1 mm
-
・Programming time: 5 min
-
・Processing time: 5 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.5 mm
-
・Type: Original work
Process
2D/3D Design
CAD/CAM
Punch & Laser
Bending
Welding
Strengths
市販されている円形の焚き火台を好きな大きさで曲げられないかなと作成しました。
円の直径とR面の長さが異なることで、突合せ部の角度の合計が360°になるように、どの部分を調整するかを考えました。
