Sheet Metal Processing

EM-ZR Series

Fully automatic punching solution machine

Fusion original technologies to achieve processing with high speed, productivity and grade

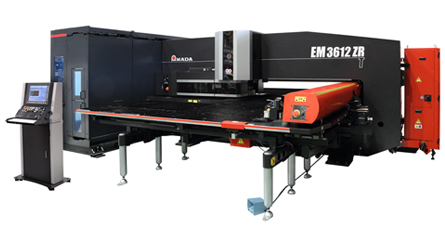

EM-ZR Series

The EM-ZR series comes with the world's unparalleled drive system, or AC servo direct twin drive, and the ZR turret, a major innovation since the development of AMADA's first numerically controlled turret punch press (NCT).

Parts can be produced not only with high speed and productivity but also with less scratches.

Further with ID tools and elimination of processing limits, the EM-ZR series can perform high-mix low-volume production continuously over 72 hours.

■ Features(1) : High quality and high speed processing
High speed processing with scratch-free bottom surfaces ZR turret and completely flat table
Easy programming No track dead zones, free tool location
■ Features(2) : Stable high quality processing
Prevention of tool setup mistakes ID tools
Stabilization of high quality processing Tool condition management
Elimination of shimming time Automatic die height adjustment
■ Features(3) : Automation of tool setup
Easy creation of nesting data High tool storage capacity
Reduction of machine downtime Automatic tool changing system

Processing scene YouTube movies

Processing samples

Material: Galvalume steel / Thickness: 1.6 mm




Press capacity

Maximum processing size

Hit rate
(25mm pitch/5mm stroke)

Punching accuracy


EM-3510ZR T





36(2AI, 4MPT)

32(4AI, 4MPT)
*W/ Range E

32(4AI, 4MPT)
*W/o Range E

EM-3510ZR B

EM-3612ZR T


EM-3612ZR B

*EM-ZR T: Tool storage specification

*EM-ZR B: Buffer turret specification

*Punching accuracy is based on our data.

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
