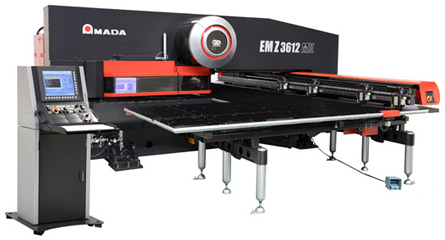

EM-MⅡ Series
New AC servo direct twin drive NCT
Further evolution of best seller machine. Setup time reduction and process integration.
New technologies are added to the EM-NT series with the world's unparalleled AC servo direct twin drive system. The result is faster, more productive, and higher-grade sheet metal fabrication.
An ID tool system and an MPT tapping unit are installed to drastically reduce the setup time and achieve blanking process integration.
- ■ Features(1) : Achievement of stable high speed processing
- Tough and stiff frame structure Highly rigid bridge frame
- Punching of 5' by 10' sheets without repositioning (EM-2612MⅡ,EMZ-3612MⅡ and EMK-3612MⅡ)
- ■ Features(2) : Achievement of high quality processing constantly
- Tool by digital management ID tools
- Prevention of tool installation errors ID Monitor
- ■ Features(3) : Achievement of process integration
- High speed and high productivity Tapping
- Secondary operations are remarkably being efficient. High speed marking
- Deburring work can be done automatically at high speed. High speed deburring
Processing scene YouTube movies
Material: SECC / Thickness: 1.0mm
[ Please click here for more detailed video of the EM-MⅡ series. (You Tube) ]
Processing samples
Material: SECC / Thickness: 1.0mm
Specifications
| Press capacity |
Maximum |
Hit rate |
Punching accuracy |
Turret |
|
|---|---|---|---|---|---|
| EM-2510MⅡ |
200 |
2500×1270 |
515 |
±0.1 |
Turret with upper and lower disks of same diameter |
| EM-2612MⅡ |
3050×1525 |
||||
| EMZ-3510MⅡ |
300 |
2500×1270 |
500 |
EMZ (Z turret): |
|
| EMK-3510MⅡ |
|||||
| EMZ-3612MⅡ |
3050×1525 |
||||
| EMK-3612MⅡ |
*Punching accuracy is based on our data.
*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
