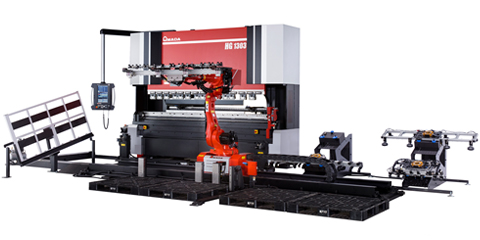

HG-1303Rm
Bending robot system for bending ribbed parts and long parts
Simple operation, and secure, safe and stable bending with a single robot.
Bending robot system for bending complex rib and panel shapes.
The HG-1303Rm has adopted the high-end press brake HG-1303, equipped with a new hybrid drive system and capable of step bend layout.
Material loading, material handling during bending, and part unloading are all performed by a single 7-axis articulated robot capable of various motions. The HG-1303Rm system can bend ribbed-parts and panels without setups and can run for long hours.
- ■ Features(1) : Simple operation with a single robot
- A 7-axis articulated robot (six axes of motion plus one travel axis) is adopted for loading, unloading, positioning and bending workpieces to expand the bending range.
- ■ Features(2) : Expansion of bending range
- The gripper is automatically changed to suit the parts to be bent.
- An automatic gripper changer (AGC) that can store up to four types of grippers is installed as standard.
- ■ Features(3) : Angle sensor
- The angle sensor Bi-S is installed to support angle correction during robotic bending.
Processing scene YouTube movies
Processing samples
Specifications
Capacity |
Maximum workpiece size |
Minimum workpiece size |
Payload |
|
|---|---|---|---|---|
HG-1303Rm |
1300 |
1250×2500 |
100×500 |
80 (with gripper) |
*This product is for the Japanese market.
For any inquires, please contact local AMADA branch office.
