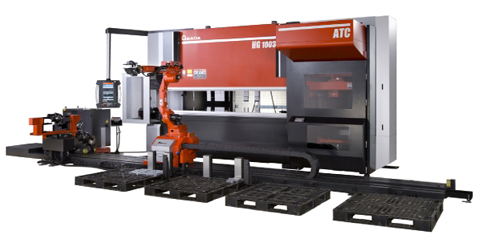

HG-1003ARs
High accuracy bending robot system
Adaptation to variable-mix variable-volume production of various-shaped parts. The processing time is reduced by automatic setup and the processing range of complex parts is expanded.
The HG-1003ARs has adopted a high-end press brake, dubbed HG-ATC and equipped with a new hybrid drive system and a tool changer enabling automatic setup for step bend layout. Material loading, material handling during bending, and part unloading are all performed by a single 7-axis articulated robot capable of various motions.
The HG-1003ARs system can bend complex-shaped parts without setups and can run for long hours.
- ■ Features(1) : 7-axis articulated robot
- A 7-axis articulated robot is adopted for singly performing all of material loading, material handling during bending, and part unloading.
- ■ Features(2) : Applications to suit various shapes
- Automatic gripper changer (AGC)
Can store a total of nine combination-type and vacuum-type grippers. - ■ Features(3) : Angle sensor
- The angle sensor Bi-S is installed to support angle correction without test bending from the first part.
Processing scene YouTube movies
Processing samples
Specifications
Capacity |
Maximum |
Minimum |
Payload,kg |
Automatic tool changer |
|
|---|---|---|---|---|---|
HG-1003ARs |
1000 |
1000×800 |
150×150 |
20 |
Number of die stockers : 18 |
*This product is for the Japanese market.
For any inquires, please contact local AMADA branch office.
