Sheet Metal Processing

HG-1003ATC

Press brake for extremely high-mix, small-batch production

Automation of tool setup and angle accuracy adjustment by batch tool layout for multiple part types

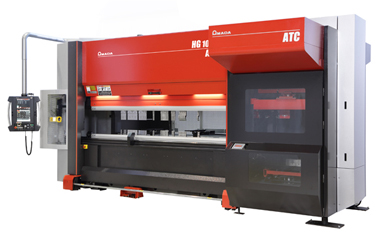

HG-1003ATC

Hybrid press brake with the next-generation ATC.

An automatic tool changer (ATC) is added to the hybrid digital press brake HG with a new mechanism.

Tool changes are automated to accommodate high-mix low-volume production.

■ Features(1) : Process intelligence
The screen is designed for intuitive operation like a smartphone screen and allows for fast entry.
■ Features(2) : Automatic tool changer (ATC)
Tool changes that require skills are automated.
Many different too types can be stored to cover a wide range of bending requirements.
■ Features(3) : High-speed and high-accuracy bending of thin to thick materials
New hybrid drive system / Hydraulic crowning system
New backgauge system
Angle sensor
Thickness detection system (TDS)

Processing scene YouTube movies

Processing samples

Material : SECC
Thickness : 1.0mm, 3.2mm

Sample 1

Specifications



Capacity
(kN)

Bending length
(mm)

Stroke length
(mm)

Ram feed rate
(mm/s)

Automatic tool changer

HG-1003ATC

1000

3110

250

Approach : 220
Bending : 20
Return : 250

Number of die stockers : 18
Number of punch stockers : 15

*This product is for the Japanese market.
For any inquires, please contact local AMADA branch office.
