35th Precision Sheet Metal Technology Fair

Welding fabrication (23 entries)

360° Viewer

Welding319

Amada Award

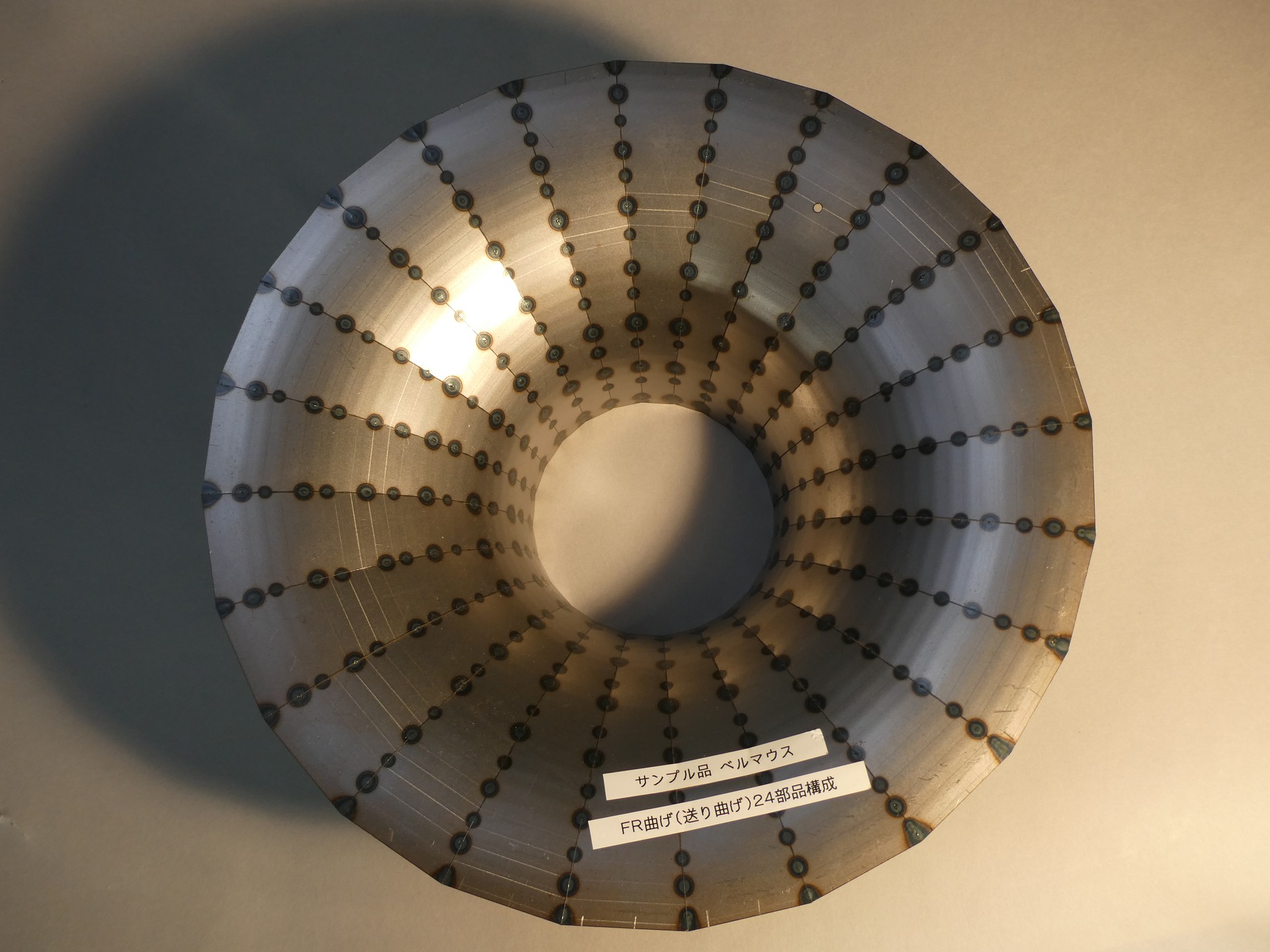

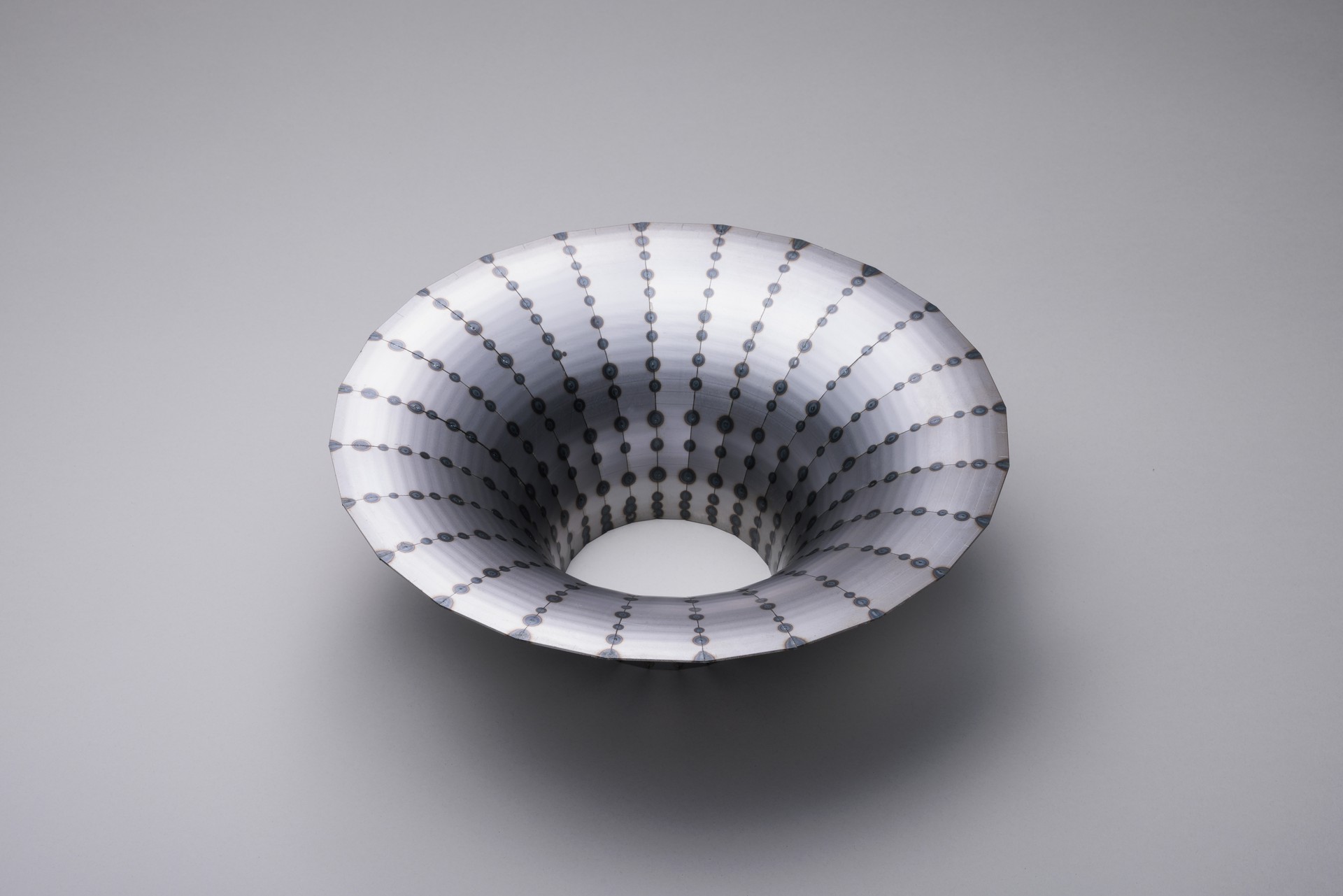

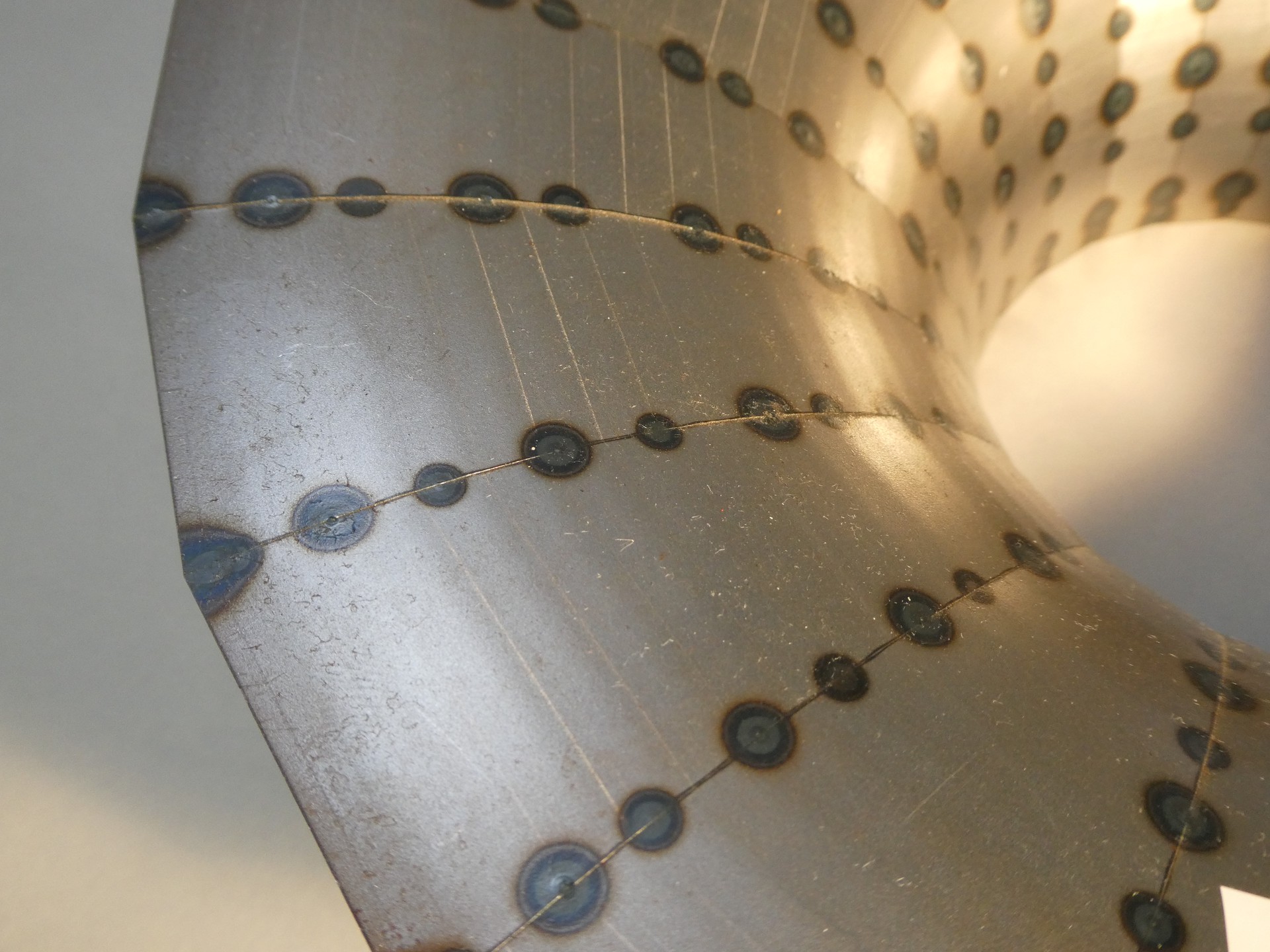

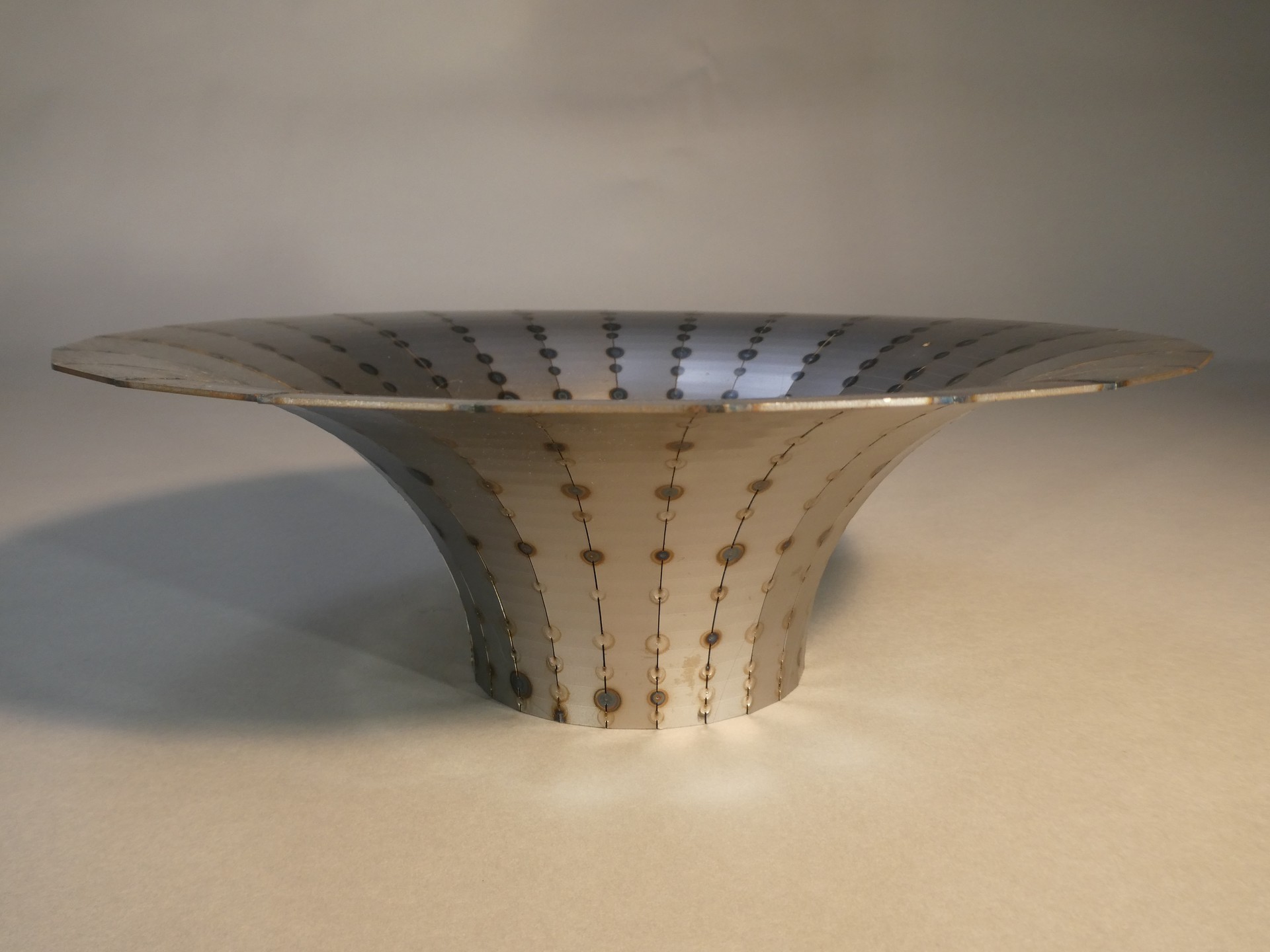

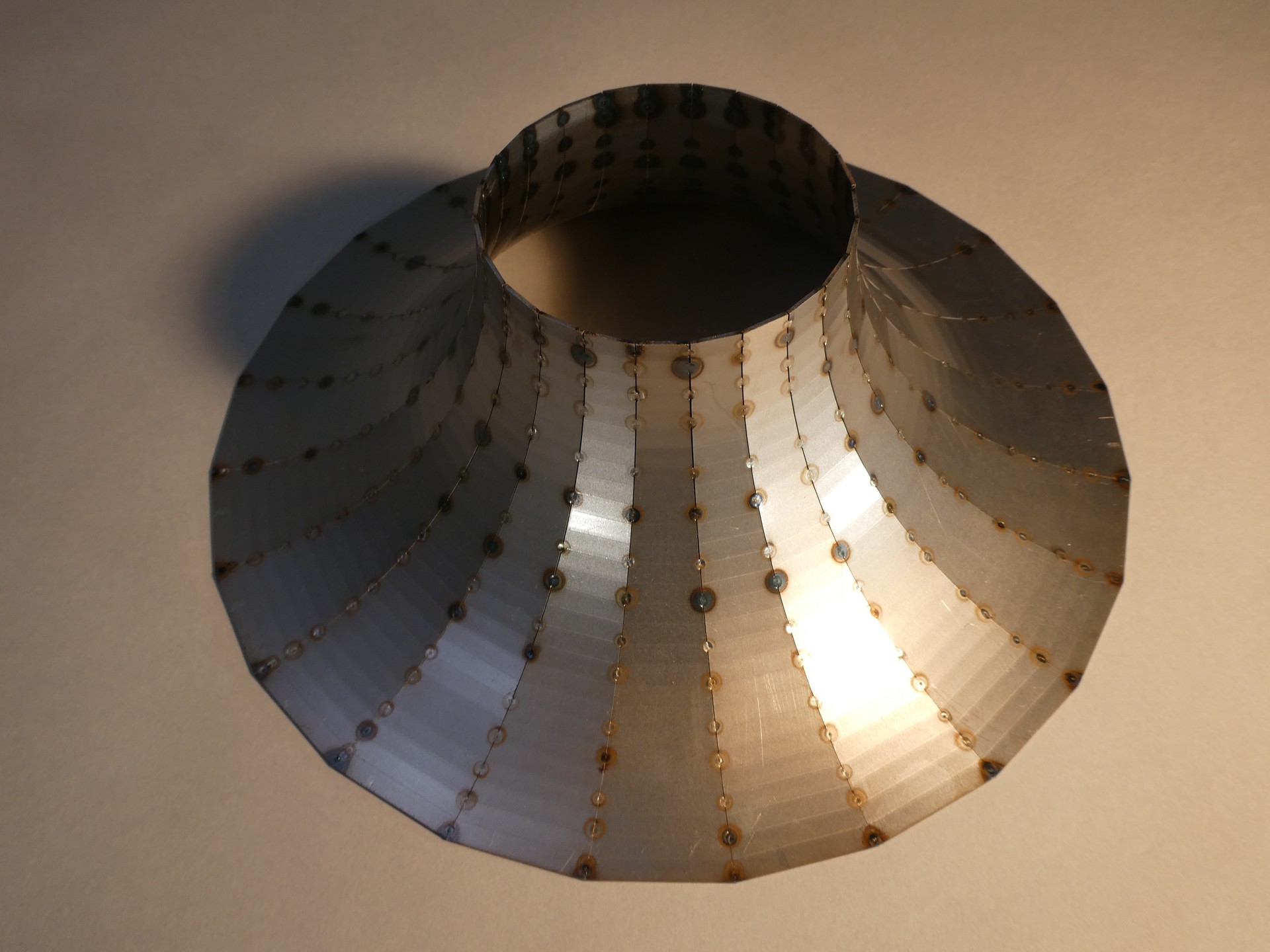

Bell mouth

Kameyama Iron Works. (Gifu Pref. Japan)

  • ・Size: W300 x D300 x H100 mm

  • ・Accuracy: ± 0.3 mm

  • ・Programming time: - min

  • ・Processing time: 60 min/quantity

  • ・Quantity: 1

  • ・Material: Mild Steel (SPCC)

  • ・Thickness: 1.2 mm

  • ・Type: Original work

Process

  • 2D/3D Design

  • Unfolding

  • Programming

  • Laser-Cutting

  • Programming

  • Bending

  • Welding

Strengths

● 648面構成（24部品X27面）を3Dモデル技術と板金技術を融合し製作

● シートワークスと3iBENDを使用して製作事前検証
