Divided Brush (Parts042)
Parts042
Technical Encouragement Award

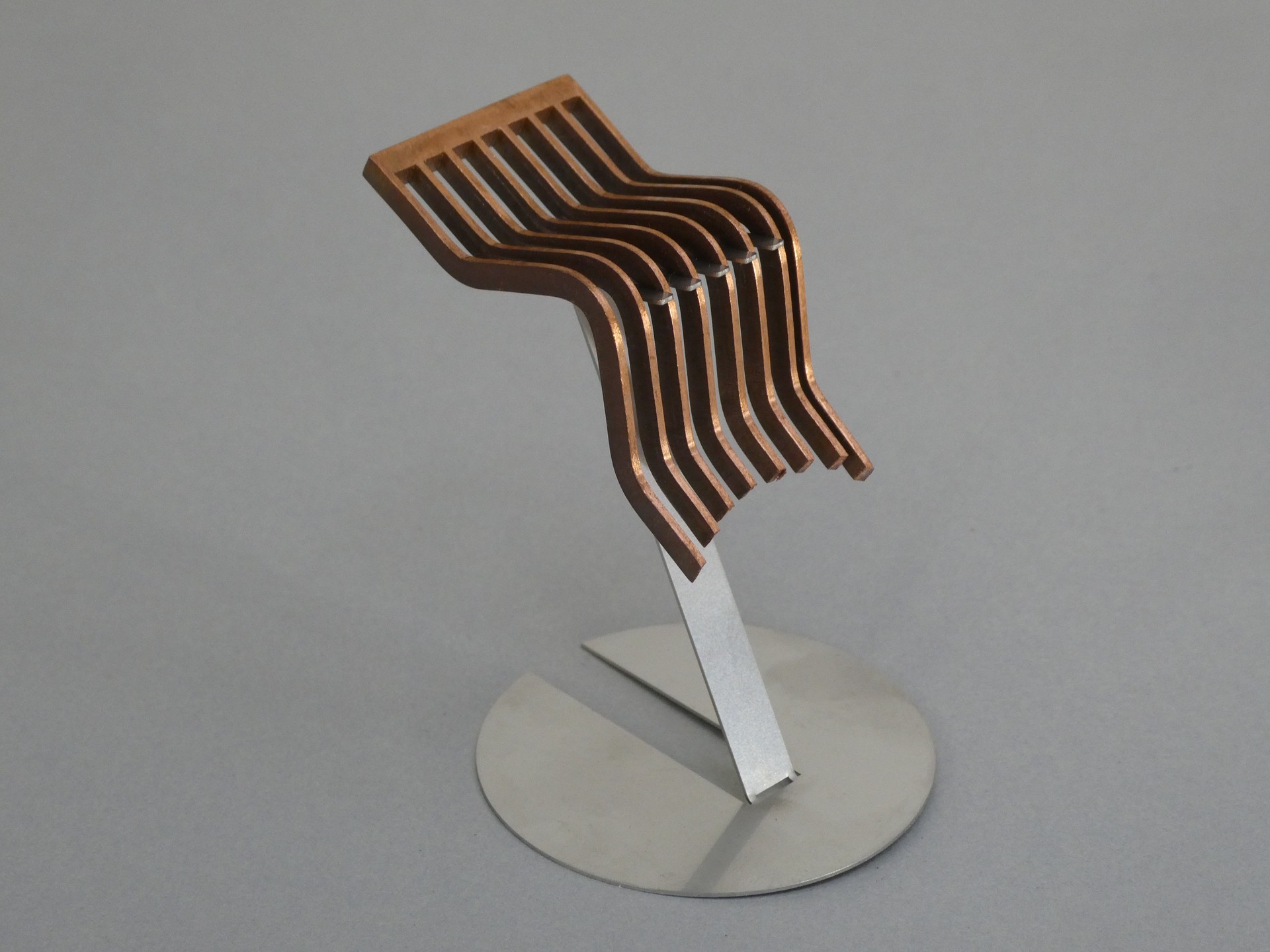

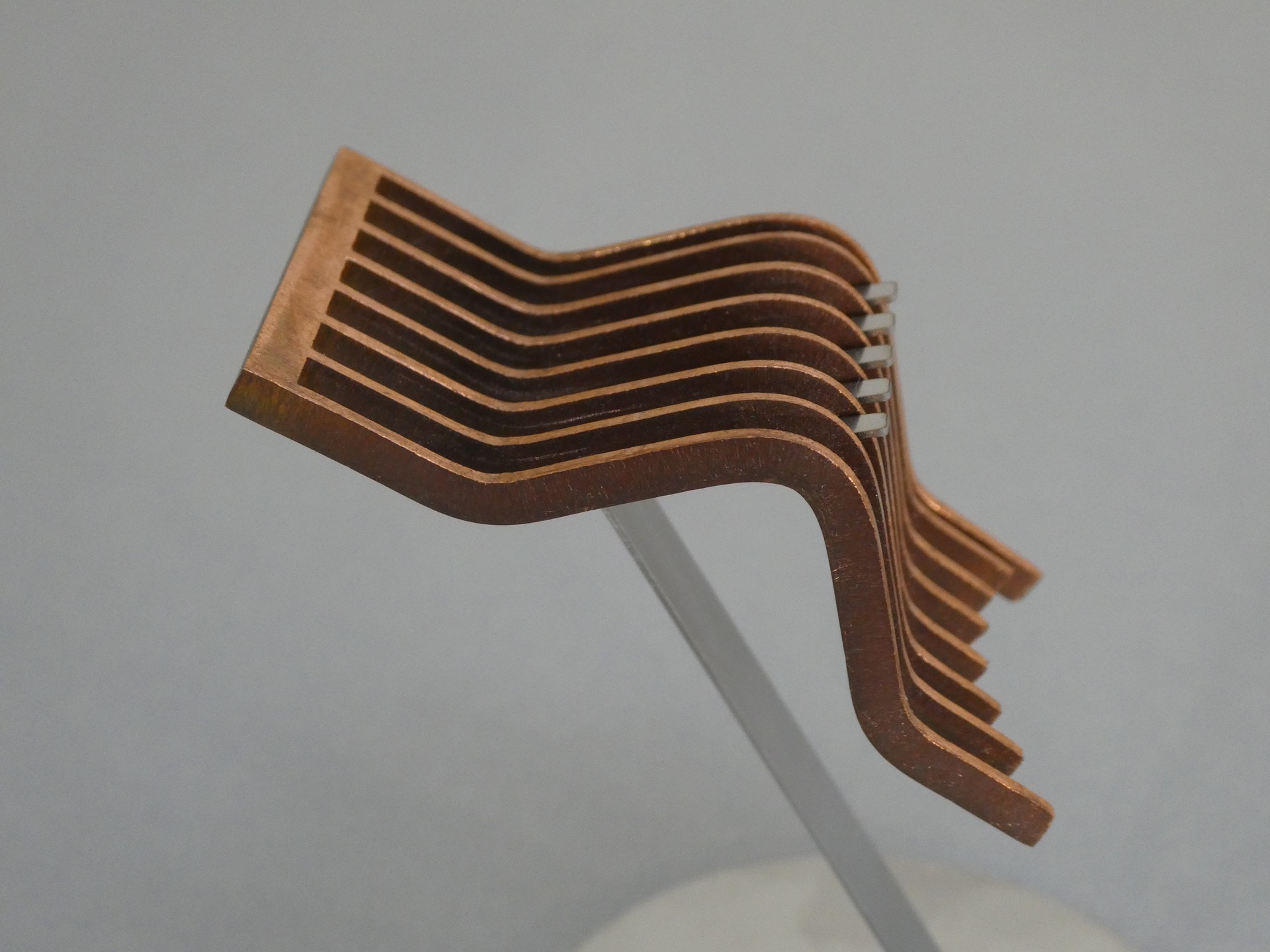

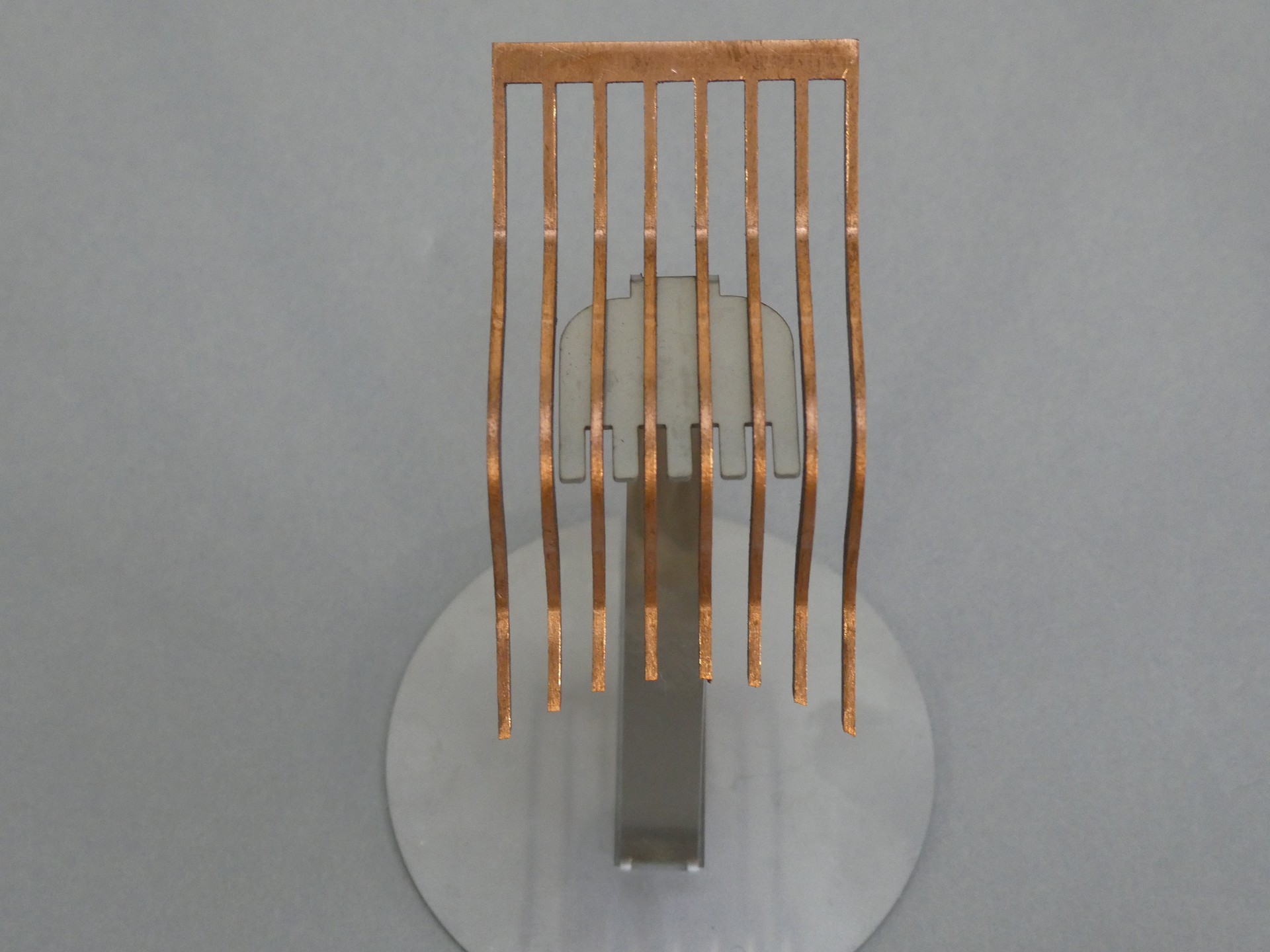

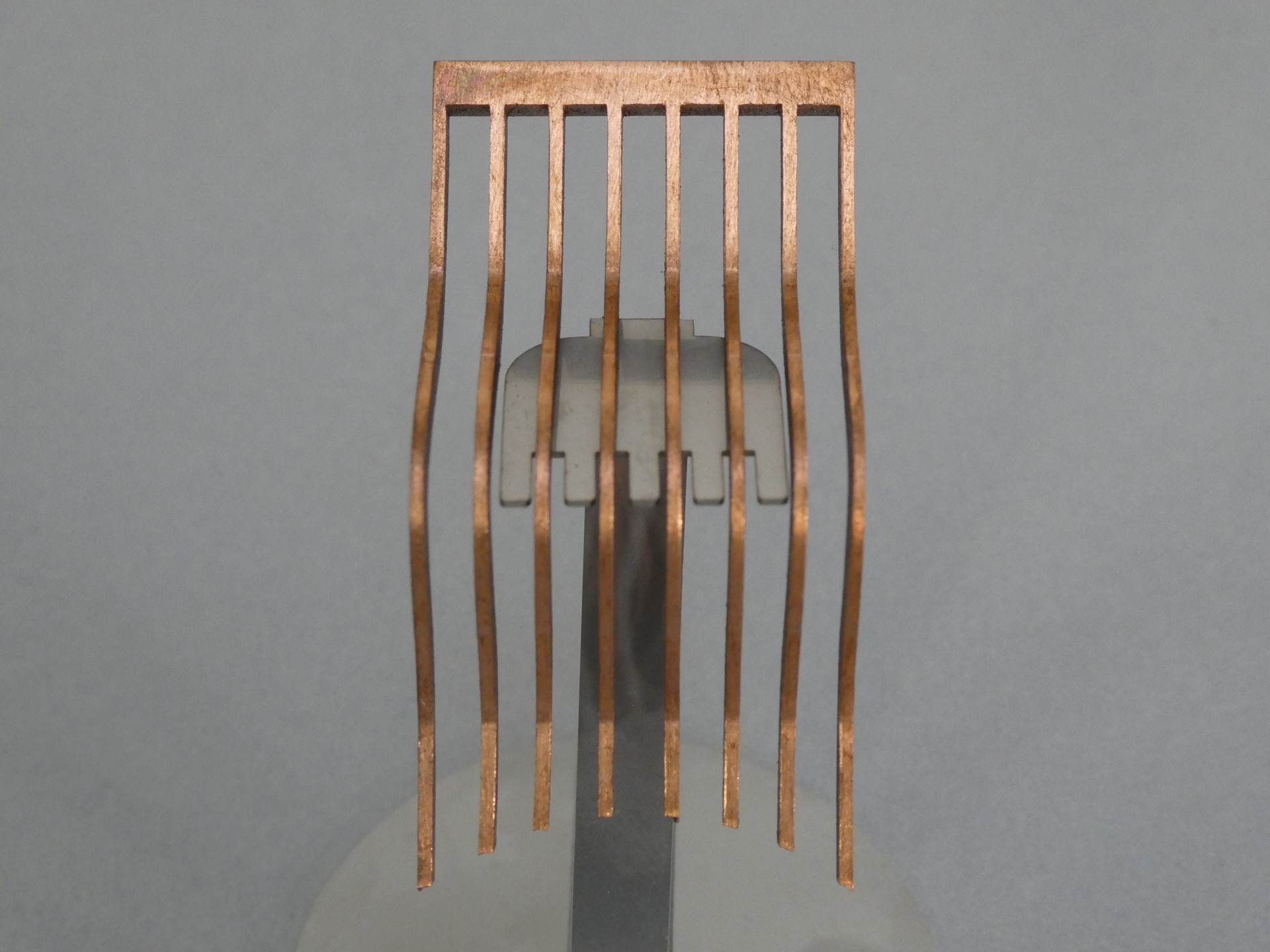

Divided Brush
Tanaka Electric Industry (Osaka Pref. Japan)
-

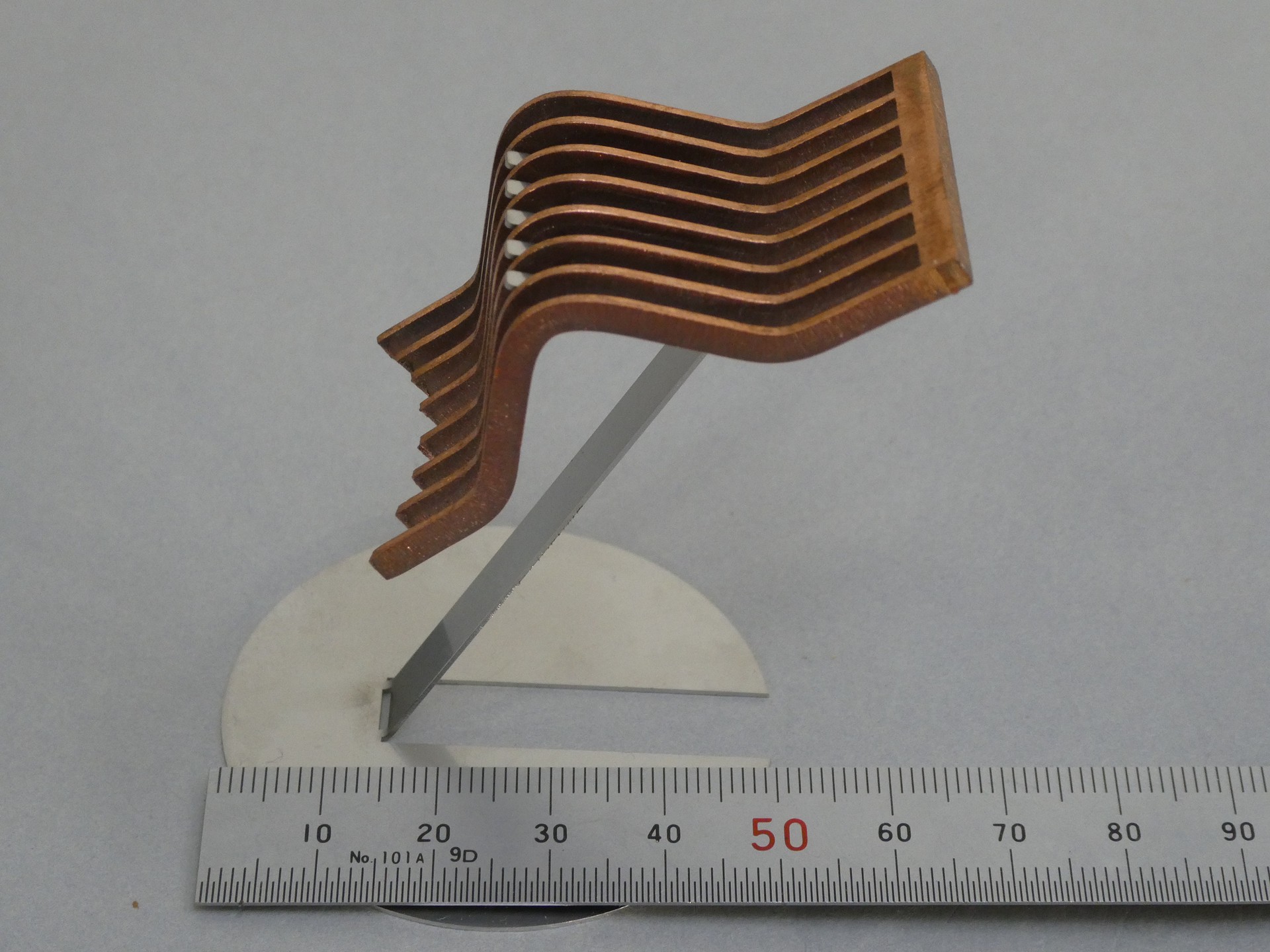

・Size: W51 x D28 x H16 mm
-
・Accuracy: ± 0.2 mm
-
・Programming time: 48 min
-
・Processing time: 54 min/quantity
-
・Quantity: 2
-
・Material: Copper (C1100)
-
・Thickness: 3.0 mm
-
・Type: Prototype
Process
2D/3D Design
Programming
Laser-Cutting
Bending
Strengths
■板厚の1/3のフランジ幅の曲げ加工
・ 通常では切削加工やワイヤー放電加工となる製品を板金加工品としてとらえ、V曲げエアベンド加工にて再現しました。
・ 板厚3㎜に対して曲げ部分の幅は1/3の1㎜しかない為、通常の曲げ加工を行うと変形や片側に倒れたりと、安定させる事が非常に難しい形状。
・ レーザーの特性や曲げ加工の独自技術を駆使して難加工形状を実現しました。
