35th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (68 entries)

360° Viewer

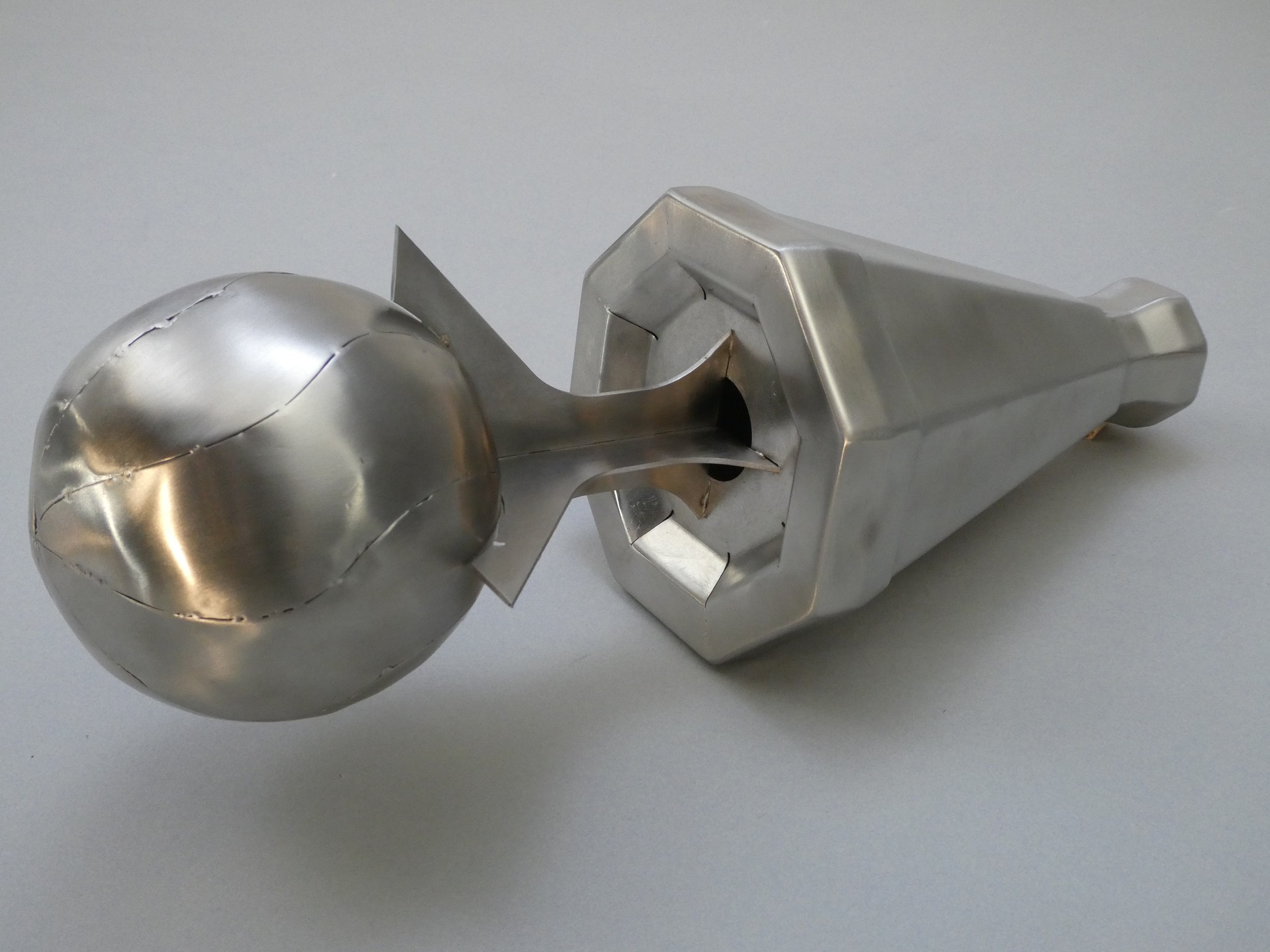

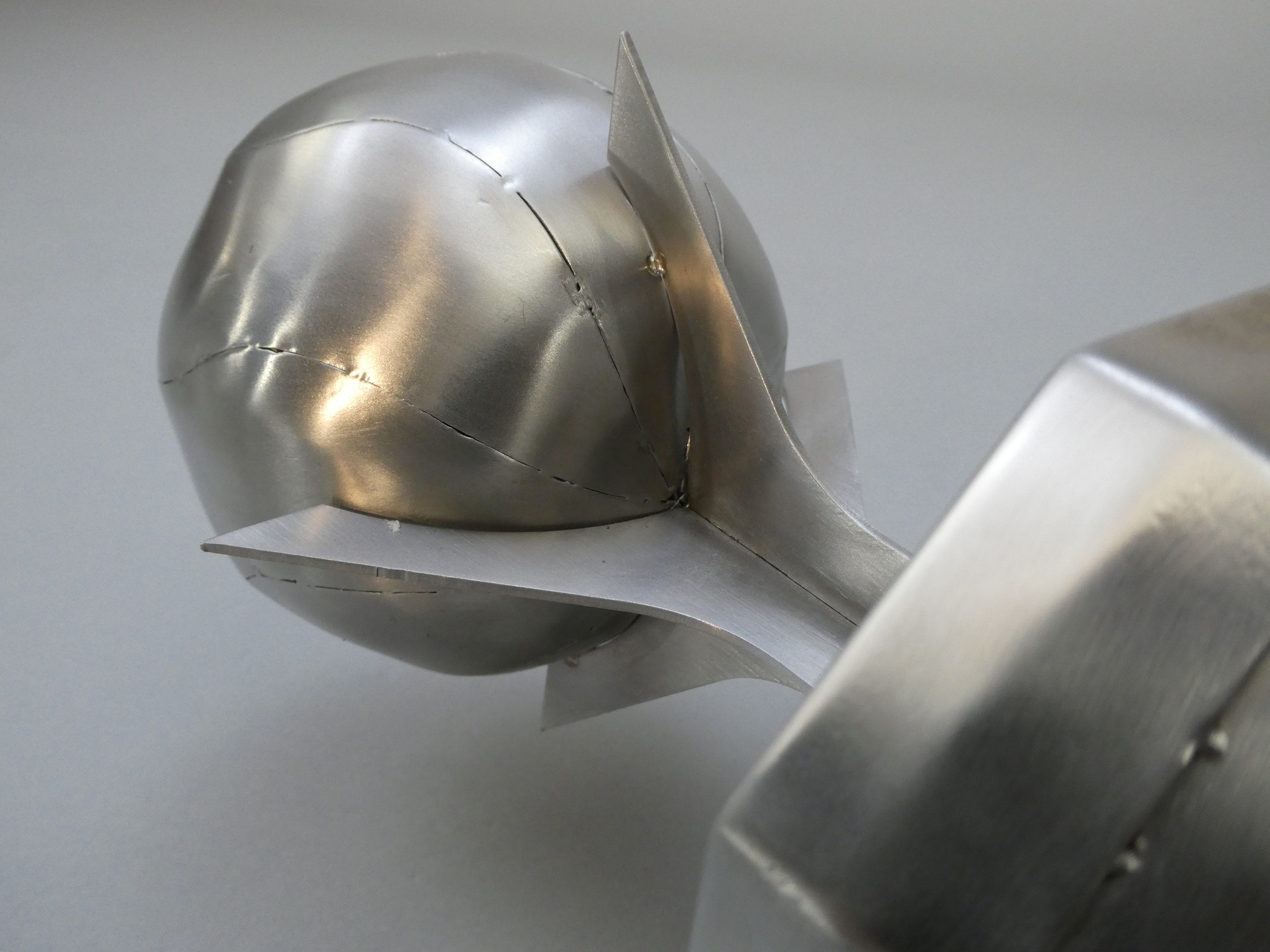

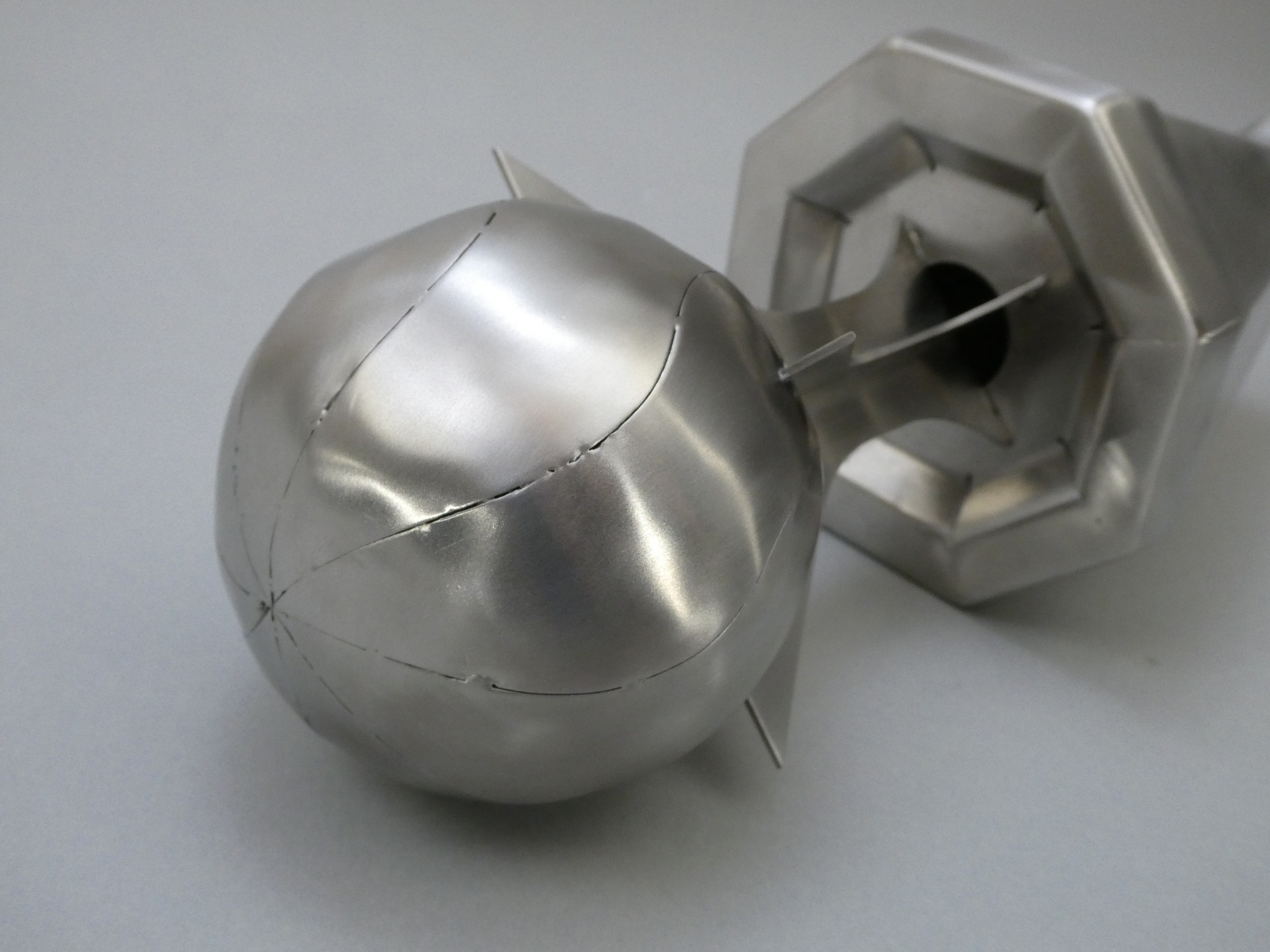

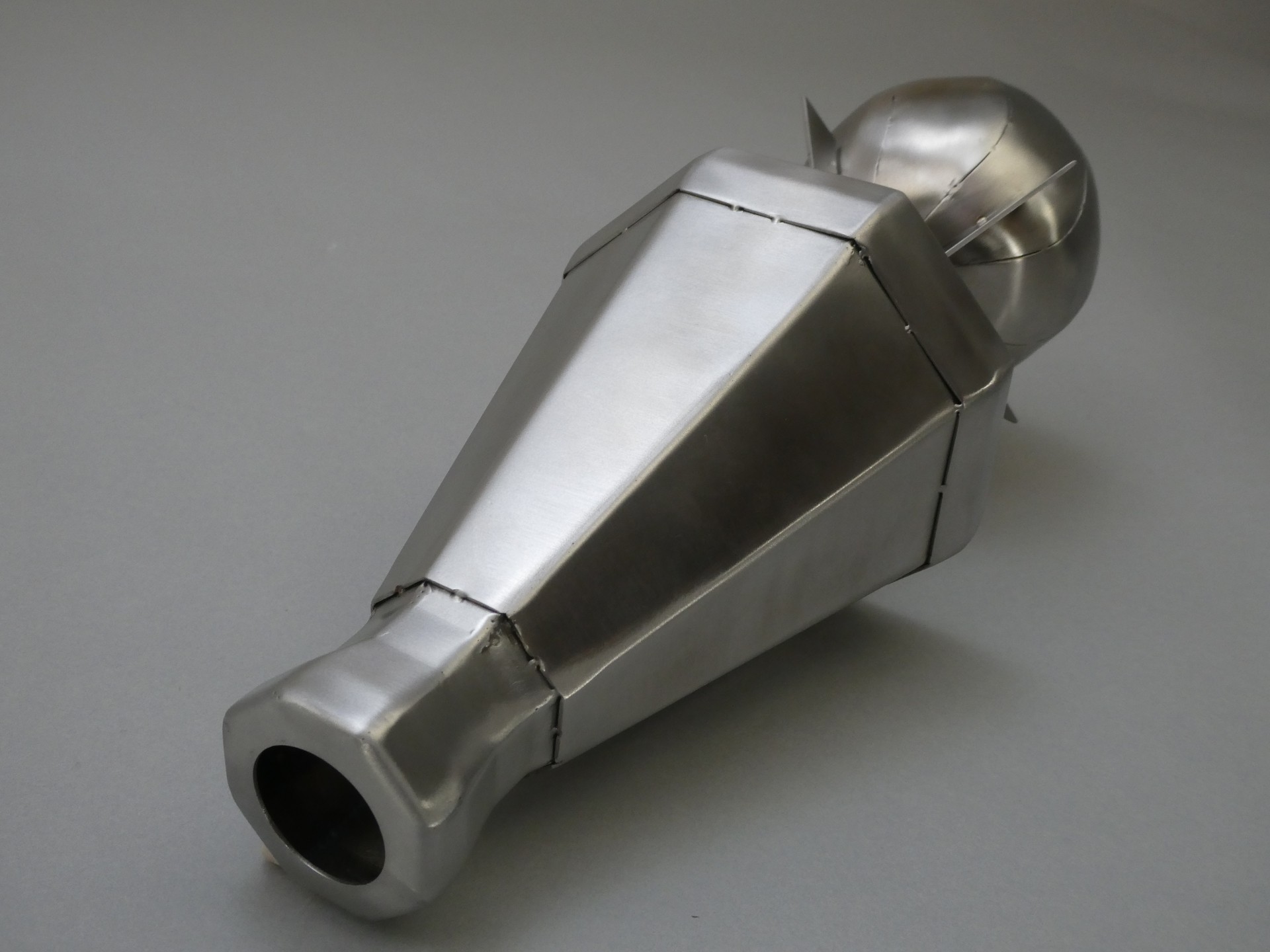

Assemble210

Technical Encouragement Award

Endeavor Trophy

BAN SENG LEE INDUSTRIES SDN. BHD. (Malaysia)

  • ・Size: W110 x D110 x H312 mm

  • ・Accuracy: ± 0.3 mm

  • ・Programming time: 180 min

  • ・Processing time: 90 min/quantity

  • ・Quantity: 1

  • ・Material: Stainless Steel（SS）

  • ・Thickness: 1.0 mm

  • ・Type: Prototype

Process

  • CAD/CAM

  • Blanking

  • Bending

  • Assembly/Welding

  • Finishing

Strengths

Unfold drawing of the prototype is created by AP100LE software, with the excellent assistance of the K-factor, Bend Reduction Calculation and other bending aided functions, the art-piece is able to bend accurately and complete a proper assembly.

（to Technical point...）
