Triple rubber band gun (Assemble209)
Assemble209
Technical Encouragement Award

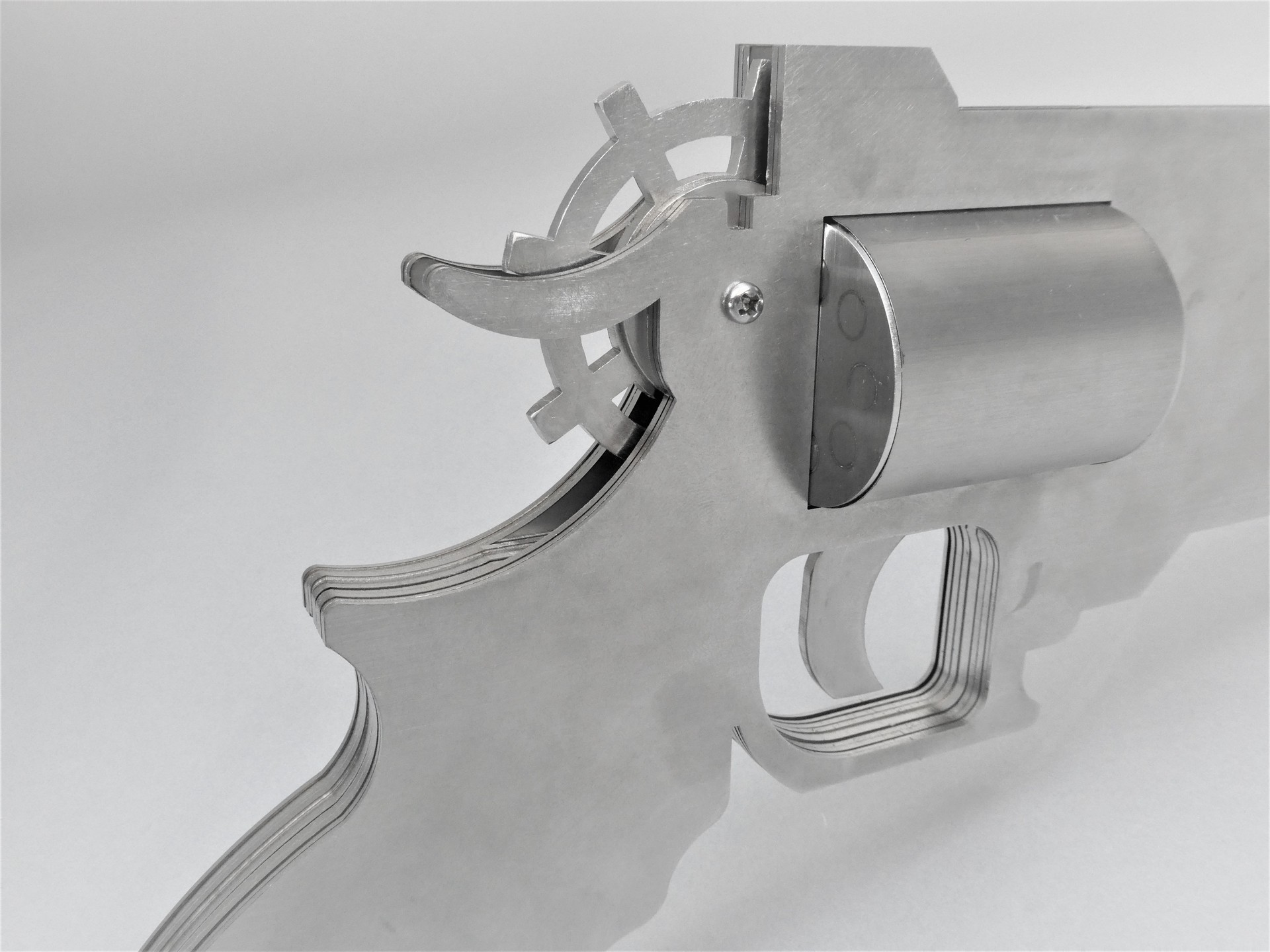

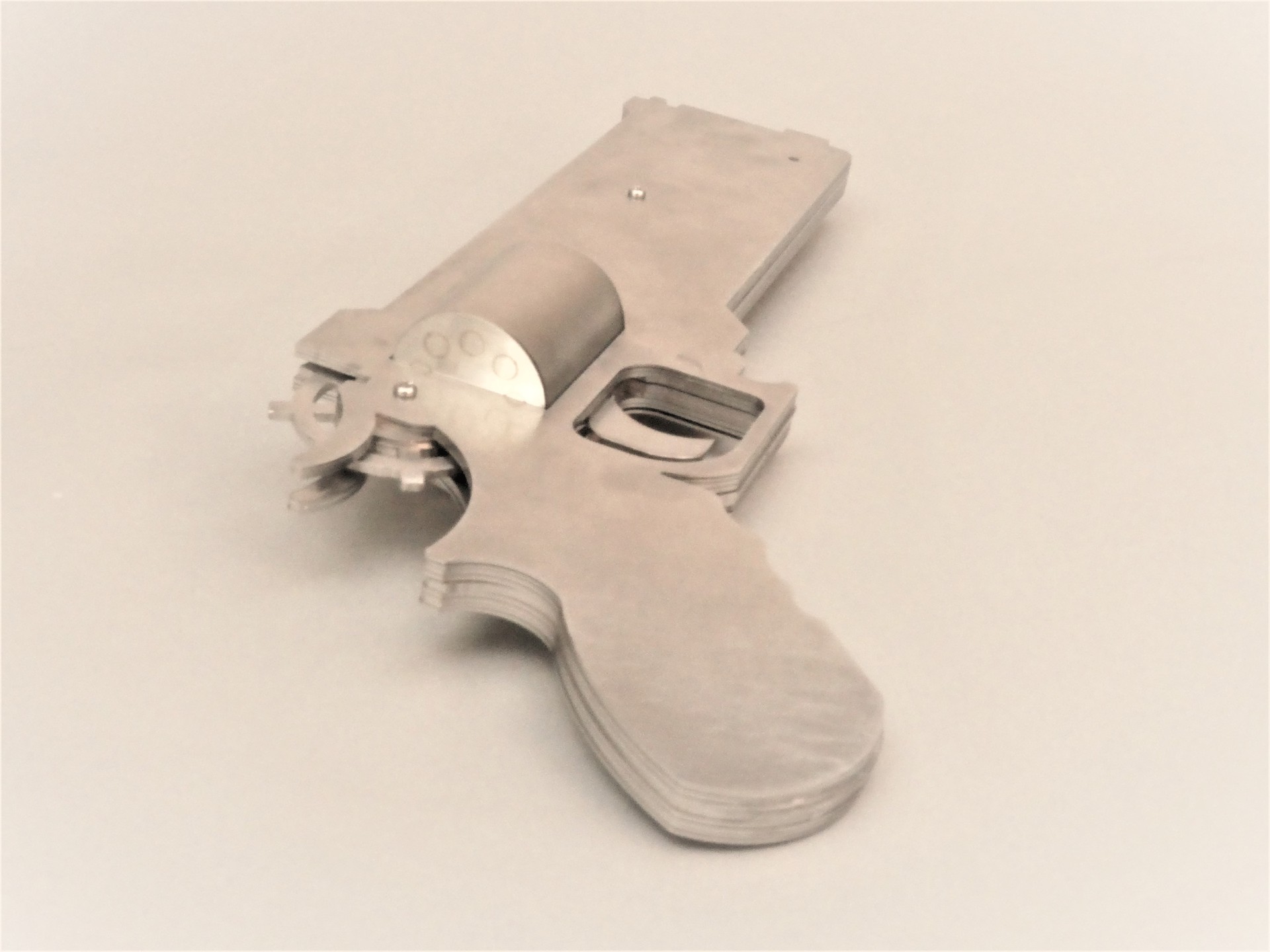

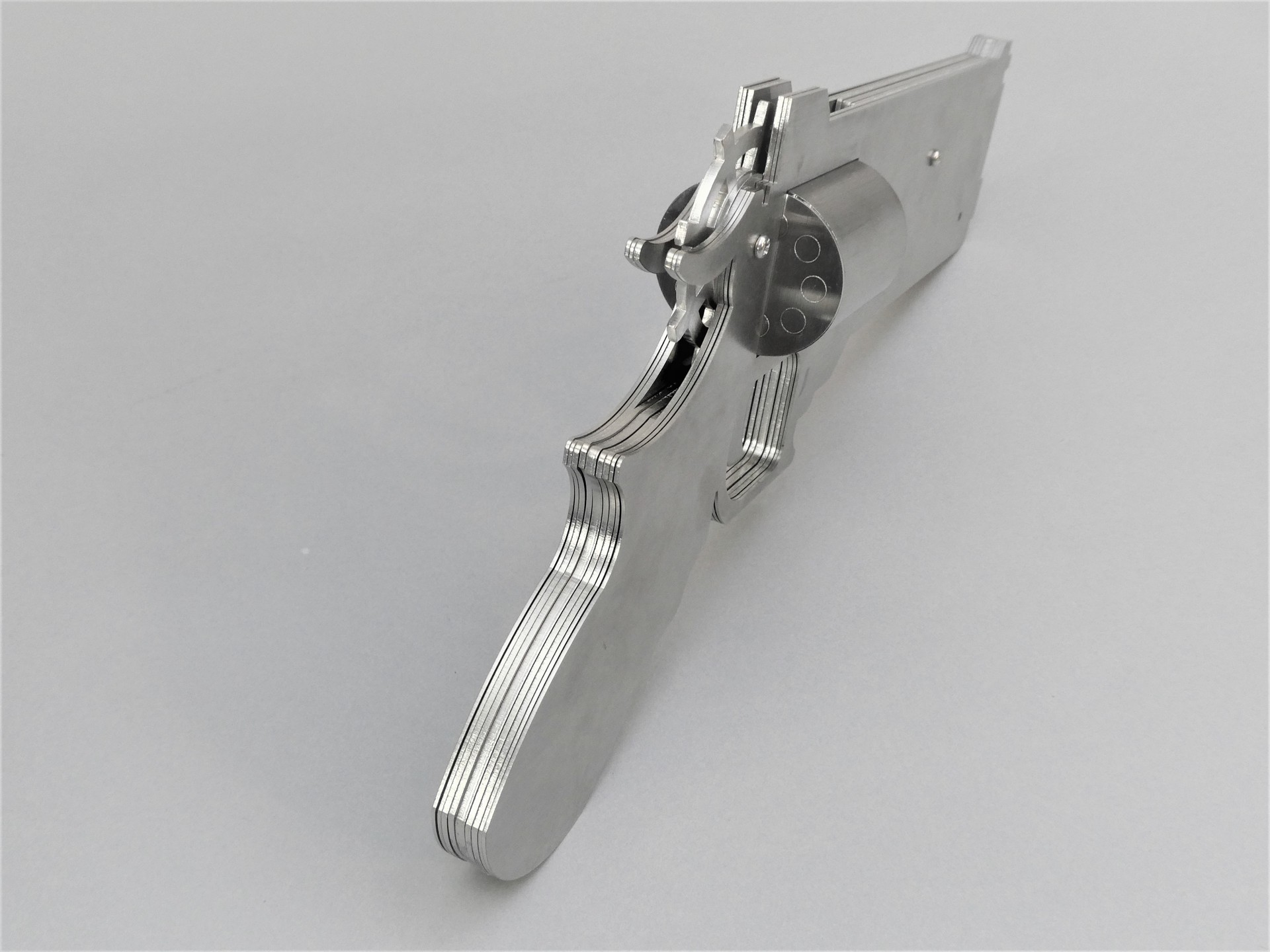

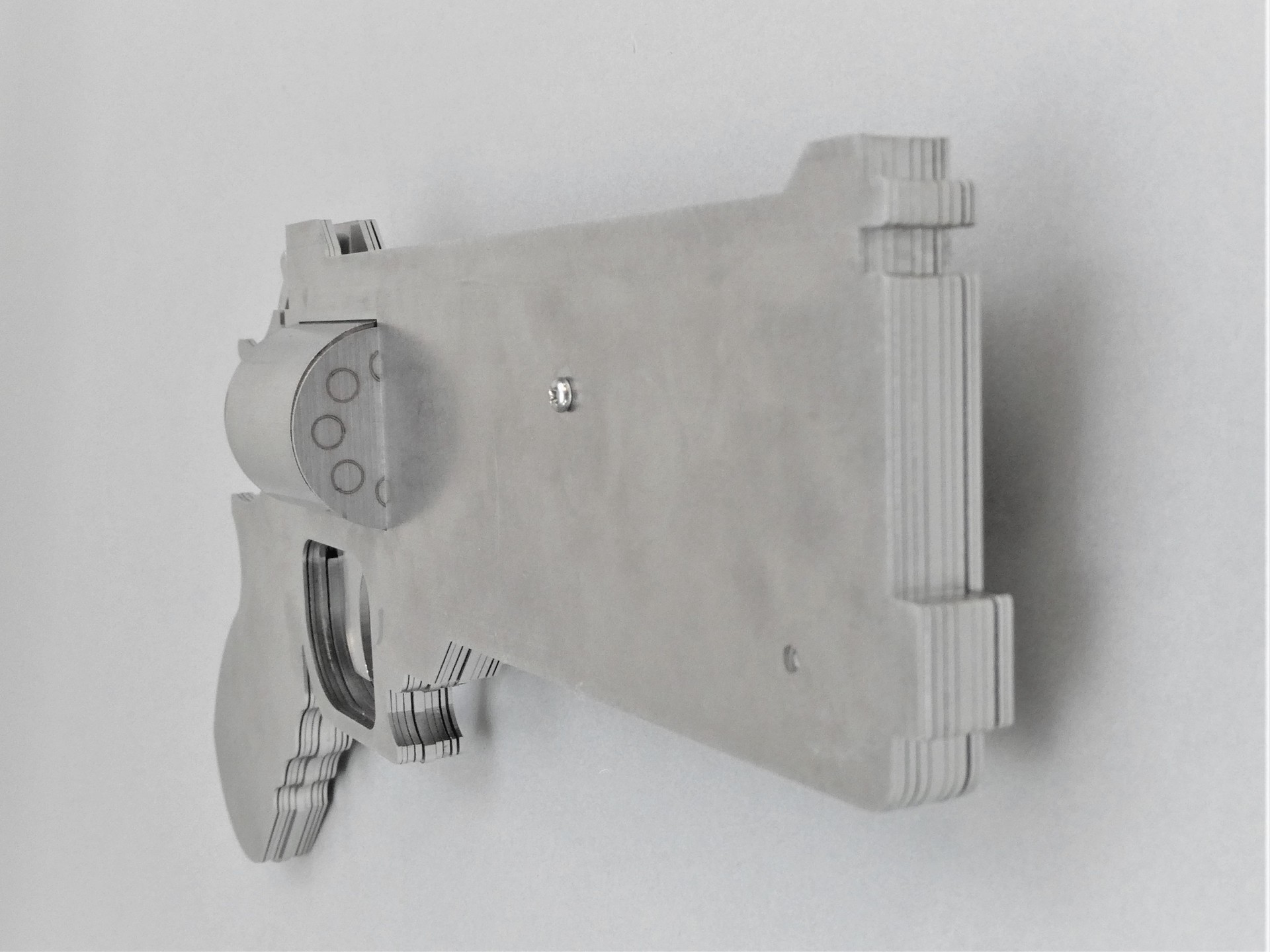

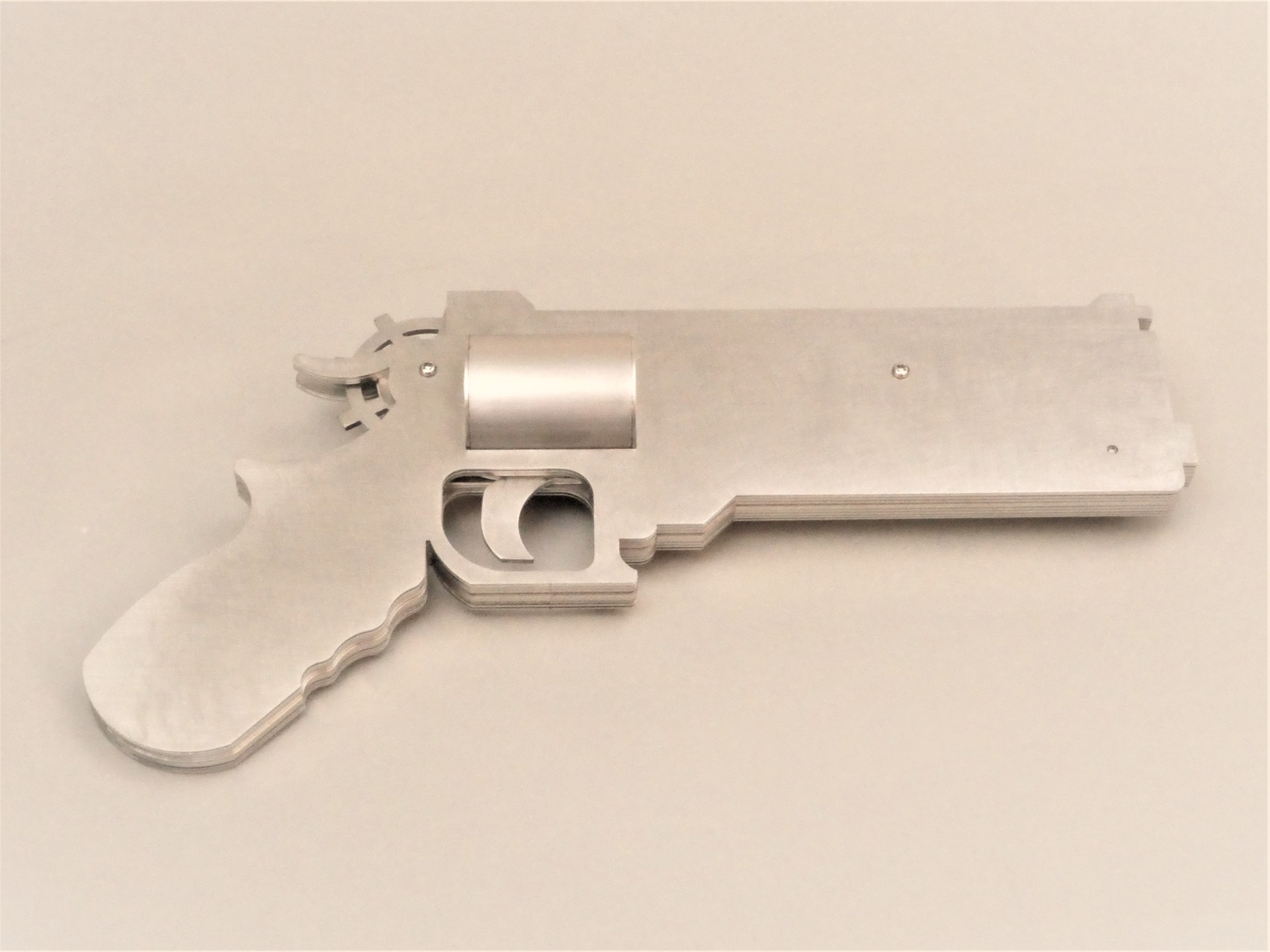

Triple rubber band gun
クリーンメタル 株式会社 (Chiba, Japan)
-
・Size: W320 x D50 x H180 mm
-
・Accuracy: ± 0.5 mm
-
・Programming time: 180 min
-
・Processing time: 60 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.5 / 2.5 mm
-
・Type: Original work
Process
CAD/CAM
Laser-Cutting
Bending
Assembly
Strengths
輪ゴムをセットし、引き金を引くと飛びます。
ステンレス材を使用し、品質向上を図りました。
材料を重ねる設計によって、工程を短縮しました。
溶接工程レスに伴う、コストや工程が削減できました。
