35th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (68 entries)

360° Viewer

Assemble203

Technical Encouragement Award

Special Encouragement Award

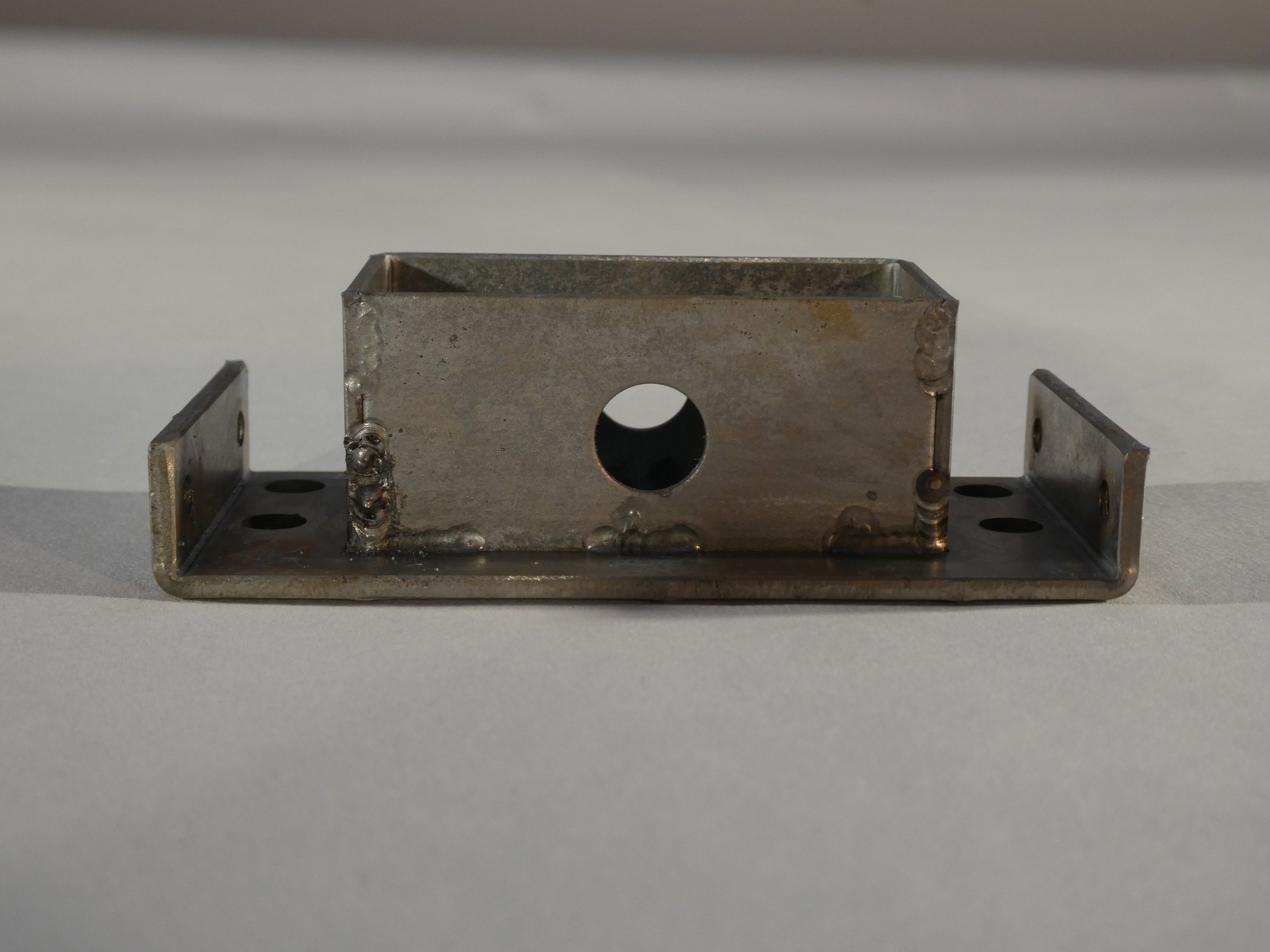

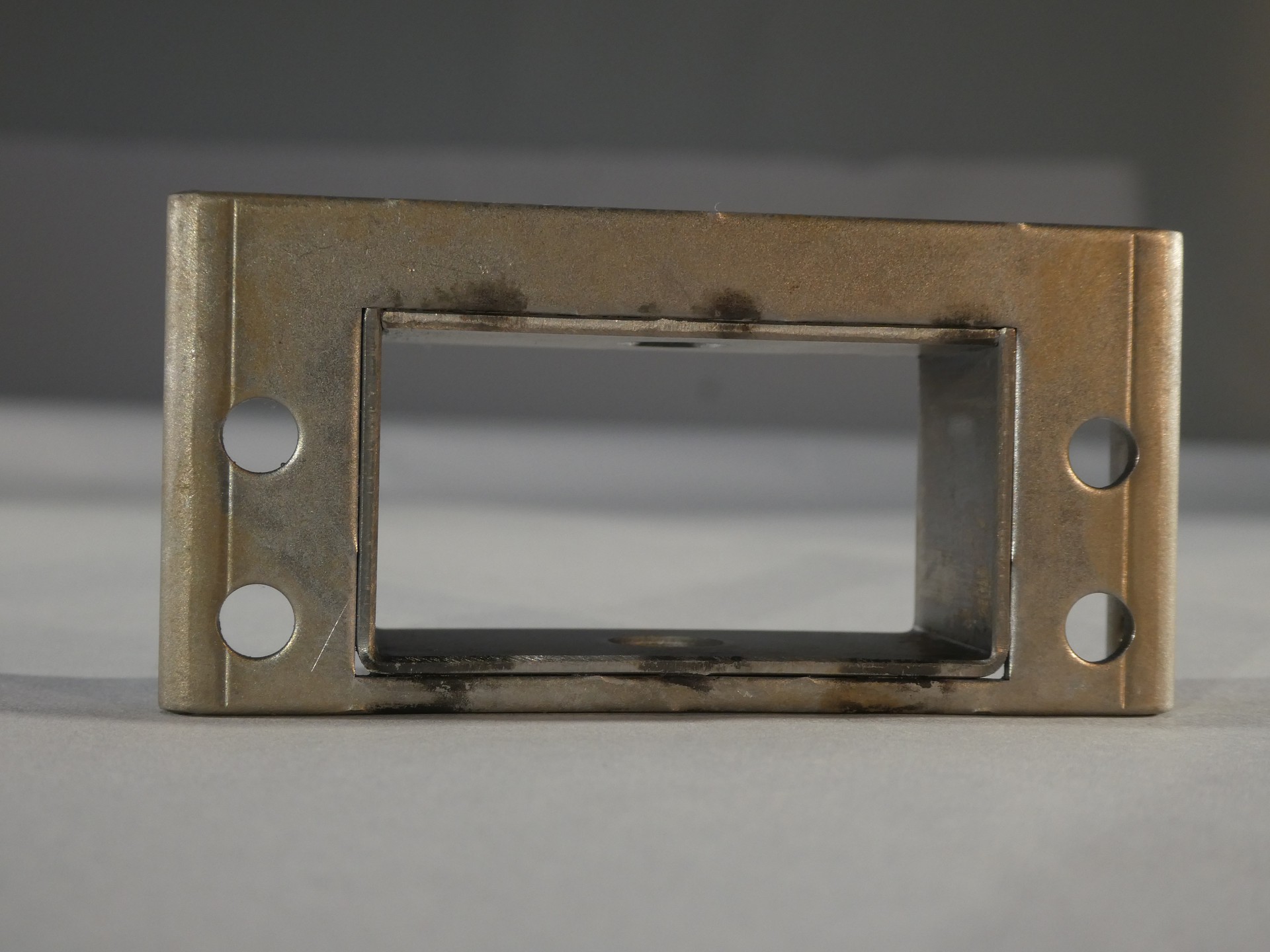

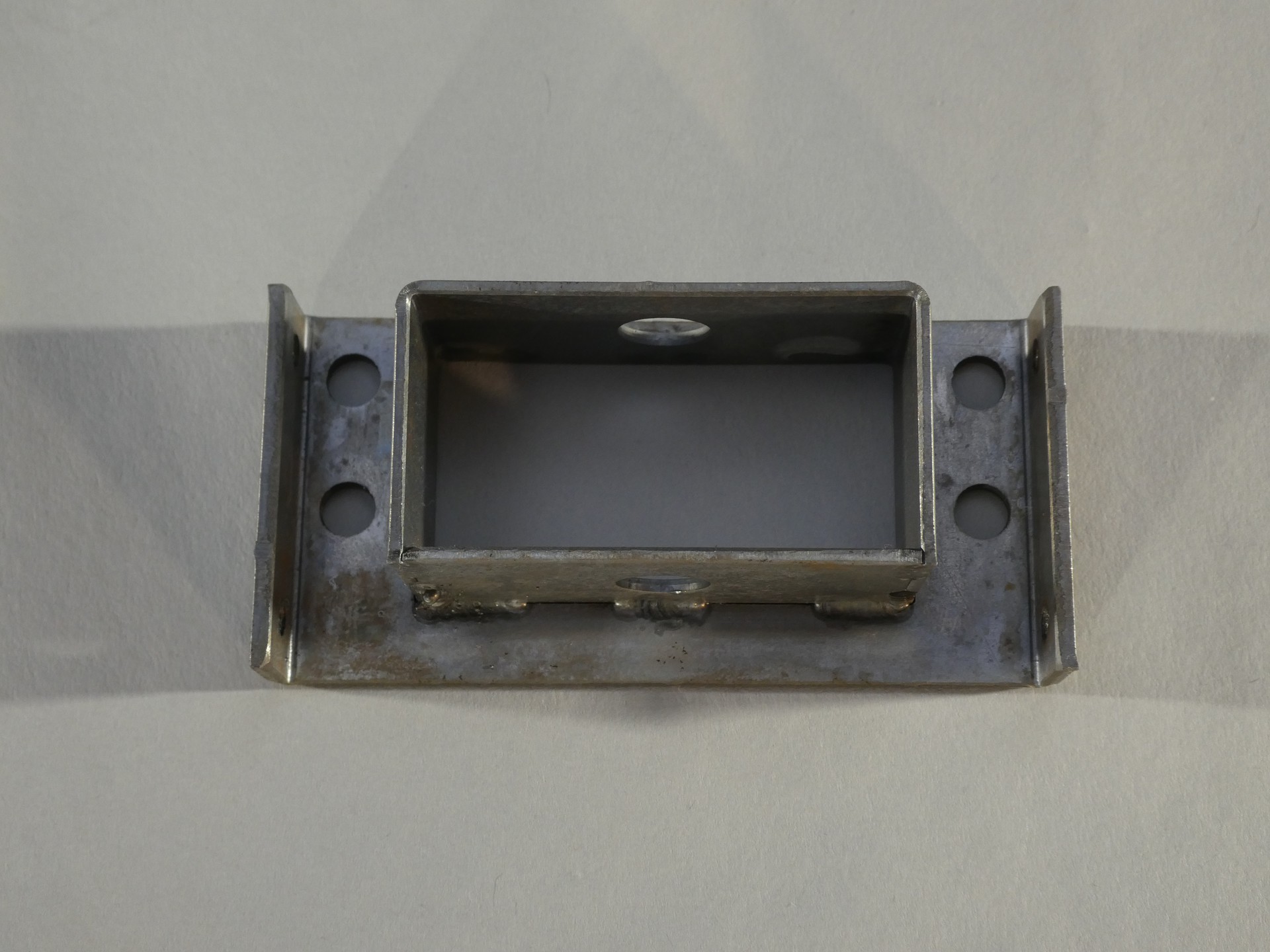

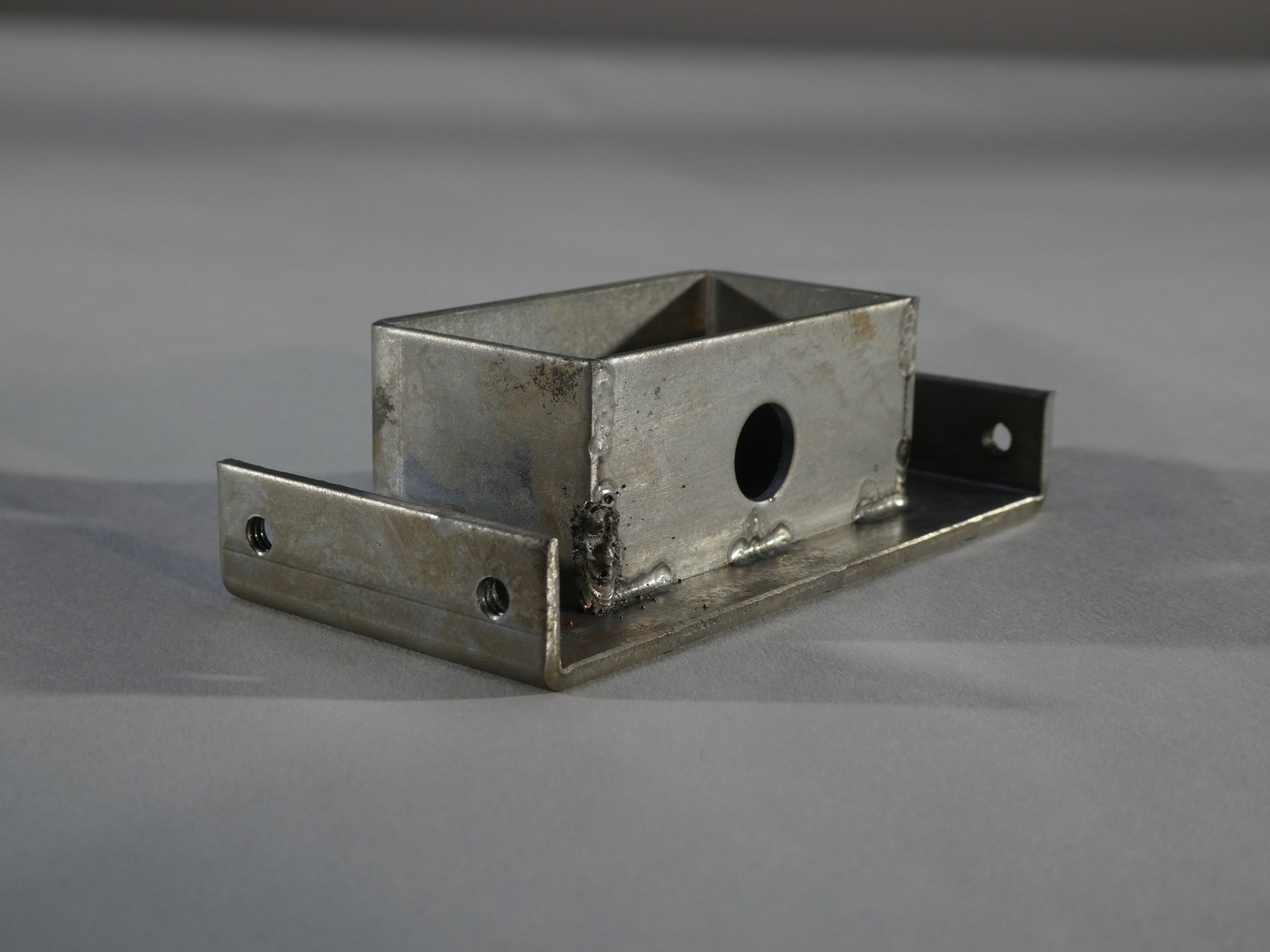

Wellfare device component

岡工業 株式会社 (Osaka Pref.Japan)

  • ・Size: W87 x D42 x H26 mm

  • ・Accuracy: ± 0.3 mm

  • ・Programming time: 25 min

  • ・Processing time: 30 min/quantity

  • ・Quantity: 2

  • ・Material: Stainless Steel（SUS304)

  • ・Thickness: 1.6/2.3 mm

  • ・Type: Prototype

Process

  • Blanking

  • Bending

  • Welding

Strengths

曲げ後の溶接、溶接後の対角寸法±0.5mm以内
