35th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (68 entries)

360° Viewer

Assemble202

Technical Encouragement Award

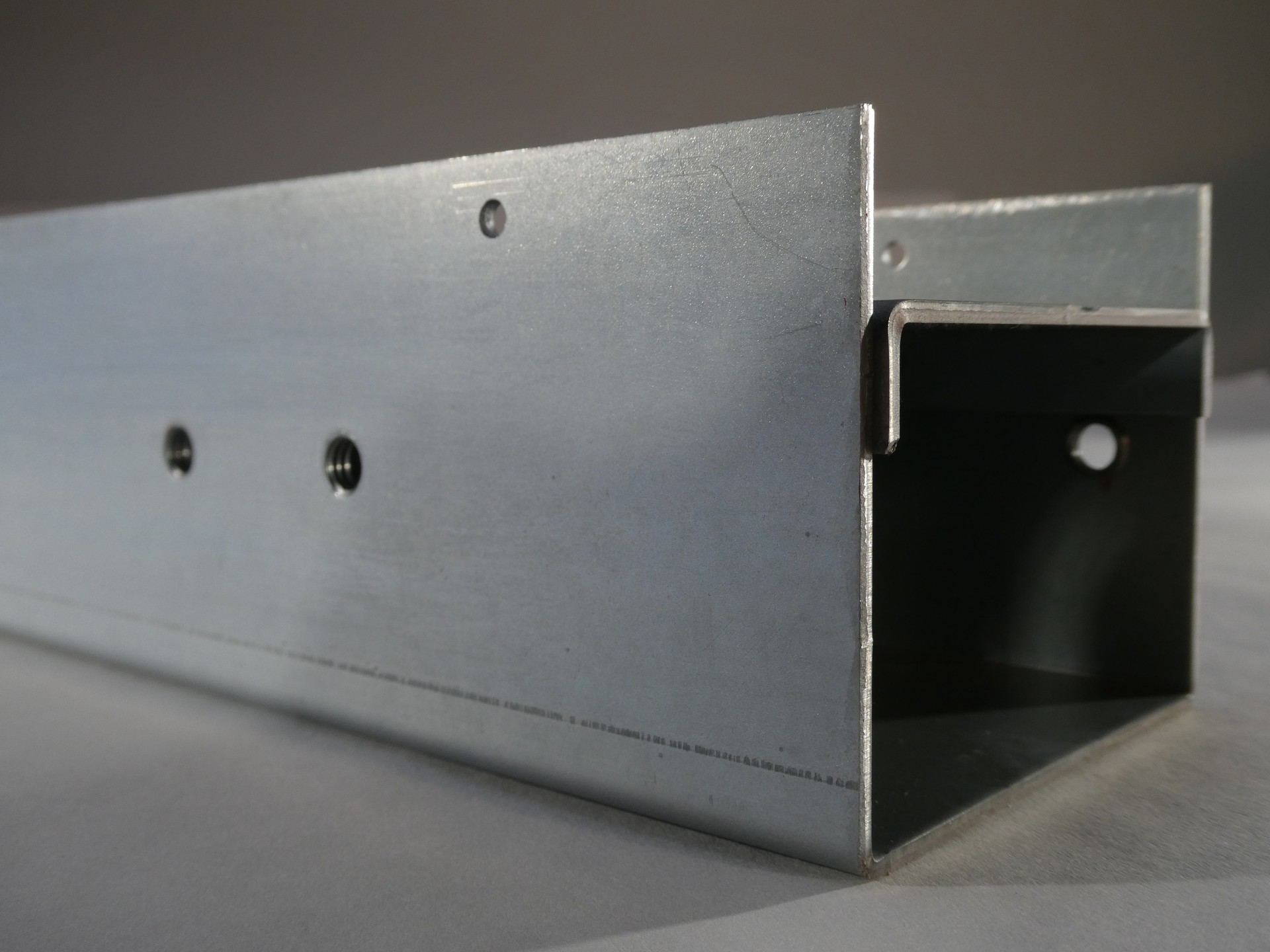

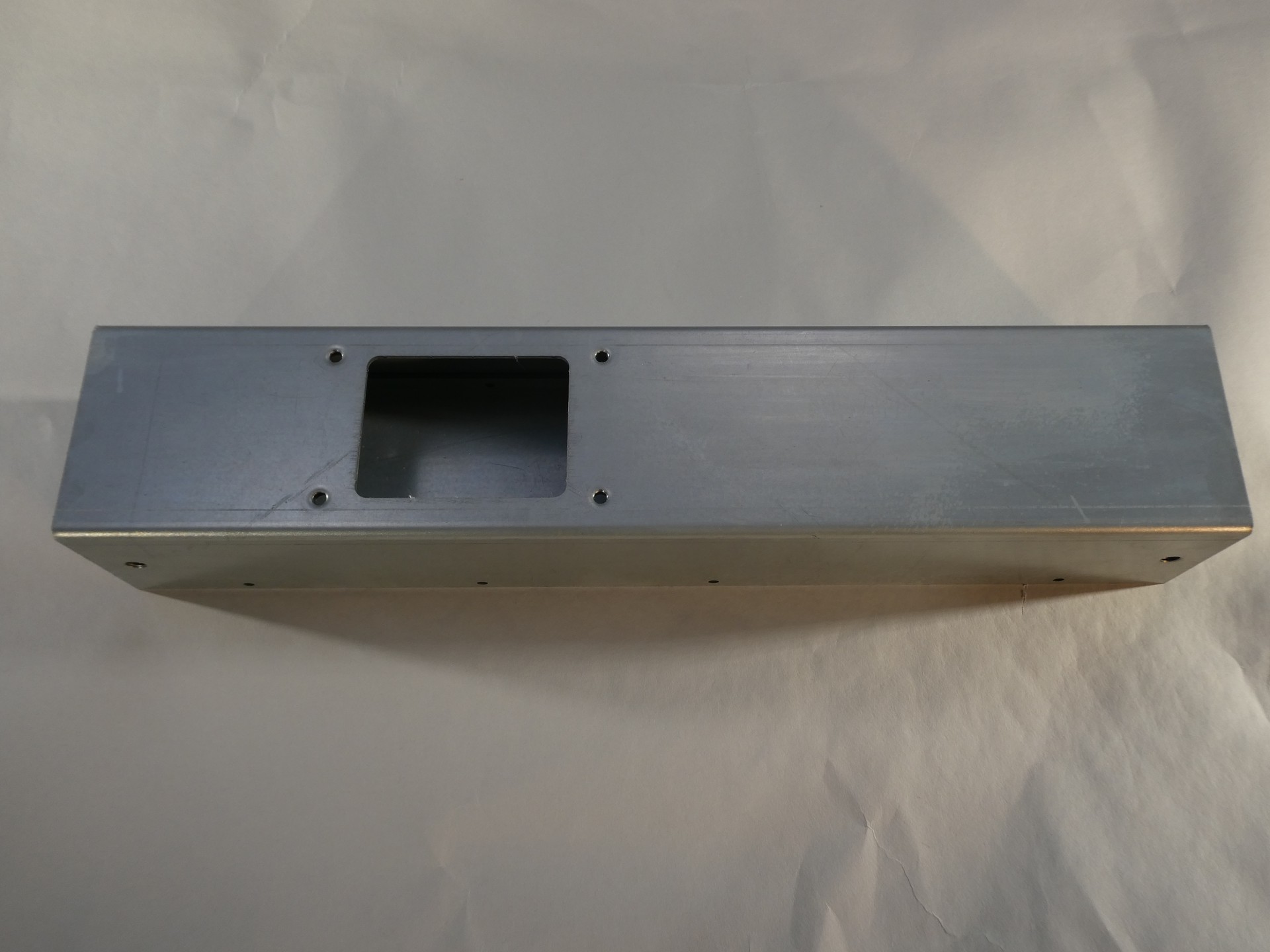

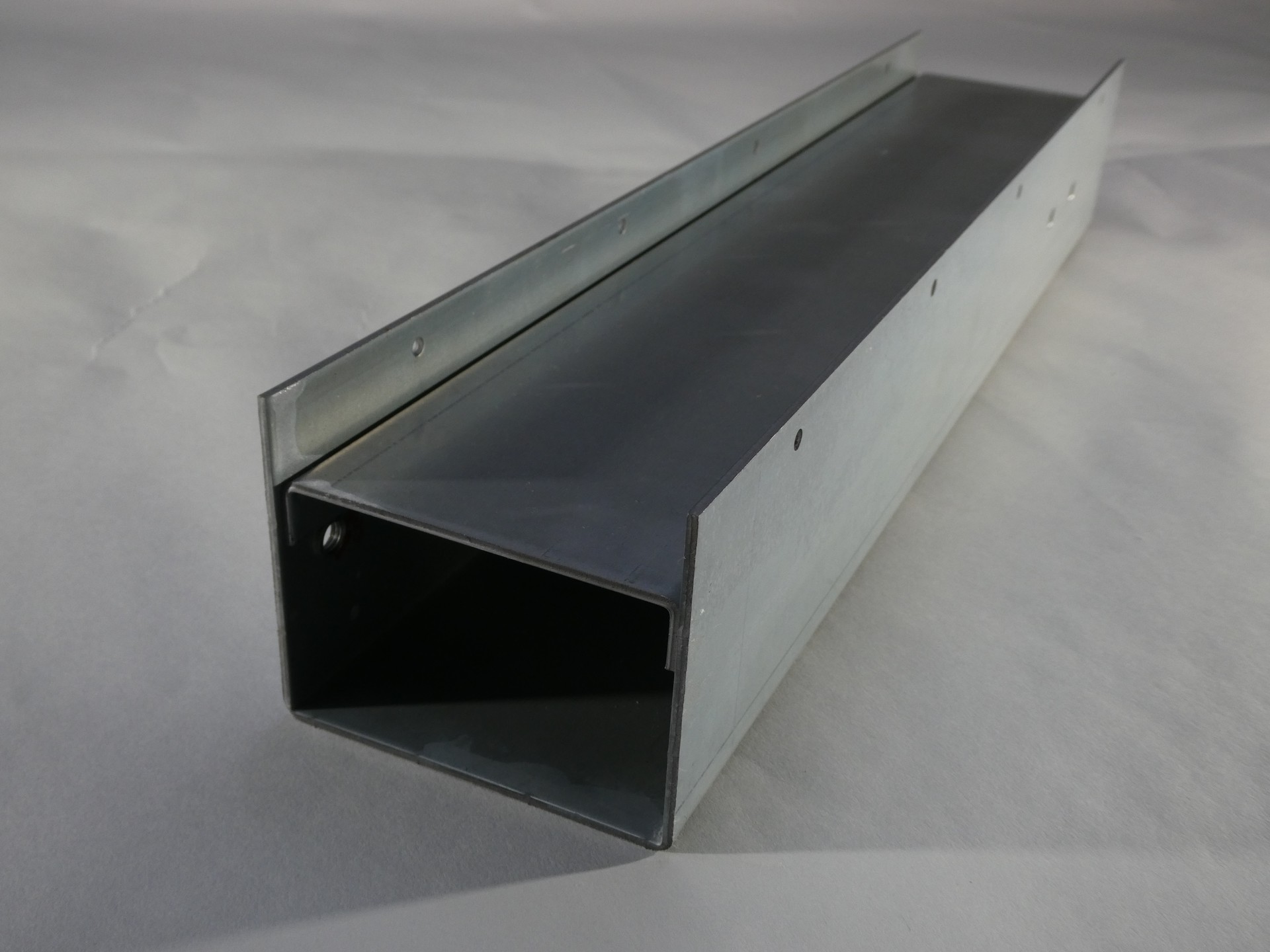

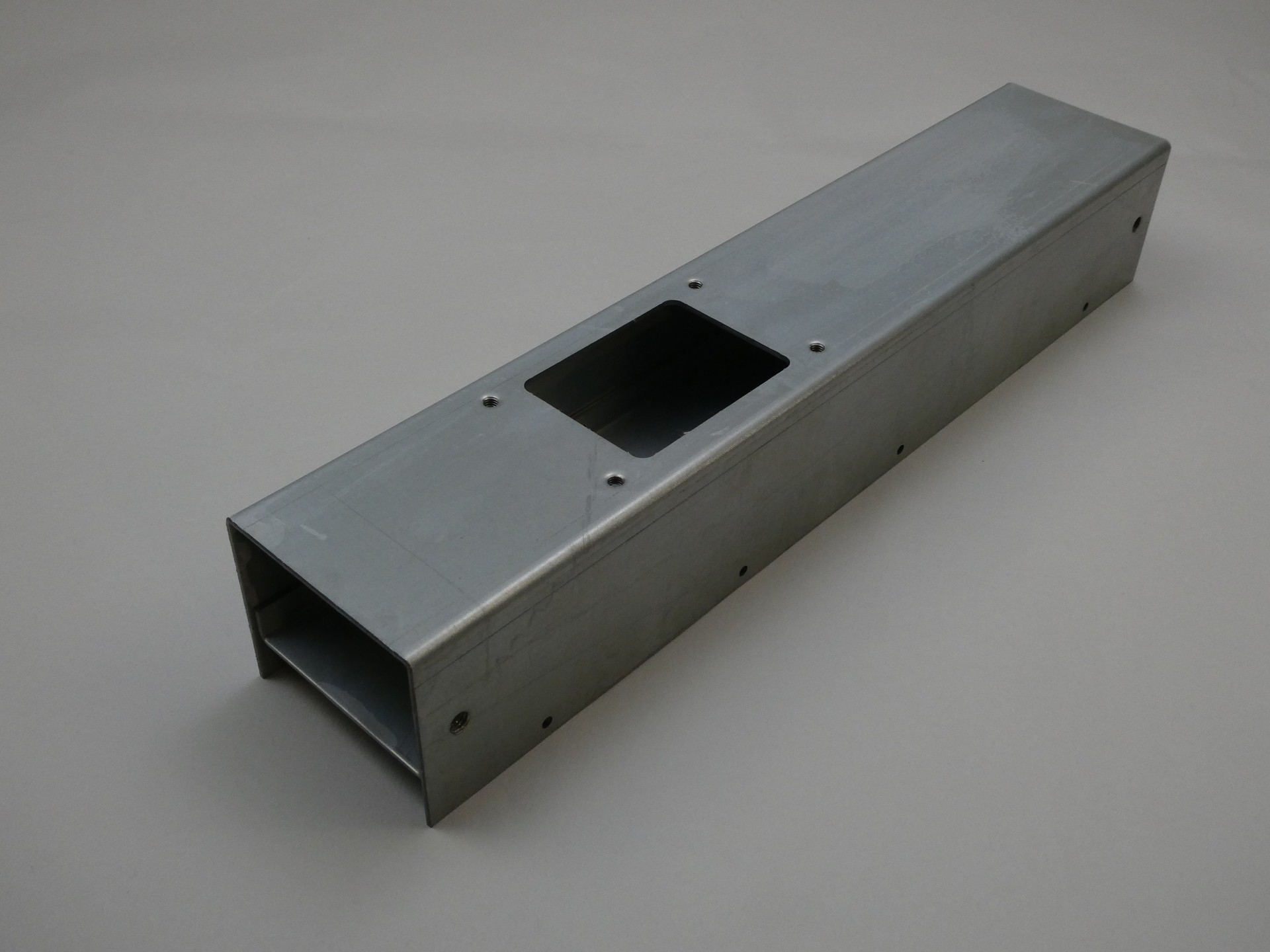

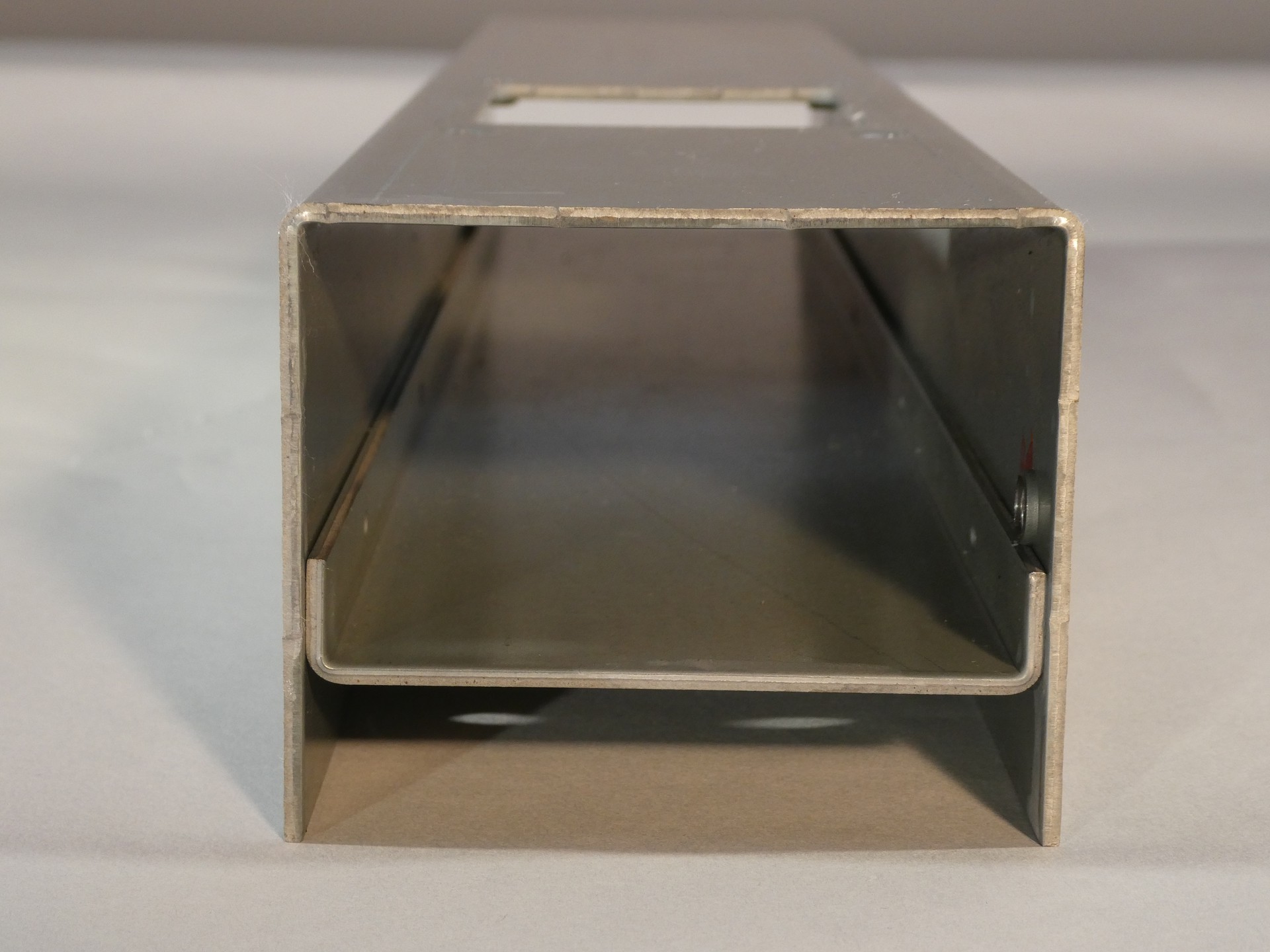

Bicycle component

Yokota Kinzoku Co.,Ltd. (Osaka Pref.Japan)

  • ・Size: W450 x D90 x H75 mm

  • ・Accuracy: ± 0.5 mm

  • ・Programming time: 30 min

  • ・Processing time: 60 min/quantity

  • ・Quantity: 5

  • ・Material: SPC

  • ・Thickness: 2.3 mm

  • ・Type: Production work

Process

  • Programing

  • Blanking

  • Tapping

  • Bending

Strengths

対角が出ている
