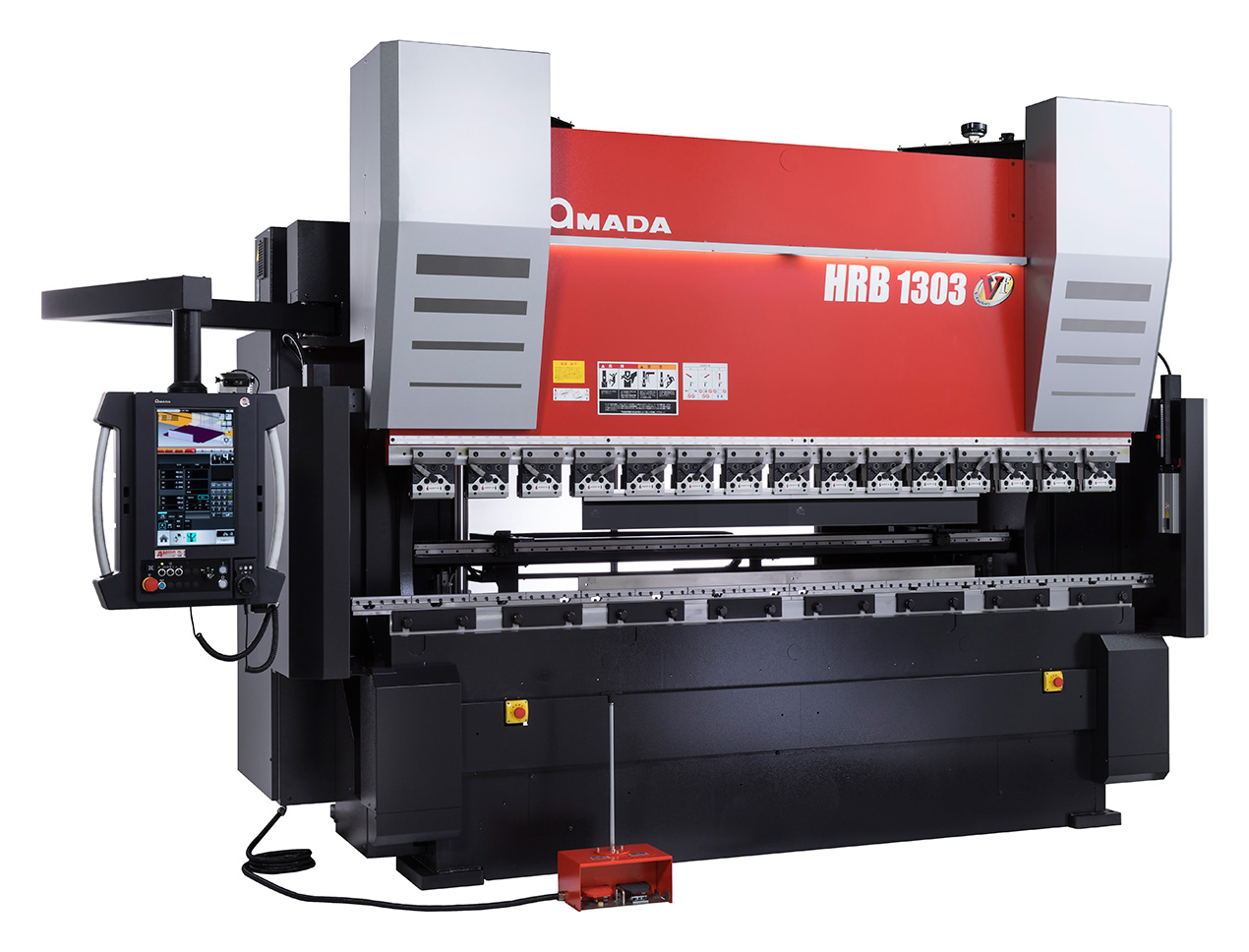

HRB Series
Retrofittable press brake equipped with hybrid drive system
Easy to operate
Next-generation press brake
The HRB series is a next-generation press brake that has embodied the new input mode of AMNC 3i and the retrofit to make the bending process more efficient for wider customers.
It also supports the AMADA IoT solution "V-factory".
- ■ Features(1)
- AMNC 3i is equipped with a new "LITE mode". Easy operation for beginners and foreign citizens
- ■ Features(2)
- Enhanced main unit functions for high-speed and stable processing
- ■ Features(3)
- Various retrofittable optional functions for a wide variety of bending
- ■ Features(4)
- Supports "V-factory" to realize IoT of machines (option)
Specifications
Press capacity |
Bending length |
Stroke length |
Ram feed rate |
Mass of machine |
|
|---|---|---|---|---|---|
HRB-5020 |
500 |
2150 |
250 |
150 |
5300 |
HRB-8025 |
800 |
2600 |
6300 |
||
HRB-1003 |
1000 |
3110 |
7200 |
||
HRB-1303 |
1300 |
9300 |
|||
HRB-2204 |
2200 |
4300 |
120 |
16000 |
