Sheet Metal Processing

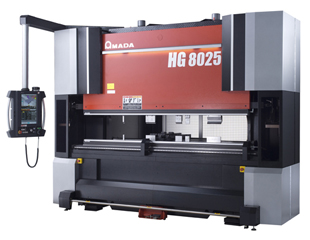

HG Series
High speed & high accuracy press brakes
Hybrid drive system
The new user-centered designed AMNC3i unit is installed to achieve ultimate ease of use.
A high rigidity frame and a new hybrid system combine with angle solutions (for elimination of test bends and stabilization of bending accuracy) to obtain high speed and high quality processing.
- ■ Features(1) : Process intelligence
- The screen is designed for intuitive operation like a smartphone screen and allows for fast entry.
- ■ Features(2) : Enhancement of multi-stage bending efficiency
- The modular tooling system is adopted to increase the efficiency of tool setup.
- The foot pedal is automatically controlled to allow for the lateral movement of the operator.
- ■ Features(3) : High speed and high accuracy bending of thin to thick materials
- New hybrid drive system and hydraulic crowning system
- New backgauge system
- Angle sensor
- Thickness detection function TDS
Processing scene YouTube movies
Processing samples
Material : SECC
Thickness : 1.6mm
Specifications
Capacity |
Bending length |
Stroke length |
Ram feed rate |
Mass of machine |
|
|---|---|---|---|---|---|
HG-5020 |
500 |
2150 |
250 |
Approach : 220 |
5600 |
HG-8025 |
800 |
2600 |
7200 |
||
HG-1303 |
1300 |
3110 |
11900 |
||
HG-2204 |
2200 |
4300 |
20500 |
*This product is for the Japanese market.
For any inquires, please contact local AMADA branch office.
