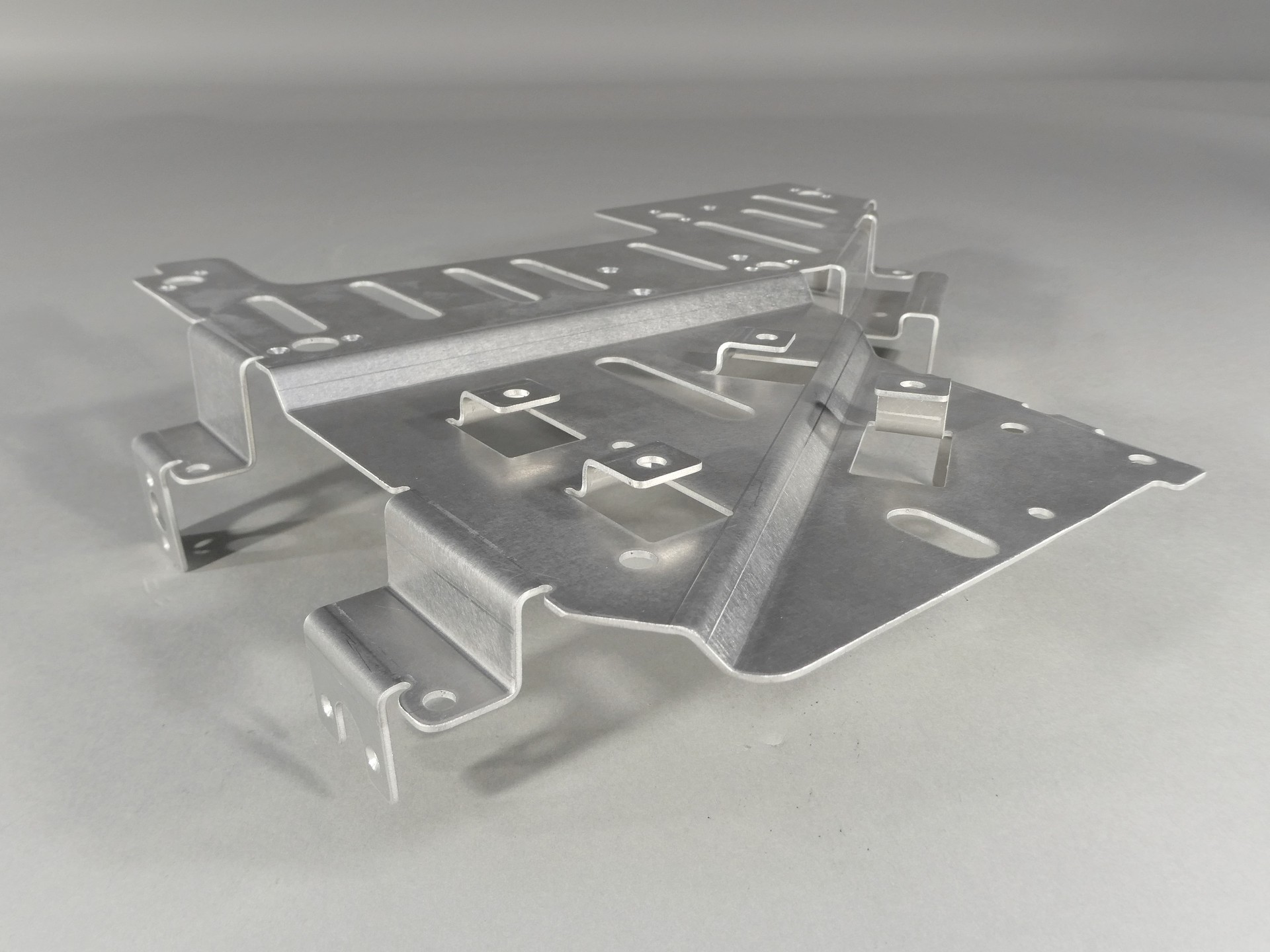

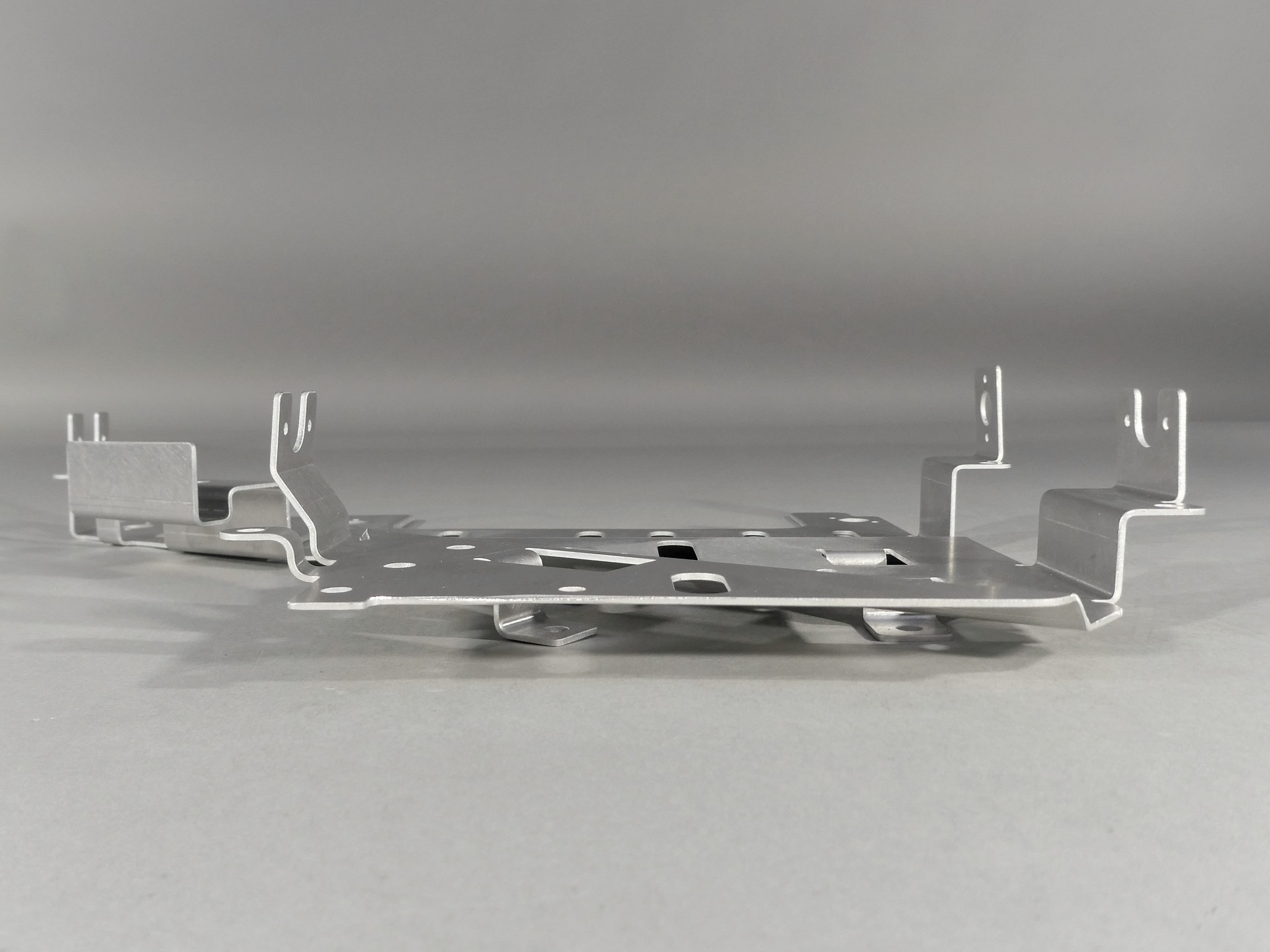

Seat Brkt Anchor

Jet Metal Components Ltd. (United Kingdom)

  • ・Size: W320 x D260 x H55 mm

  • ・Accuracy: ± 0.07 mm

  • ・Programming time: 3 min

  • ・Processing time: 30 min/quantity

  • ・Quantity: 1

  • ・Material: A5251

  • ・Thickness: 1.5 mm

  • ・Type: Production work

Process

  • Design(3D/2D)

  • Blanking

  • Bending

Strengths

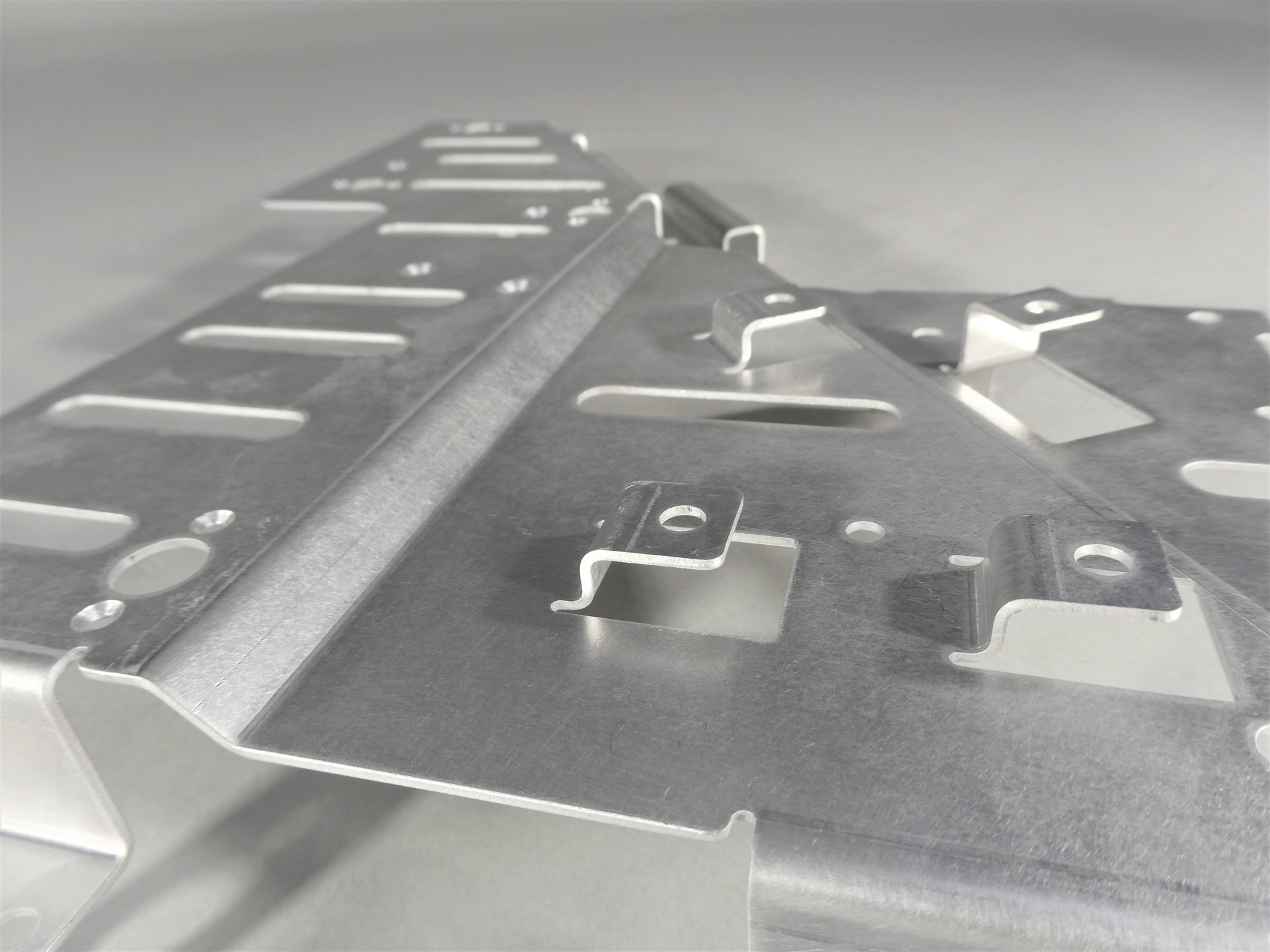

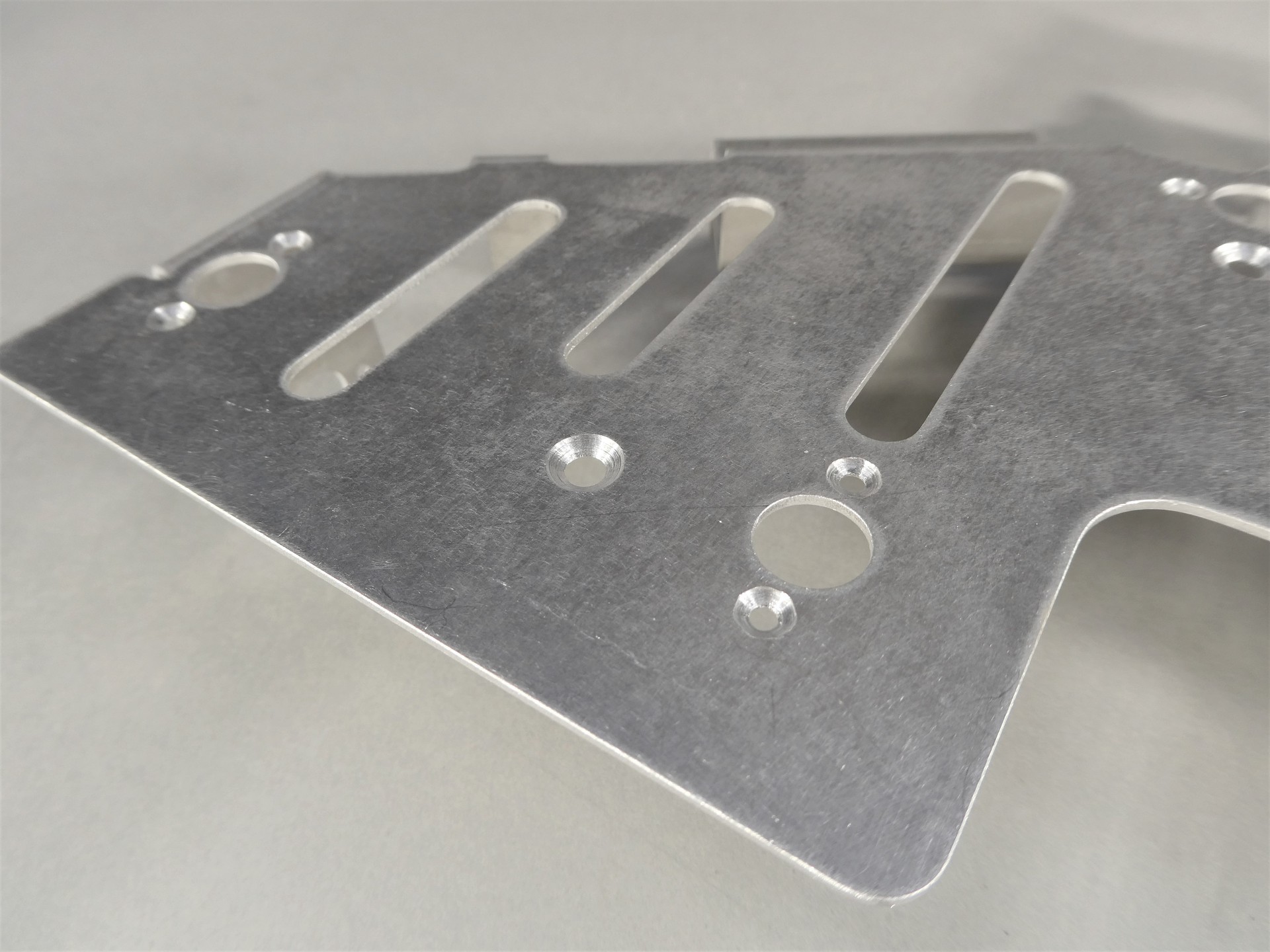

Complex part with 20 bends and radius bends Flexibilty of single V AFH tooling meant reduced setups, small tab bends and offset/Z-bends High accuracy required and HRB5020 was able to achieve and maintain this.
