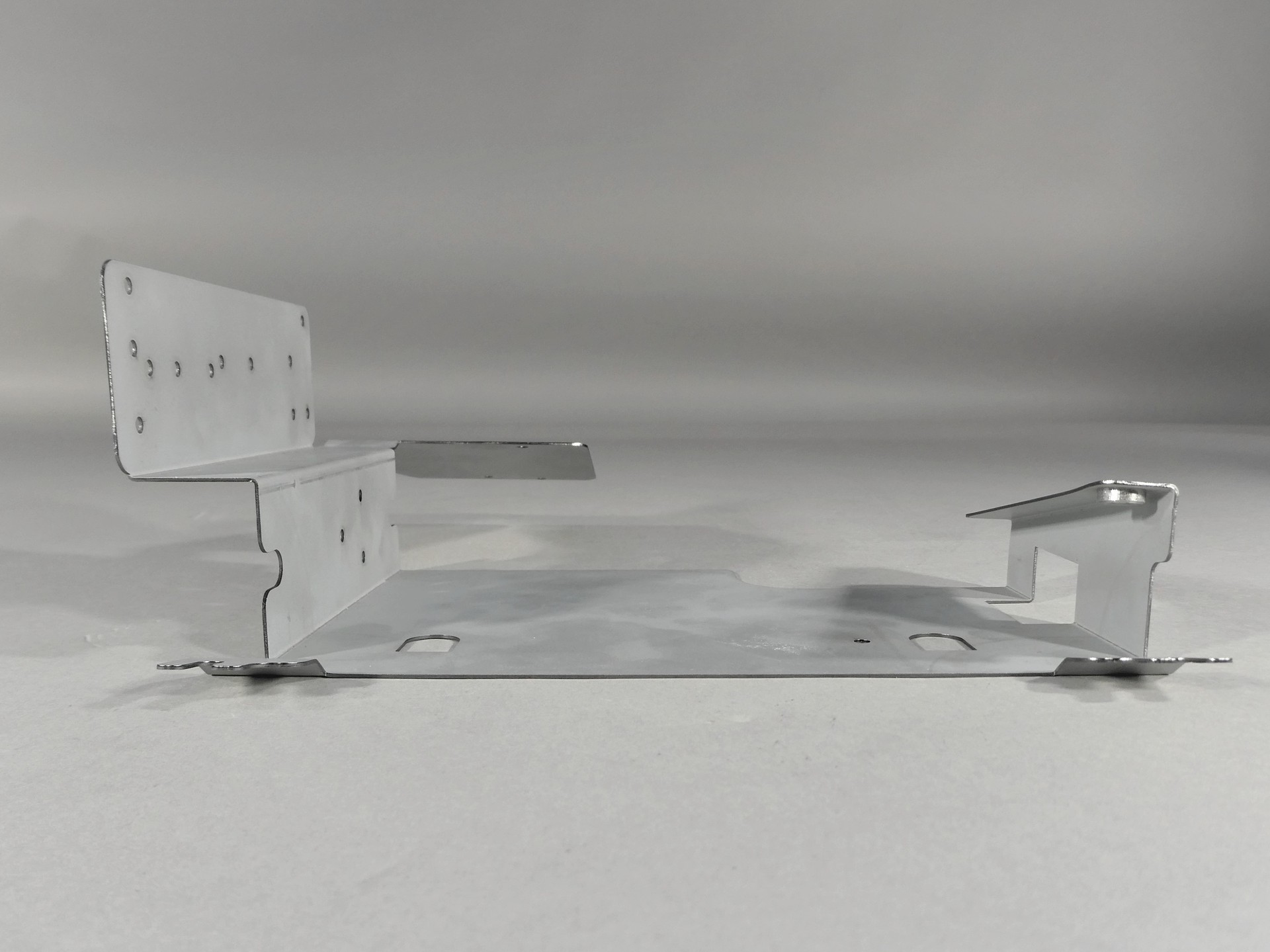

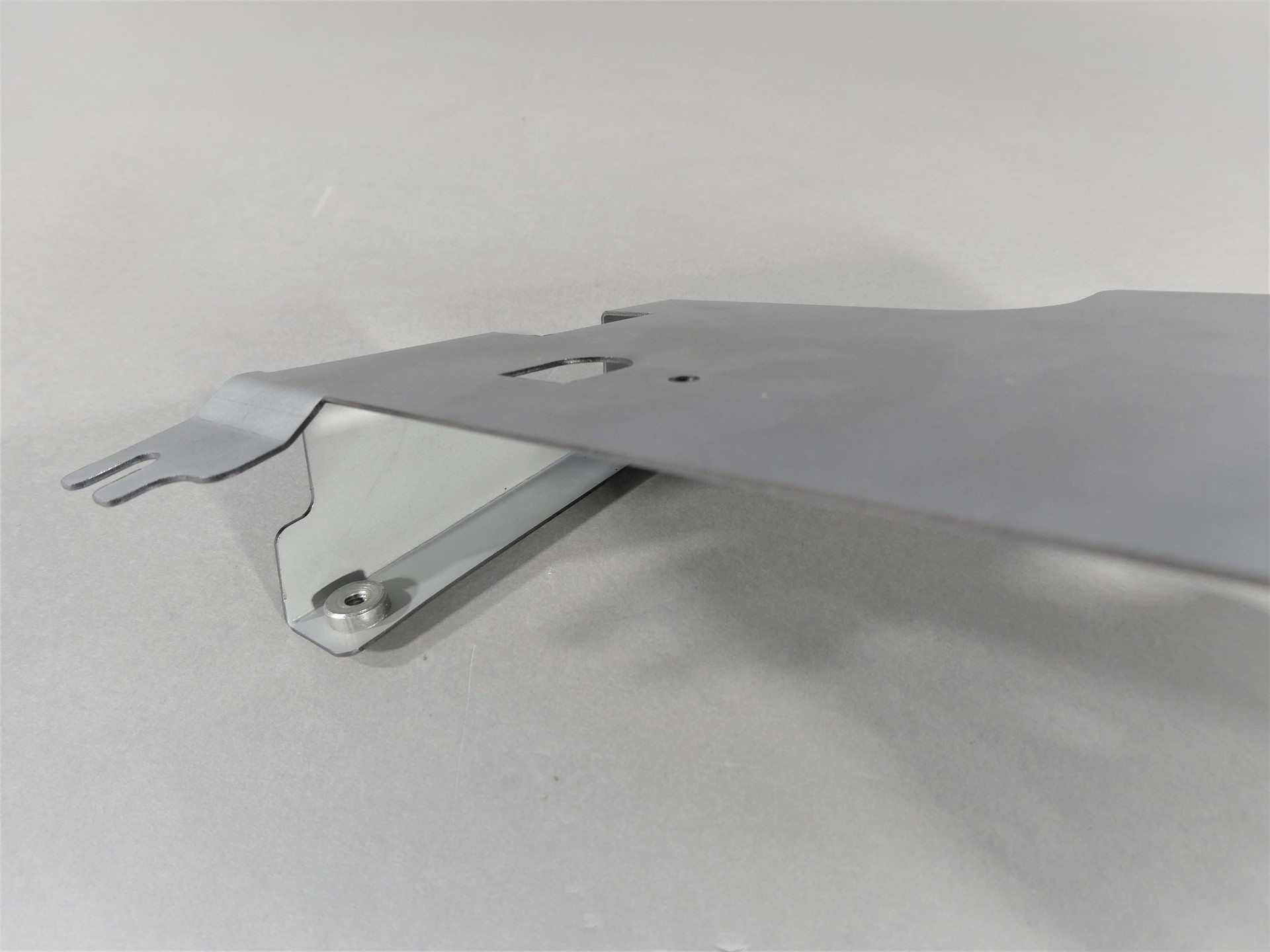

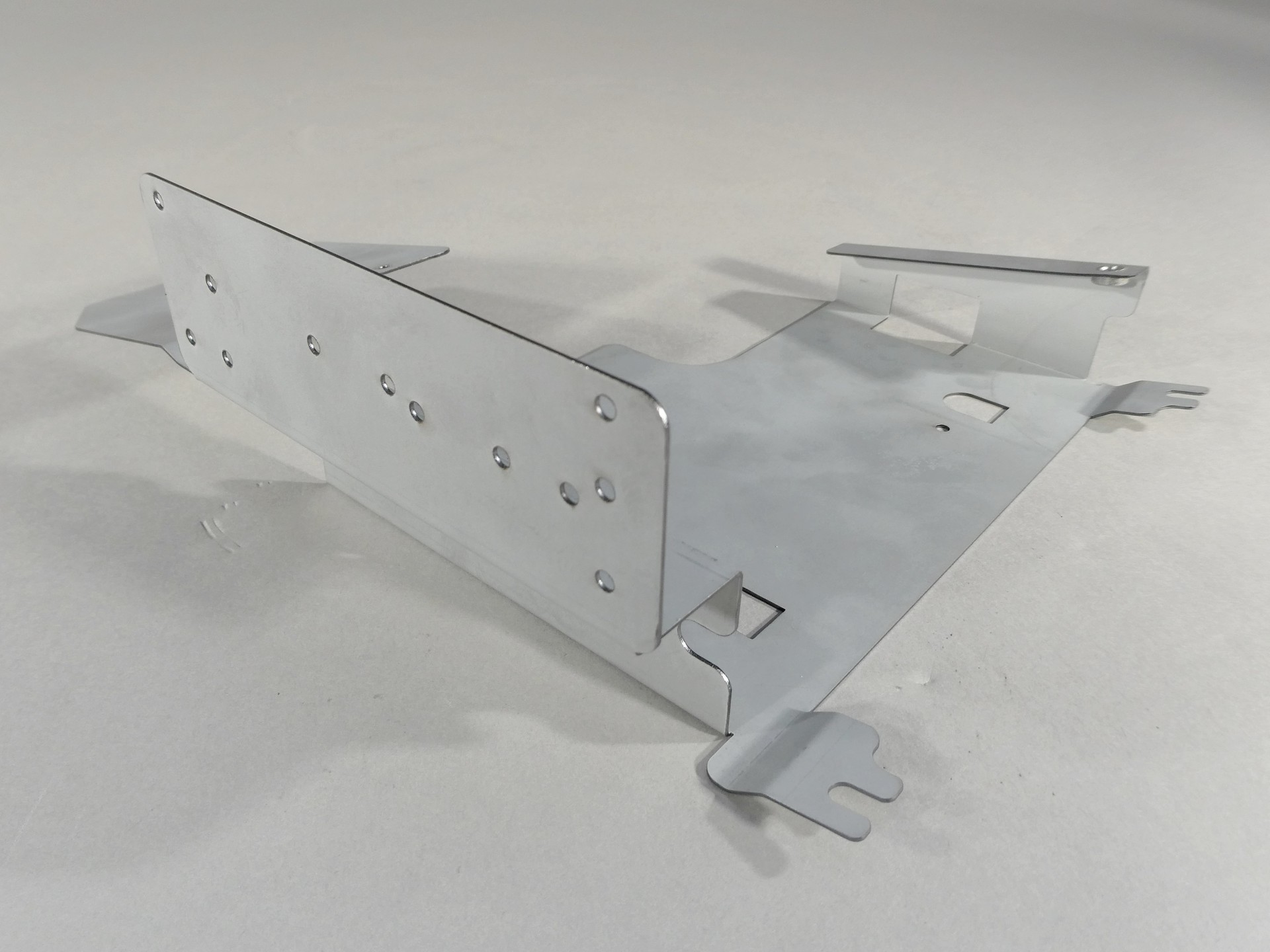

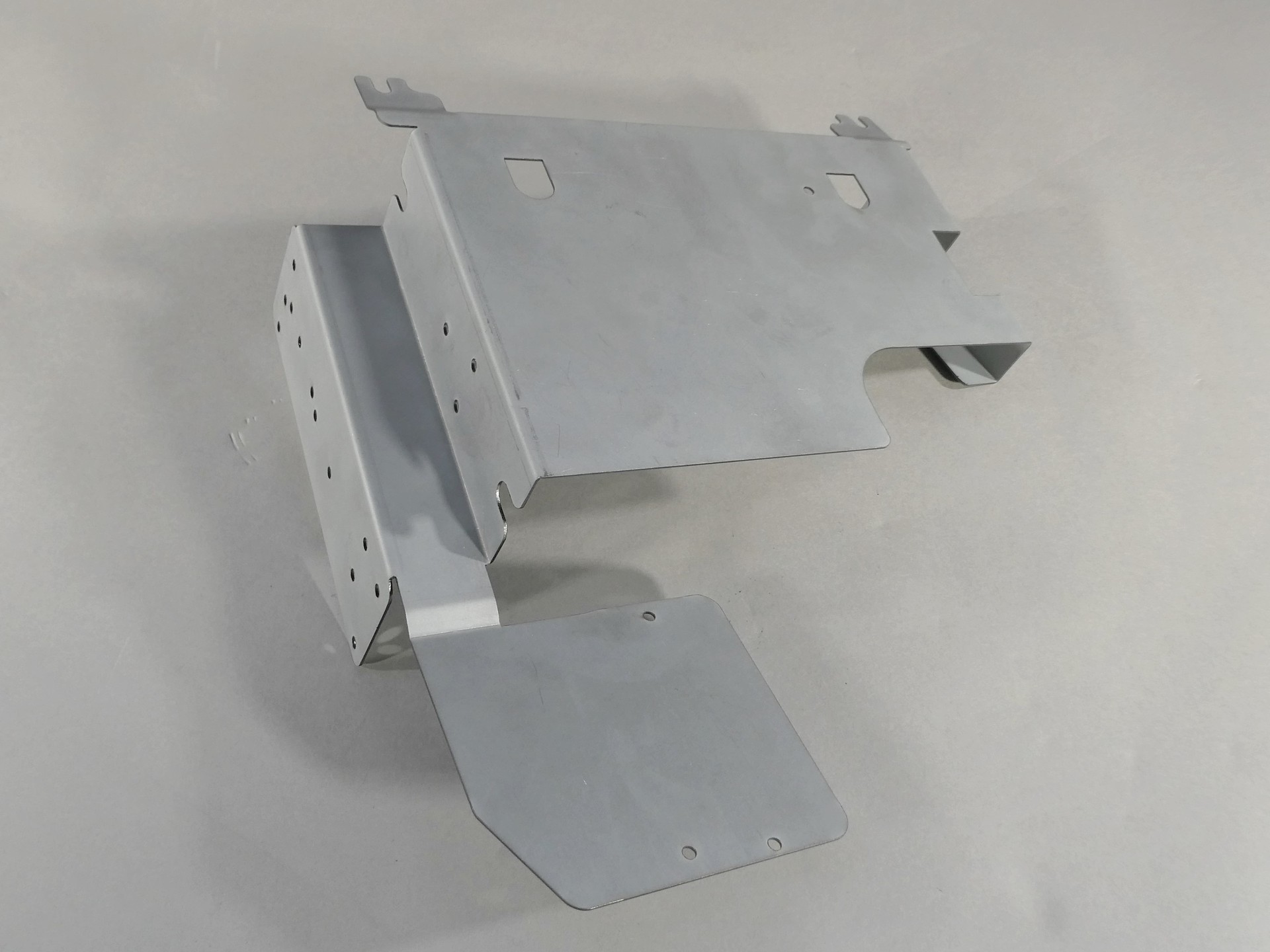

Gear Tray

Alphin Pans Ltd (United Kingdom)

  • ・Size: W220 x D250 x H85 mm

  • ・Accuracy: ± 0.5 mm

  • ・Programming time: 20 min

  • ・Processing time: 2 min/quantity

  • ・Quantity: 1

  • ・Material: ZINTEC

  • ・Thickness: 1 mm

  • ・Type: Production work

Process

  • Design(3D/2D)

  • CAD/CAM

  • Blanking

  • Inspection

  • Bending

Strengths

All programmed automatically offline. Several bends that are offset/Z-bend. Tapered bends using flexible backguage fingers on EG. Blank checked on FabriVision for QC. Fast backgauges on EG allow for the part to be produced quicker.
