MC-64 Vapula (Students509)
Students509
Student's Fabrication Gold Award

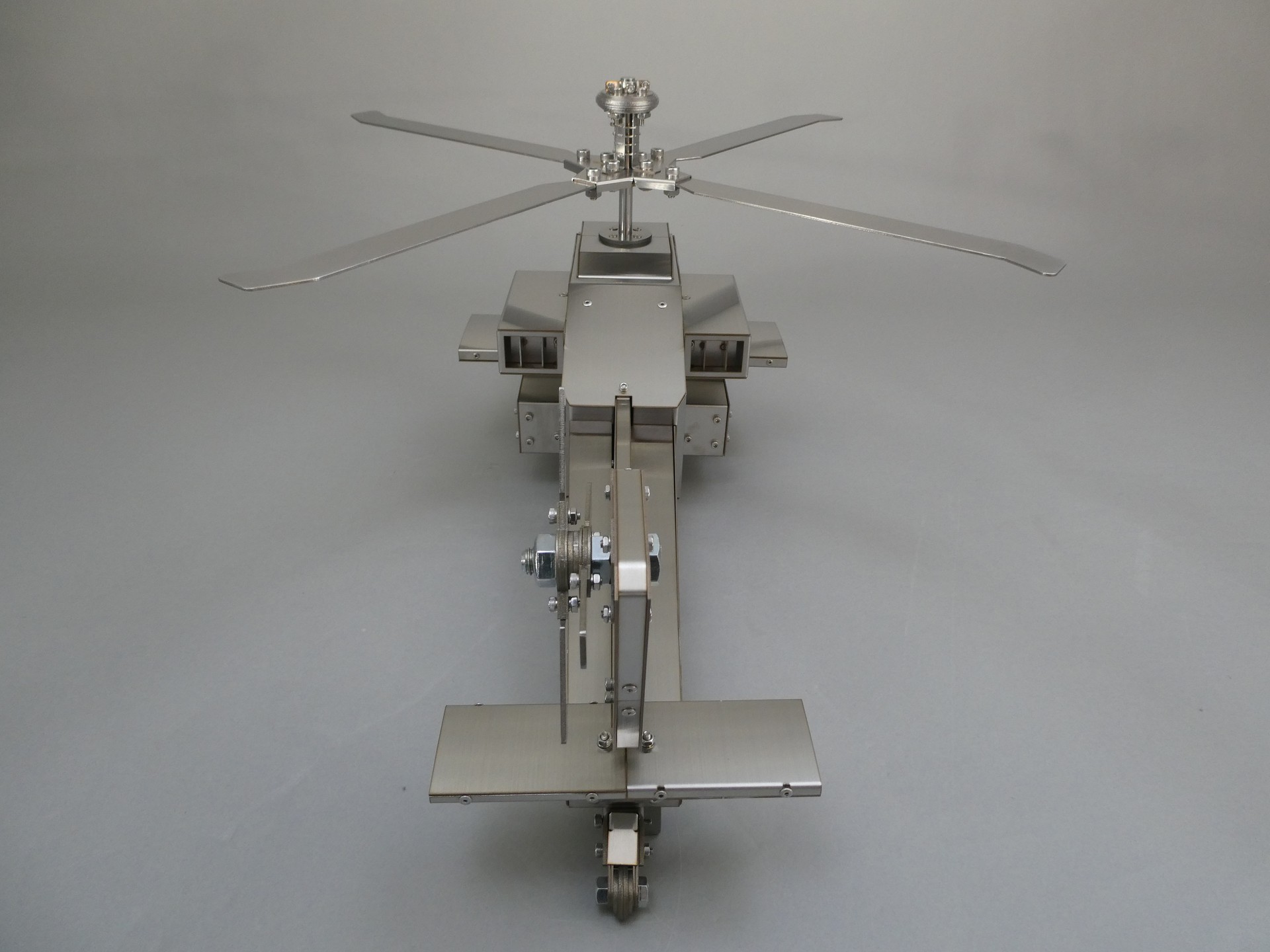

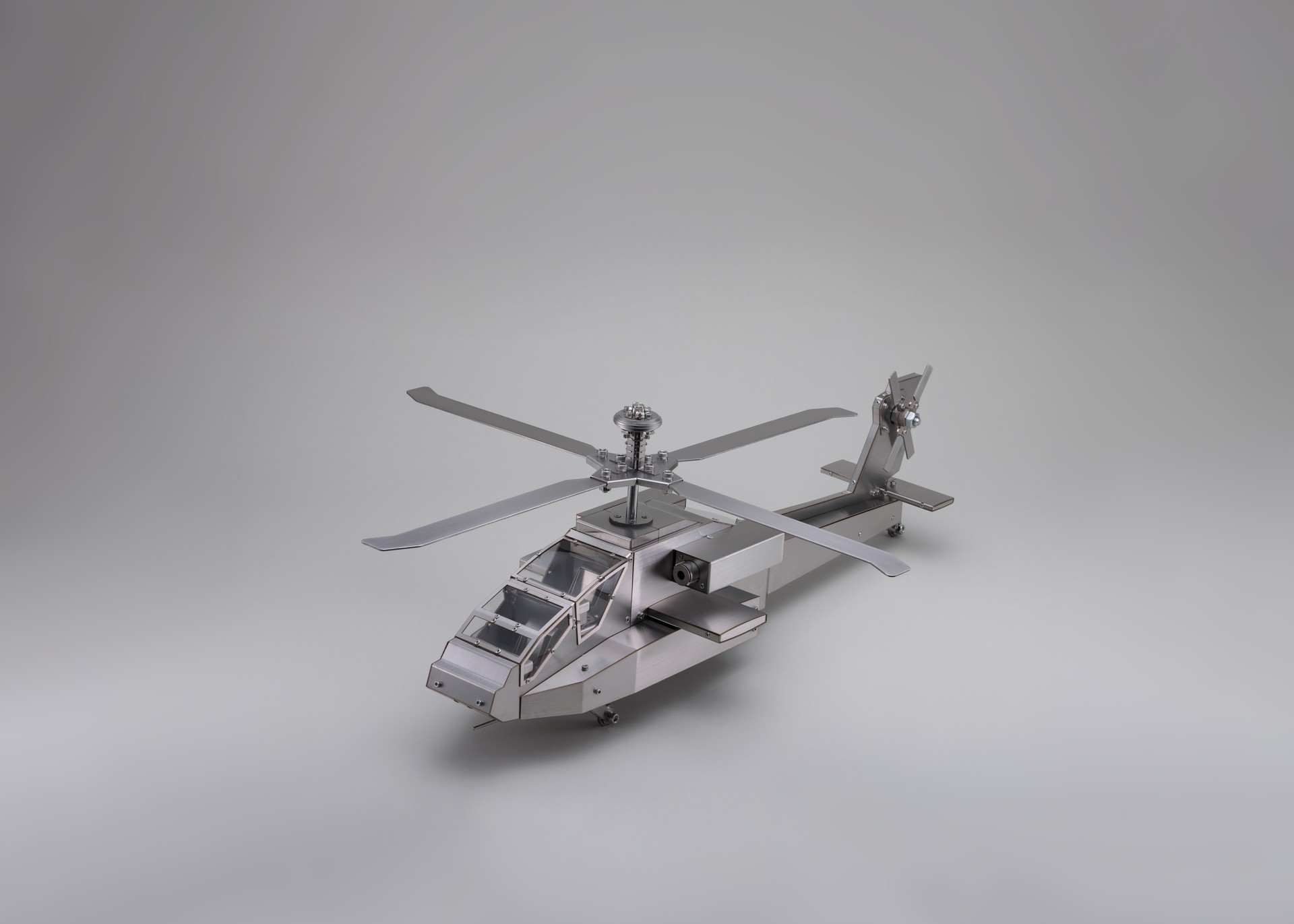

MC-64 Vapula
Tsu Advanced Vocational Training School (Mie Pref. Japan)
-
・Size: W600 x D670 x H280 mm
-
・Accuracy: ± 0.5 mm
-
・Programming time: 4500 min
-
・Processing time: 6000 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 0.8 , 1.0 , 2.0 mm
-
・Type: Original work
Process
CAD/CAM
CAD/CAM
Laser-Cutting
Bending
Assembly
Strengths

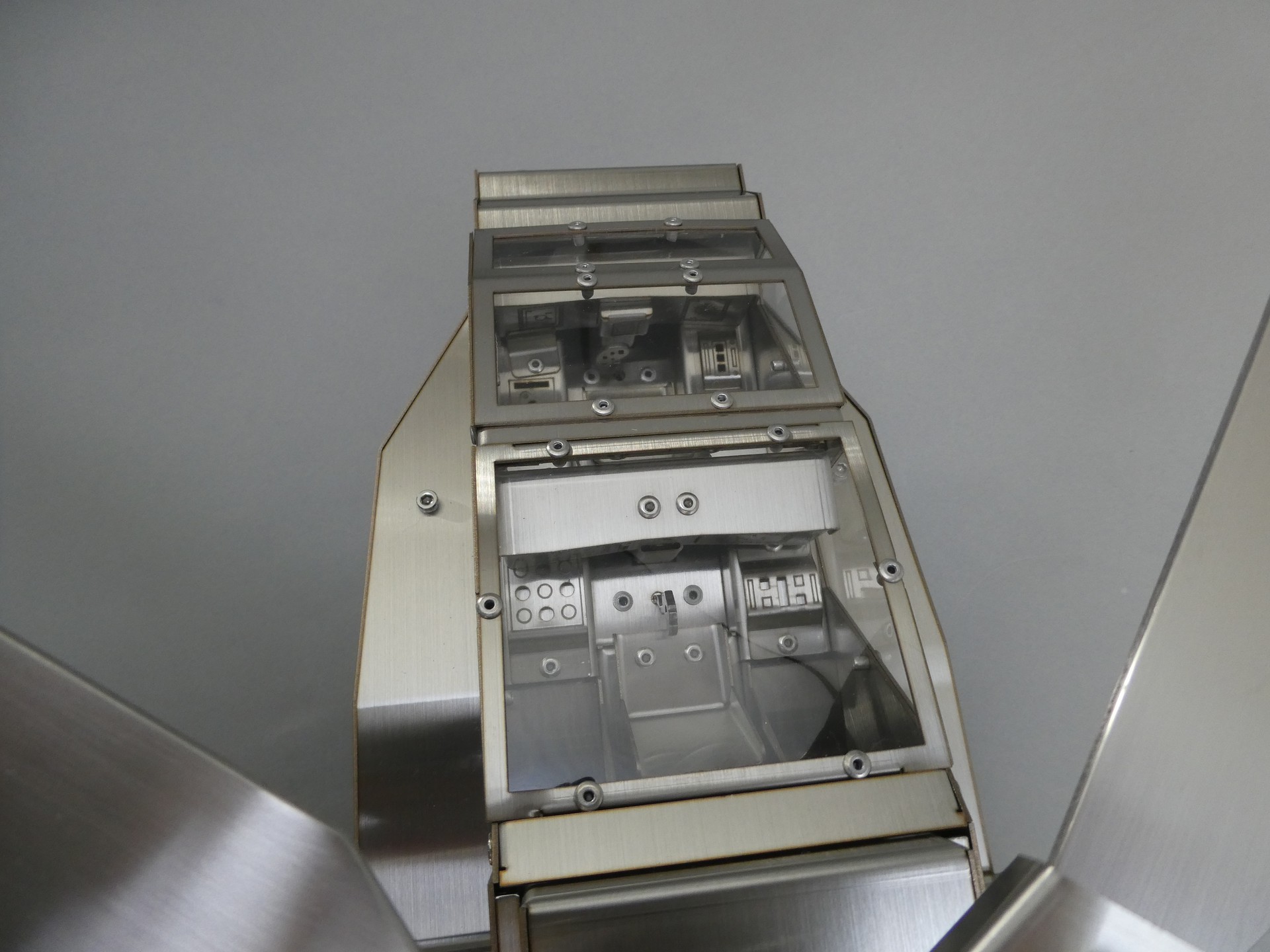

コクピット周りはとても細かくできていることと、プロペラが安定して回転することです。
Reasons for choosing the theme: 誰が見ても分かるようなもので、インパクトがあるものを作りたいと思い選びました。
Reasons for choosing the material: 重さに耐えられる強度と見た目が綺麗なため。

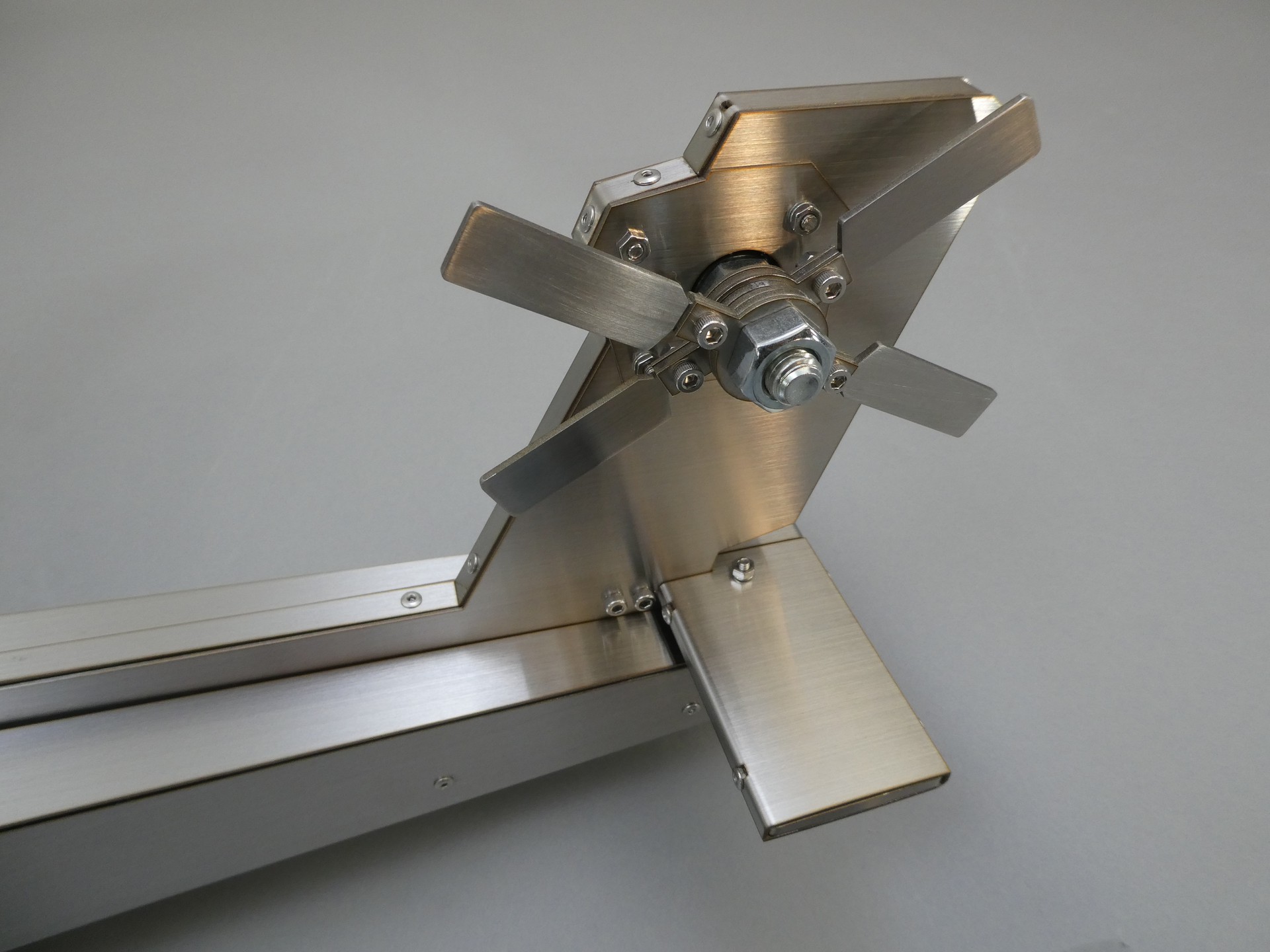

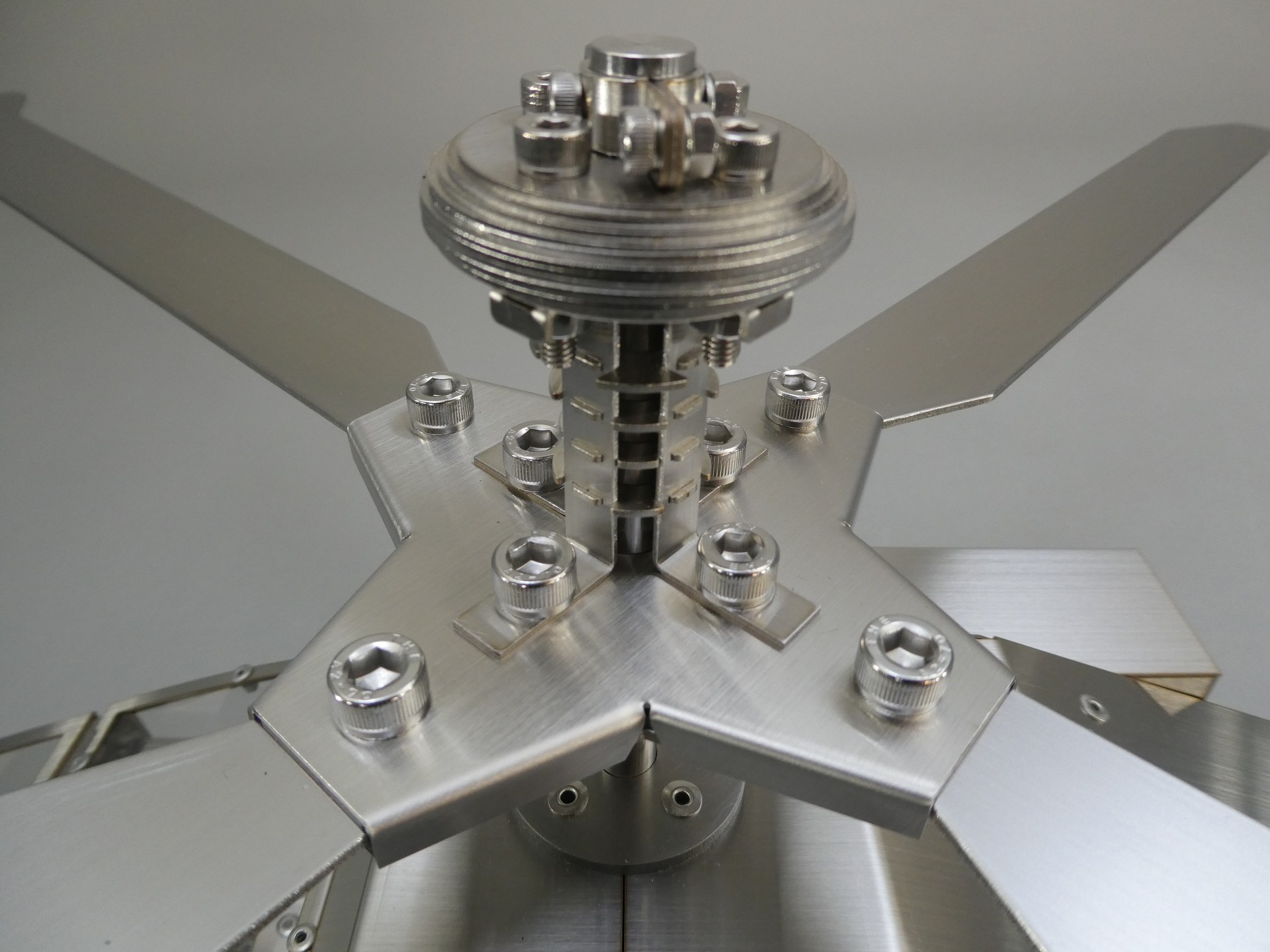

Most important points: 大きいプロペラを支えるユニットの設計と製作で、中のベアリングを押さえつつ、重さに耐えられるように工夫しました。
Most difficult points: 一番部品が組み付く中心のパーツの設計と製作で、穴位置や寸法を微調整しながら進めていきました。
What I noticed when actually processed it from the drawing: 曲げて組付けてみると思い通りに組み付かないことがあったり、新たなパーツを作る必要がでてきたりと設計を変更する場面がいくつかあり、とても難しかったです。
