35th Precision Sheet Metal Technology Fair

Sheet metal parts (64 entries)

360° Viewer

Parts056

Technical Encouragement Award

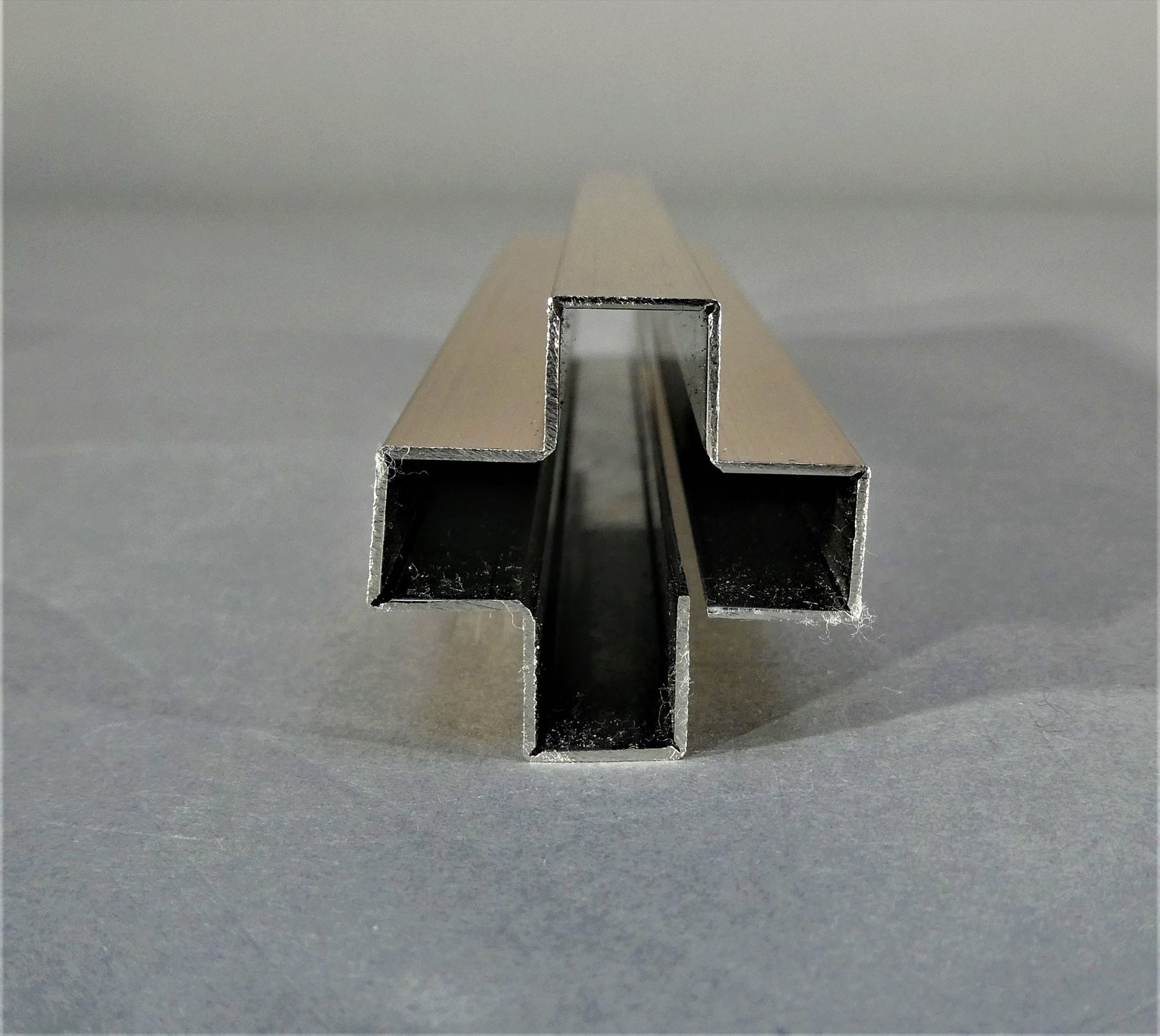

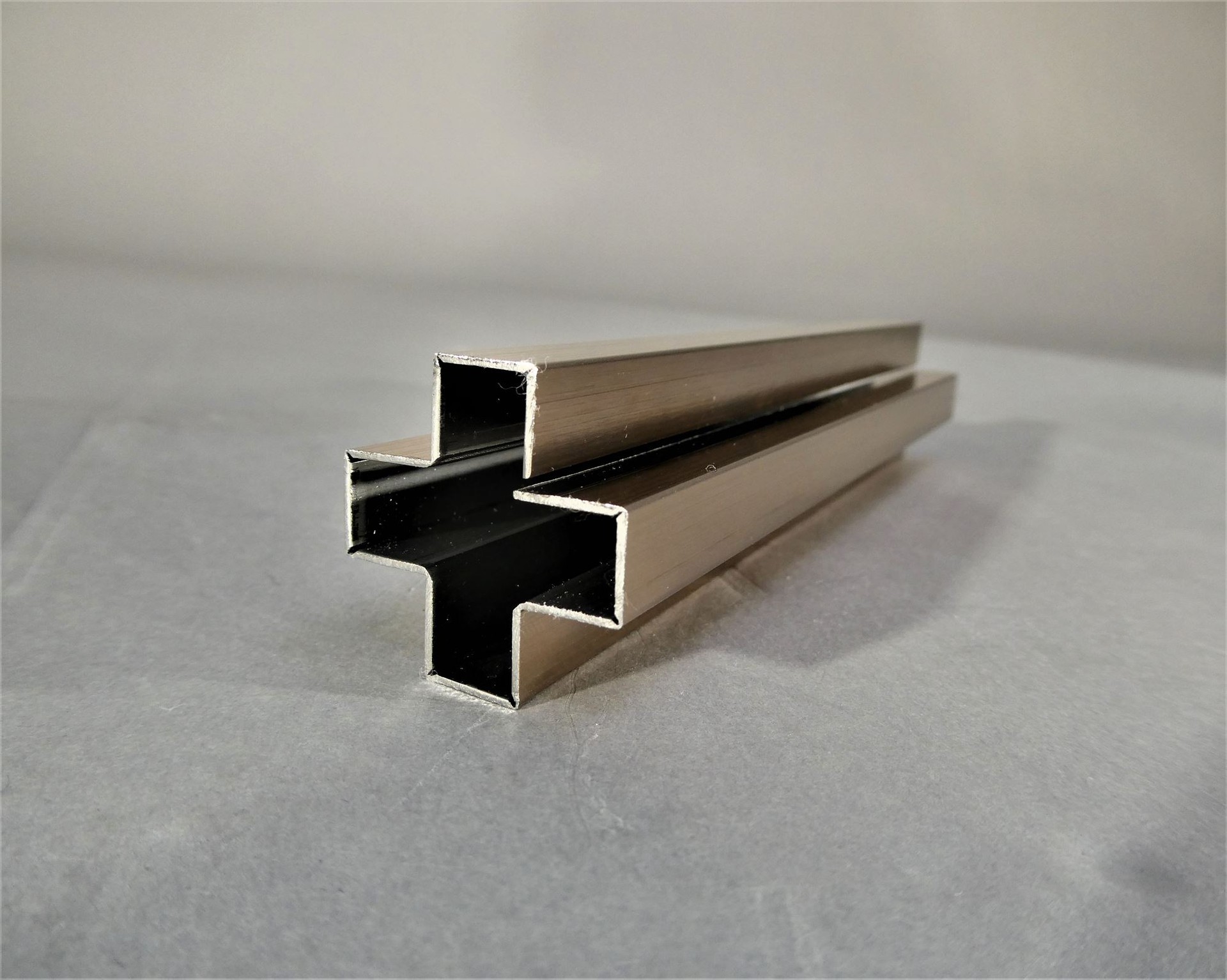

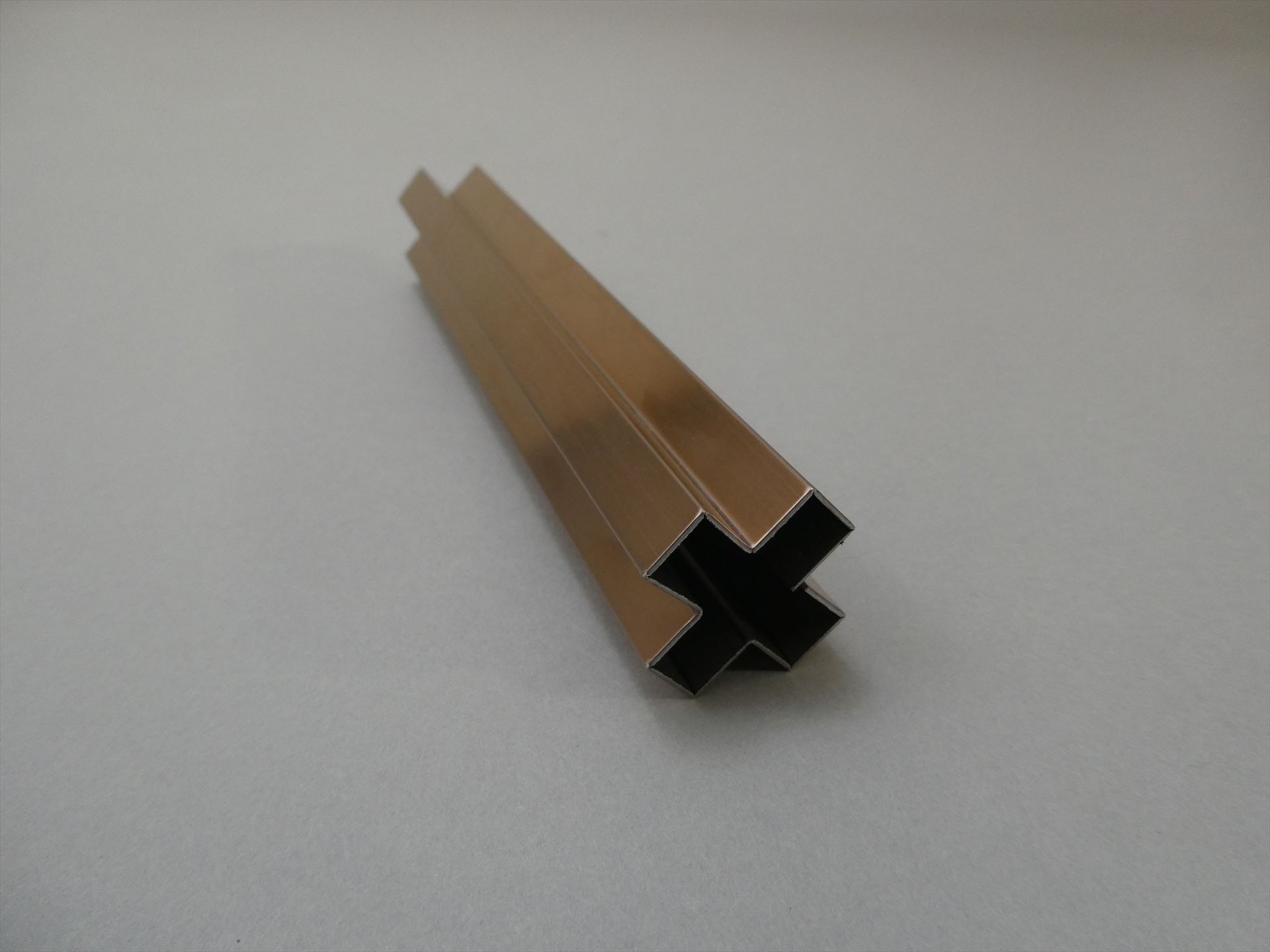

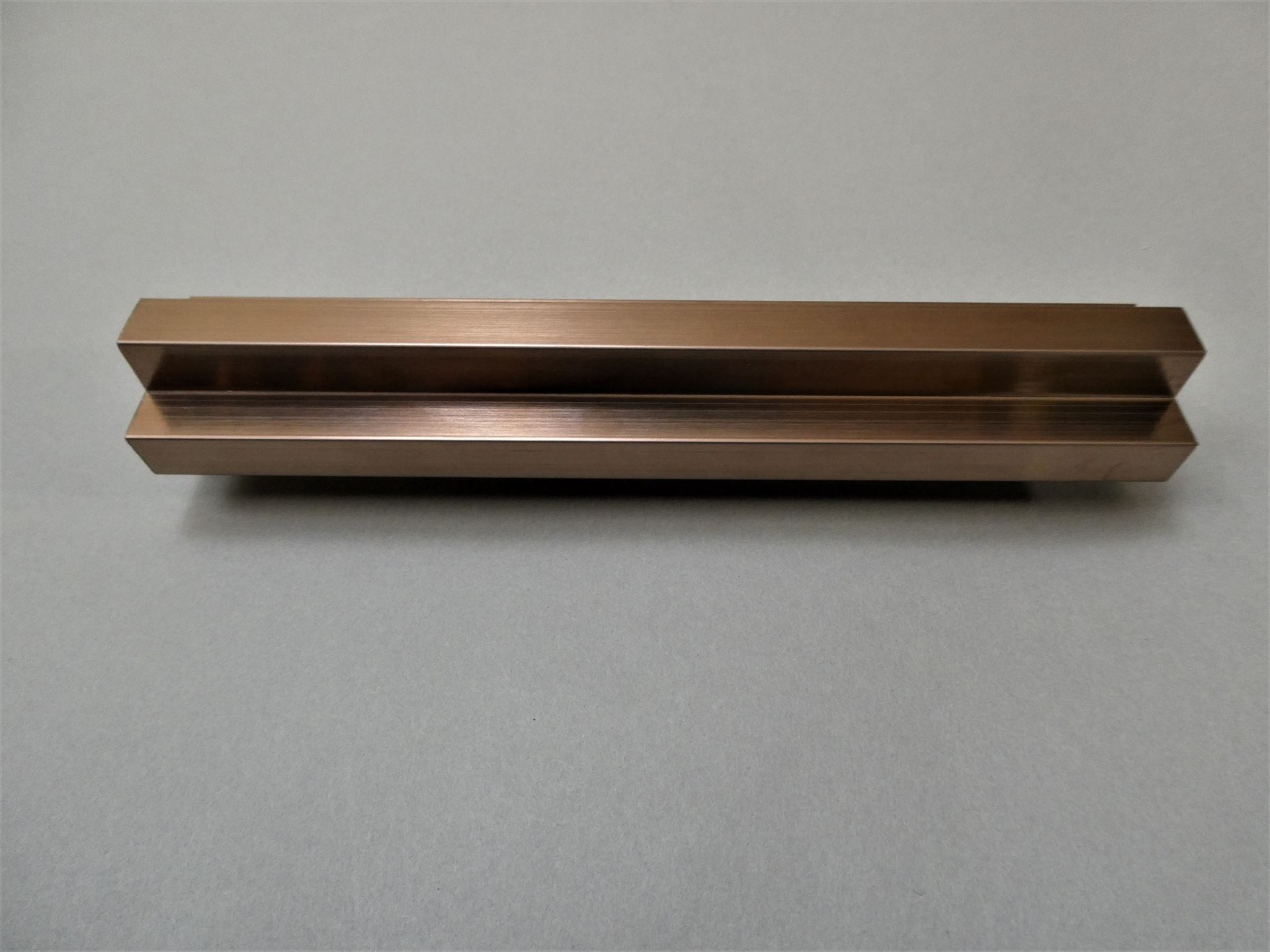

Cross Profile

FeCuNi (India)

  • ・Size: W30 x D150 x H30 mm

  • ・Accuracy: ± 0.2 mm

  • ・Programming time: 20 min

  • ・Processing time: 60 min/quantity

  • ・Quantity: 1

  • ・Material: SUS 304 Ross Gold Hairline

  • ・Thickness: 0.8 mm

  • ・Type: Original work

Process

  • Design(3D/2D)

  • CAD/CAM

  • Blanking

  • Tapping

  • Bending

  • Welding

  • Finish

Strengths

It was great challenge to create special tool arrangemnt to manufacture this part.
