通纸面圆弧高精密钣金件/High precision sheet metal part of printer (Parts049)
Parts049
Technical Encouragement Award

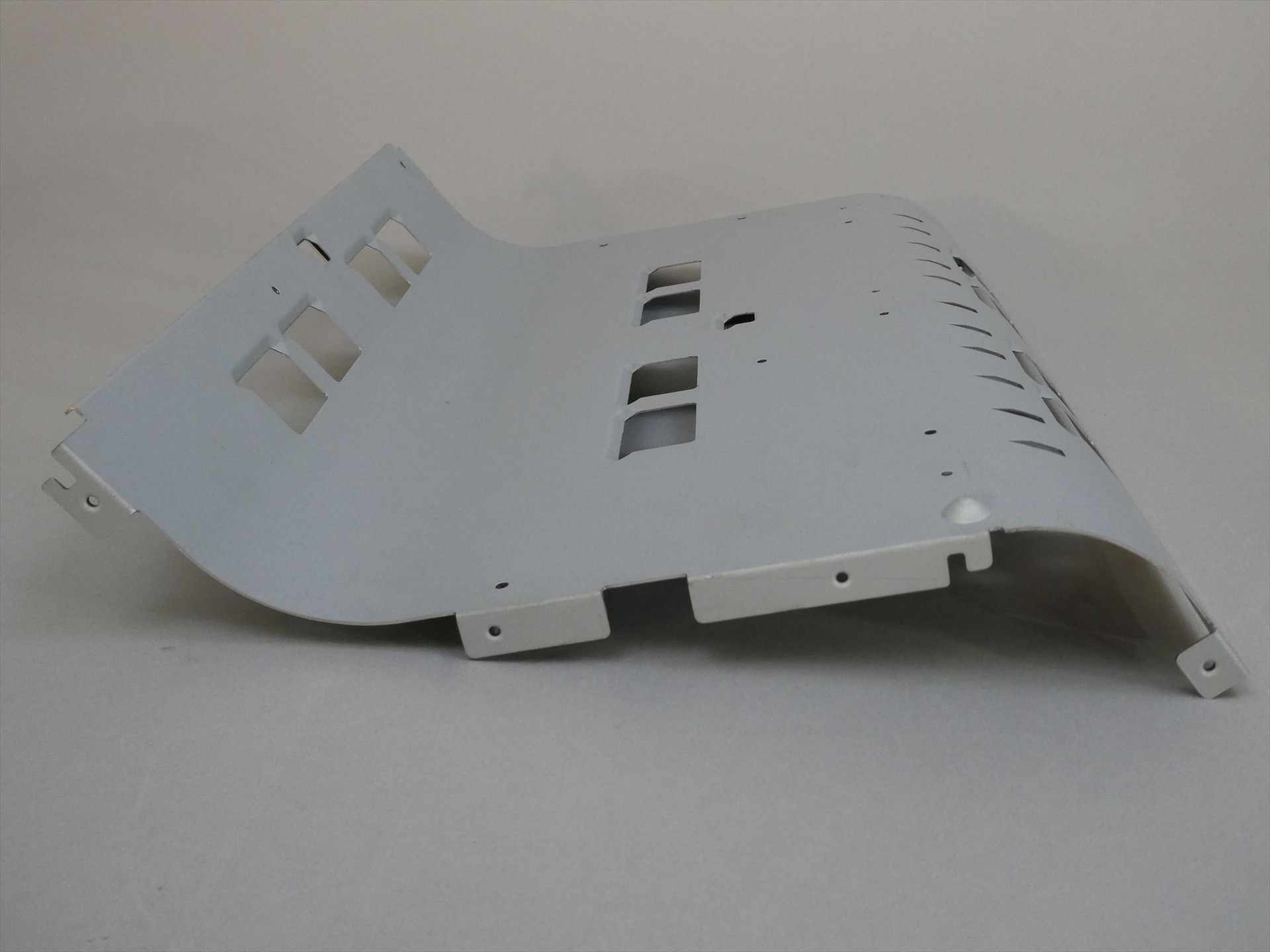

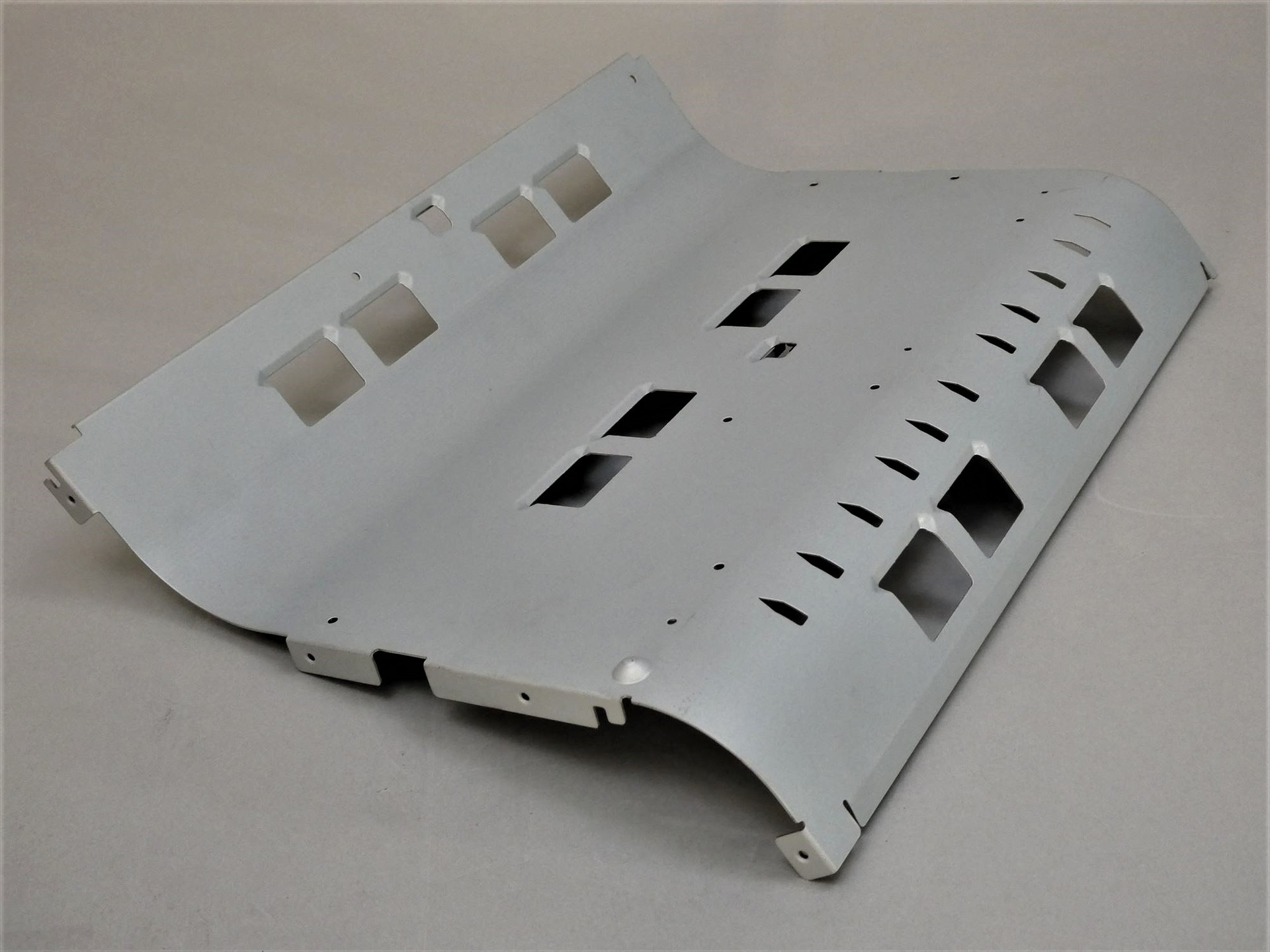

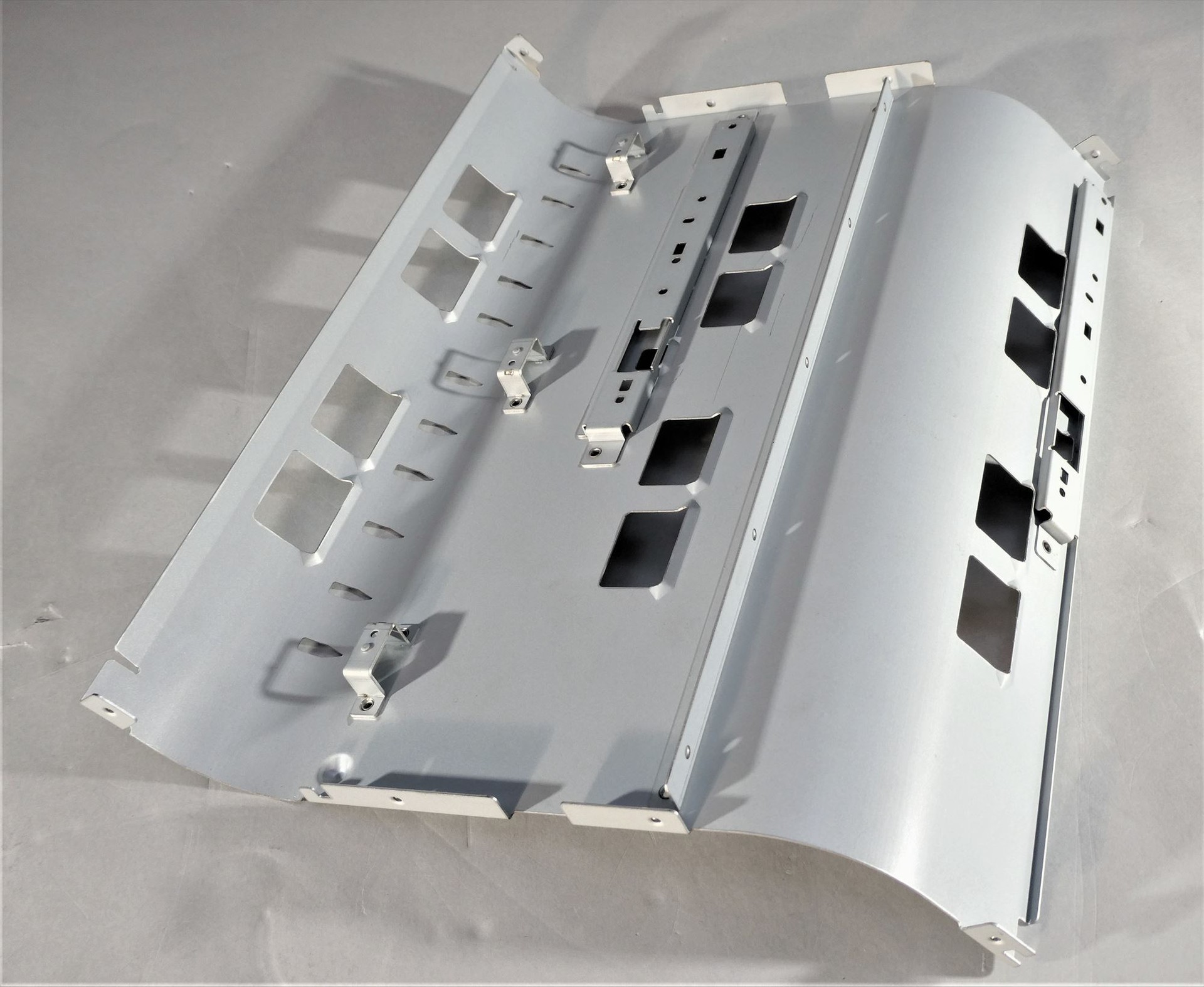

通纸面圆弧高精密钣金件/High precision sheet metal part of printer
Shenzhen PengRui Precision Sheet Metal Product Co., Ltd (China)
-
・Size: W380 x D500 x H200 mm
-
・Accuracy: ± 0.1 mm
-
・Programming time: 2 min
-
・Processing time: 3 min/quantity
-
・Quantity: -
-
・Material: SECC
-
・Thickness: 1.0 mm
-
・Type: Production work
Process
Design
CAD/CAM
Punching
圧凸台
Blanking
Welding
Strengths
加工技巧:

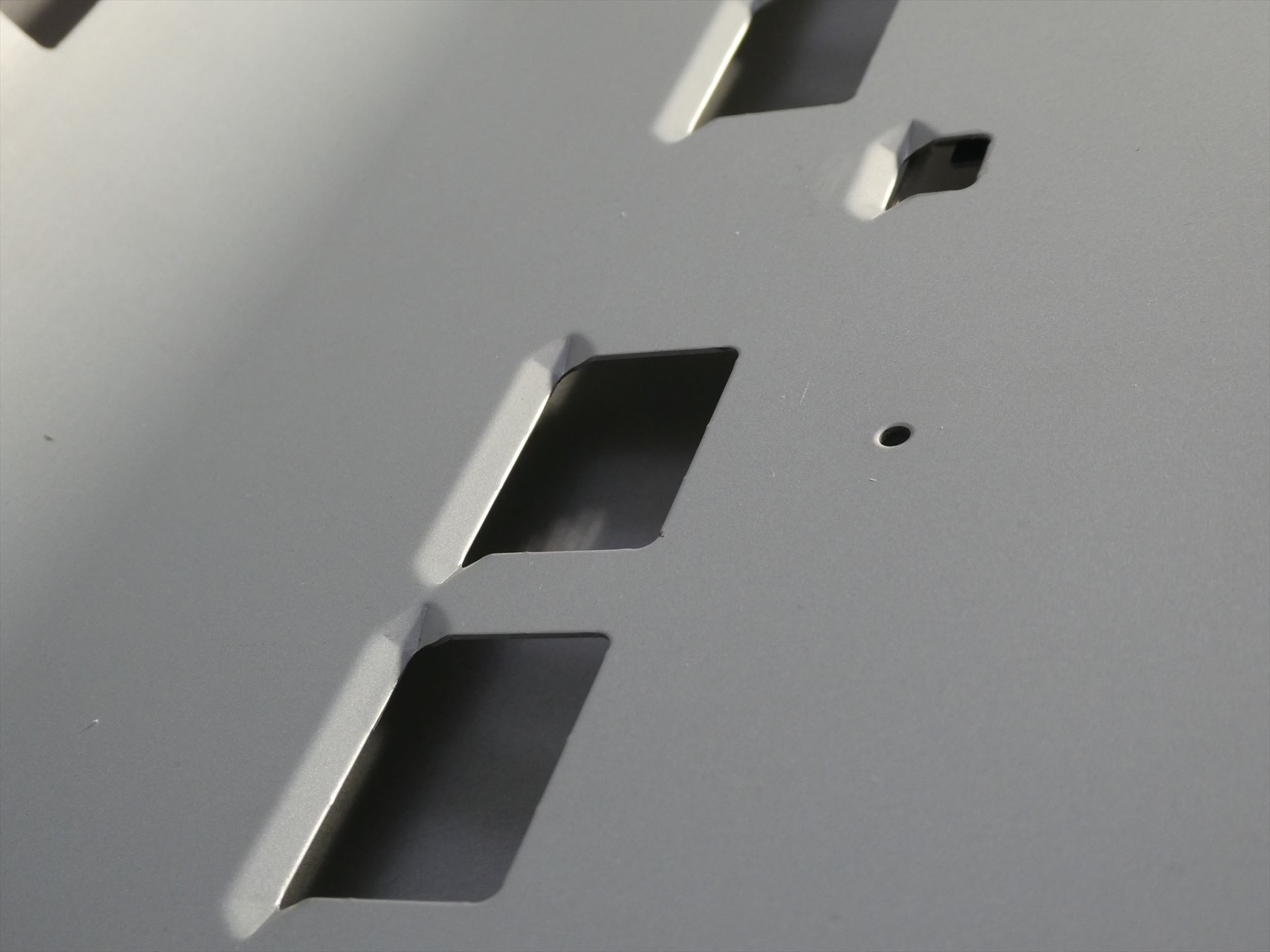

1)数控冲床落料成型加工后,激光二次加工。保证成型后的孔及外形形状。

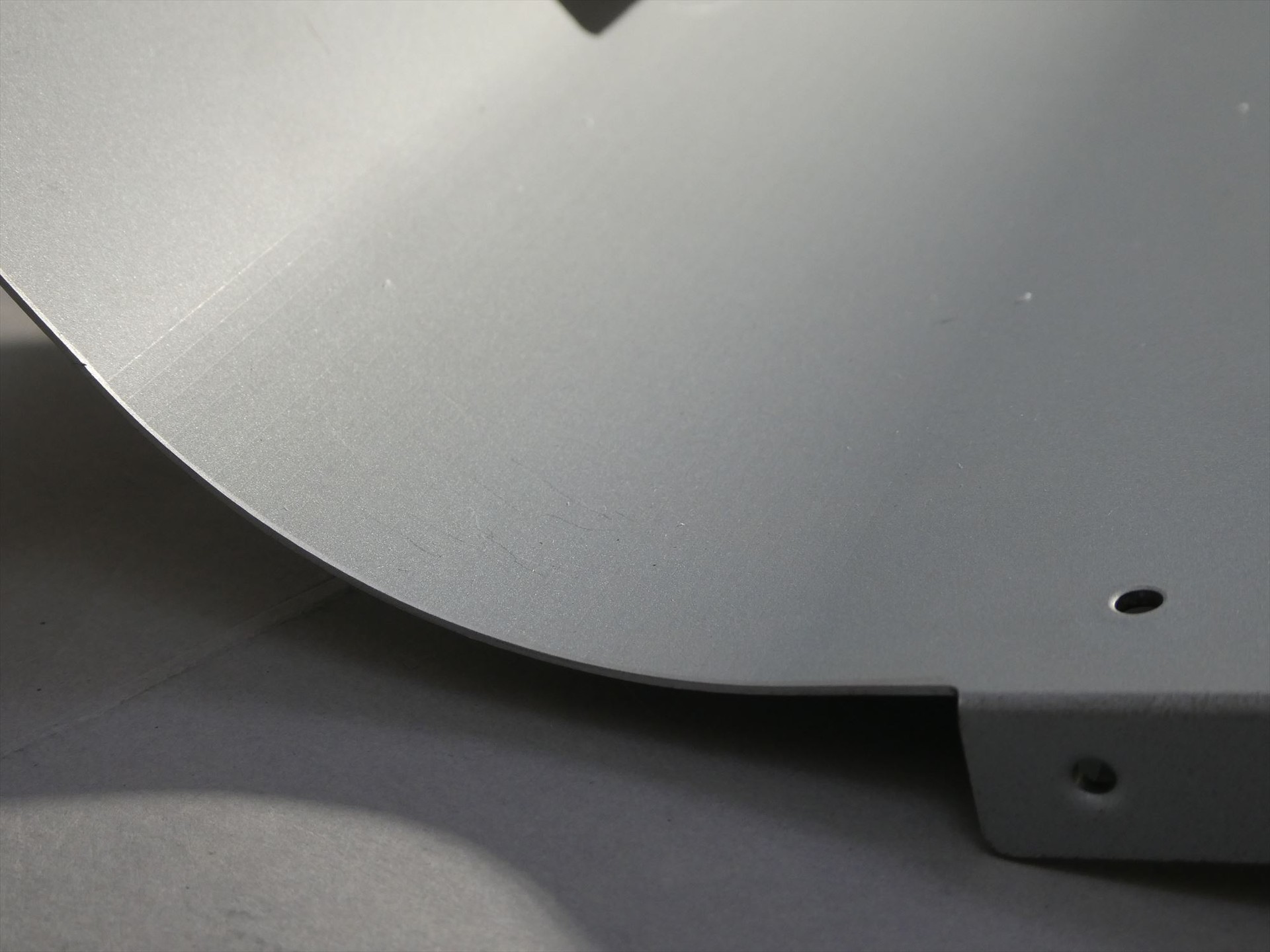

2)FR折弯,需同时保证圆弧尺寸精度和通纸面外观要求。
3)全工程通纸面外观保护
