35th Precision Sheet Metal Technology Fair

Sheet metal parts (64 entries)

360° Viewer

Parts028

Technical Encouragement Award

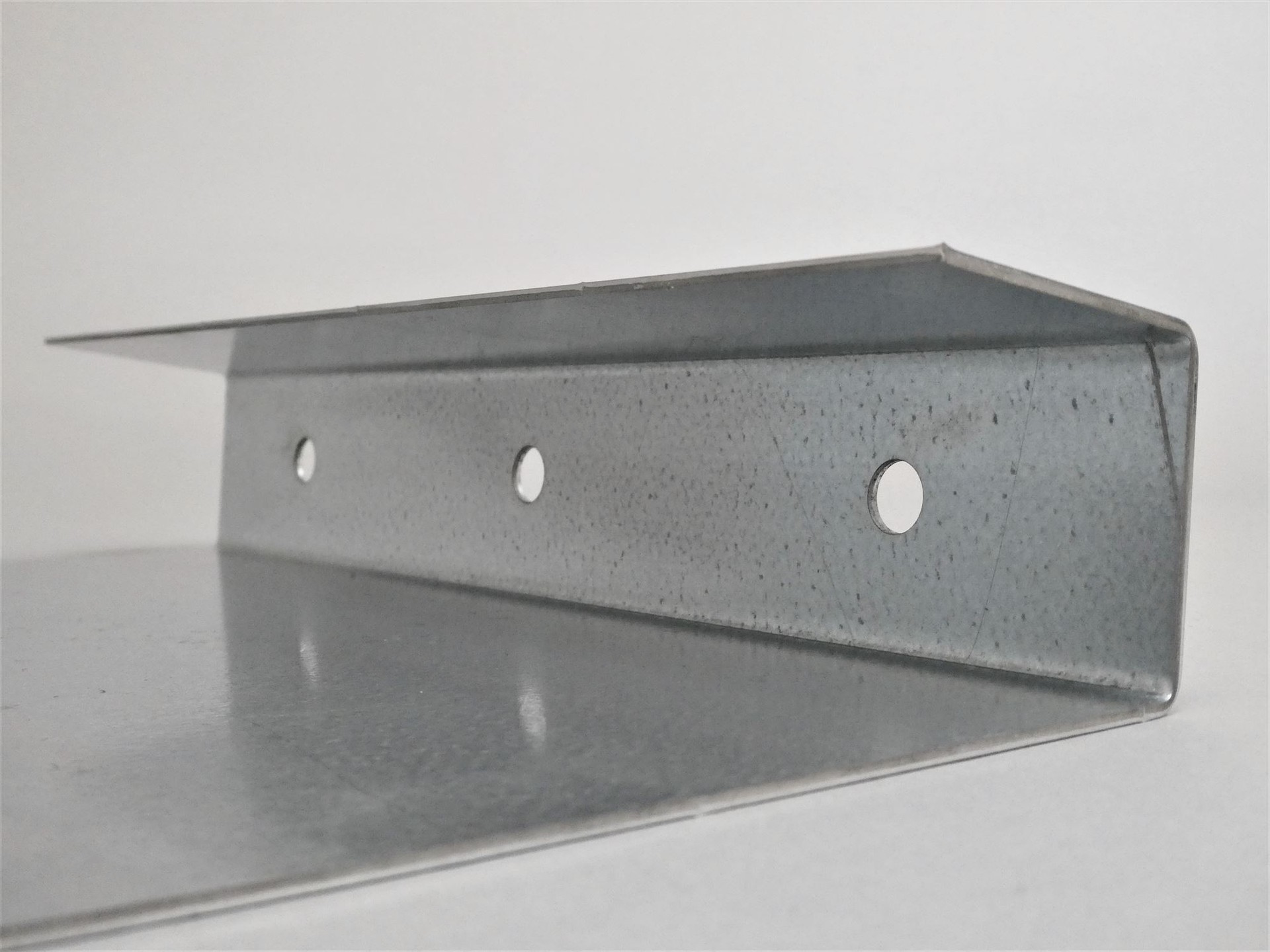

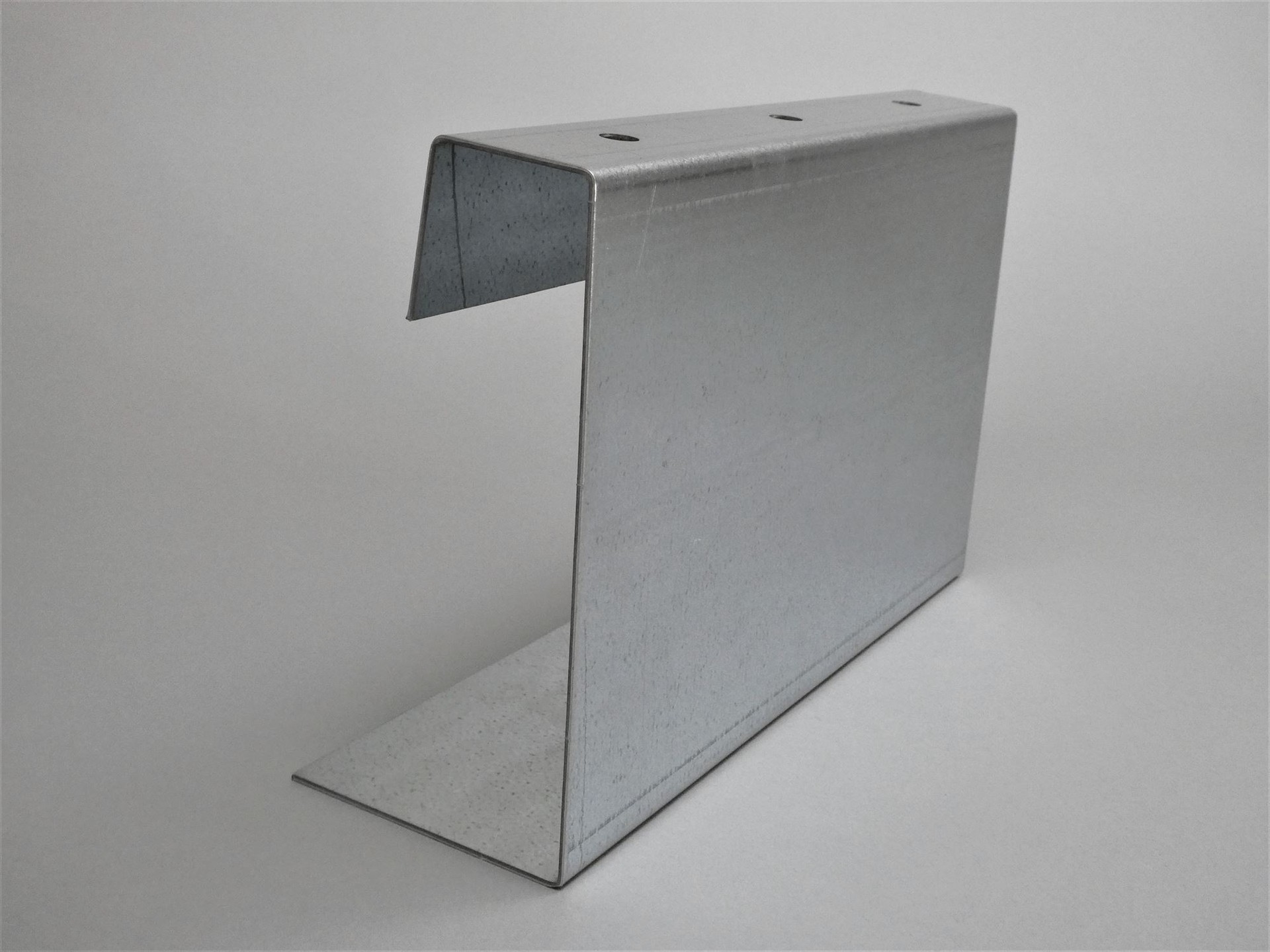

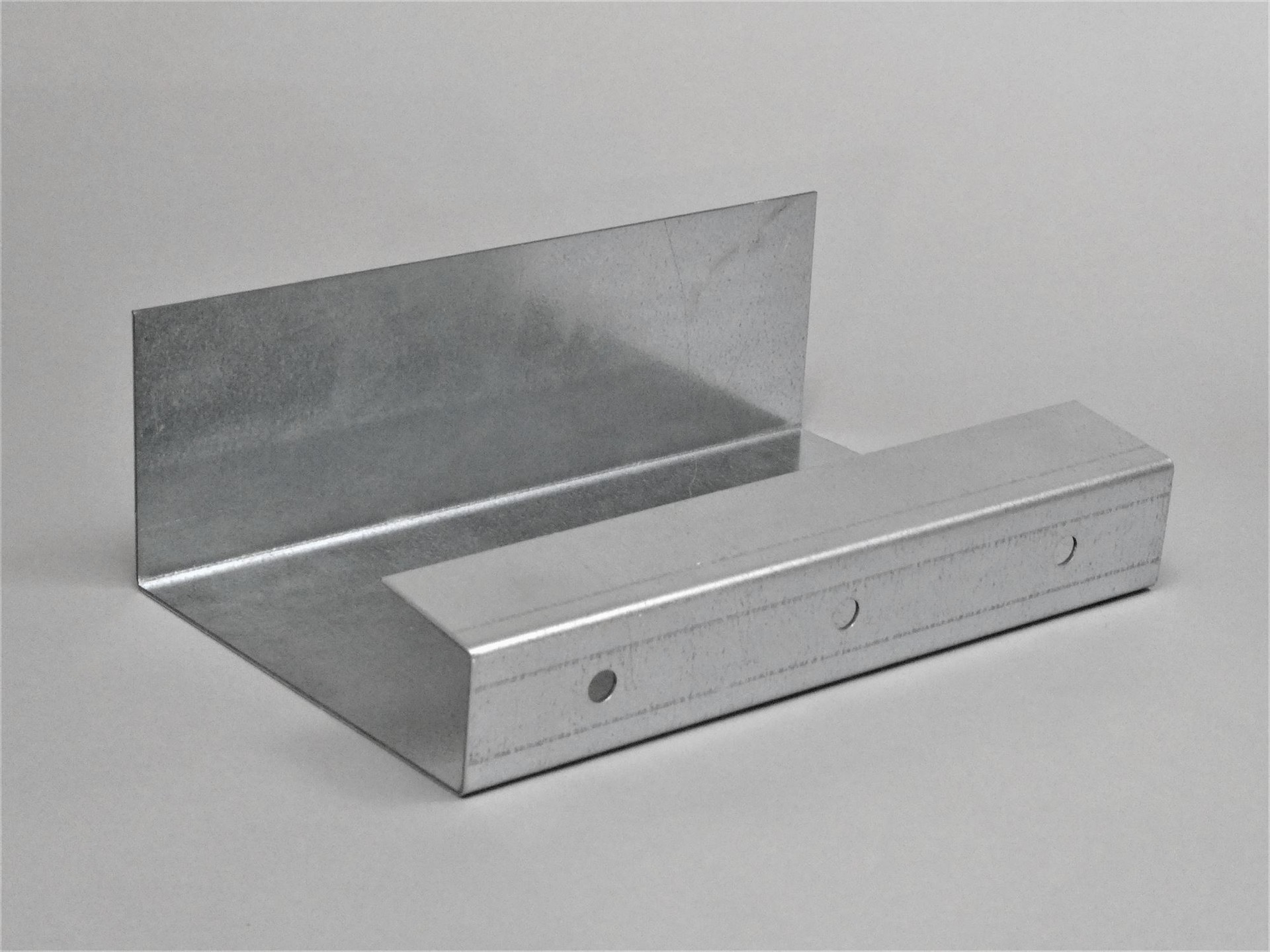

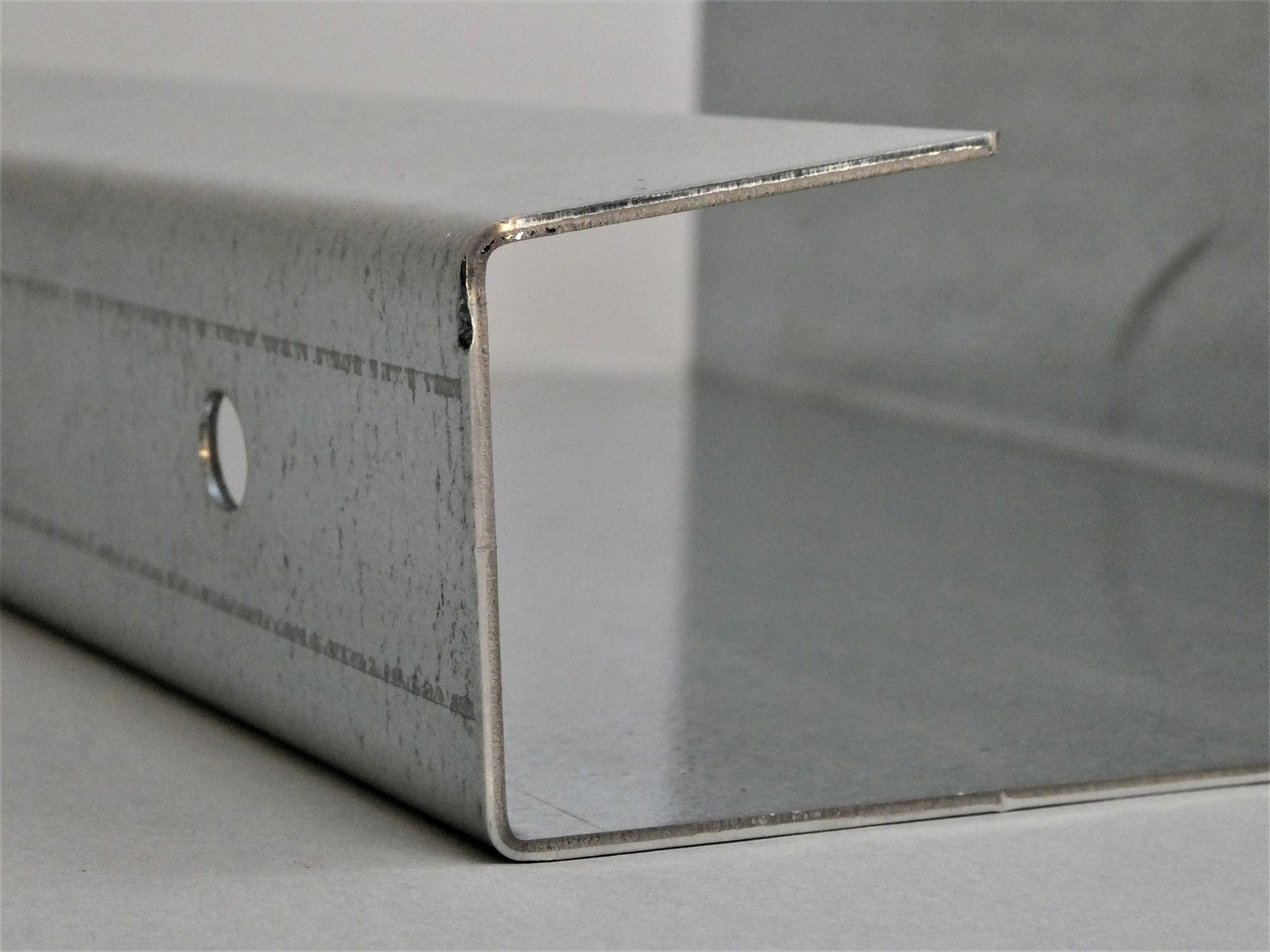

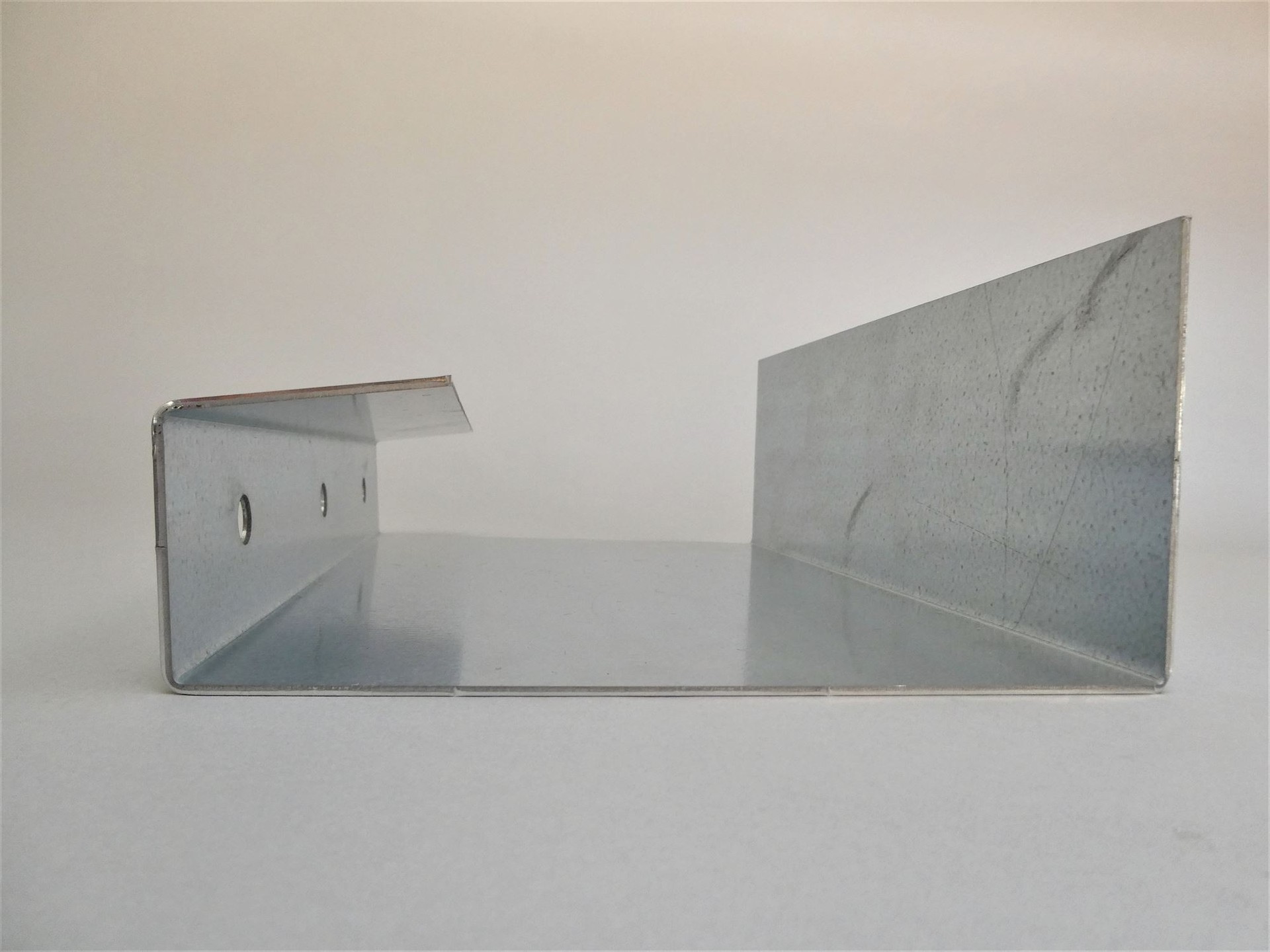

Faraday cages detal

EMCEK S.C. (Poland)

  • ・Size: W300 x D100 x H200 mm

  • ・Accuracy: ± 0,1mm mm

  • ・Programming time: 1 min

  • ・Processing time: 1 min/quantity

  • ・Quantity: 1

  • ・Material: Mild Steel (SECC)

  • ・Thickness: 2.0 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Programming

  • Punching

  • Bending

Strengths

Designing product in CAD software, then preparing program for punching AE 2610 NT machine in VPSS 3i Blank Solution Pack, then punch out the part. Preparing program and bending on HFE M2 100.3.7.A.
