SDGs Motorcycle (Formative416)
Formative416
Technical Encouragement Award

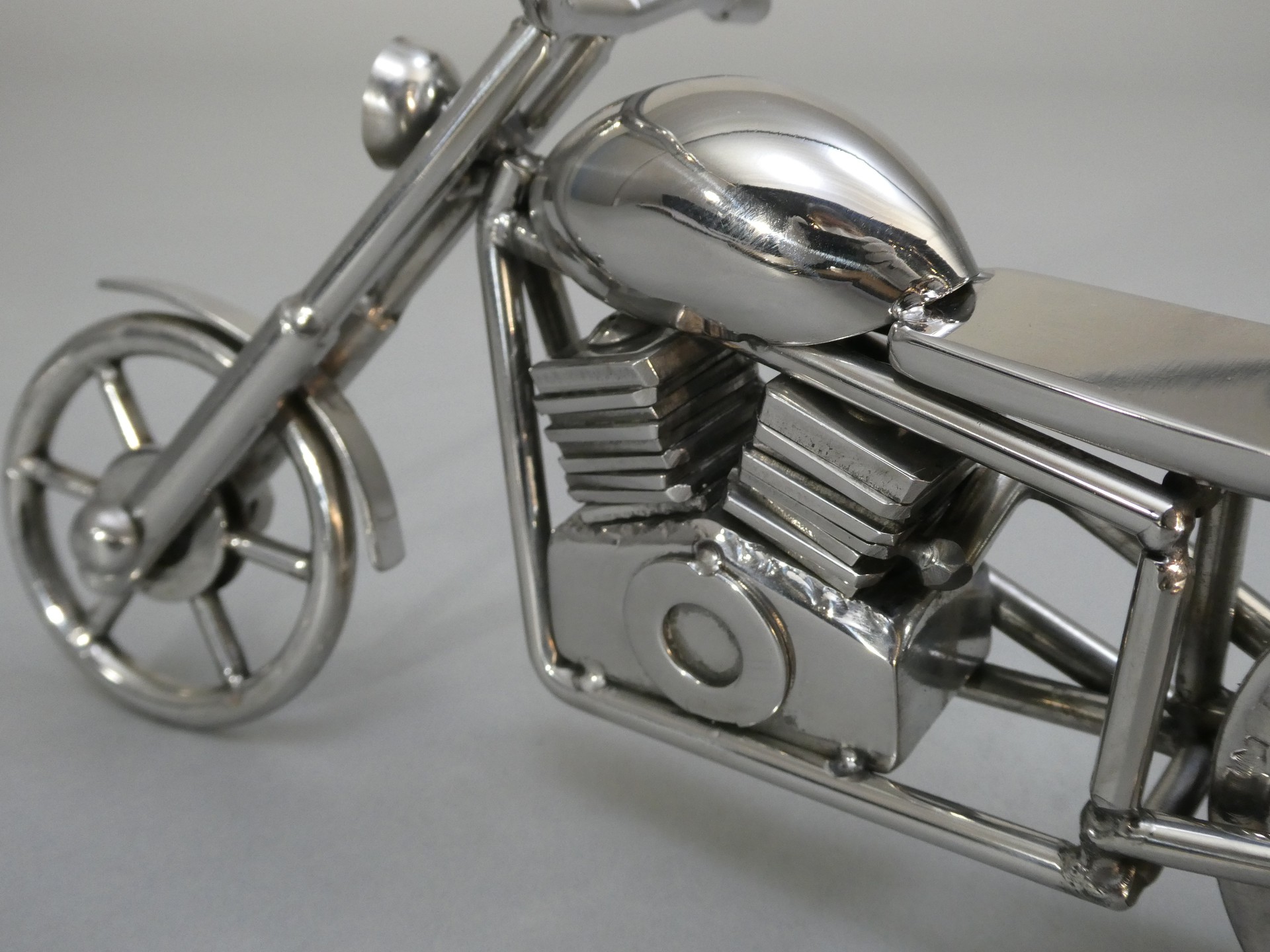

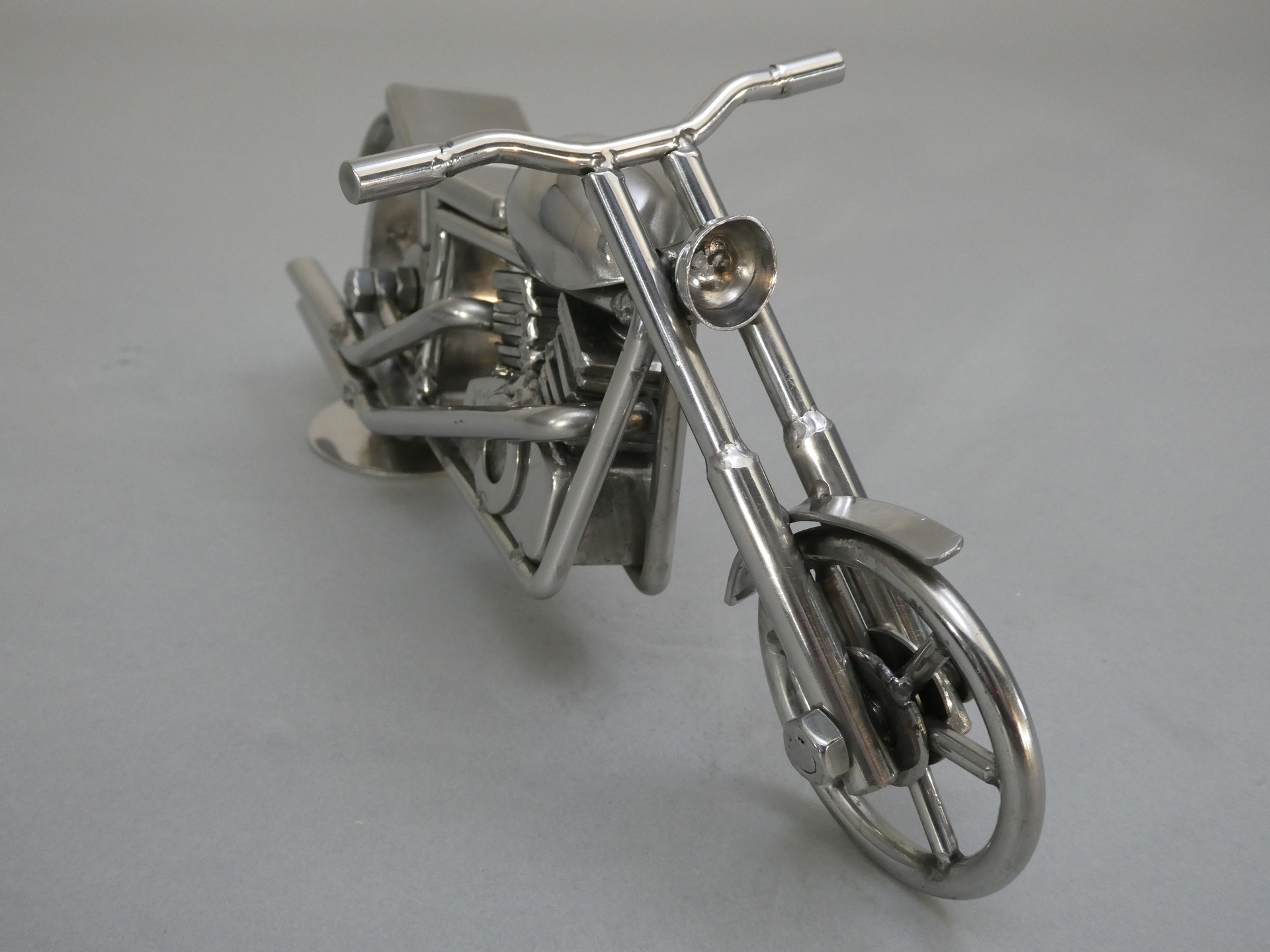

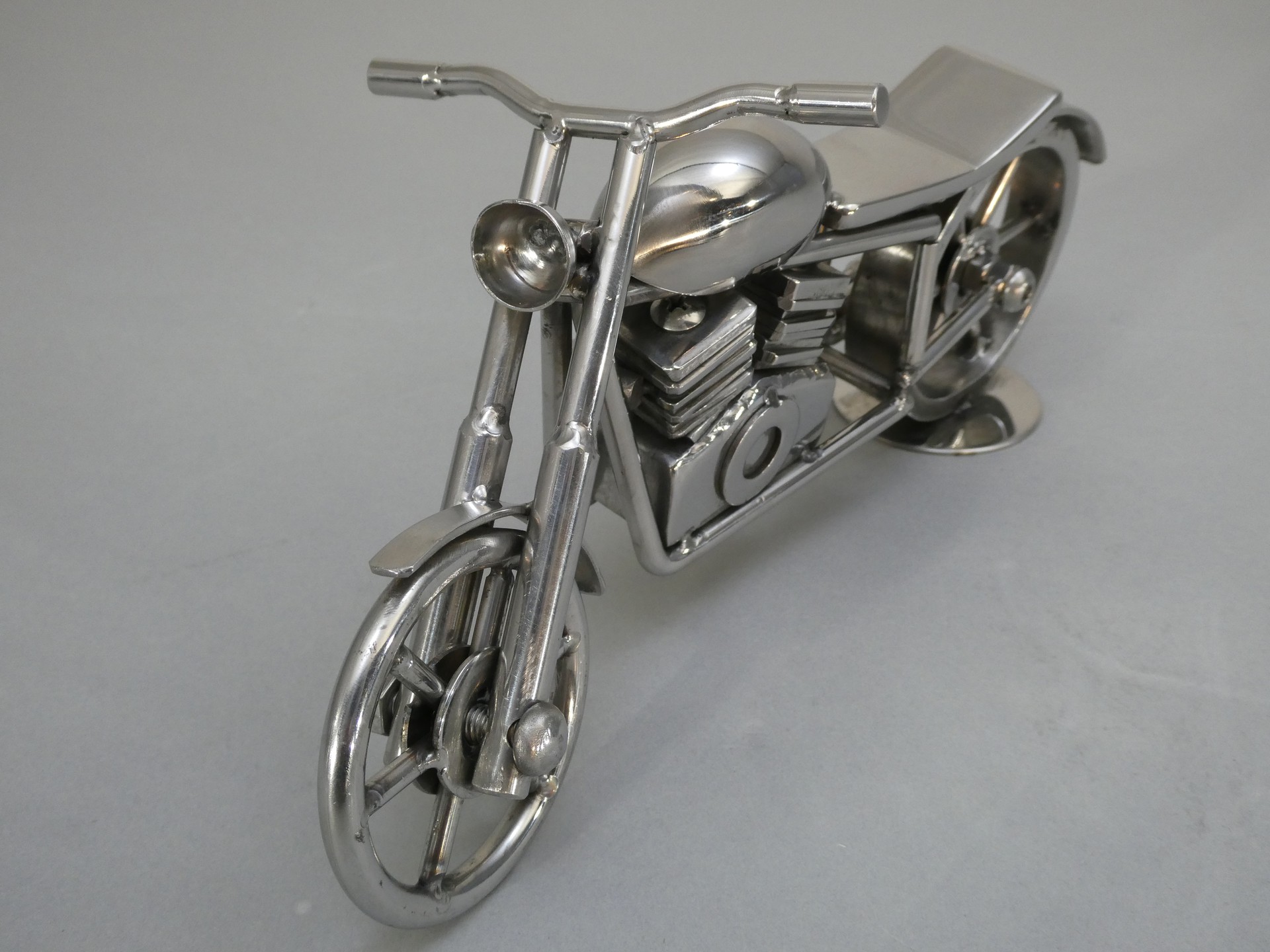

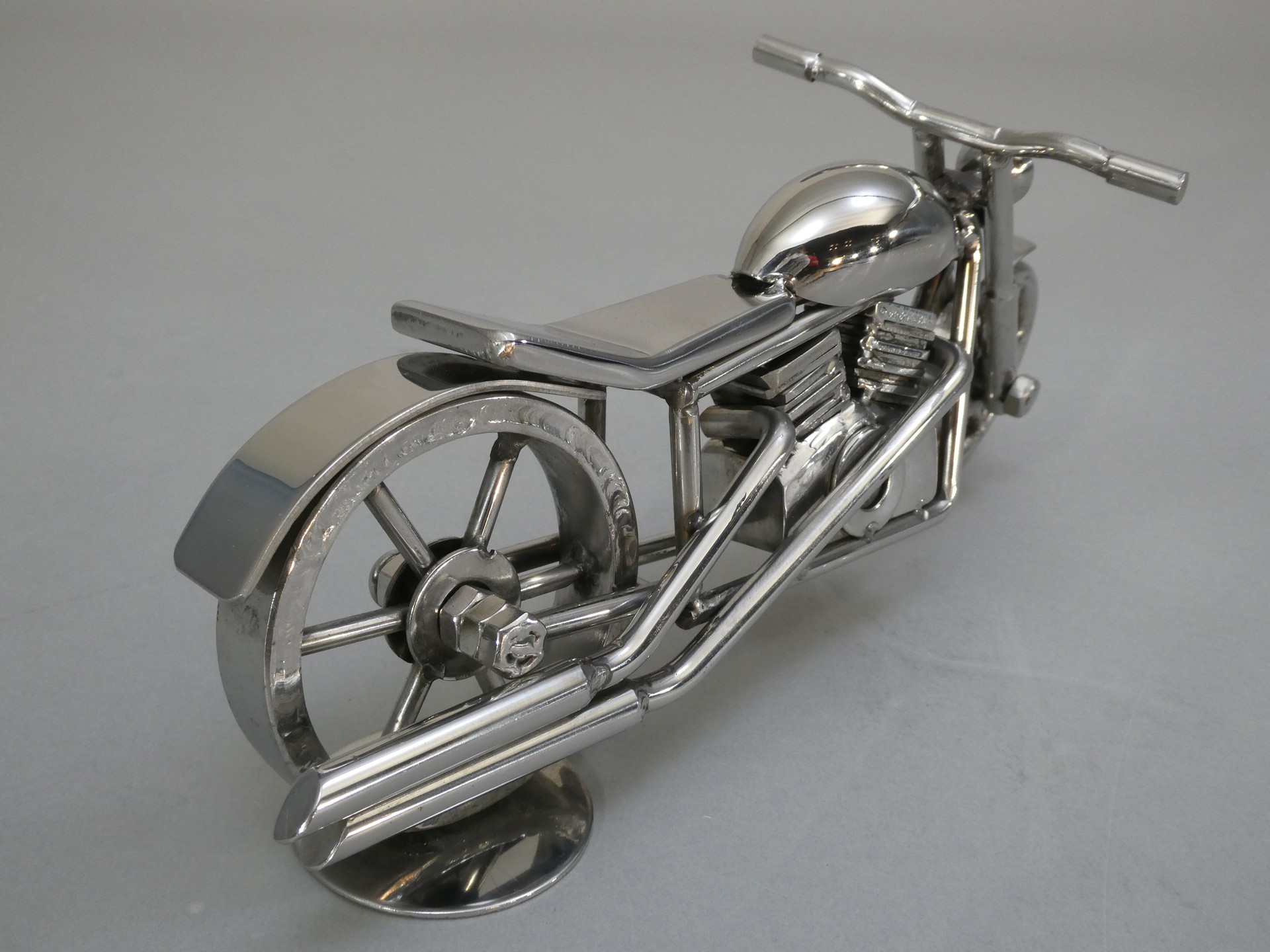

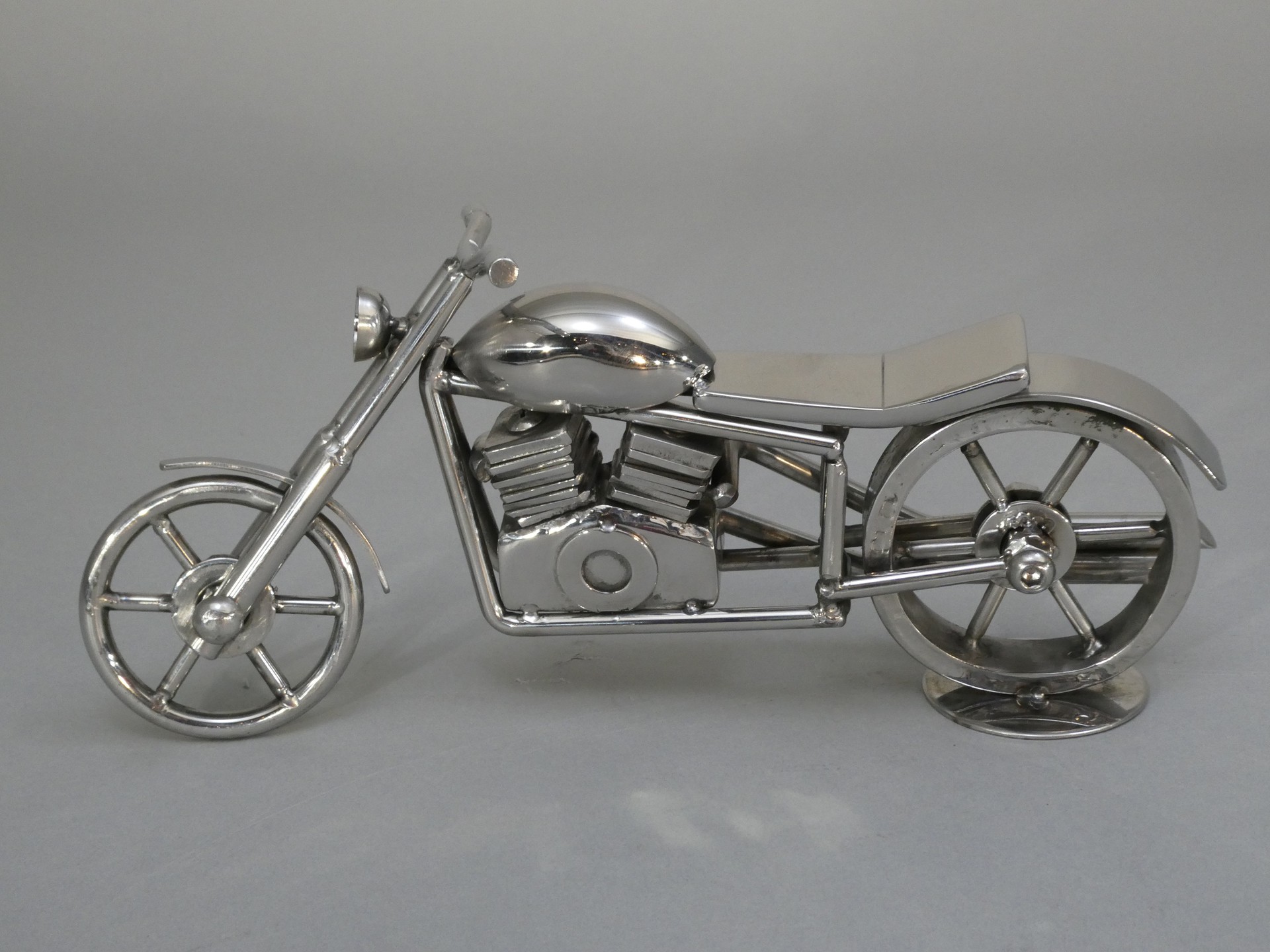

SDGs Motorcycle
株式会社 まるわステンレス工業 (Yamaguchi Pref. Japan)
-
・Size: W245 x D86 x H103 mm
-
・Accuracy: ± 0.5 mm
-
・Programming time: - min
-
・Processing time: 1080 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.5mm ~ Φ10 mm
-
・Type: Original work
Process
Shearing
Bending
Bending
Welding
Surface Finishing
Strengths
・廃材を工夫して使用し、コストを抑えた
・各部品ごとに仕上げていった
・リアタイヤはフラットバーを丸めて2枚重ねて溶接した
・ヘッドライトは袋ナットを切って作成した
・溶接量を減らして時間を短縮した
・どのようにデフォルメするか苦慮した
