35th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (68 entries)

360° Viewer

Assemble269

Technical Encouragement Award

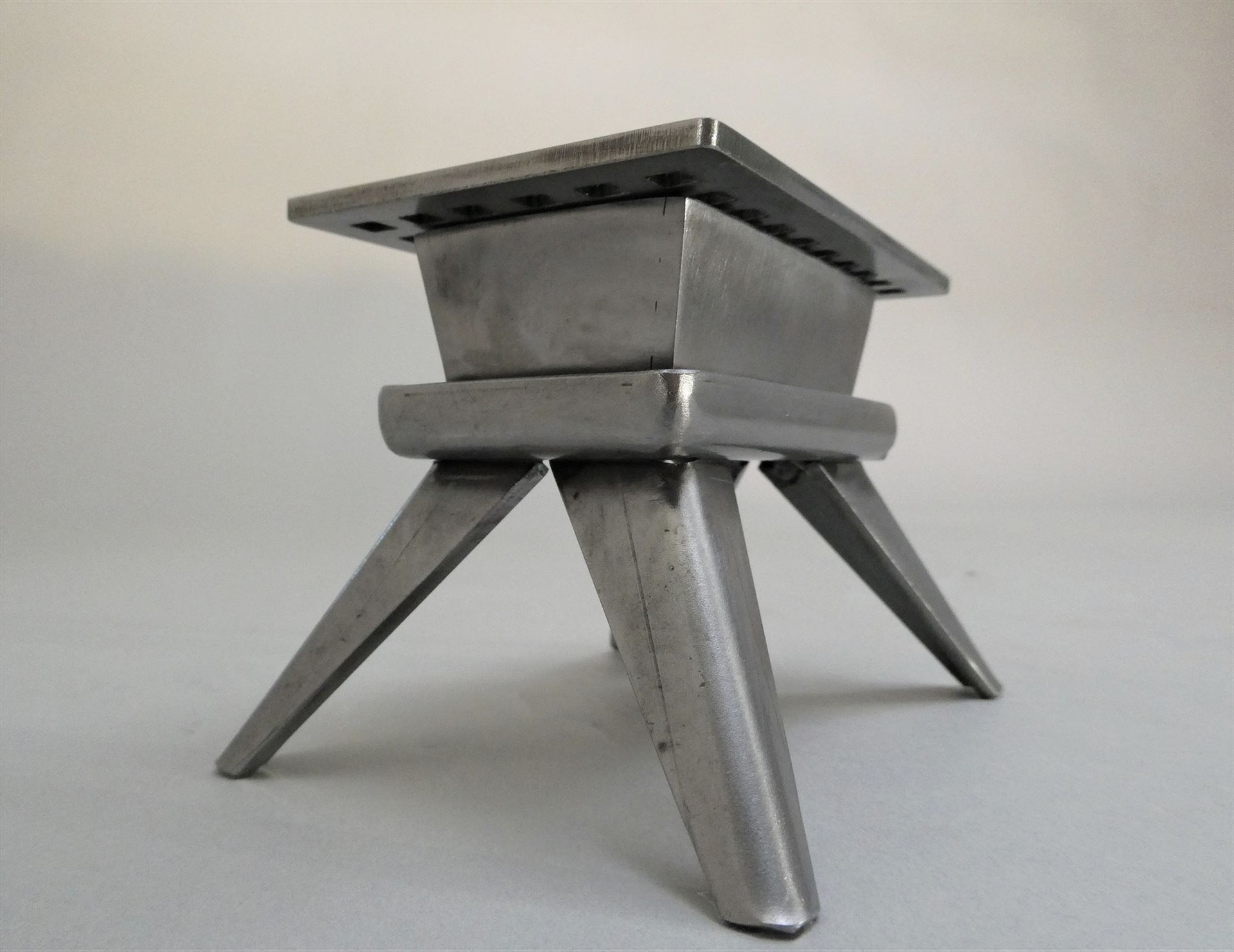

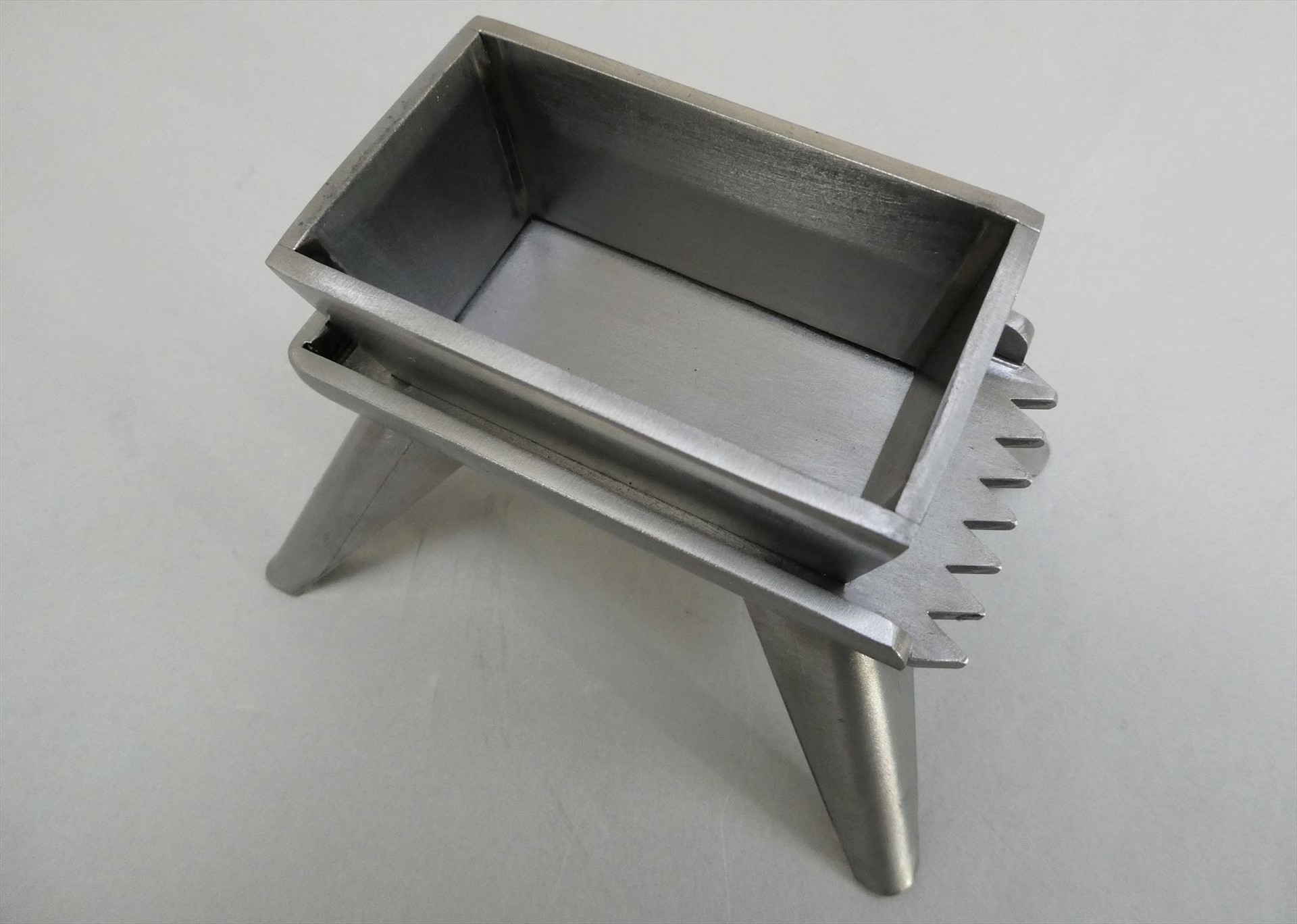

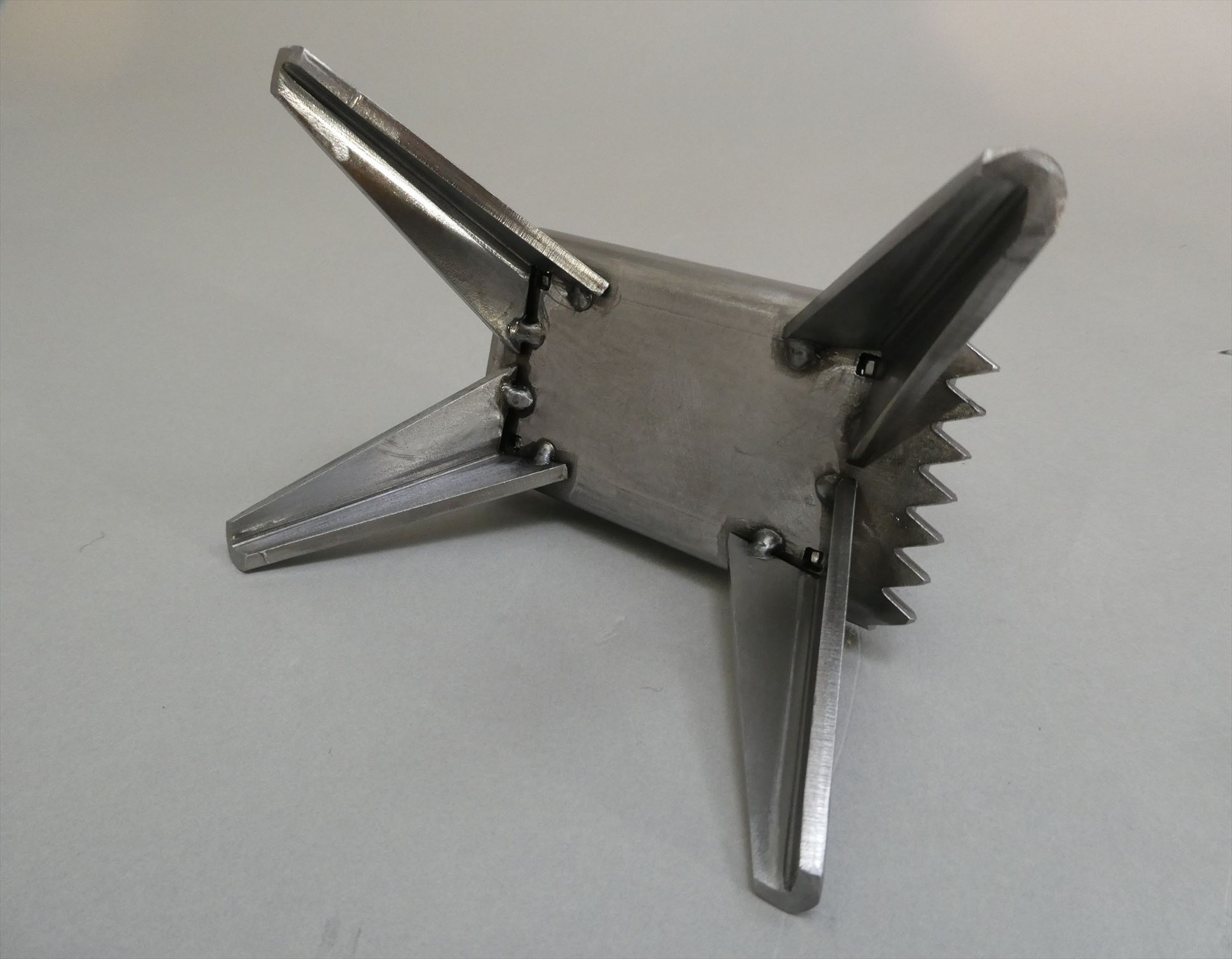

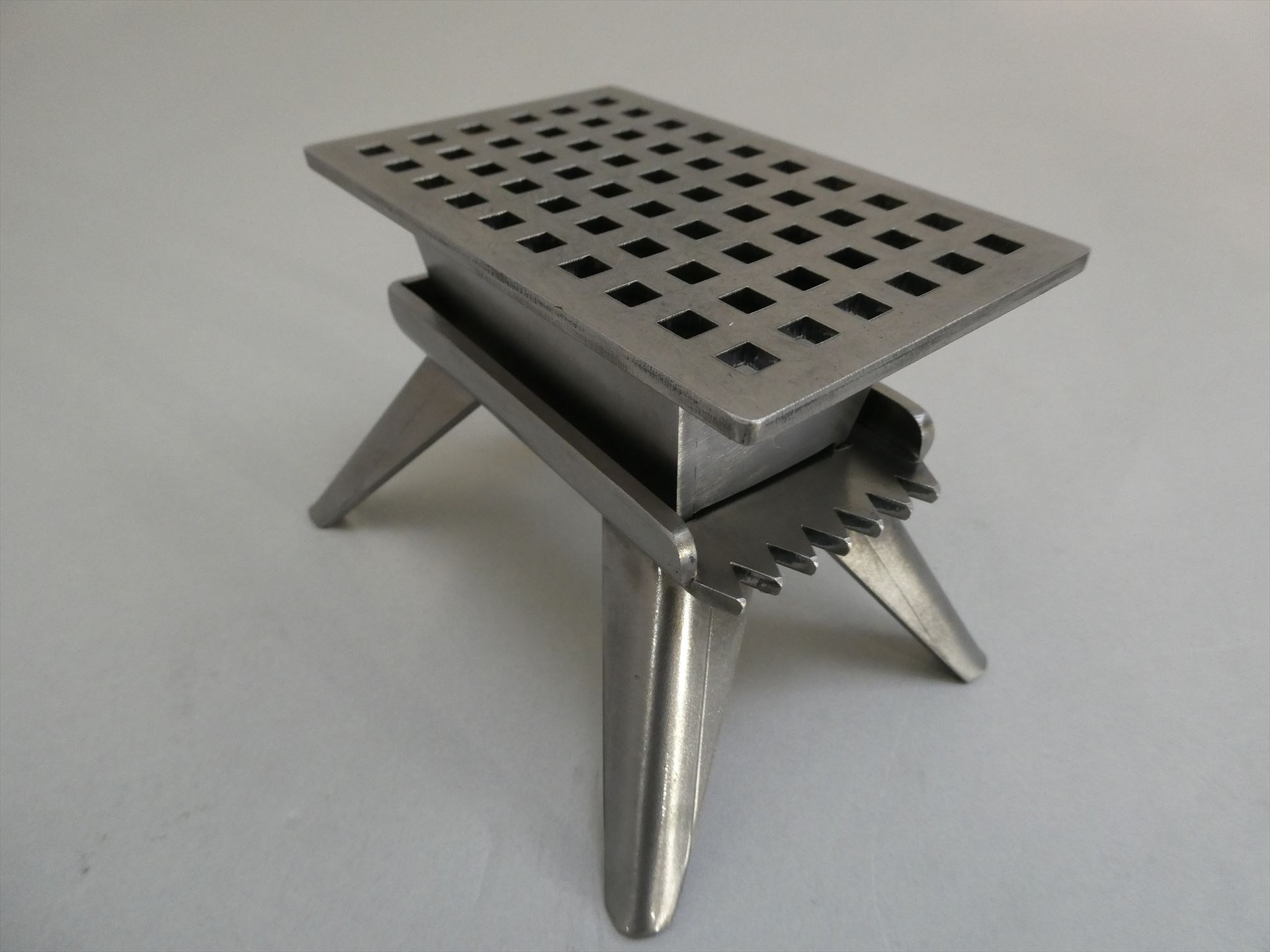

MINI BBQ GRILL

Shimizu Metal Stamping (Thailand) Co., Ltd. (Thailand)

  • ・Size: W110 x D70 x H82 mm

  • ・Accuracy: ± 0.2 mm

  • ・Programming time: 15 min

  • ・Processing time: 2 min/quantity

  • ・Quantity: 10

  • ・Material: SPH270C

  • ・Thickness: 3.2 mm

  • ・Type: Prototype

Process

  • Design(3D/2D)

  • CAD/CAM

  • Blanking

  • Bending

  • Spot Welding

  • Finish
