Funnel round to sqare

Maschinenbau Wüst GmbH (Germany)

  • ・Size: W365 x D225 x H250 mm

  • ・Accuracy: ± 0.2 mm

  • ・Programming time: - min

  • ・Processing time: 2 min/quantity

  • ・Quantity: -

  • ・Material: 1.4301

  • ・Thickness: 2 mm

  • ・Type: Production work

Process

  • Design（3D/2D）

  • CAD/CAM

  • Blanking

  • Bending

  • Welding

Strengths

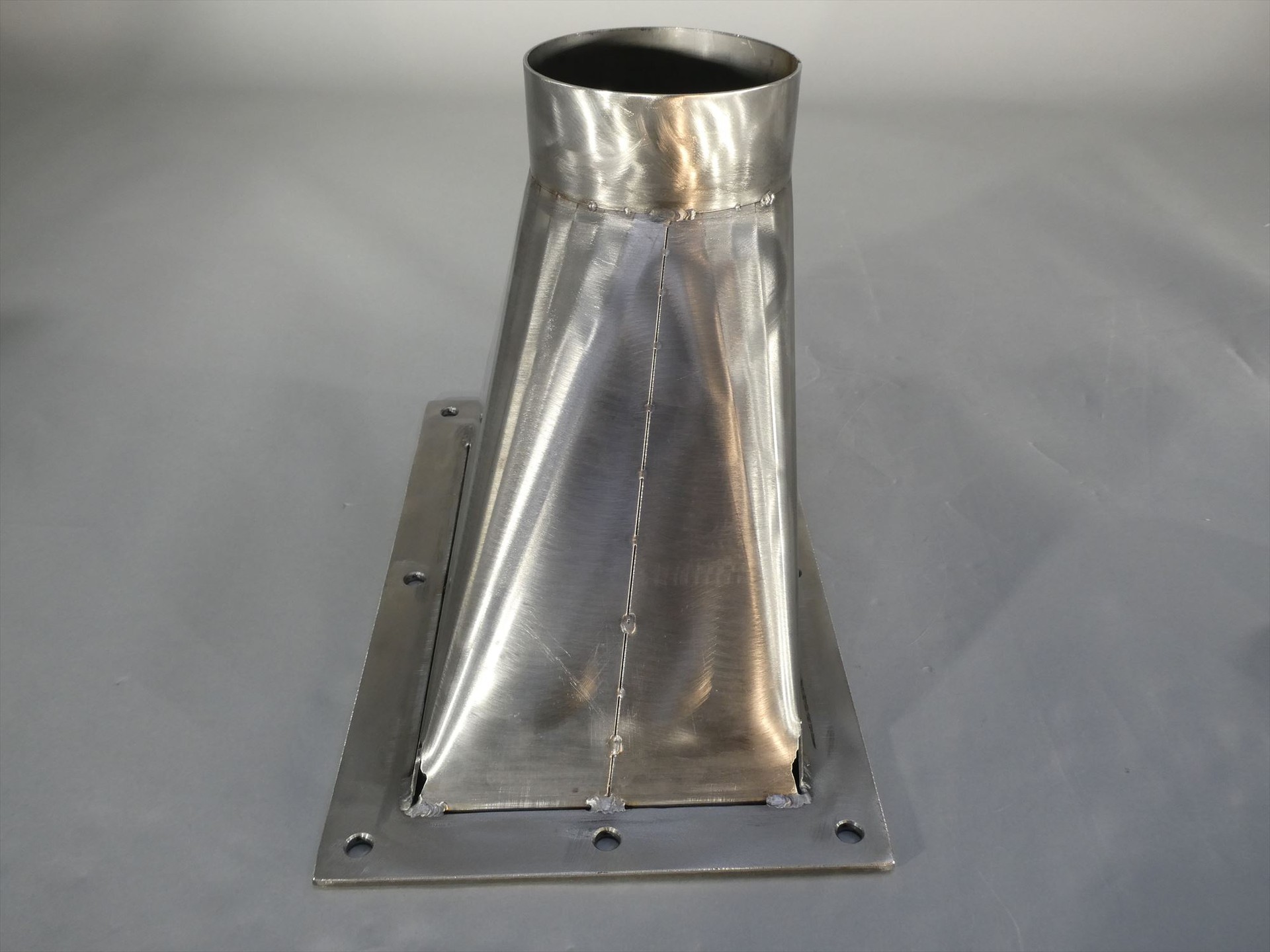

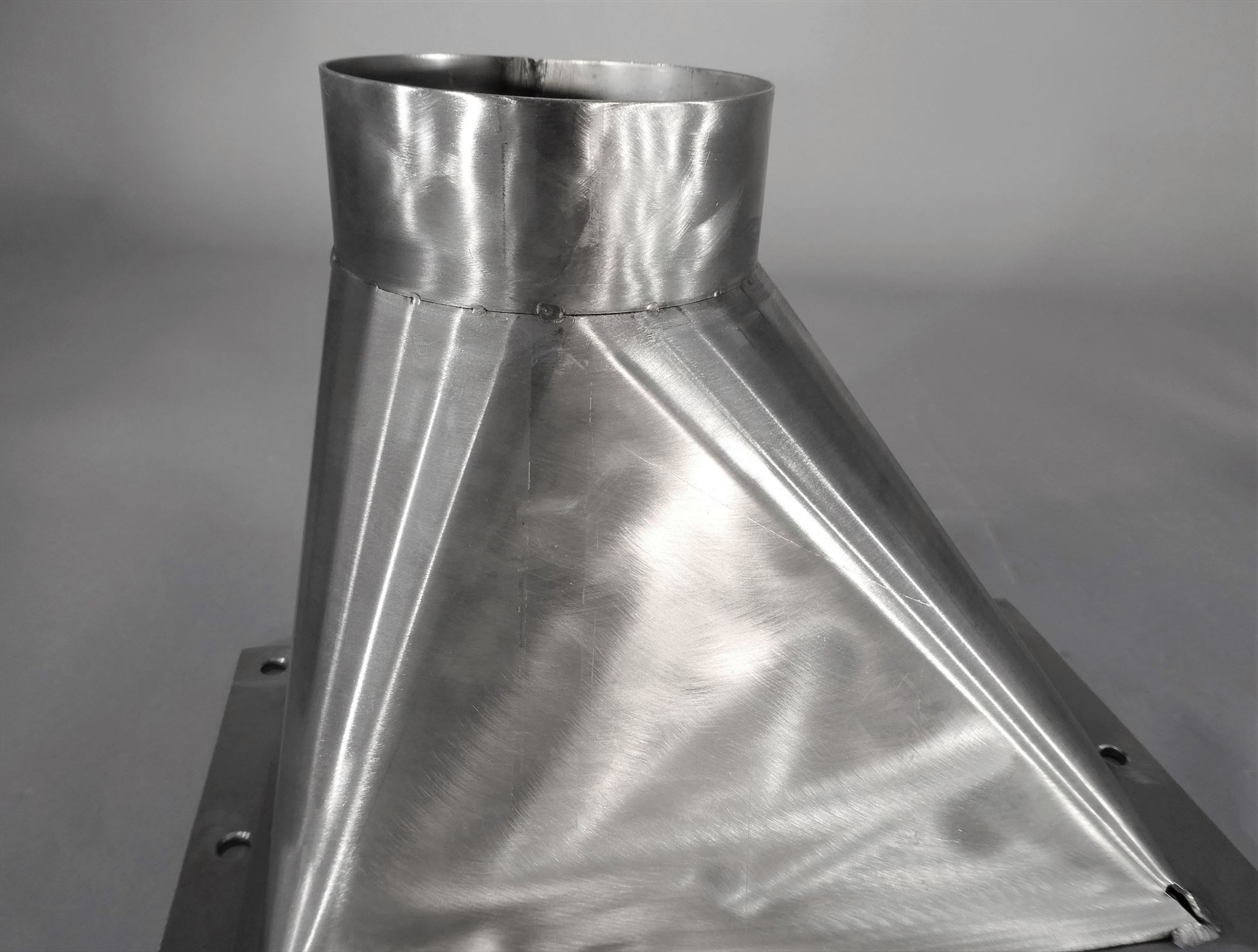

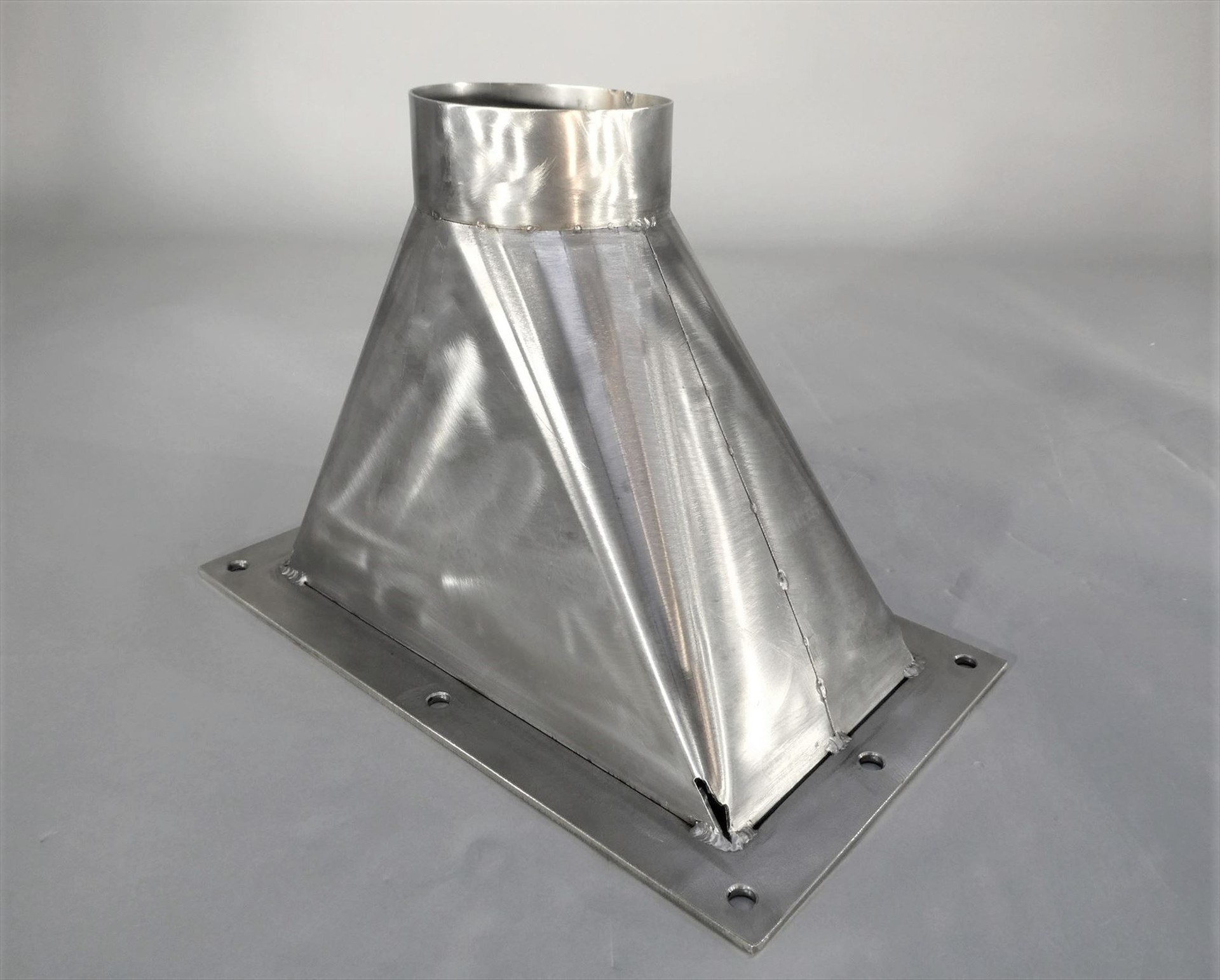

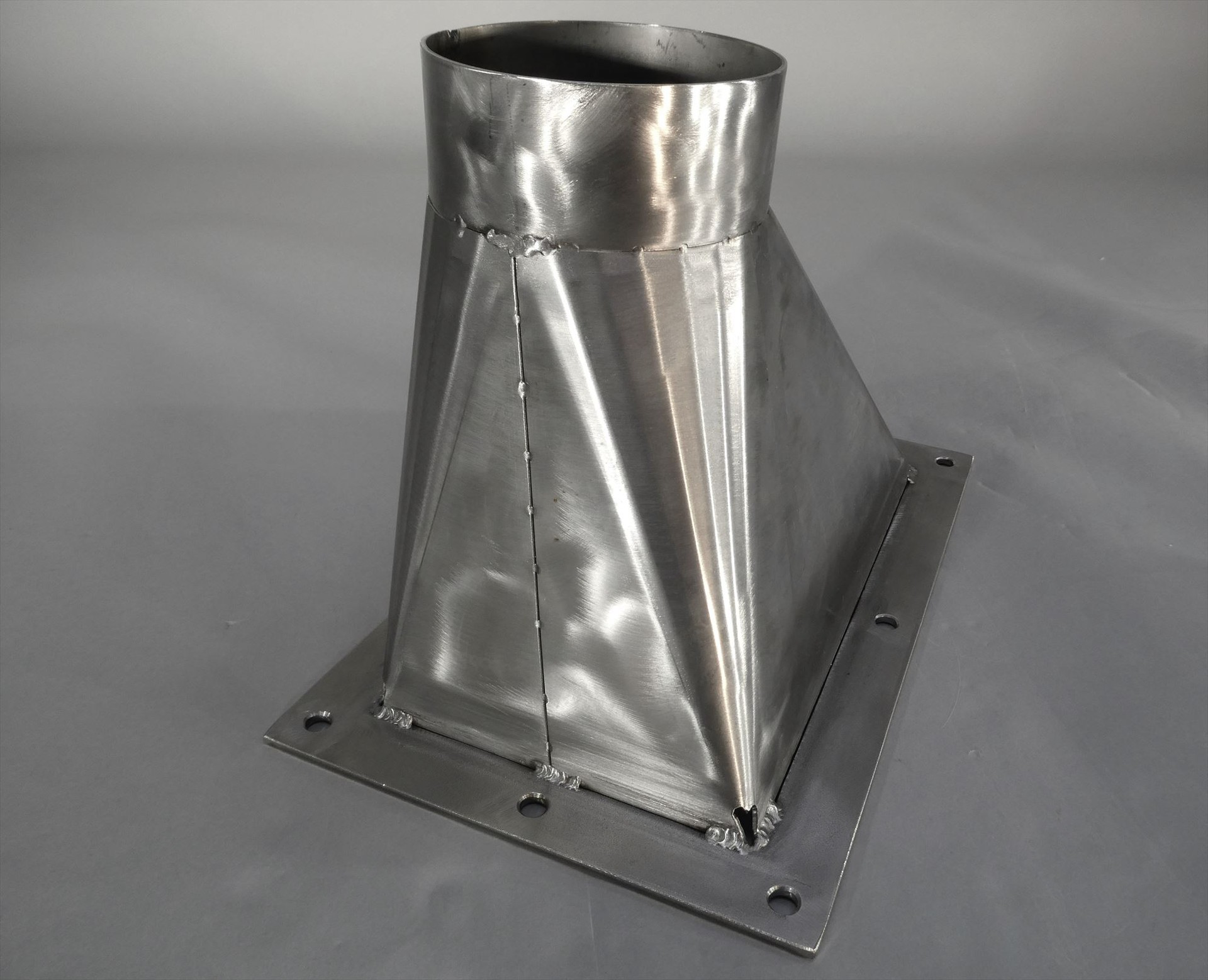

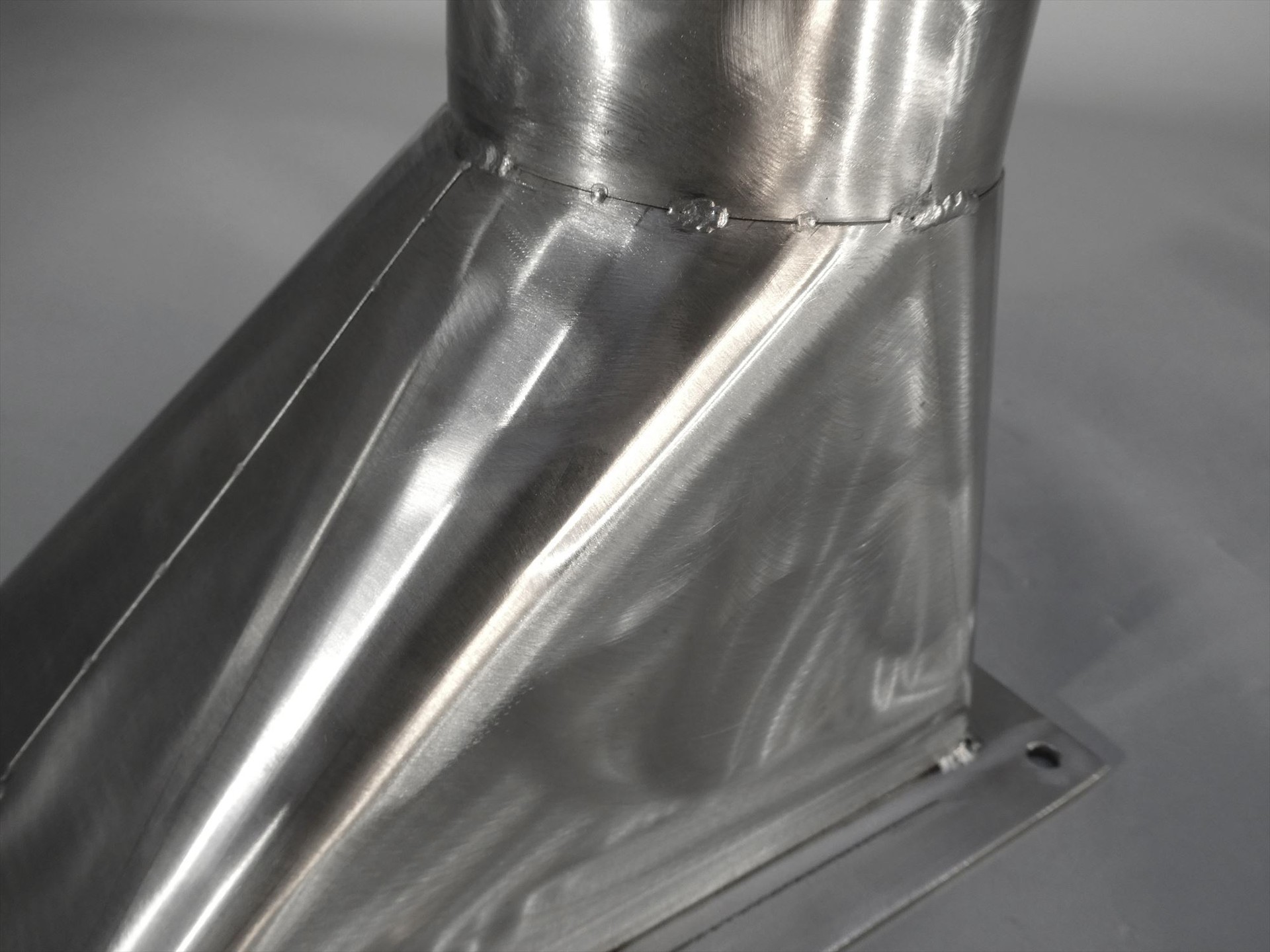

Stepbending of a Funnel half shell（left and right）to create a funnel round to sqare. Marking the bendline with a Plasmacutmachine, step-bending by markingline.

Use in ventilation and pipeline construction.
