35th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (68 entries)

360° Viewer

Assemble227

Overseas Best Award

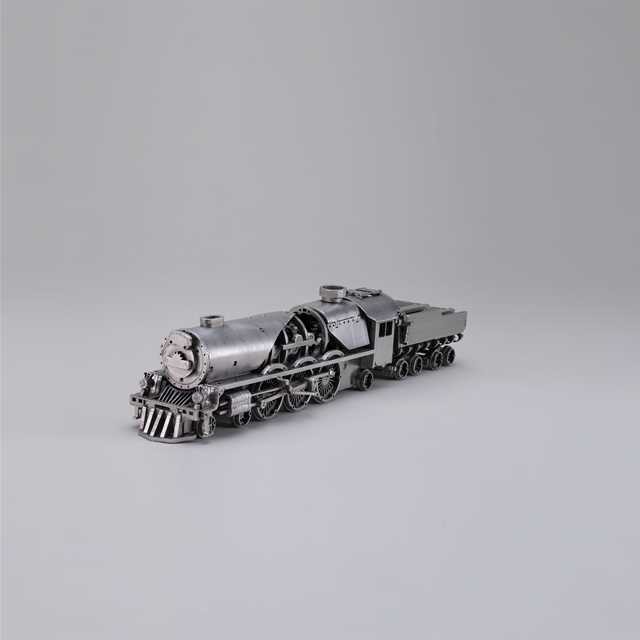

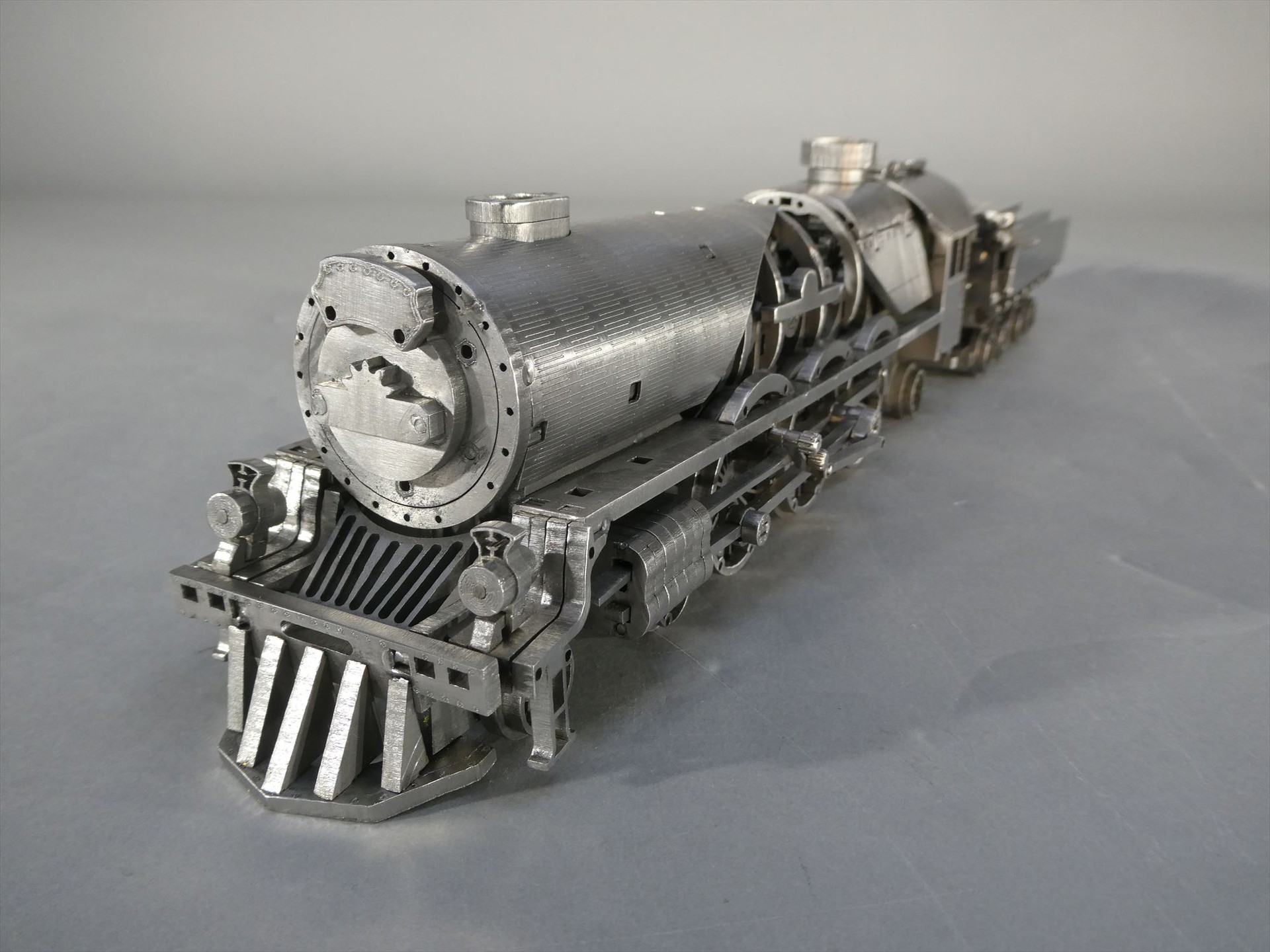

AE-LOCOMOTIVE ENGINE

ANTARCTICA EQUIPMENTS PVT. LTD. (India)

  • ・Size: W70 x D375 x H85 mm

  • ・Accuracy: ± 1 mm

  • ・Programming time: 170 min

  • ・Processing time: 950 min/quantity

  • ・Quantity: 1

  • ・Material: SUS304

  • ・Thickness: 0.6 & 3 mm

  • ・Type: Prototype

Process

  • Design

  • CAD/CAM

  • Blanking

  • Welding

  • Finish

Strengths

1:- Assembly of 580 parts being cretical used VPSS-3i Software for easier design.

2:- Display of inside mechanism to show the working of parts.

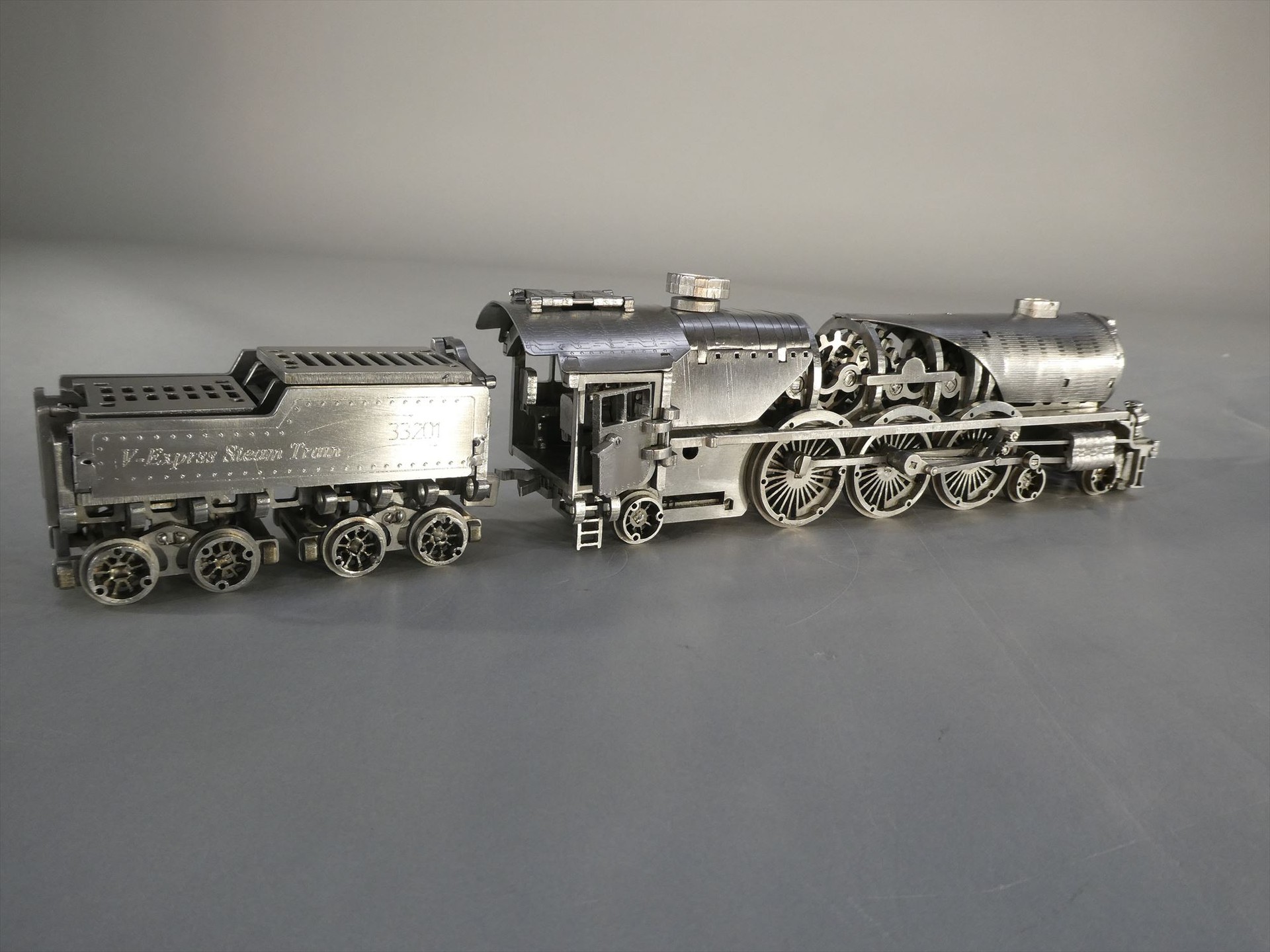

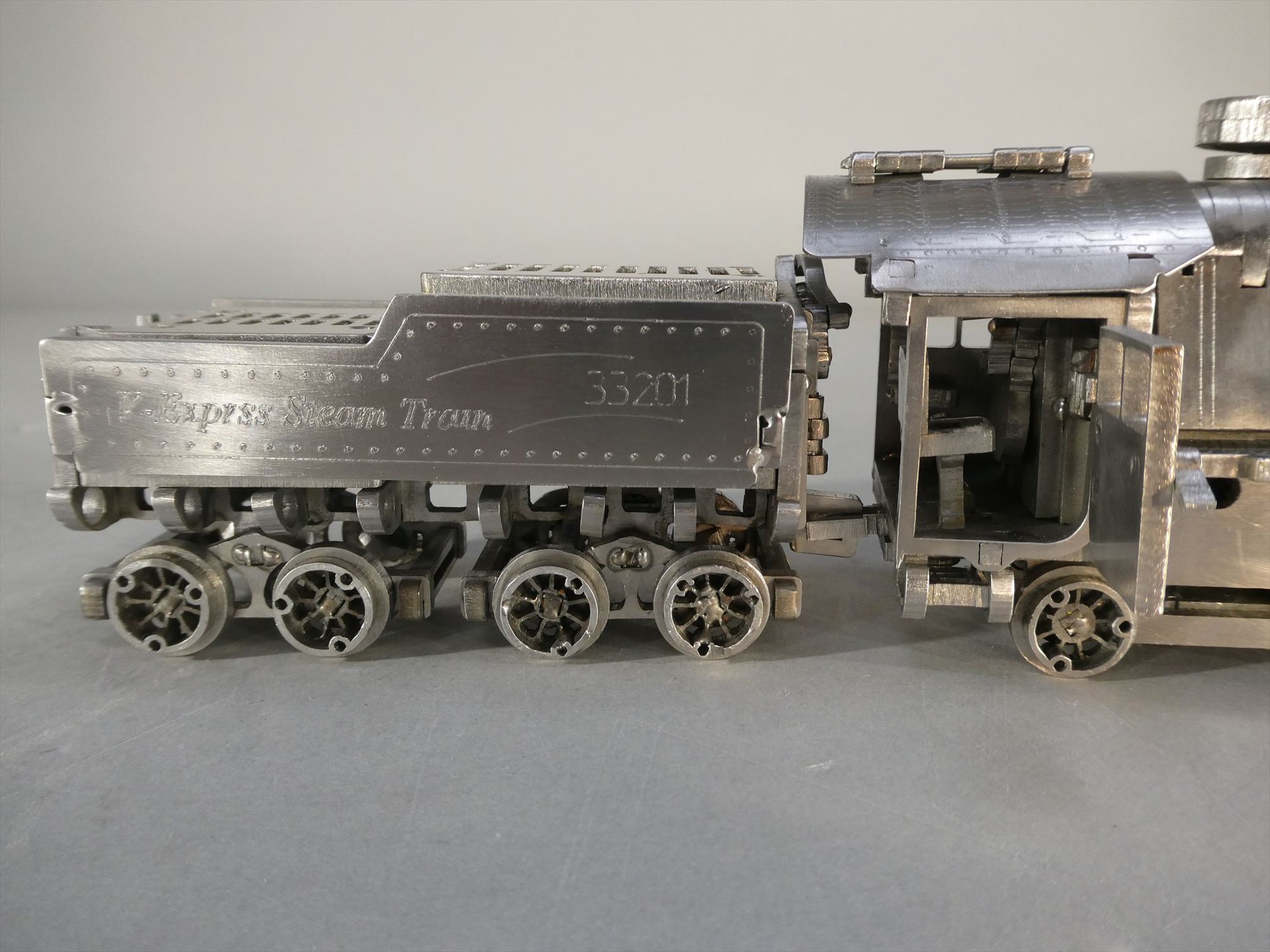

3:- combination of locomotive & goods biggey compltes this innovative design.
