Bending screw (Assemble205)
Assemble205
Technical Award

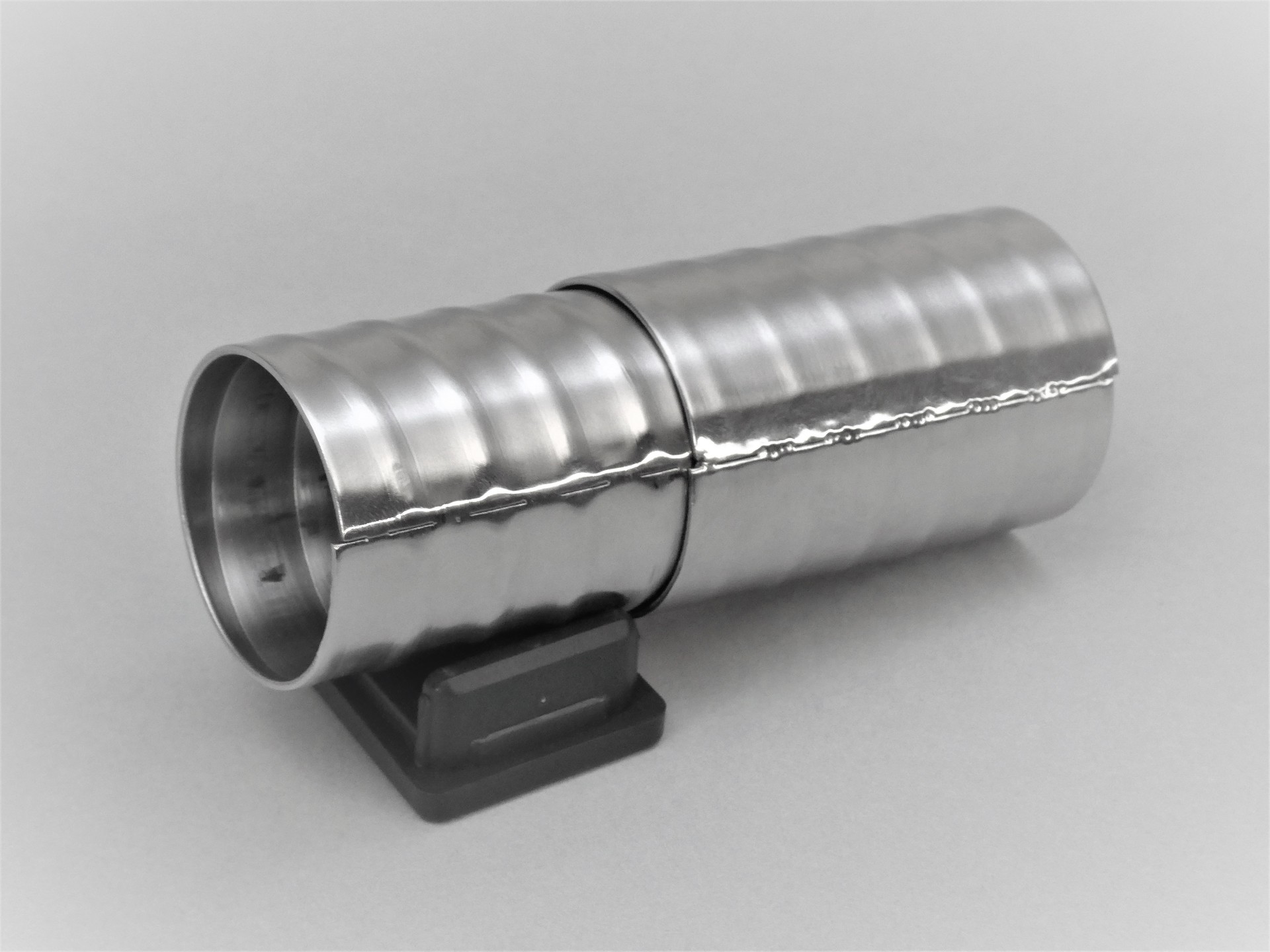

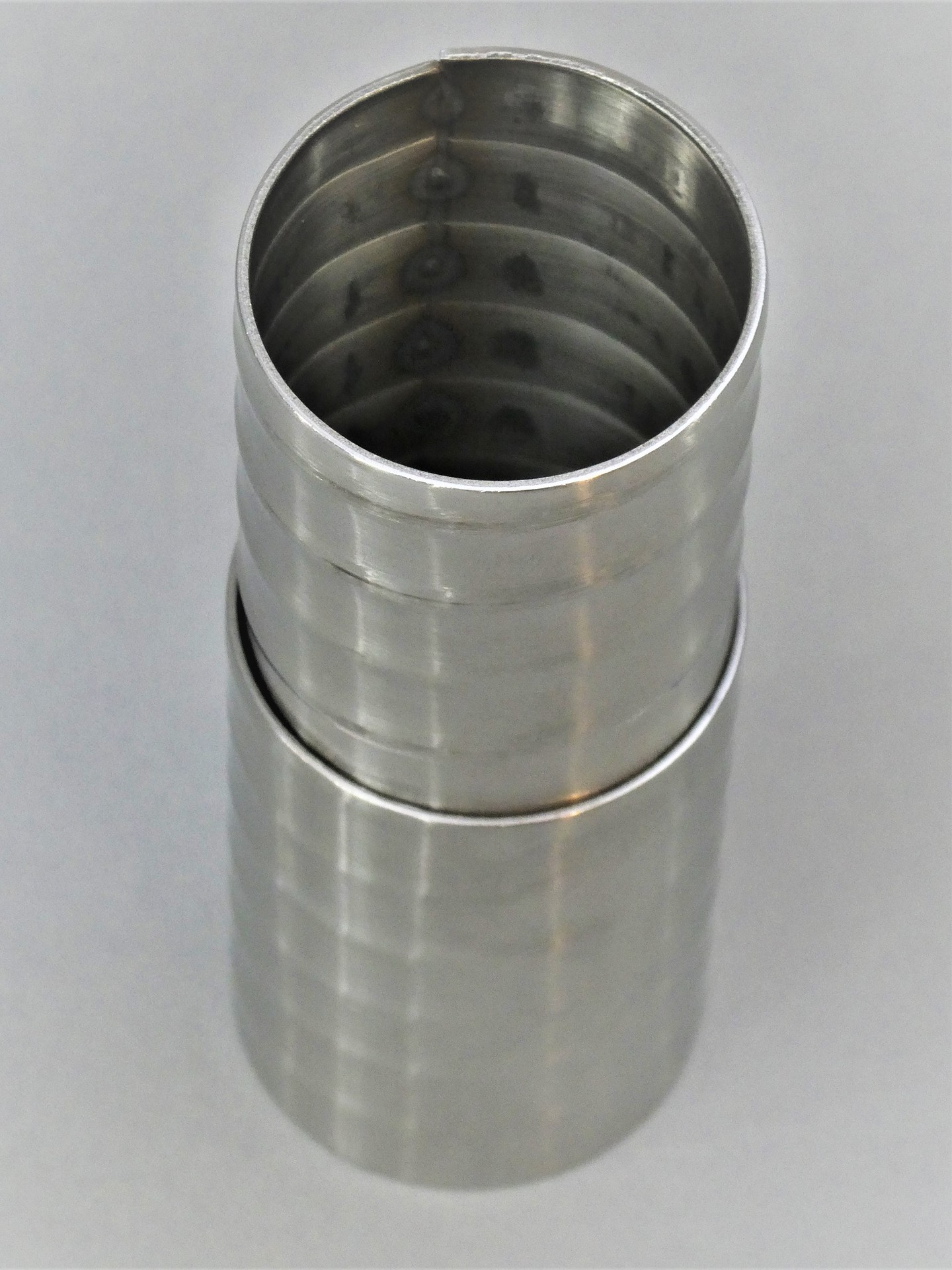

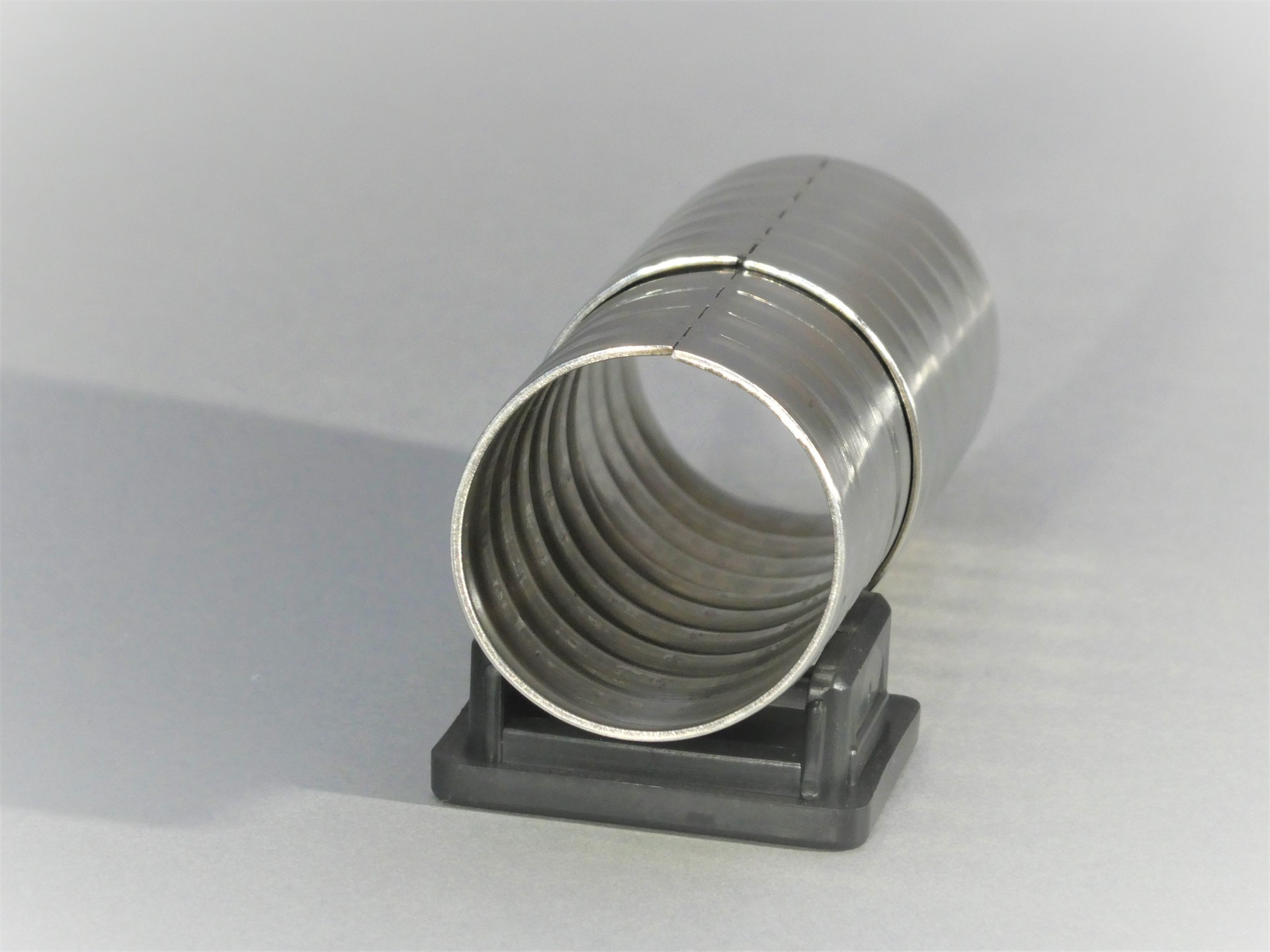

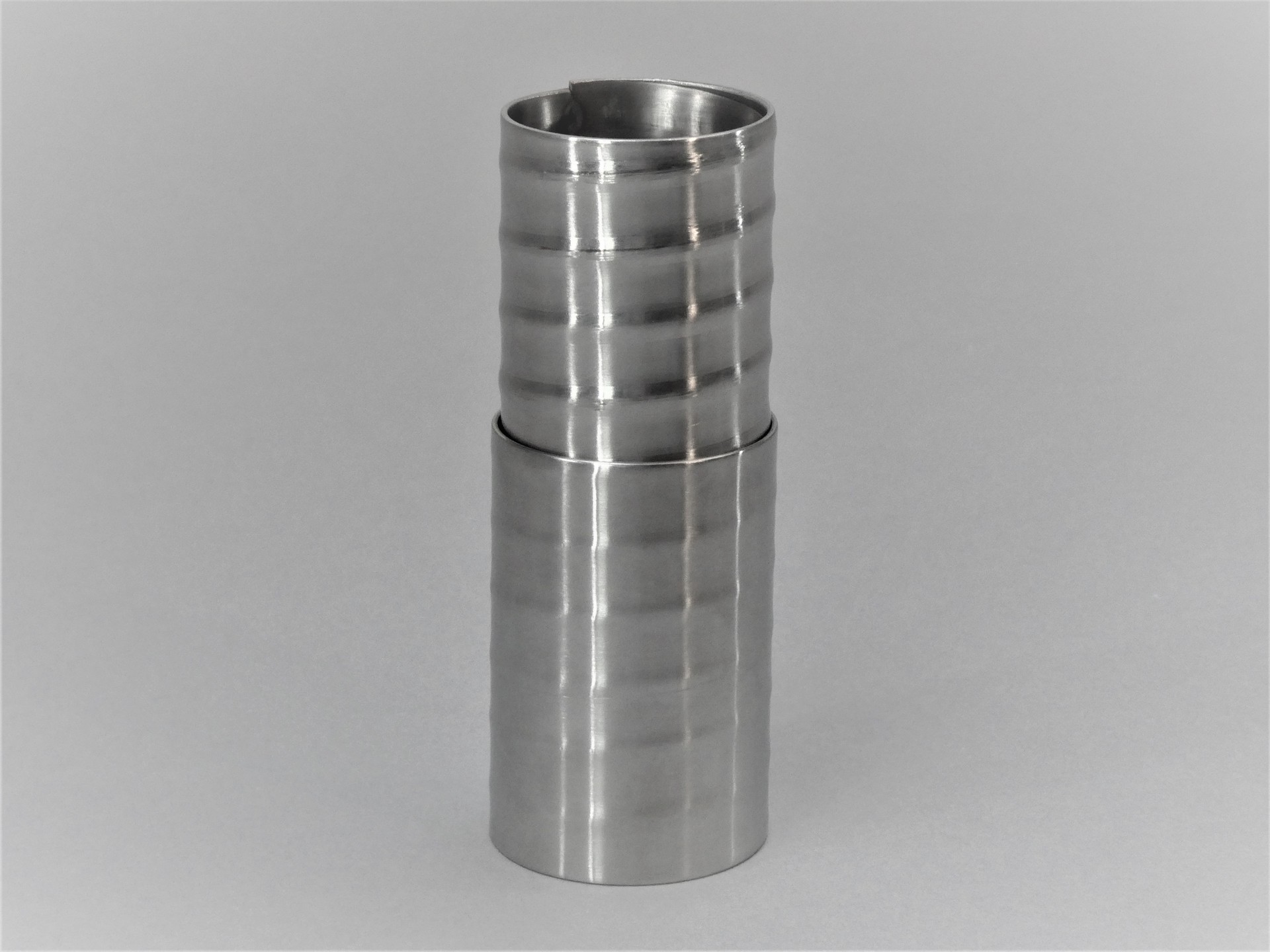

Bending screw
共栄プレス工業 株式会社 (Hyogo Pref. Japan)
-
・Size: W40 x D40 x H105 mm
-
・Accuracy: ± - mm
-
・Programming time: - min
-
・Processing time: - min/quantity
-
・Quantity: -
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.0 mm
-
・Type: Original work
Process
Shearing
Bending
Forming
Welding
Surface Finishing
Strengths
ベンダーで山造り
鈍角の角度によって伸び・円径が変わる
おネジ・めネジの山の位置関係が同じ
2品が回転し,入り込み抜けない

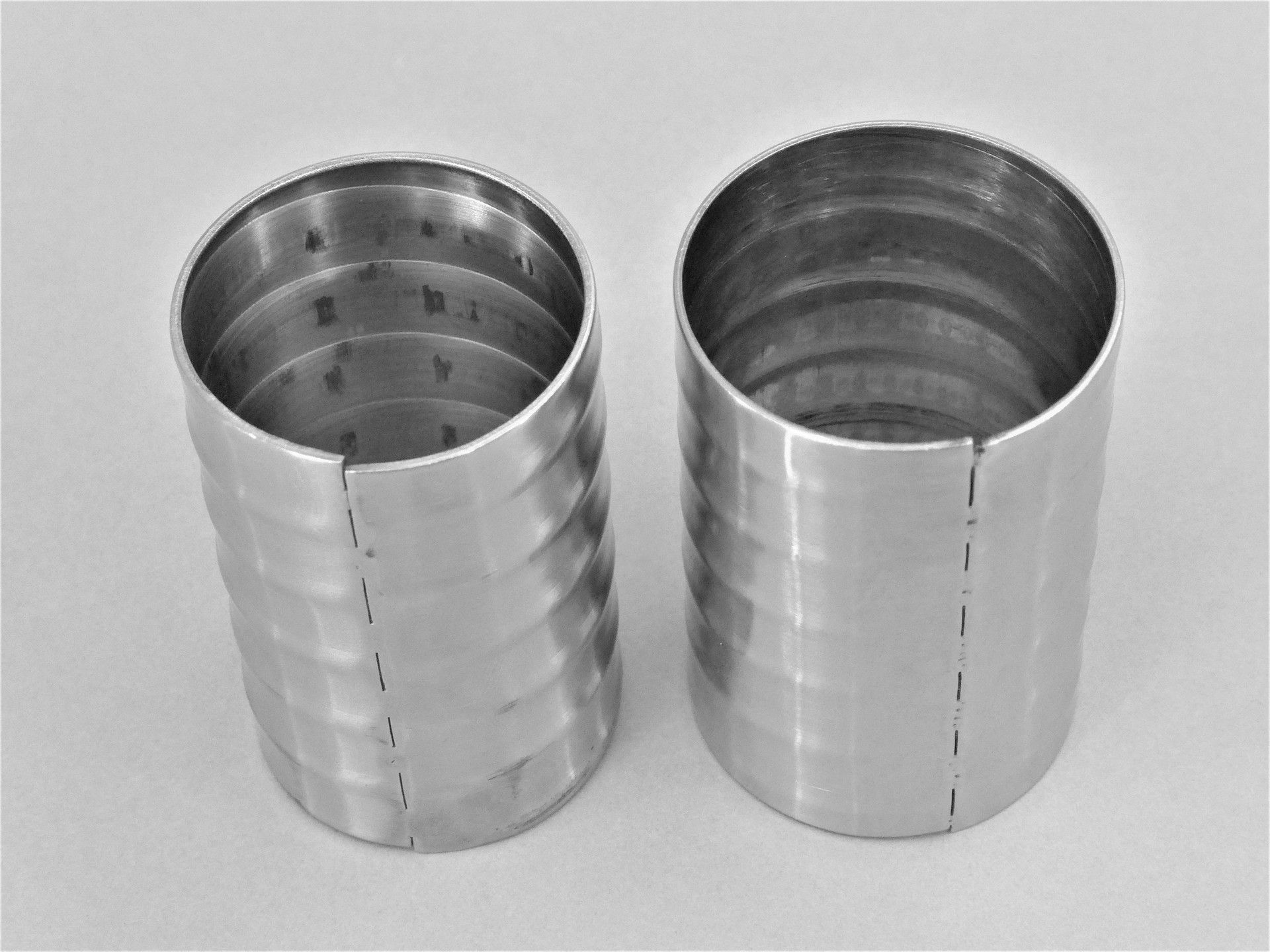

山造りは鈍角曲げ、平押しを繰り返し。
曲げ時の伸びる・縮むが生み出す平押しでの膨らみを利用。
