第36回優秀板金製品技能フェア

単体品の部 全107作品

360°から作品を見る

単体095

技能奨励賞

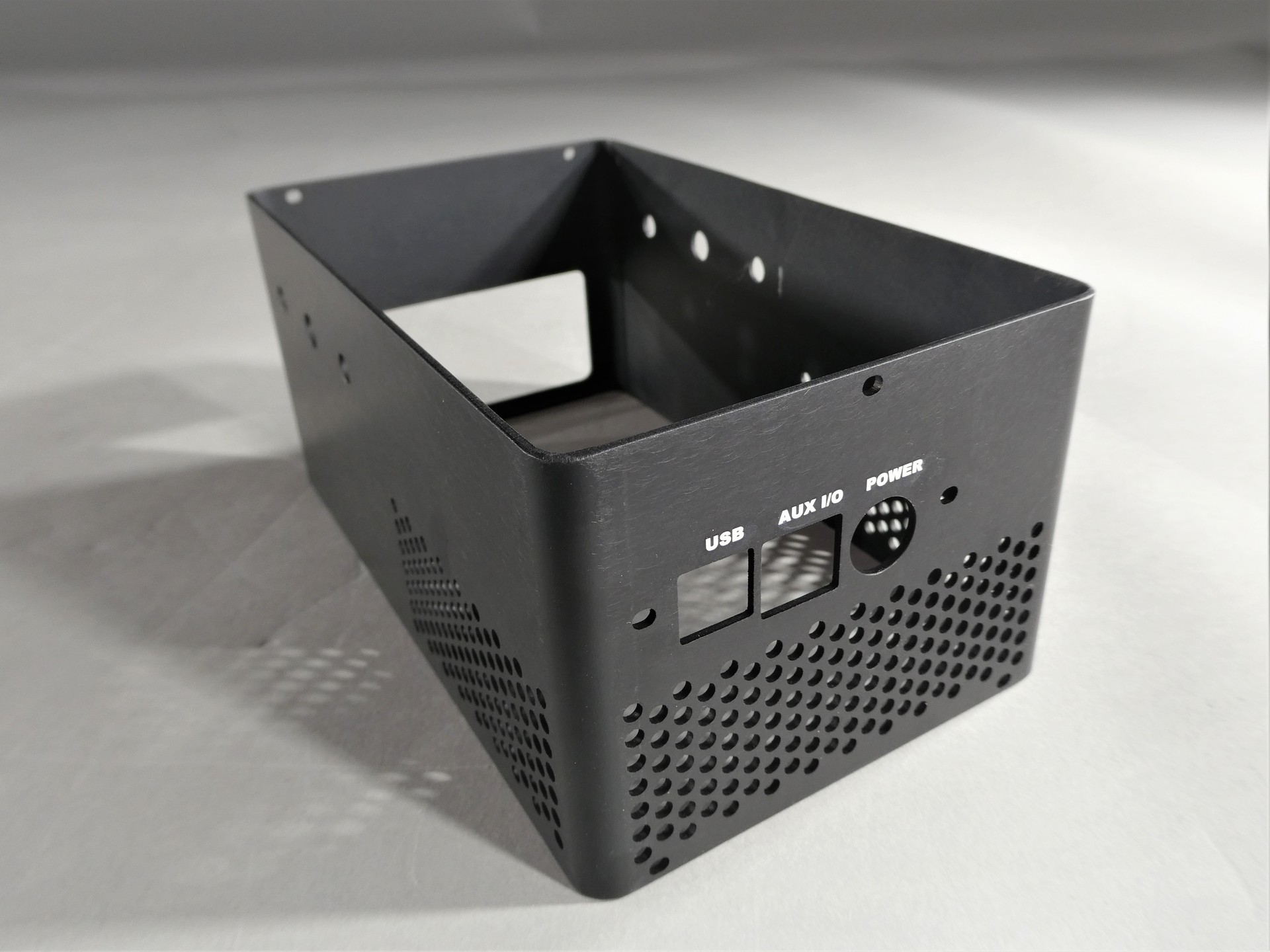

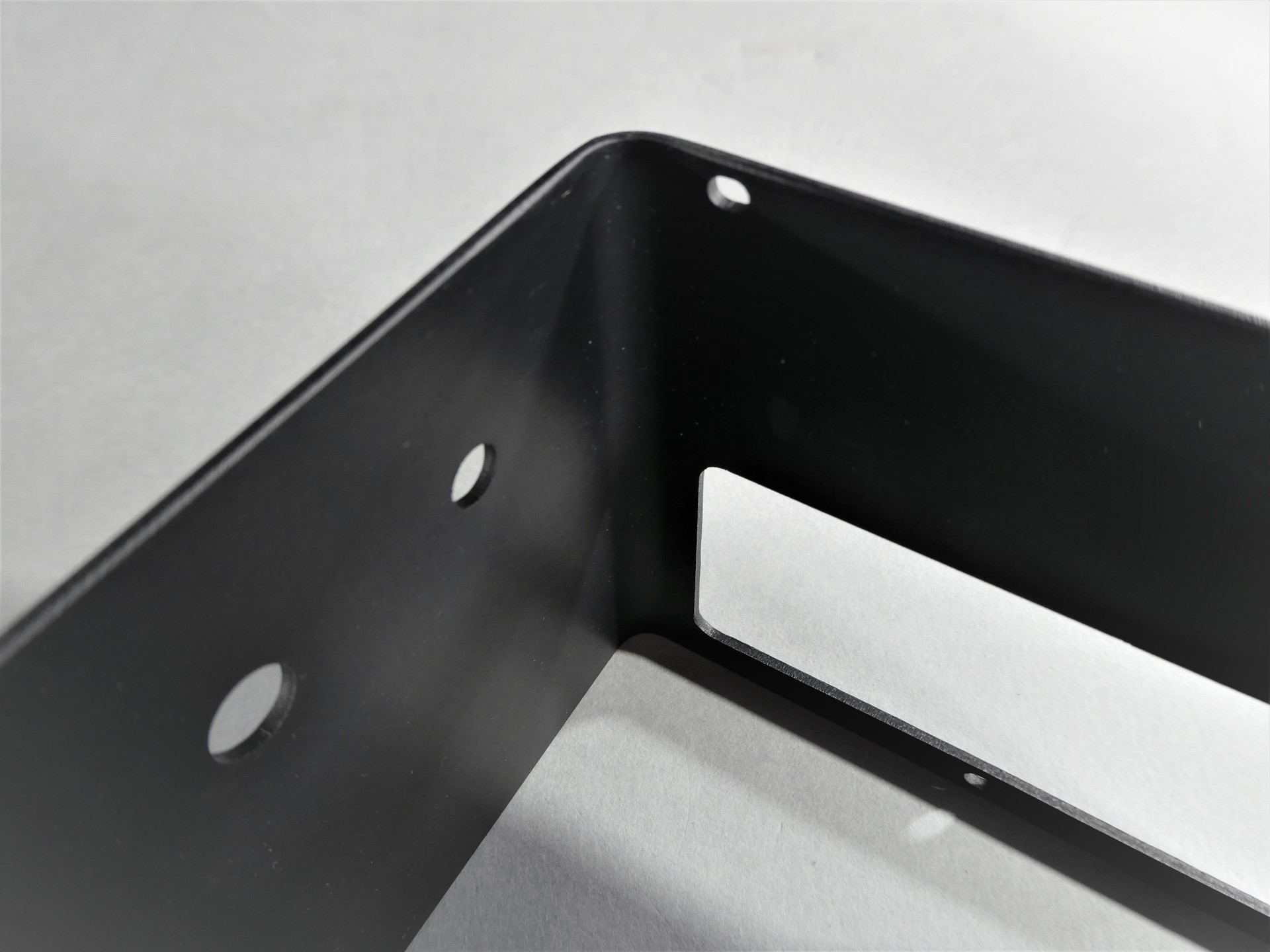

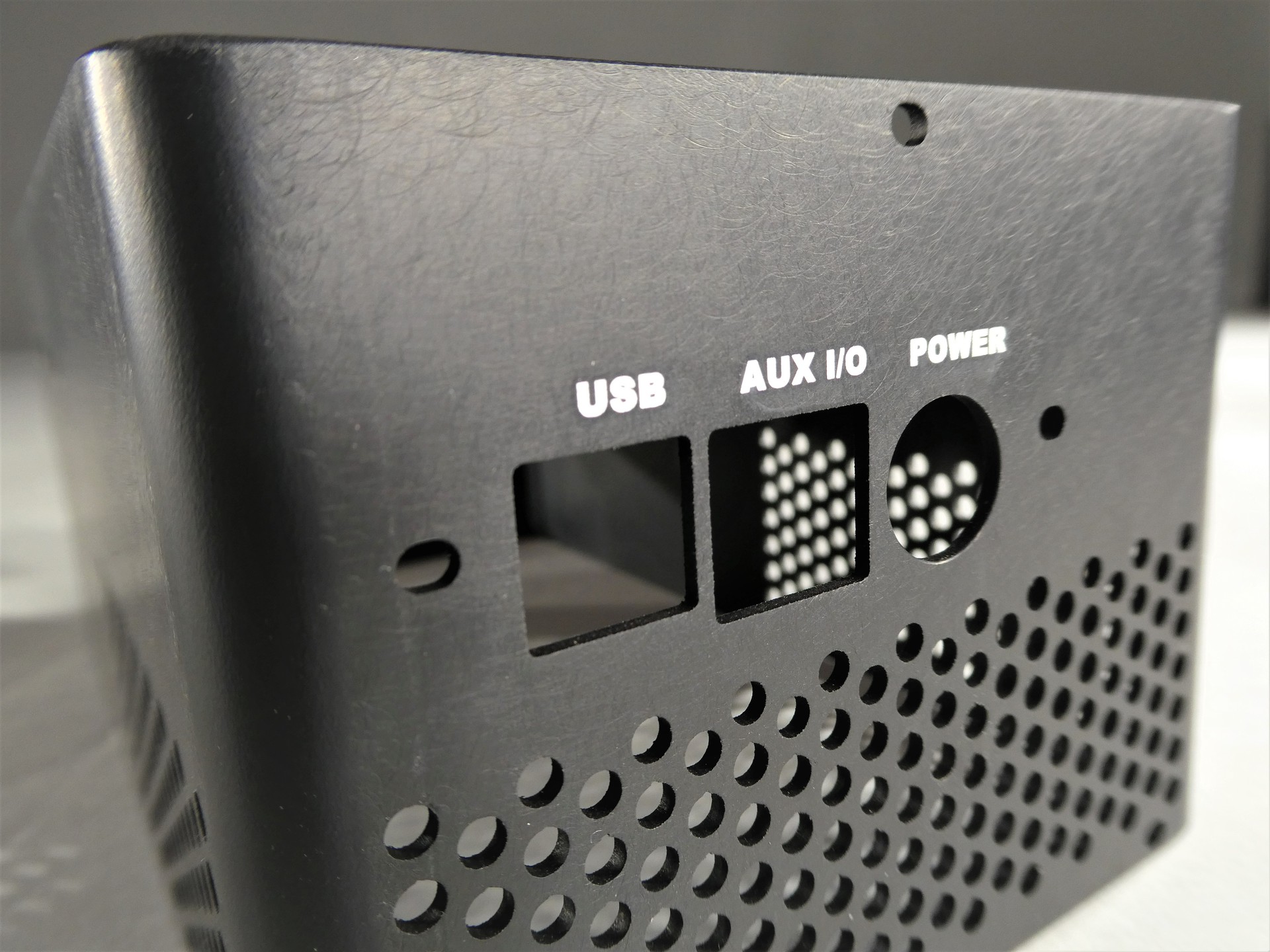

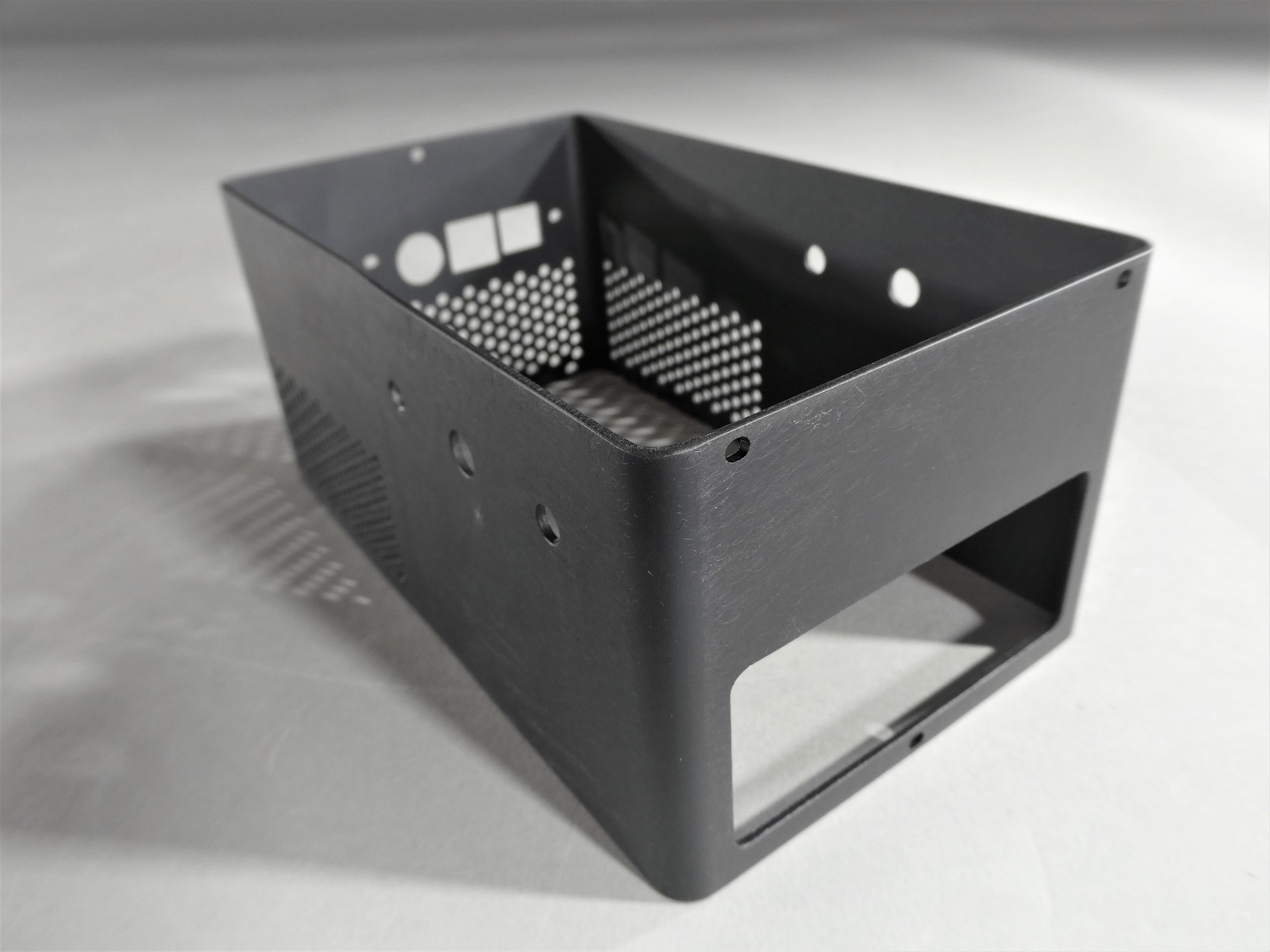

Bracket Top Fascia

Midlake Products & Mfg. Co., Inc. (U.S.A.)

  • ・サイズ: W336.16 × D658.00 × H146.46 mm

  • ・精度: ± .25 mm

  • ・プログラム時間: 30 分

  • ・加工時間: 7 分／個

  • ・加工数量: - 個

  • ・材質: 冷間成形鋼

  • ・板厚: 1.5 mm

  • ・作品種類: 量産品

加工工程

  • 設計

  • プログラム

  • ブランク

  • 曲げ

  • 仕上げ

アピールポイント

Quoting - used to have to submit RFQs to engineering for estimated run times and tooling review. Paperless Parts allows that evaluation to take place in sales. Quote time reduced from 48 hours to minutes.

Blanking - We did not have the capability to produce this part prior to our ACIES. The TK allows us to eliminate manual removal of parts from the skeleton. Parts go directly from the ACIES to our press brakes.

Forming - Off-line programming ensures operators on every shift follow the same verified setup. Our A TC reduced set up time from 30 minutes to~45 seconds. Bend indicator tightened bend tolerances from +/- 2° to tighter than +/- 1 °.

Powder - Our powder line is programmable. We store the "recipe" in the controller to ensure line speed, wash pressures, and oven temps. are consistent every time we run this part across shift changes.
