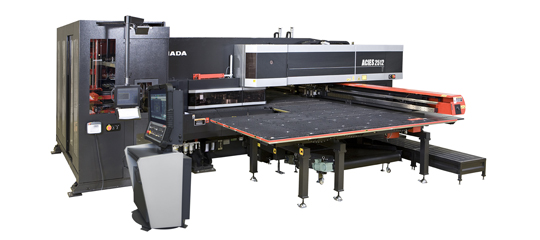

ACIES Series
Blanking process integration solutions
Turret innovation after 40 years from NCT birth.
Corresponding to various mix, various volume production and 72 hours continuous operation.
“ACIES” which means the ‘Latest’ in Latin is a Full-automatic type solution which can produce processing data quickly even if it is a new product and the minimum lot, reducing setup to a limit and continuous automatic operation.
This solution supports your manufacturing in various mix, various volume production era.
- ■ Features(1) : ZR turret / Full-flat table
- Achieve of high speed and less-scratch processing on bottom side of material.
- ■ Features(2) : New slug suction device
- Efficient slug-up prevention mechanism on all tool stations.
- ■ Features(3) : ID tooling
- Stable high quality processing.
- Prevention of tool-set mistake.
- ■ Features(4) : Free location by non track dead zone type tooling
- Possible to produce in Y=0 on inside track.
- ■ Features(5) : MPT tapping unit
- Automatic exchange of 7 kinds tapping tool corresponding to M2.5-M8.
- ■ Features(6) : Energy saving mode
- Power controlled during idling time. Drastic reduction of power consumption.
Processing samples
Material : SECC
Thickness : 1mm
Examples of system upgrades
* The model corresponding to storage, ACIES-2512T.
Specifications
Press capacity |
Maximum processing size(mm) |
Oscillator |
Maximum sheet thickness |
|
|---|---|---|---|---|
ACIES-2512B |
300 |
2550×1270 |
AF4000i-C |
6 |
ACIES-2512T |
||||
ACIES-2515B |
2550×1525 |
|||
| ACIES-2515T |
*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
