Sheet Metal Processing

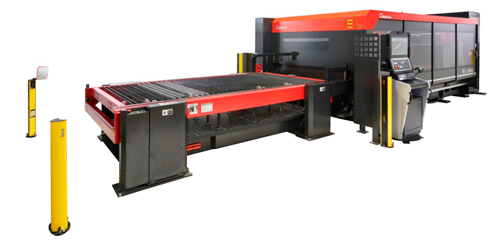

FO-MⅡNT Series

More than 2200 units of FO-NT series have been installed in all over the world,which is overwhelming result and proof of reliability,that have lead to FO-MⅡ series.

Using new technology to support a wider range with quick delivery

Safety Guide

■ Feature(1) : New oscillator AF4000i-B
and high-speed noncontact Z-axis tracking sensor
High-quality, stable processing is accomplished.
■ Feature(2) : Oil shot, Cooling Cut, and cutting process monitoring
Supports for more stable processing
■ Feature(3) : Variable-curvature mirror and nozzle changer
Setup reduction and continuous processing are achieved.
■ Feature(4) : Easy operation
The latest NC control AMNC 3i provides large screen with easy vision and operation with multi-touch method like smart phone, thus dramatically improving operability.

Processing scene YouTube movies

Processing samples

Sample 1

Specifications



Rapid feed rate (m/min)
X:Y:Z

Maximum processing size(mm)
X × Y

Oscillator
(selectable multiple loadings)

Maximum sheet thickness
(mm)

FO-MⅡ 2412NT

80:80:60

2520×1270×200

AF2000i-C LUL2.5
(rated output: 2kW)

AF4000i-C
(rated output: 4kW)

SS: (Oxygen)
16.0(AF2000i-C LUL2.5)
22.0(AF4000i-C)

SUS: (high pressure Nitrogen)
8.0(AF2000i-C LUL2.5)
12.0(AF4000i-C)

FO-MⅡ 3015NT

3070×1550×200

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
