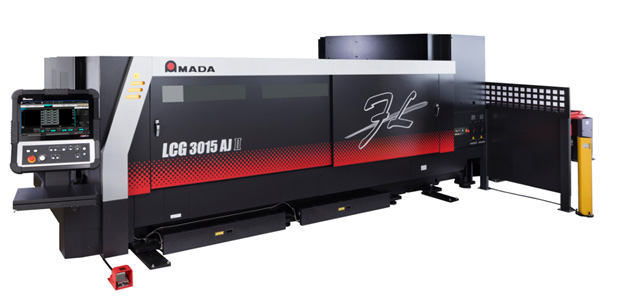

LCG-3015AJⅡ
The latest model of AMADA’s global standard fiber laser machine LCG-AJ series. High-efficiency fiber laser cutting system that most suitable for processing wide range of material.
- ■ Feature(1) : High-speed processing of thin to medium materials
- Processing of various materials without changing focus lenses reduces an operator’s burden and cutting defects.
- Nozzle changing and alignment is automated.
- Various materials and thickness can be processed under automatic operation.
- ■ Feature(2) : Expanded process range
- Process range expansion with high-pressurized assist gas which contributes to high-quality and reduced running cost at the same time.
- ■ Feature(3) : Deep engraving
- High gap Z-axis sensor enables deep marking, allowing parts to be identified after powder coating.
- ■ Feature(4) : Easy operation
- The latest AMNC3i controller is a high-performance NC device that can be operated like a tablet. User can access operation result / processing history.
Processing samples
Material: SUS / Thickness: 1.0mm
Material: SECC / Thickness: 1.2mm
Material: Brass / Thickness: 1mm
Material: SPHC / Thickness: 4.5mm
Specifications
| Rapid feed rate(m/min) |
Rapid feed rate(m/min) |
Maximum processing size(mm) |
Oscillator |
|
|---|---|---|---|---|
| LCG-3015AJⅡ |
120 |
80 |
3070×1550×100 |
LD pumped fiber laser |
*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
