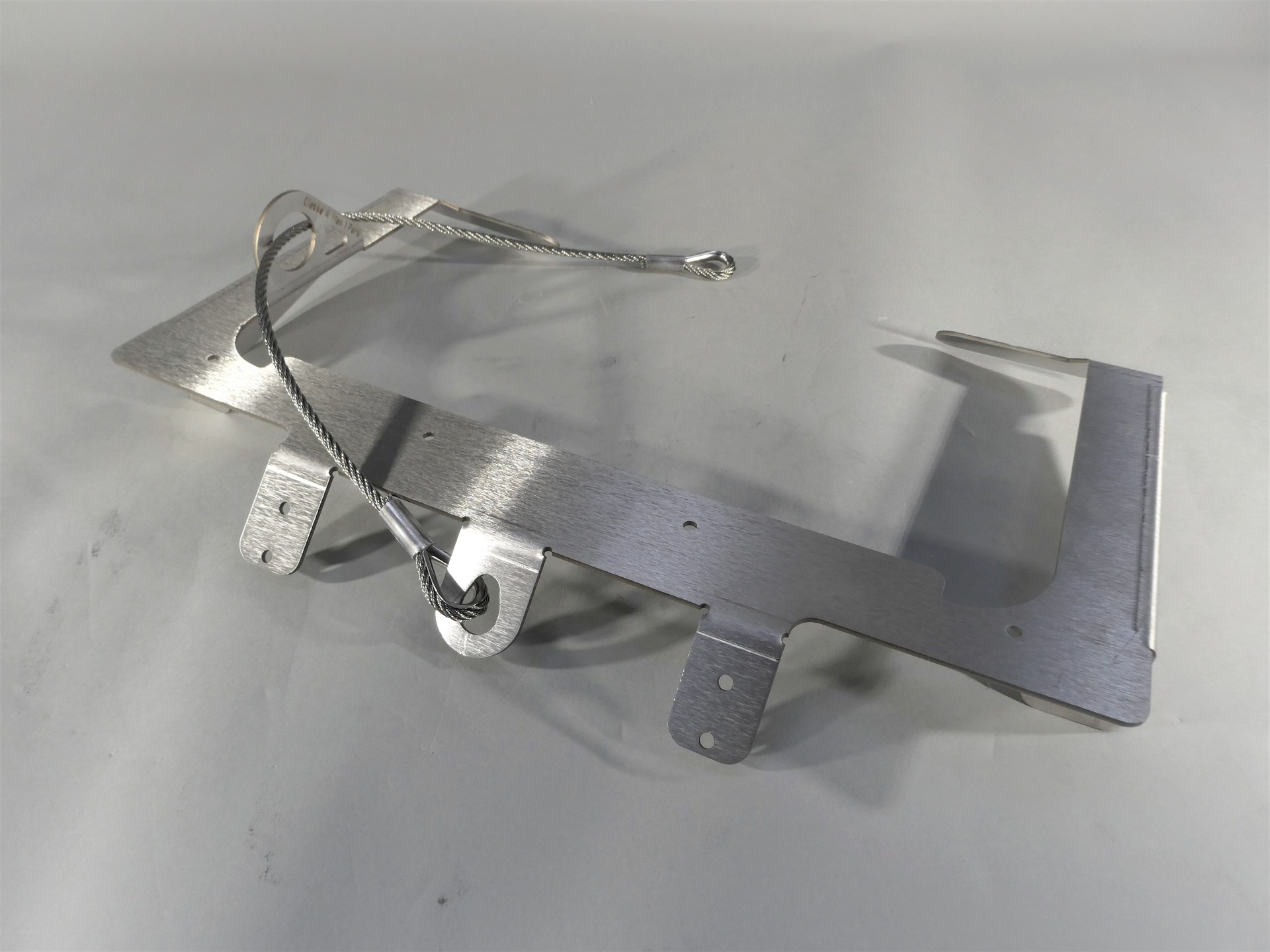

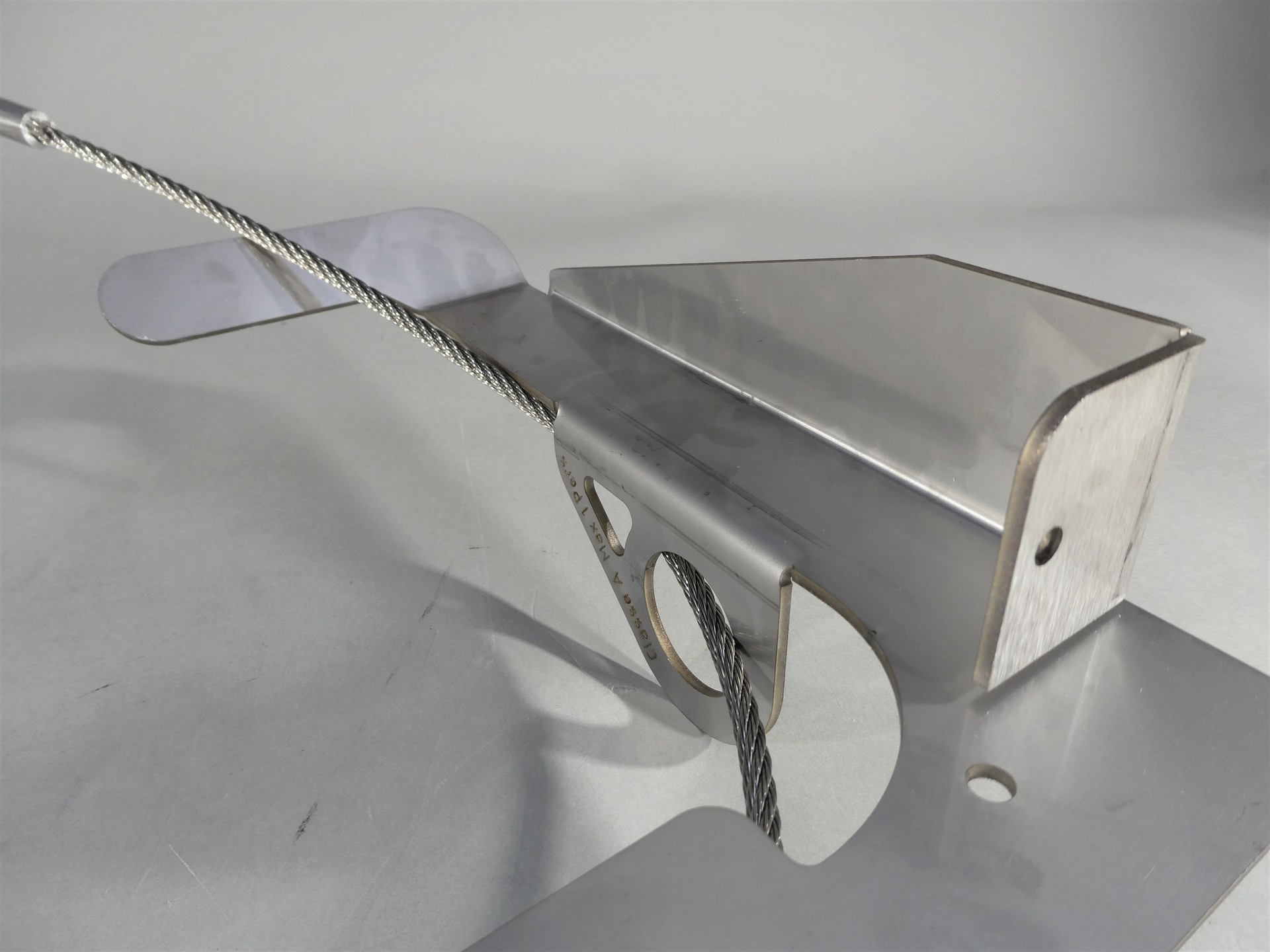

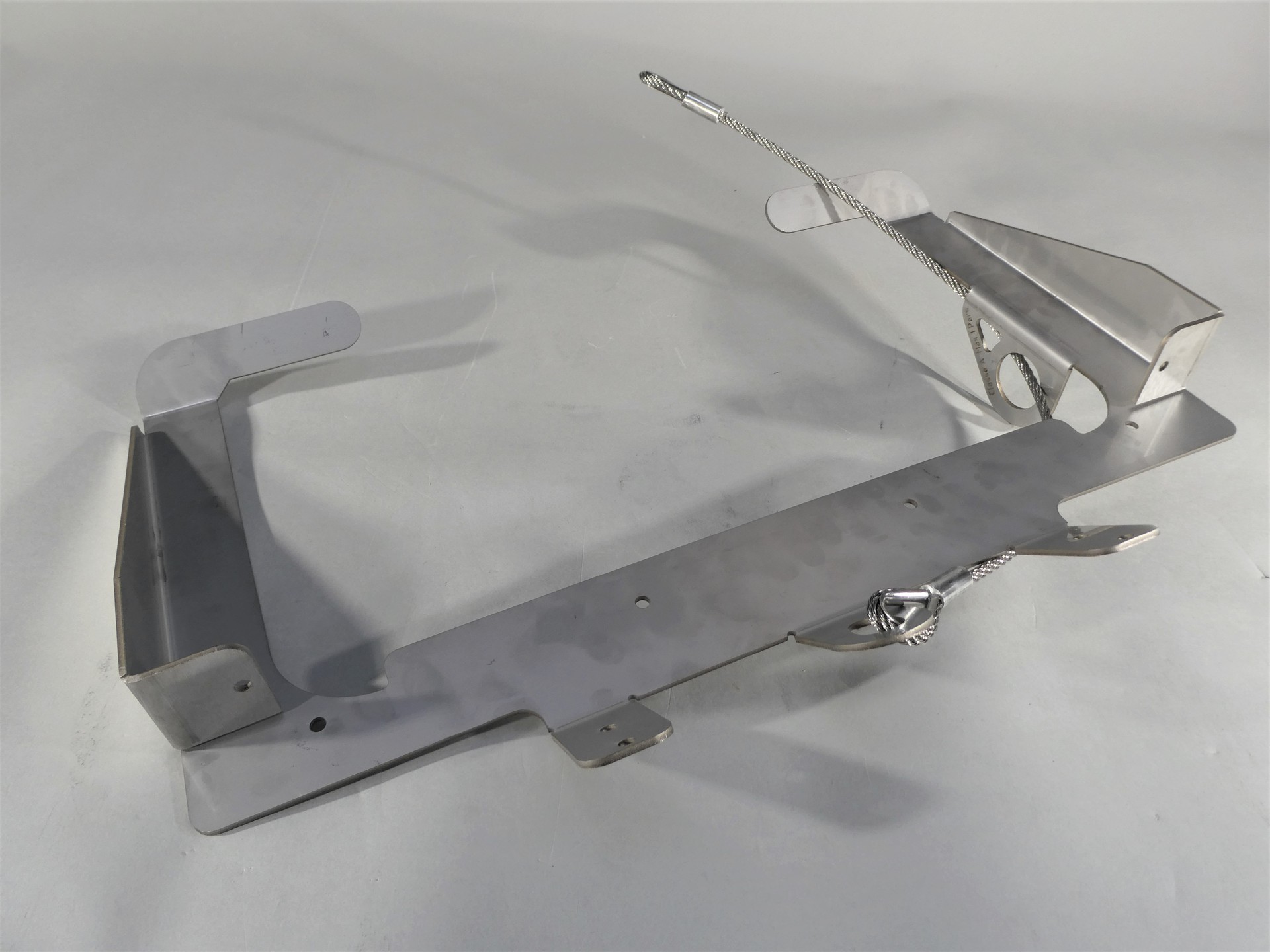

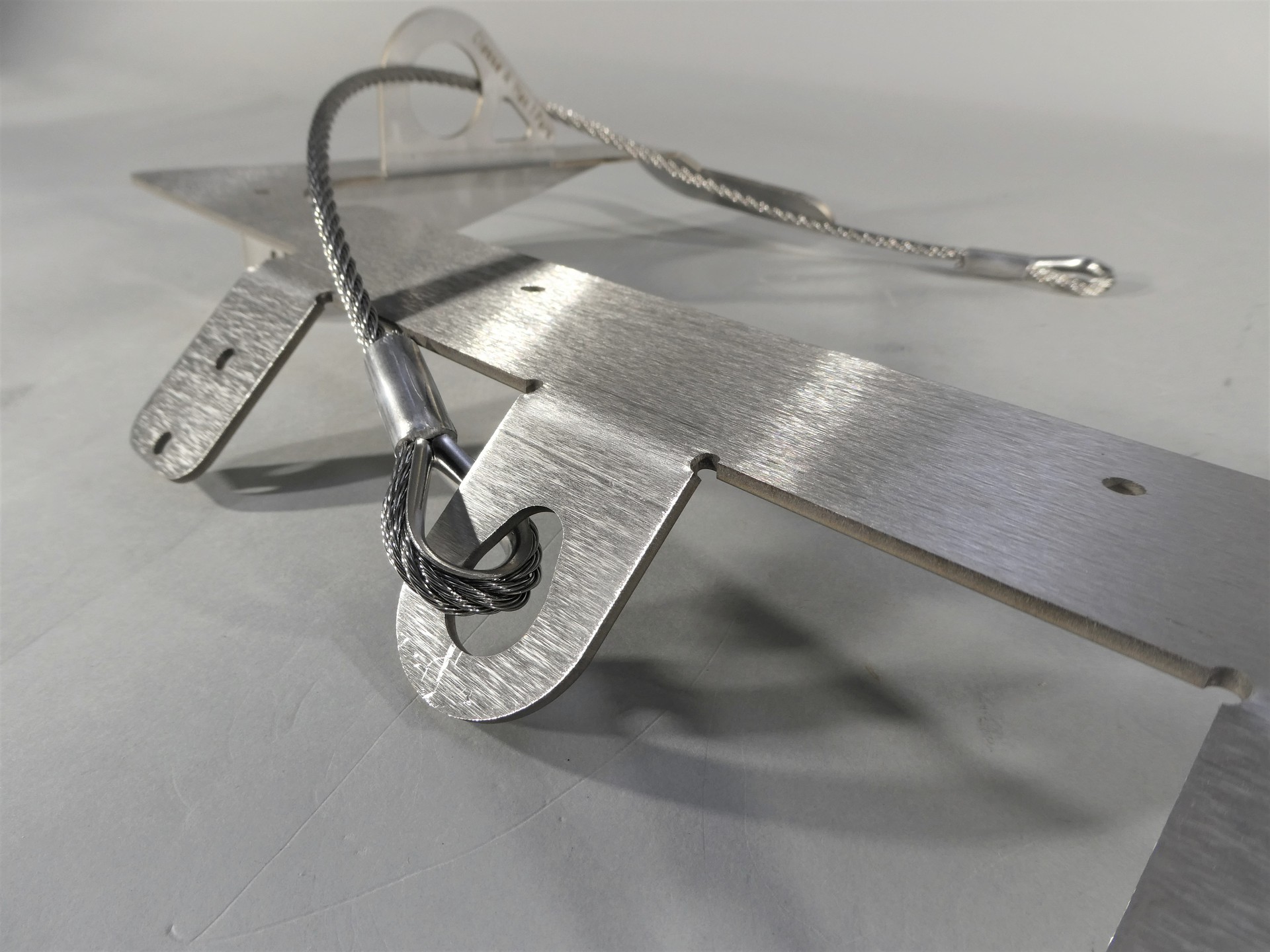

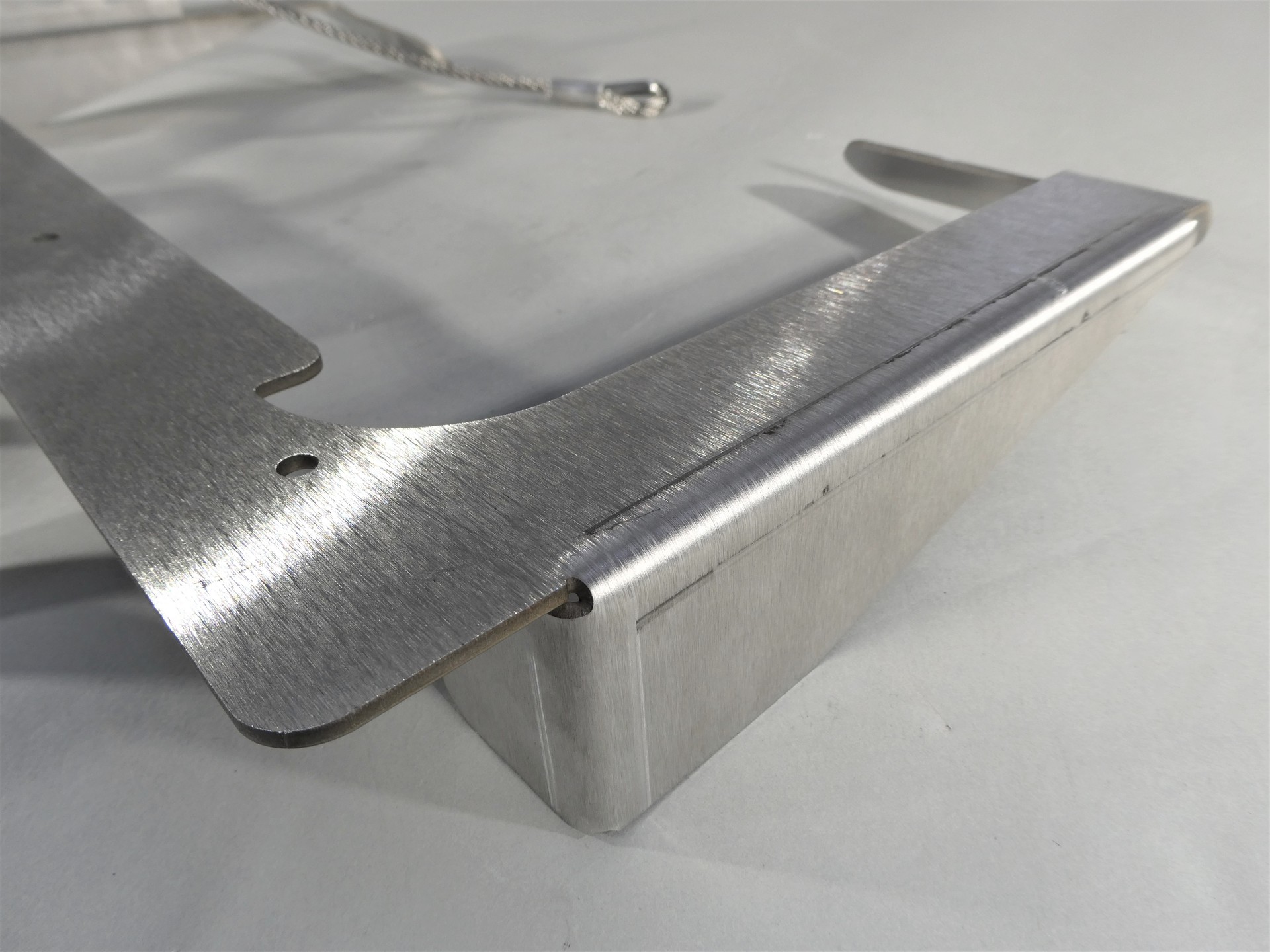

Ladder Stabilizer

T.M.G. Srl (Italy)

  • ・Size: W542 x D300 x H115 mm

  • ・Accuracy: ± Bend=30'' Blank±0,5 mm

  • ・Programming time: 20 min

  • ・Processing time: 4 min/quantity

  • ・Quantity: -

  • ・Material: Stainless steel (SUS304)

  • ・Thickness: 3 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

Strengths

The uniqueness of the part lies in its dimensions, which exceed those specified for the machine. Additionally, it has three different bending angles, requiring multiple setups during the process. Given the complexity of the bending phase and the high number of bends needed, an in-depth analysis was conducted using VPSS 3i to assess its feasibility. The cutting and marking operations were performed in the air at low pressures, a technique that reduces energy consumption and, consequently, production costs.
