37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts094

Technical Encouragement Award

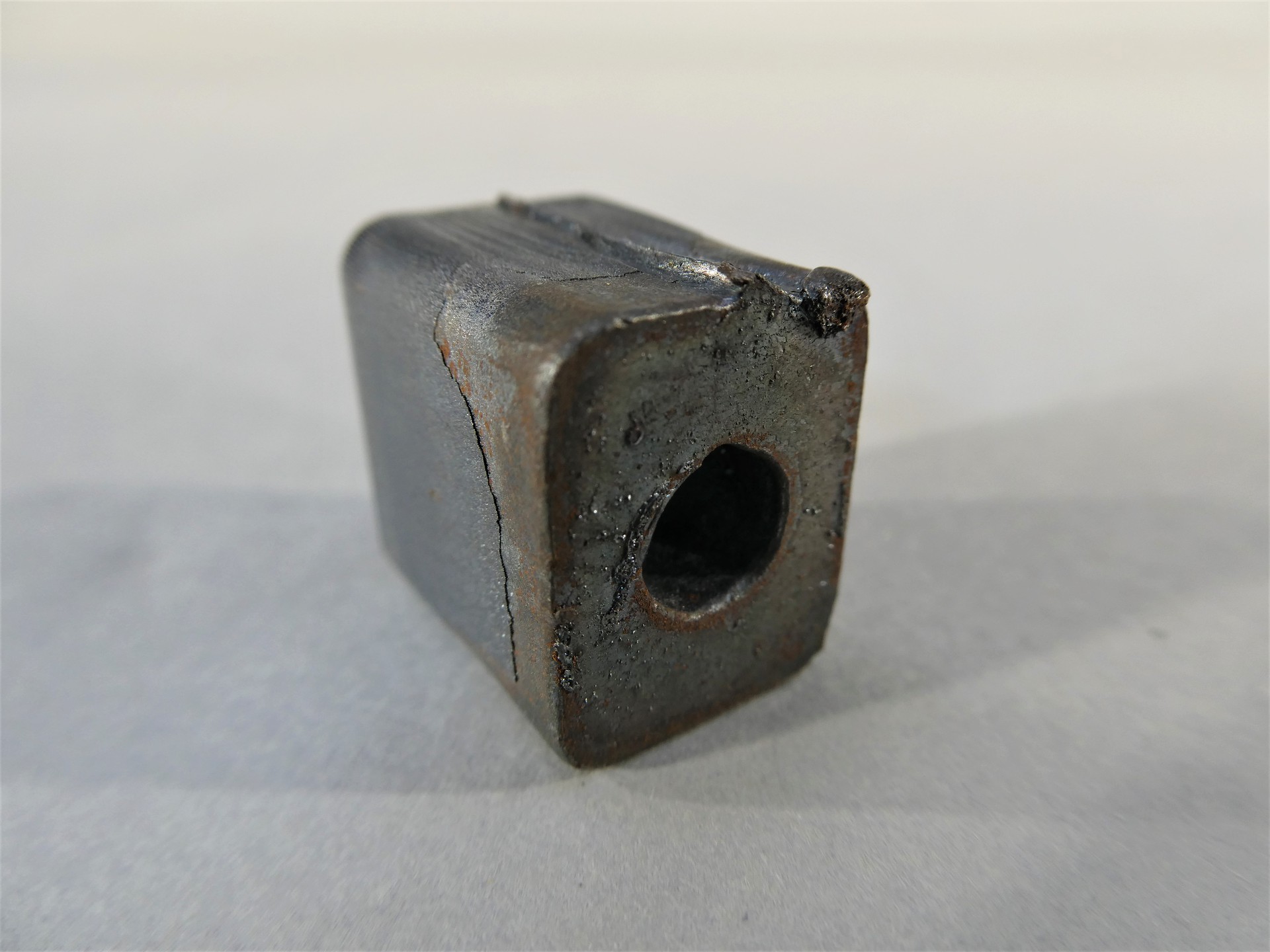

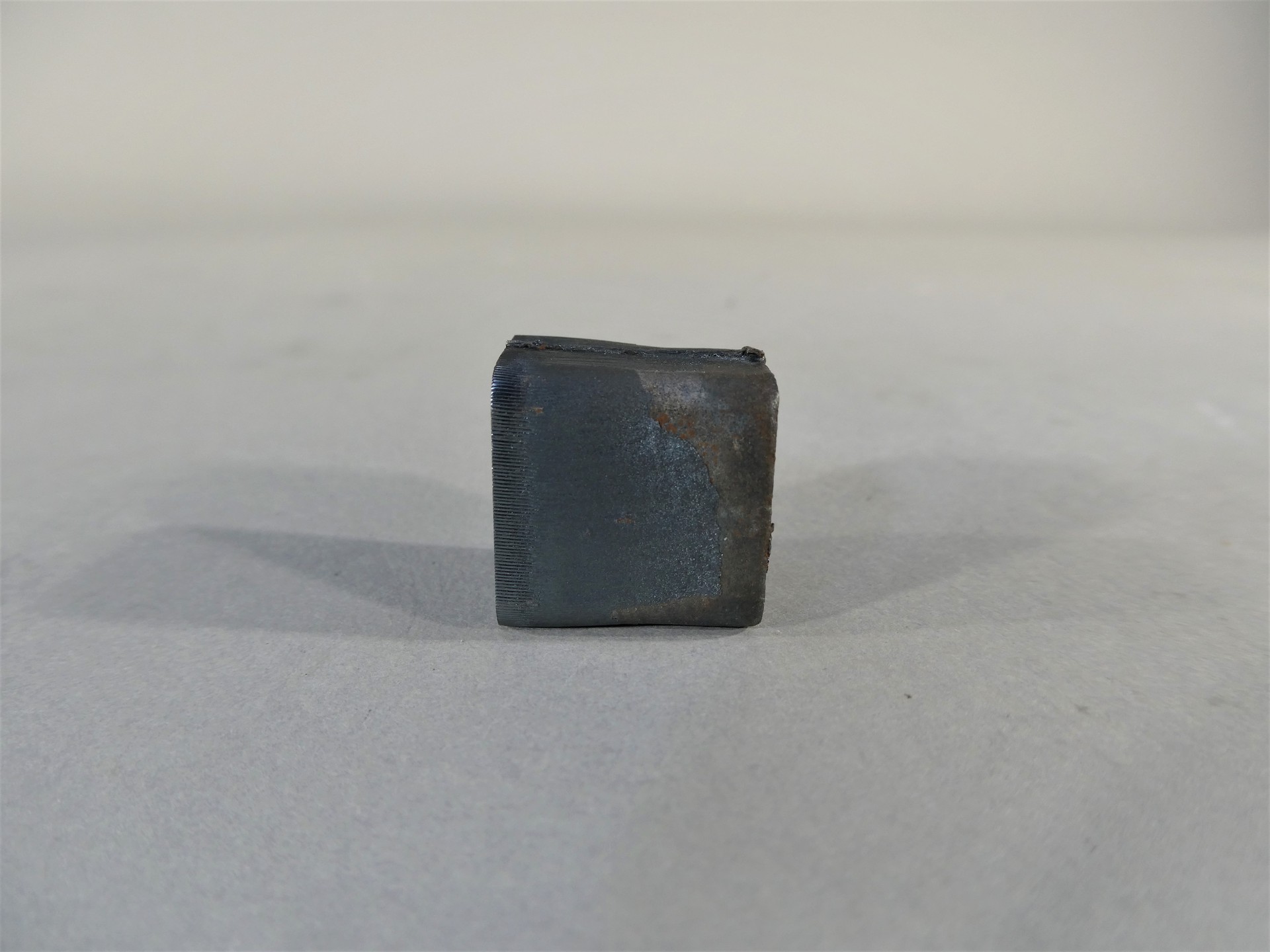

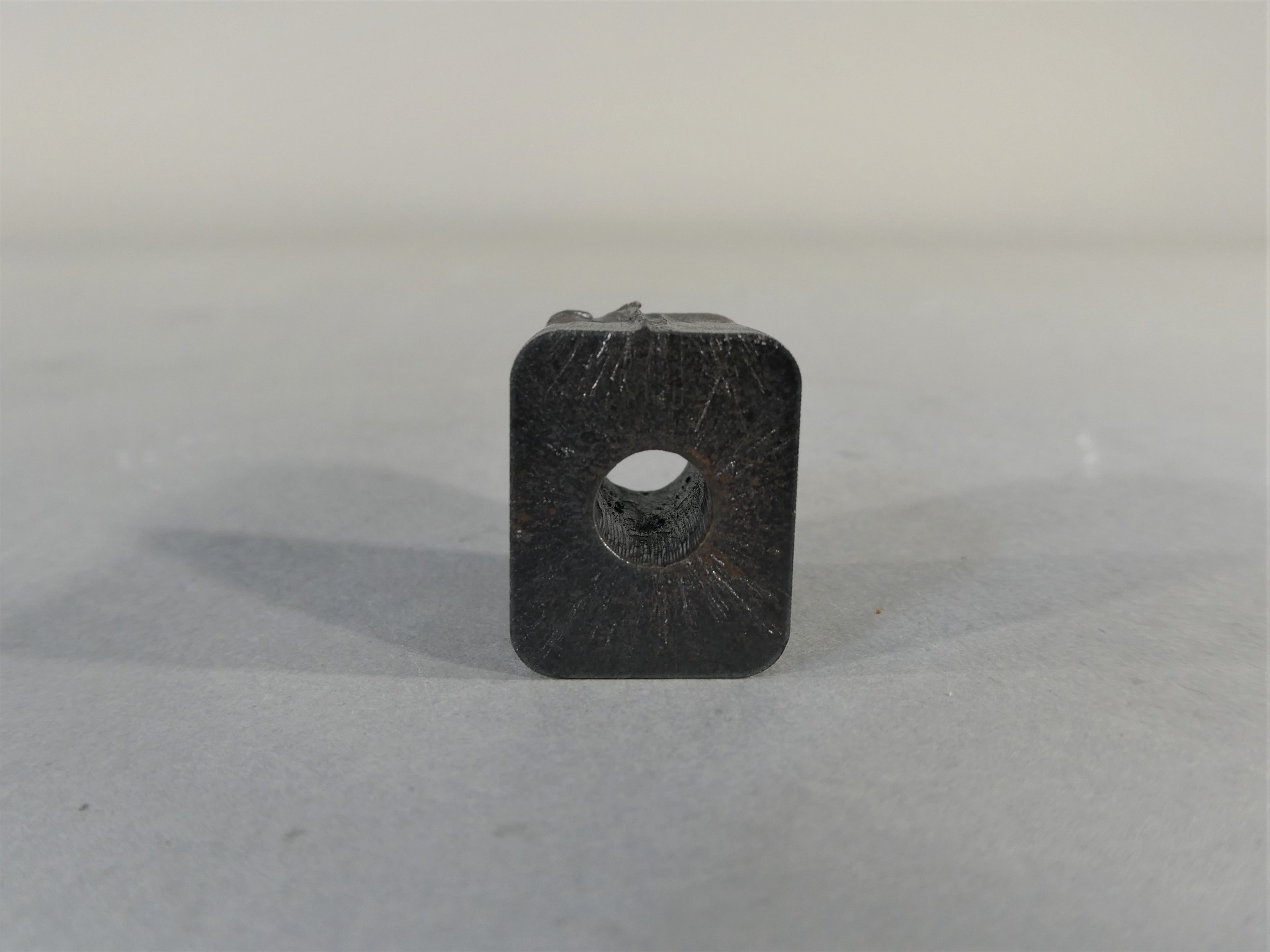

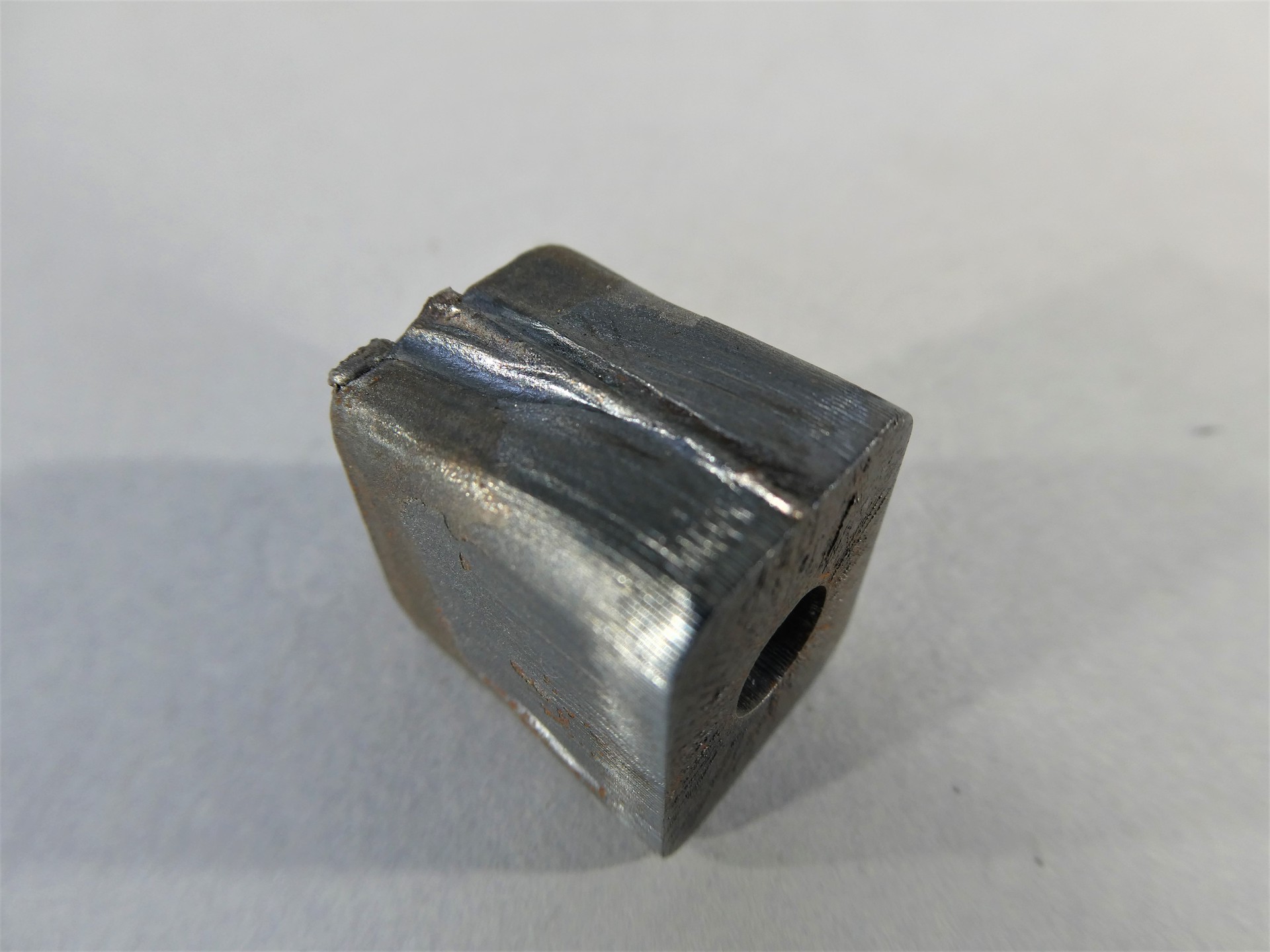

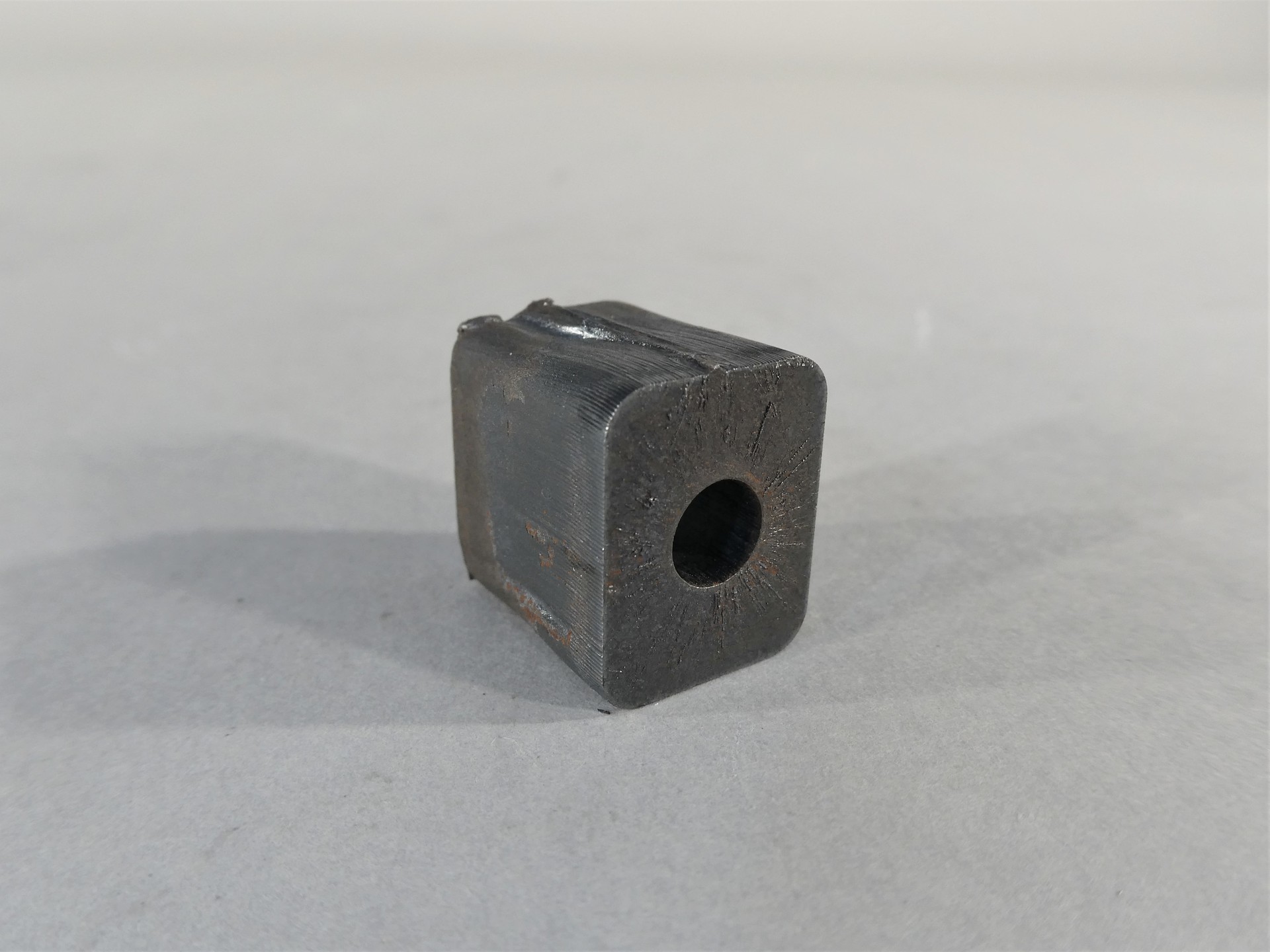

Thick part with small hole

OGE Direct LLC (U.S.A.)

  • ・Size: W19 x D19 x H19 mm

  • ・Accuracy: ± .25 mm

  • ・Programming time: 10 min

  • ・Processing time: 1 min/quantity

  • ・Quantity: 50

  • ・Material: IPSCO steel

  • ・Thickness: 19 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • Laser-Cutting

Strengths

19 mm thick with 3mm hole in IPSCO steel cut on an Ensis 4020 9kw fiber laser
