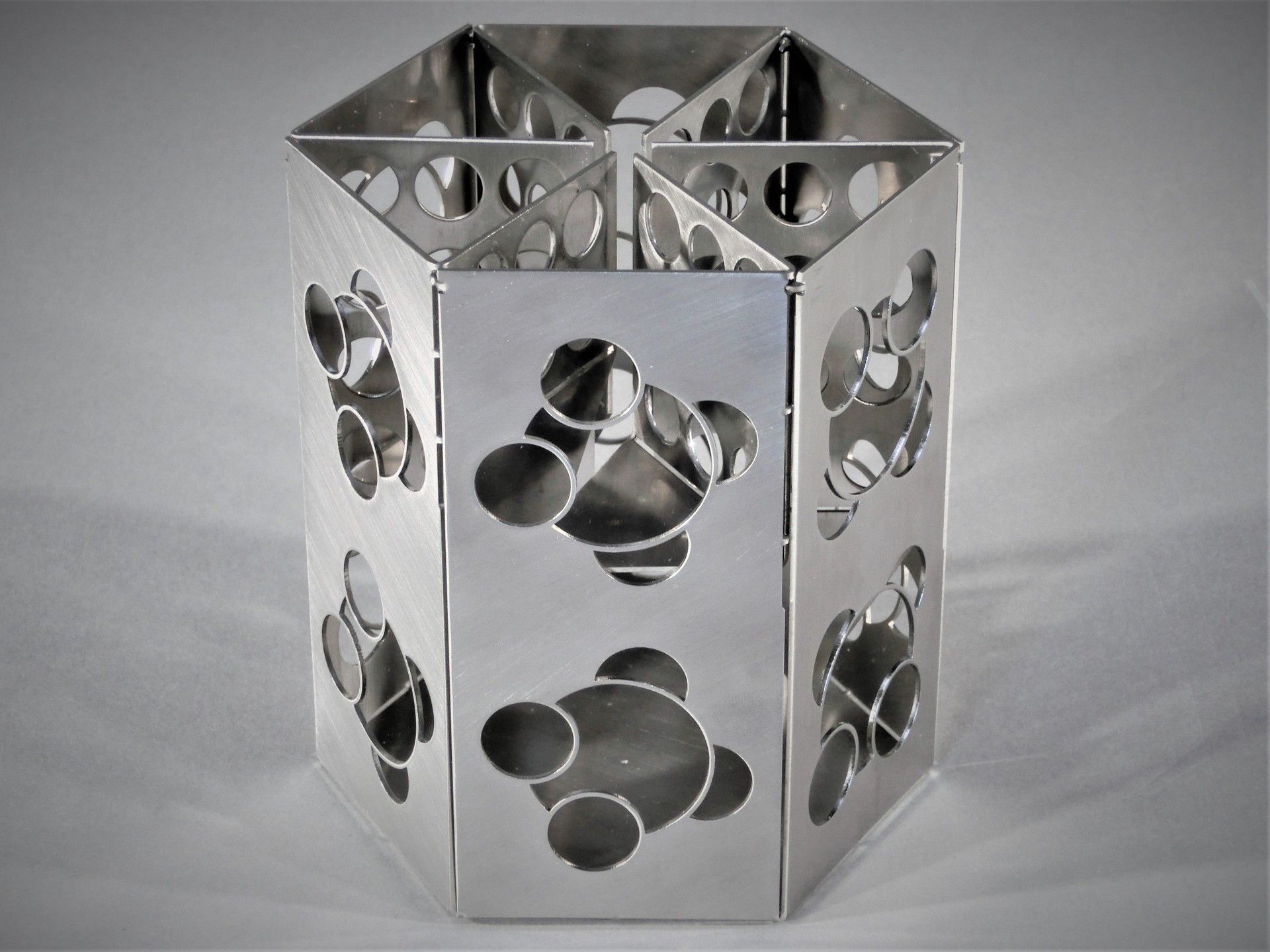

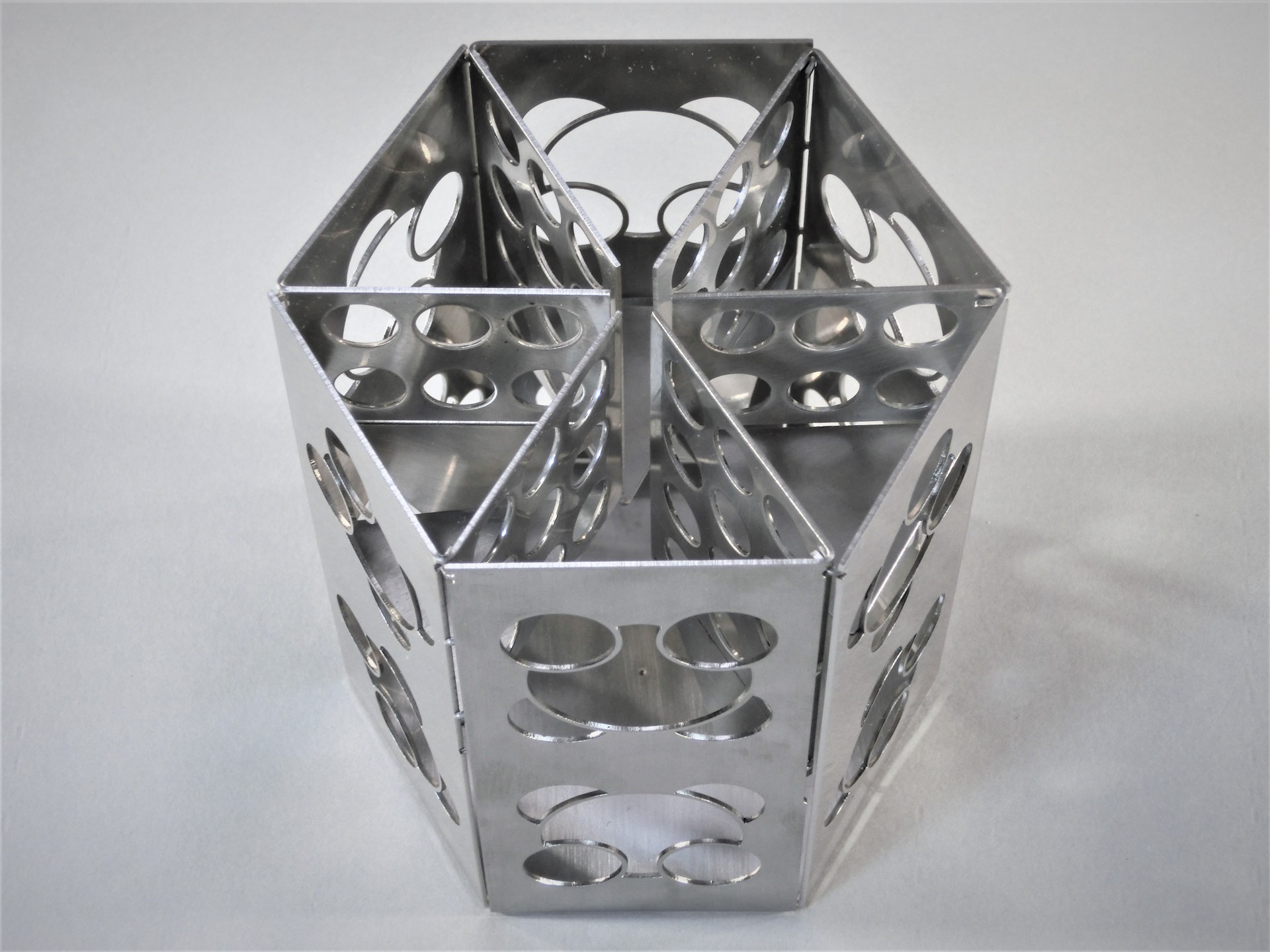

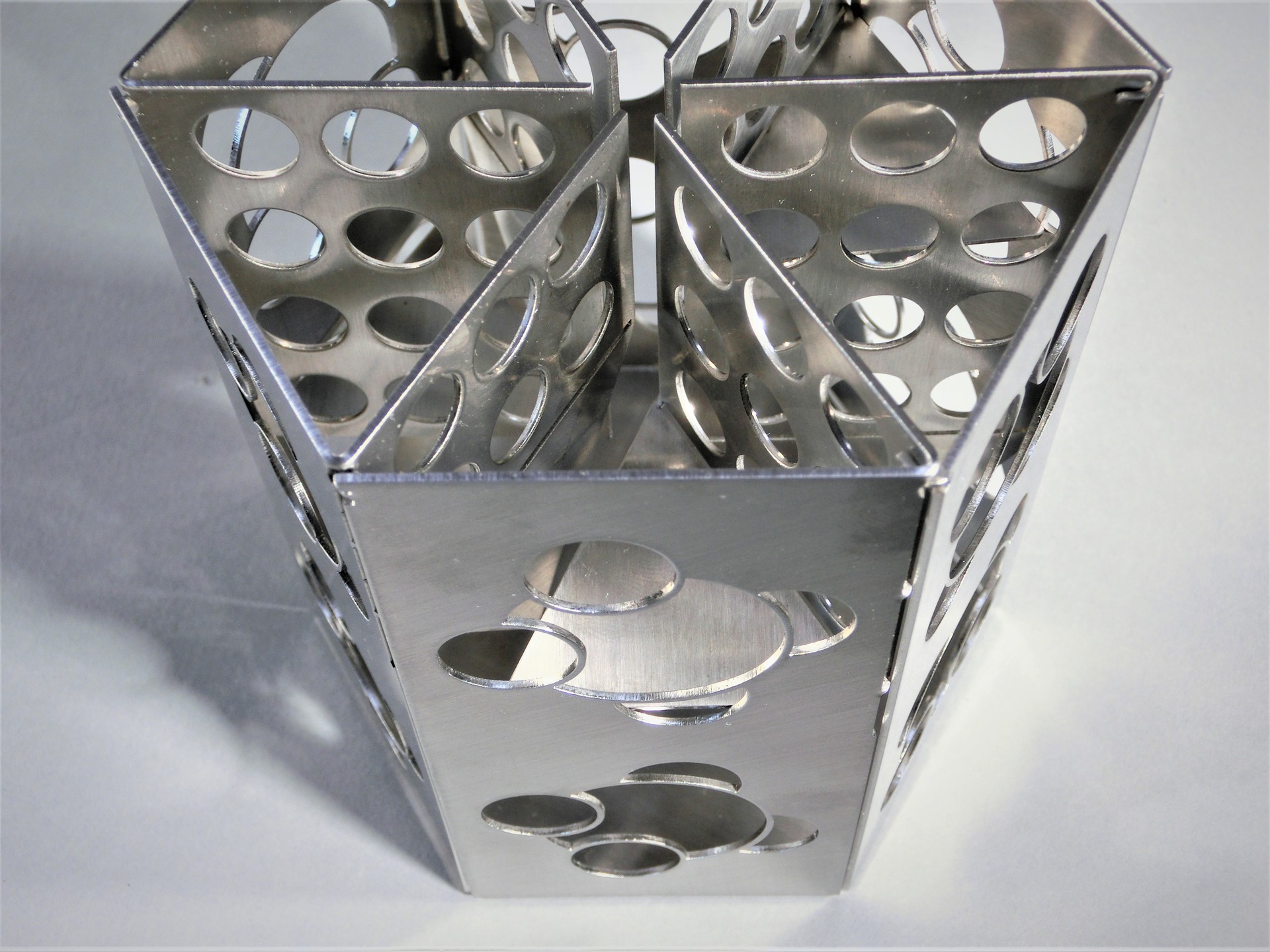

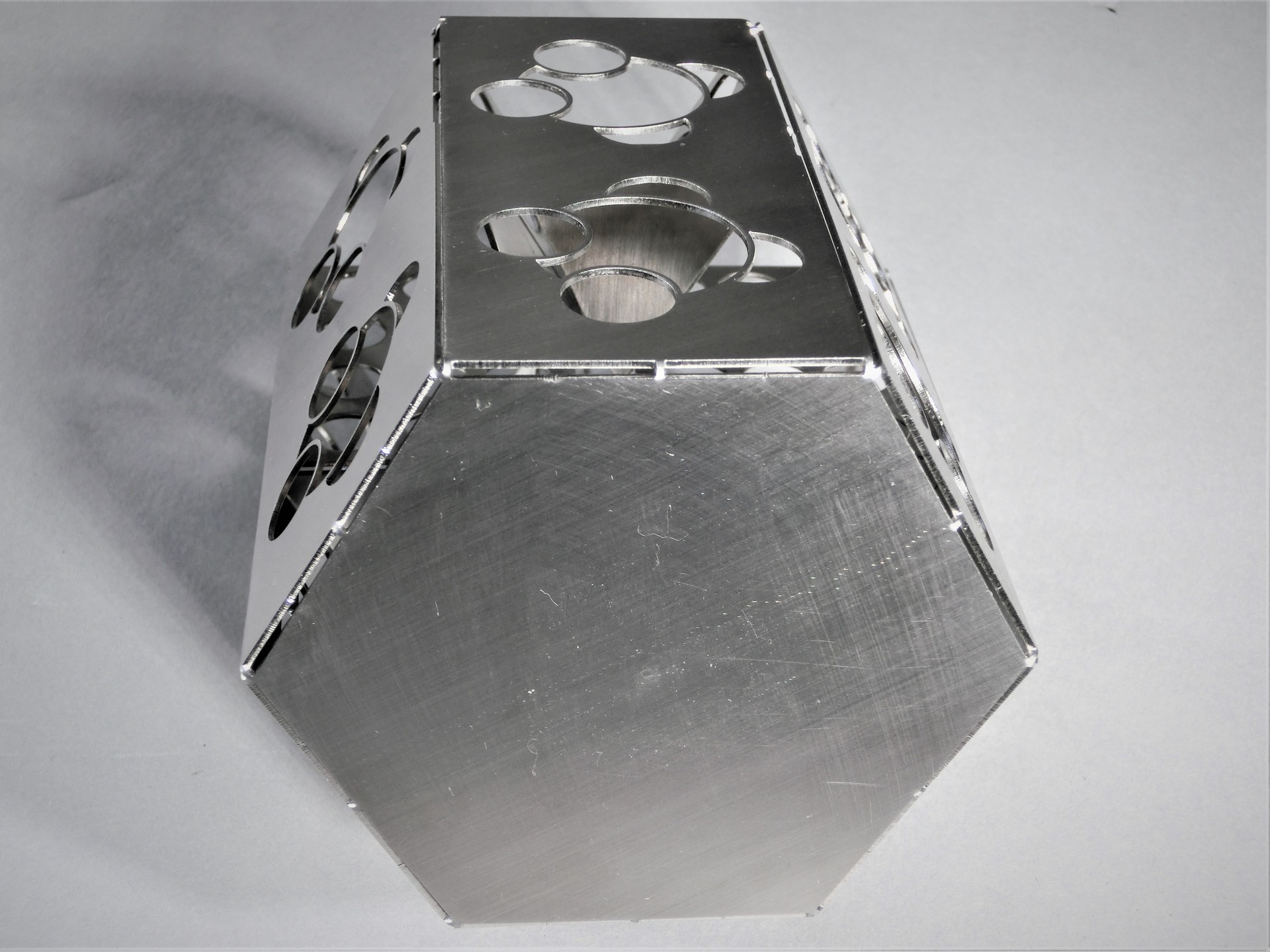

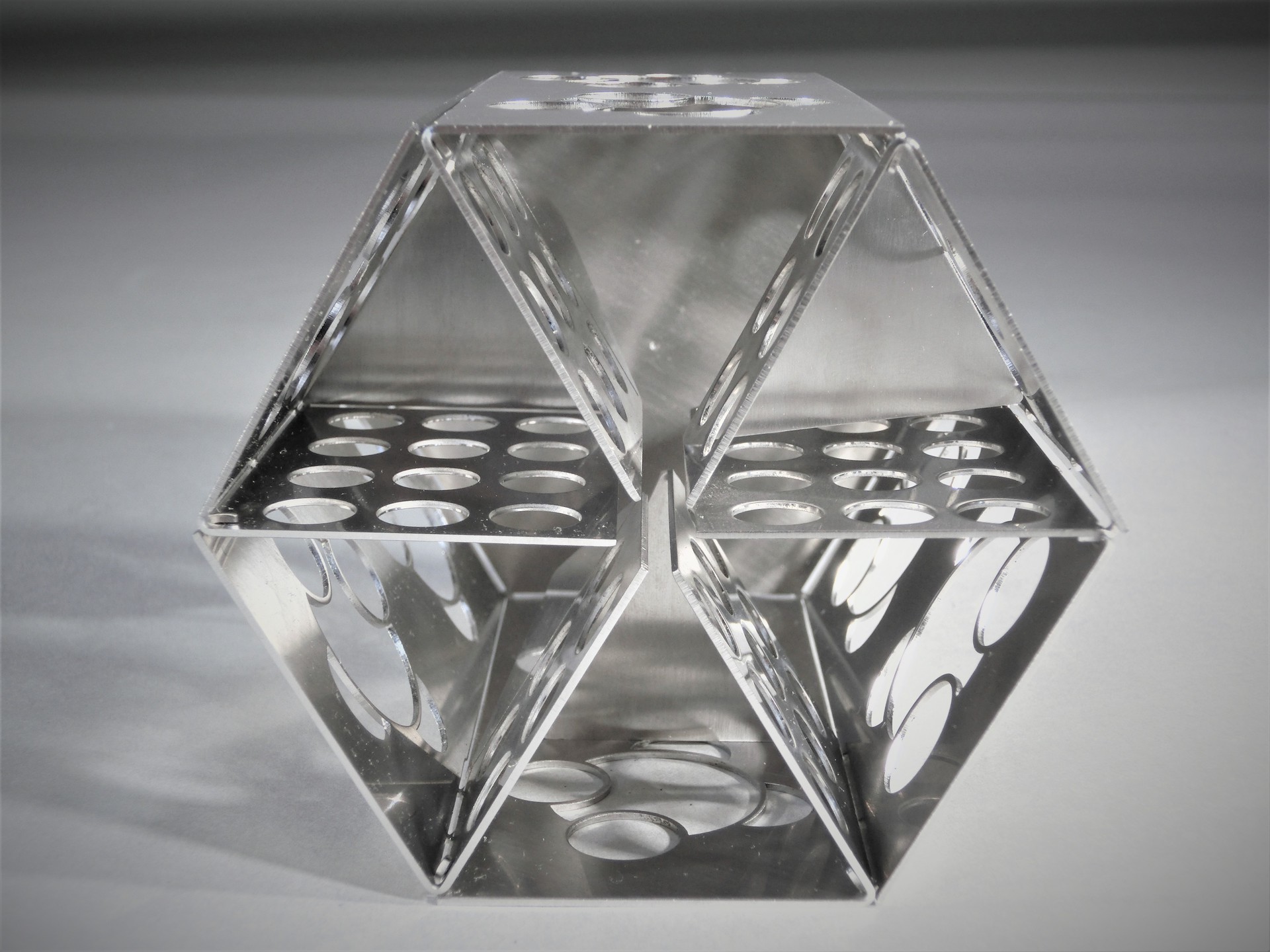

I tried to bend it by hand (Parts035)
Parts035
Technical Award
I tried to bend it by hand
関西エナジス 株式会社 (Hyogo, Japan)
-
・Size: W100 x D100 x H150 mm
-
・Accuracy: ± 0.1 mm
-
・Programming time: 60 min
-
・Processing time: 60 min/quantity
-
・Quantity: 1
-
・Material: Stainless steel (SUS304)
-
・Thickness: 1.0 mm
-
・Type: Original work
Process
2D/3D Design
CAD/CAM
Punch & Laser
バリ取り
Bending
Strengths
元々は複数枚の板を組み合わせて製作しましたが、なんとか1枚物でできないかと思い、複数回試作を重ねて今の形になりました。
この時代にあえて手で曲がる製品を作りたいと思い、ジョイントを使うことで手曲げで作ることができました。
