37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts029

Technical Encouragement Award

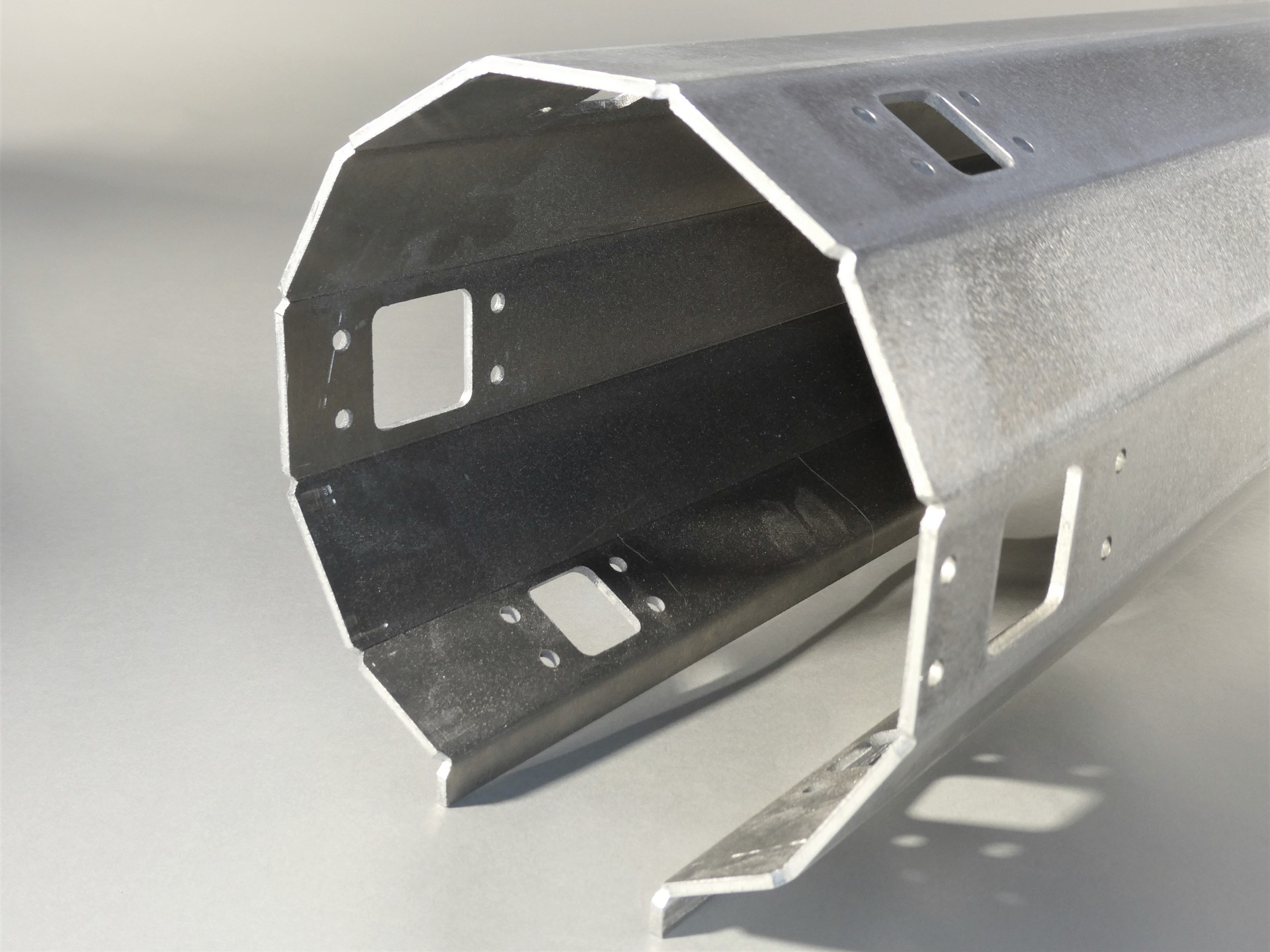

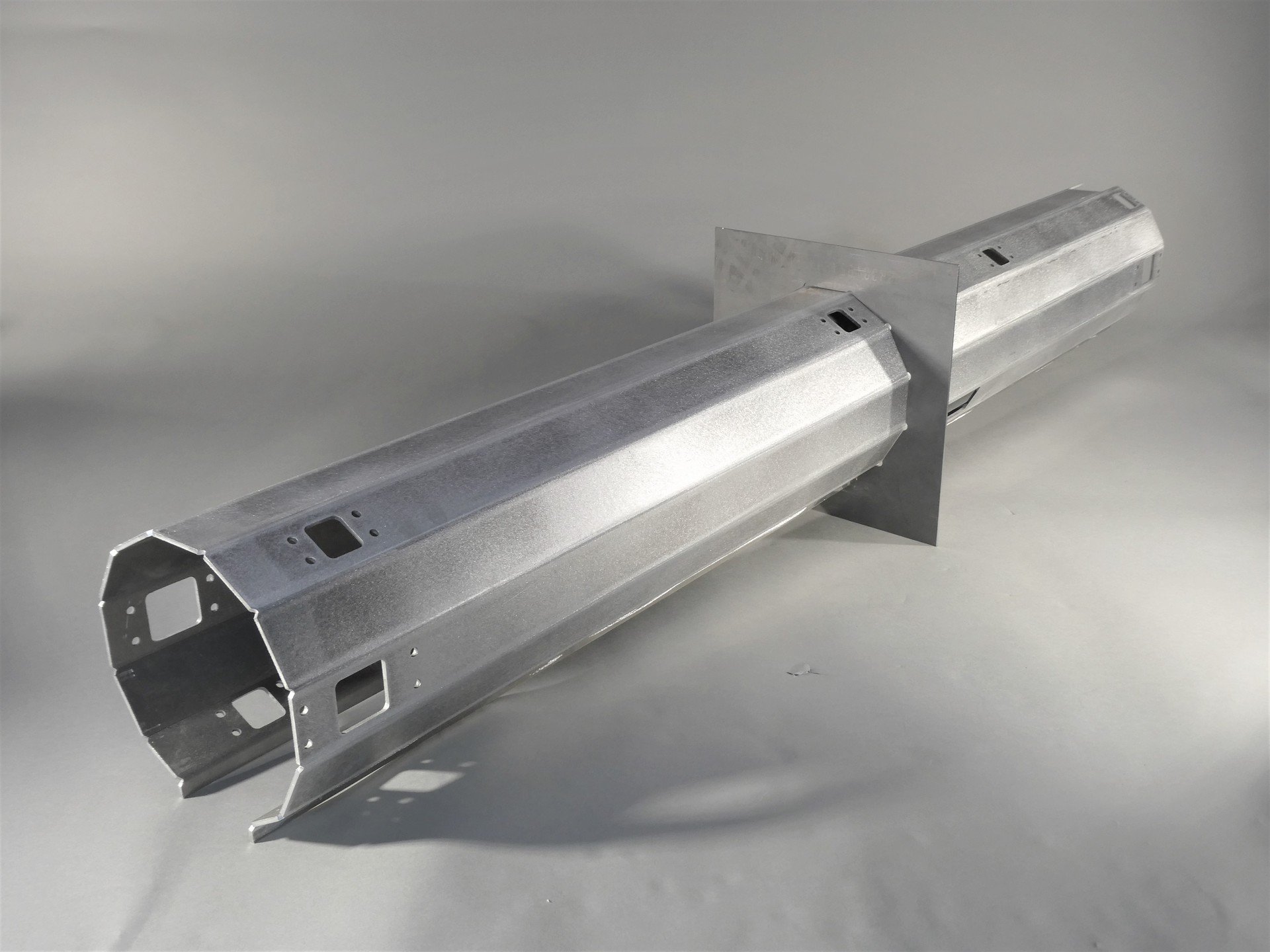

ER00195A-00 TUBE.EXTERNAL

R&G METAL SHAPING, S.L. (Spain)

  • ・Size: W1310 x D250 x H250 mm

  • ・Accuracy: ± 0.2 mm

  • ・Programming time: 5 min

  • ・Processing time: 5 min/quantity

  • ・Quantity: 16

  • ・Material: Aluminum (A5052)

  • ・Thickness: 3 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Surface Treatment

  • Bending

Strengths

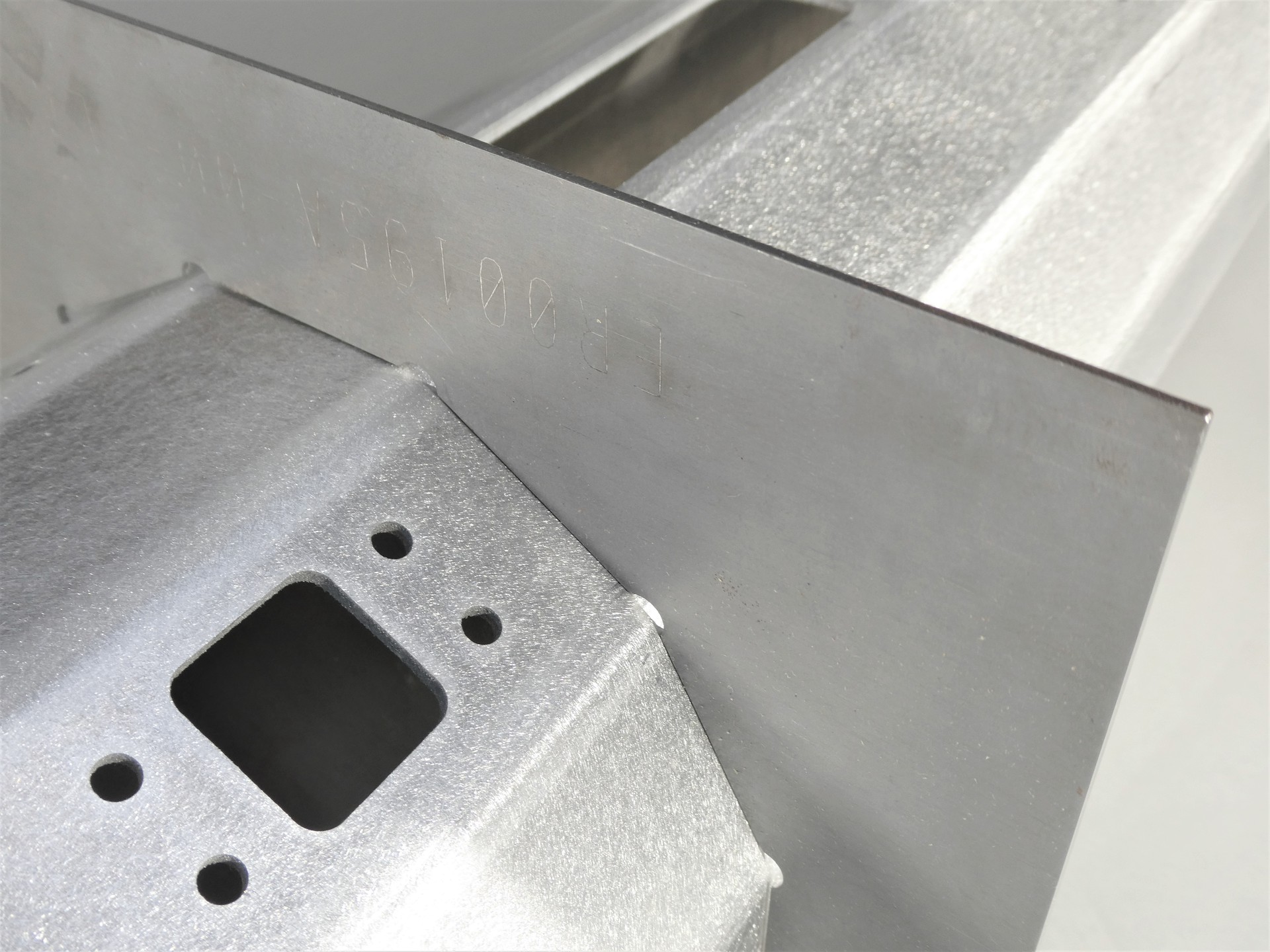

DISTANCE BETWEEN THE PART WINDONWS AND THE BENDING LINE. NO DEFORMATION OF THE MATERIAL
