37th Precision Sheet Metal Technology Fair

Sheet metal parts (121 entries)

360° Viewer

Parts028

Technical Encouragement Award

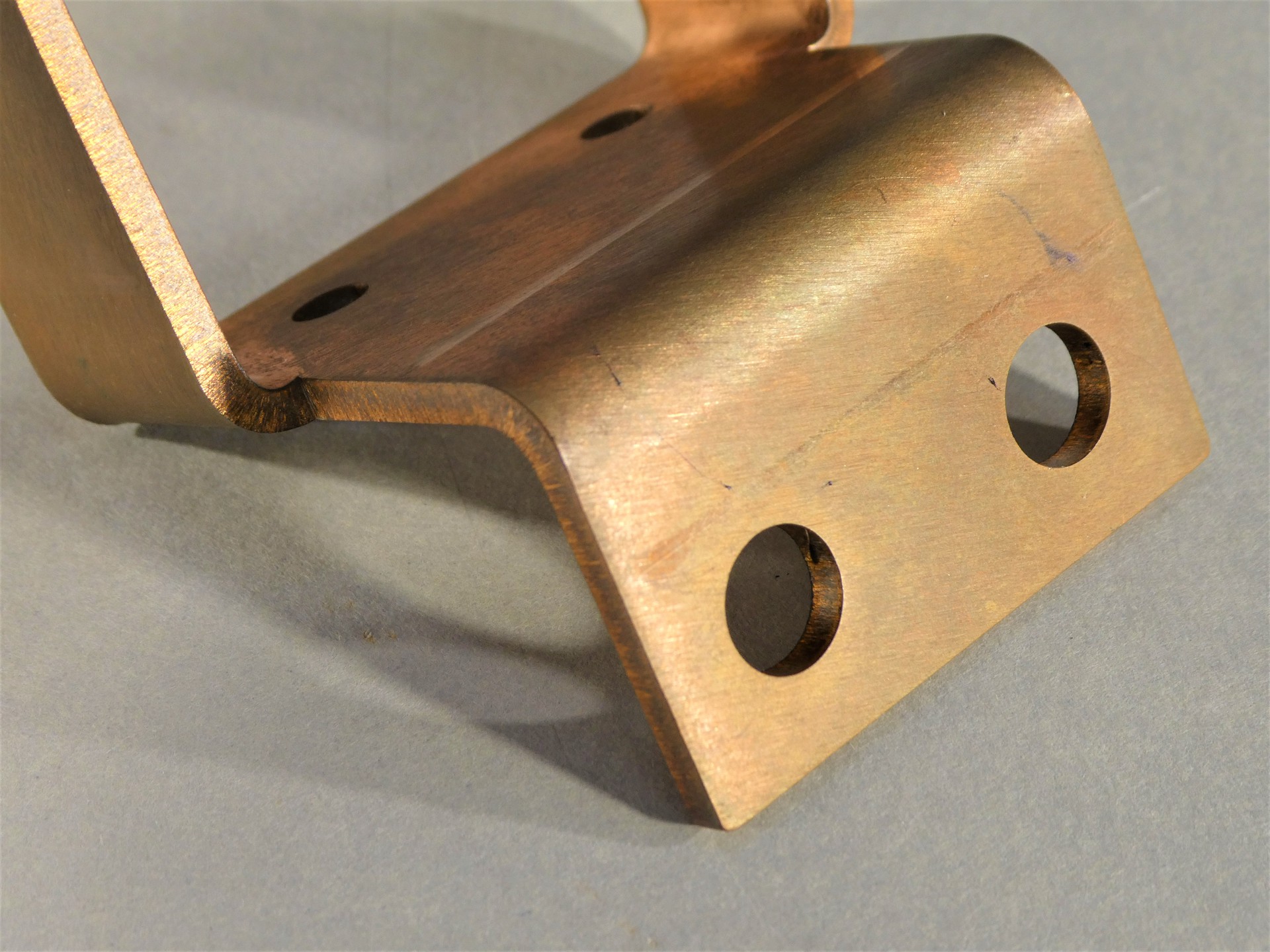

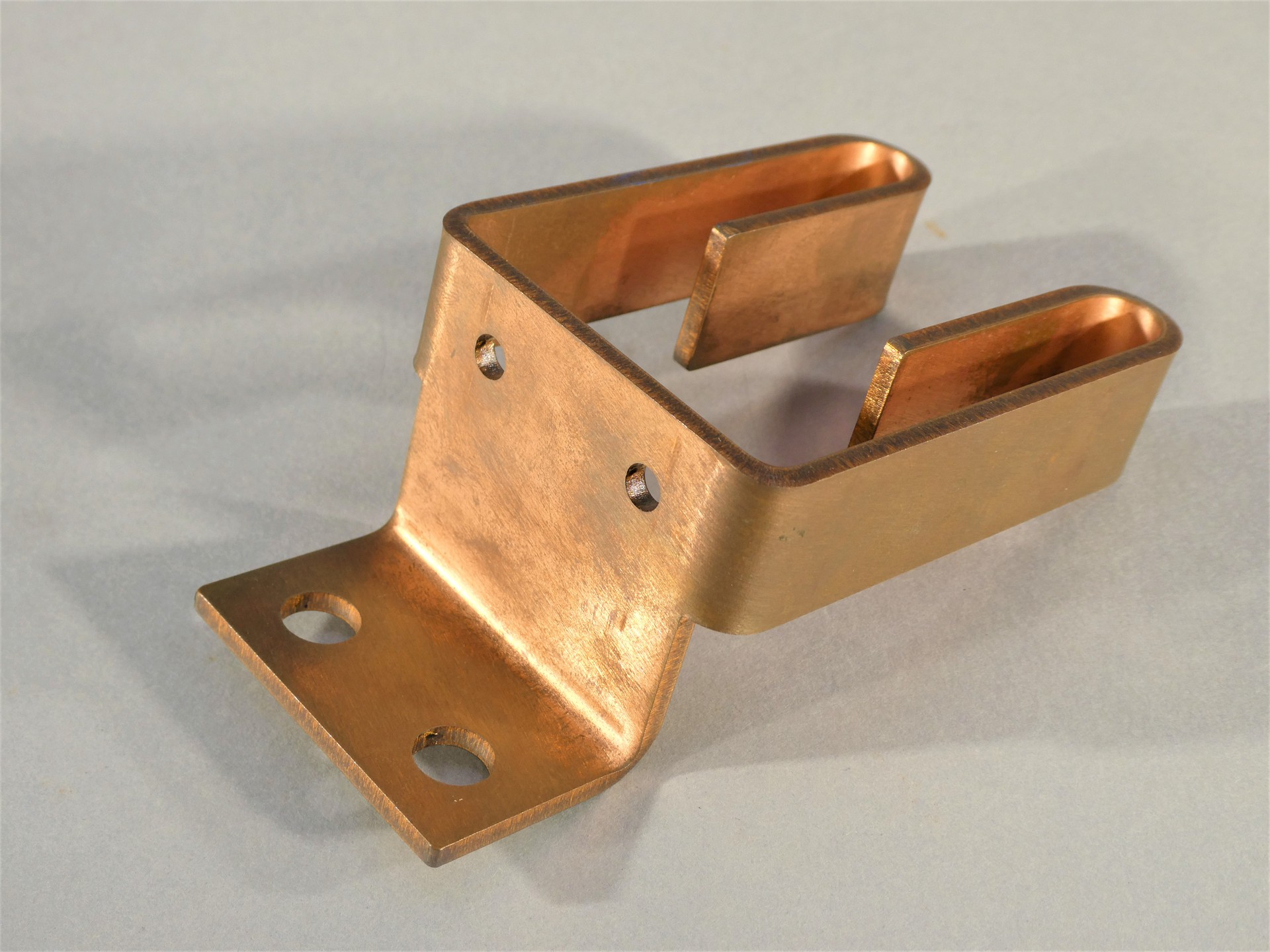

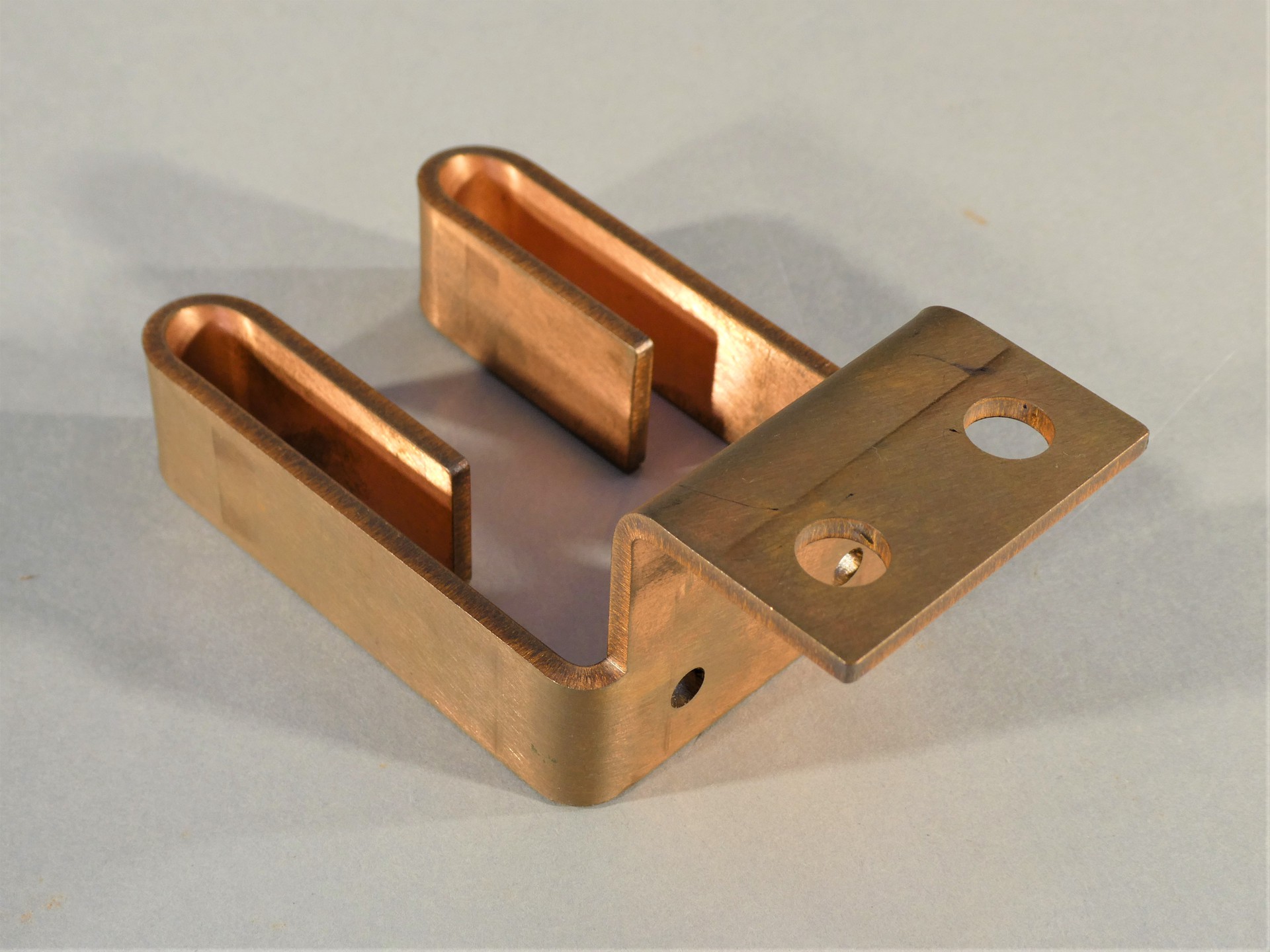

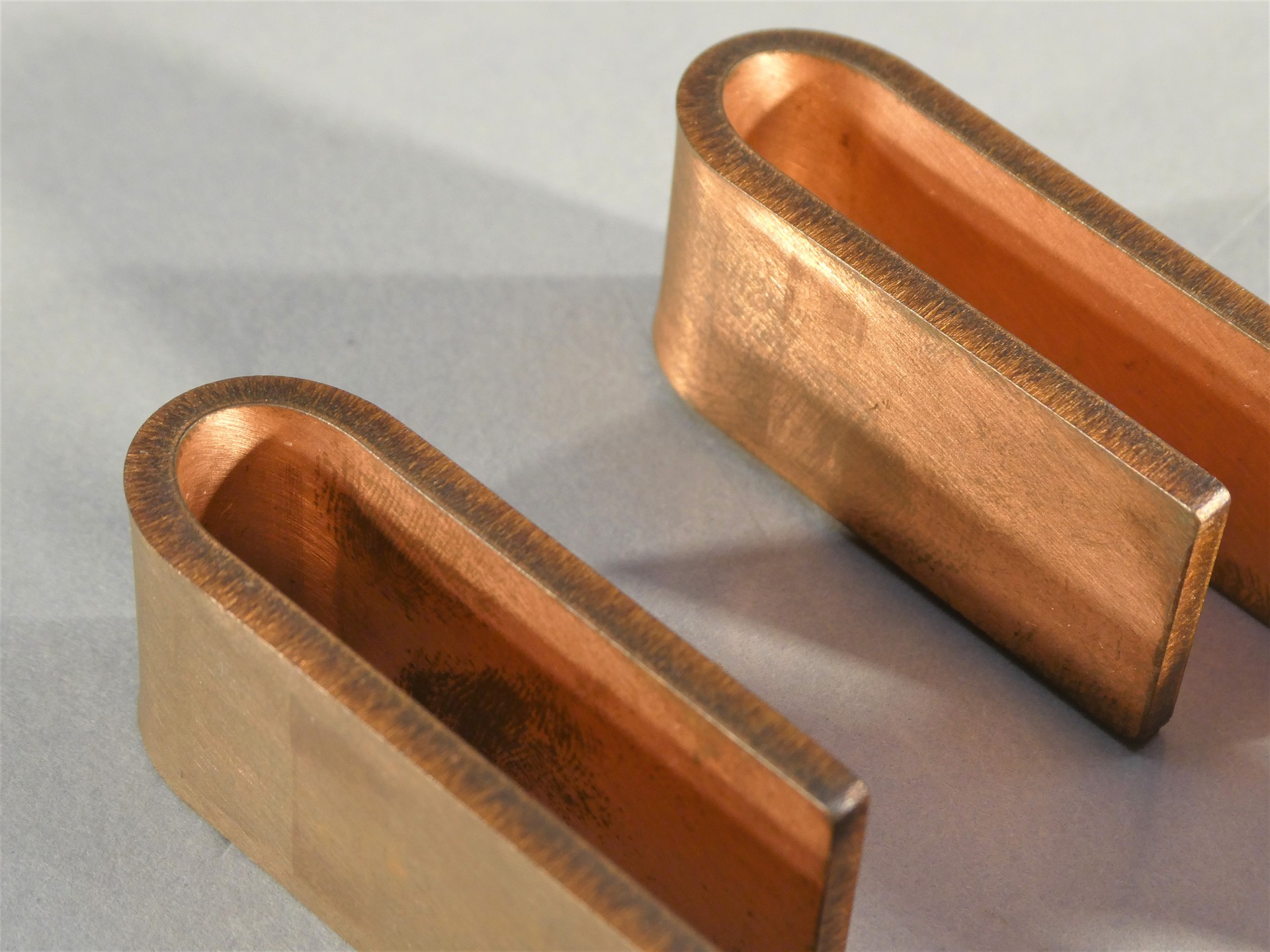

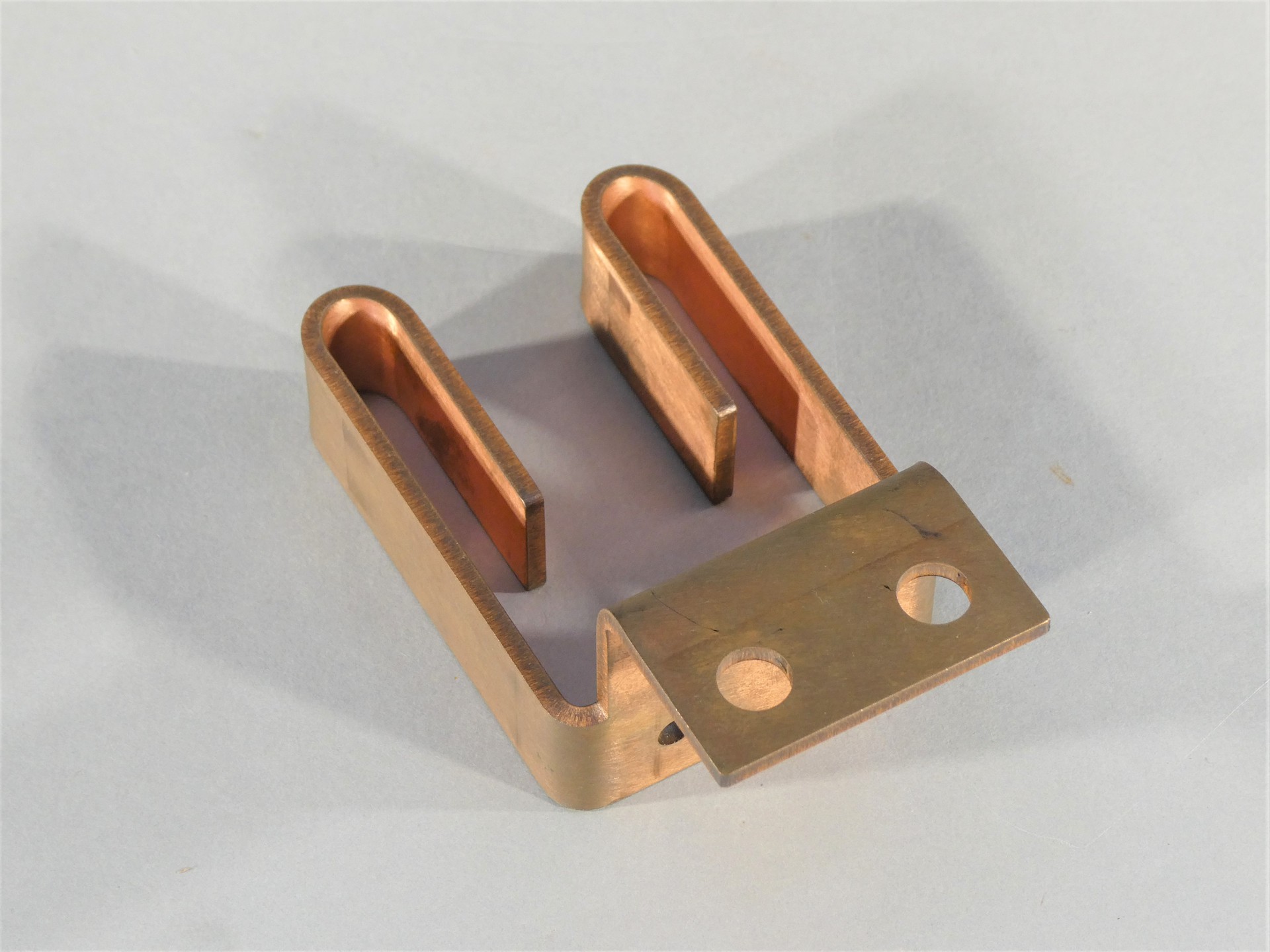

Relay

Electris Sp. z o.o. Sp.k. (Poland)

  • ・Size: W55 x D40 x H100 mm

  • ・Accuracy: ± 1 mm

  • ・Programming time: 1 min

  • ・Processing time: 10 min/quantity

  • ・Quantity: 11

  • ・Material: Copper (C1100)

  • ・Thickness: 3 mm

  • ・Type: Production work

Process

  • CAD/CAM

  • Programming

  • Unfolding

  • Laser-Cutting

  • Bending

Strengths

Thanks to the use of VPSS 4ie software, the time required to prepare a prototype of a detail has been significantly shortened. Taking into account the bending of copper which is a hardly repeatable material.
