37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble257

Technical Encouragement Award

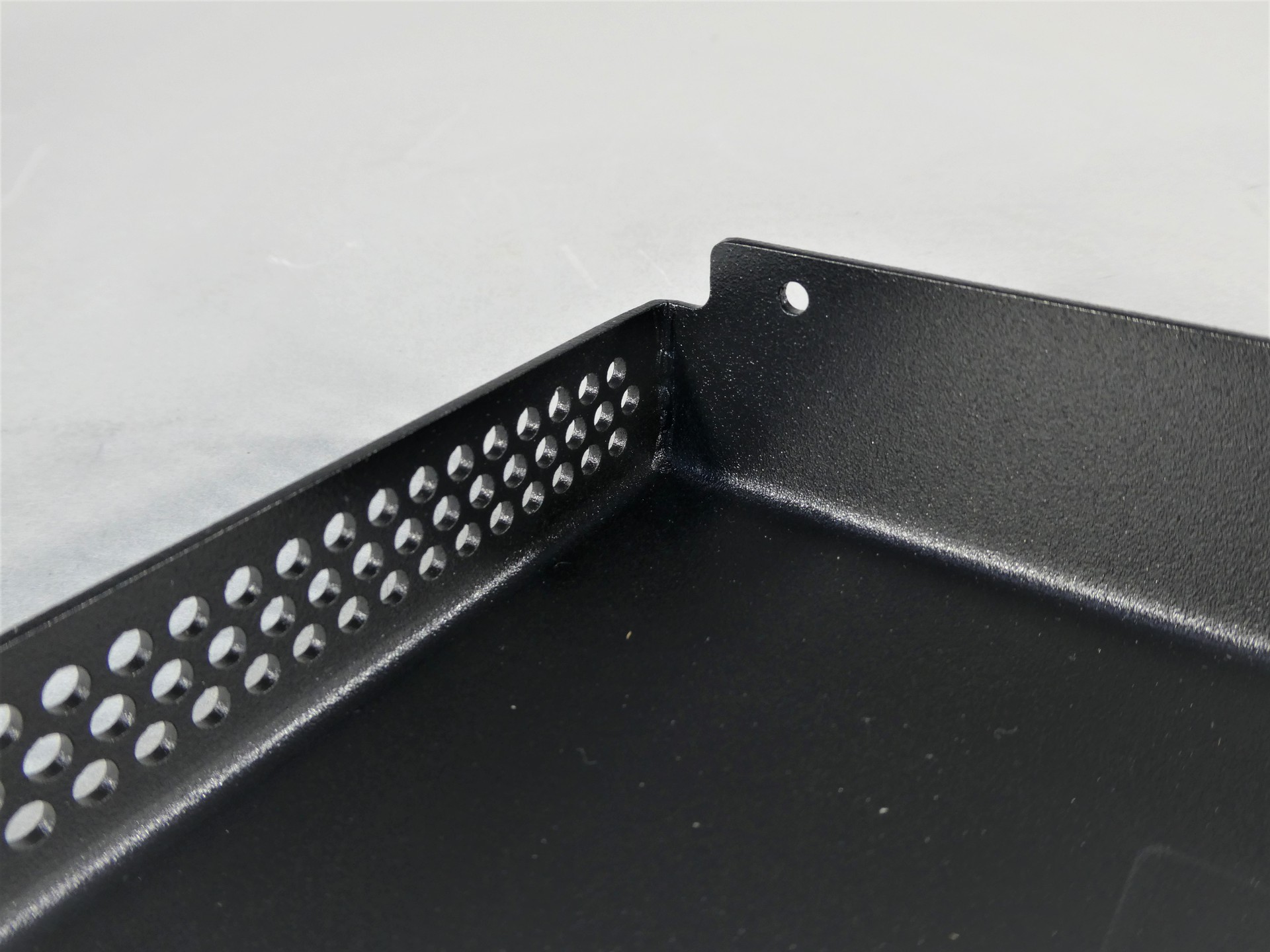

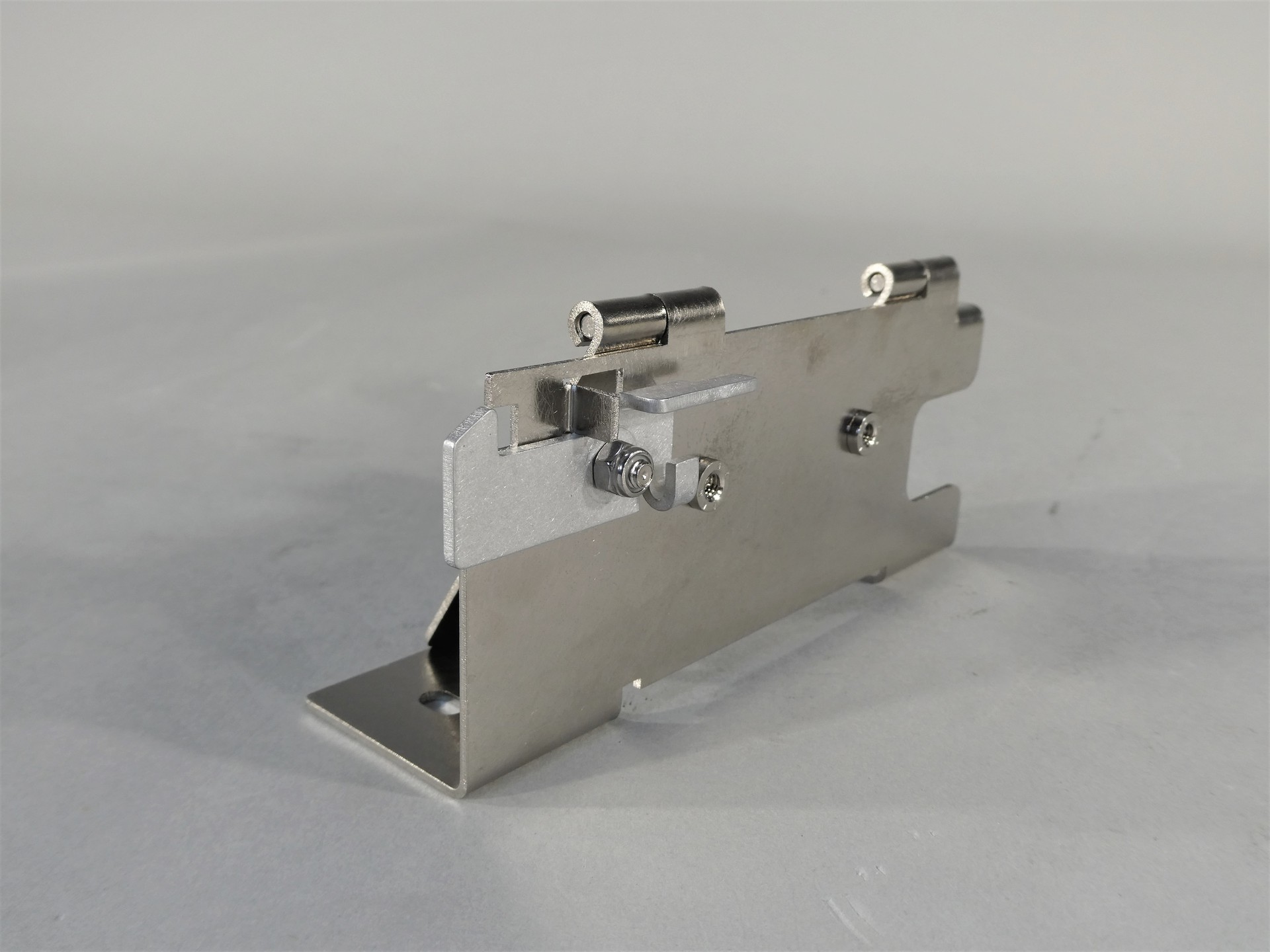

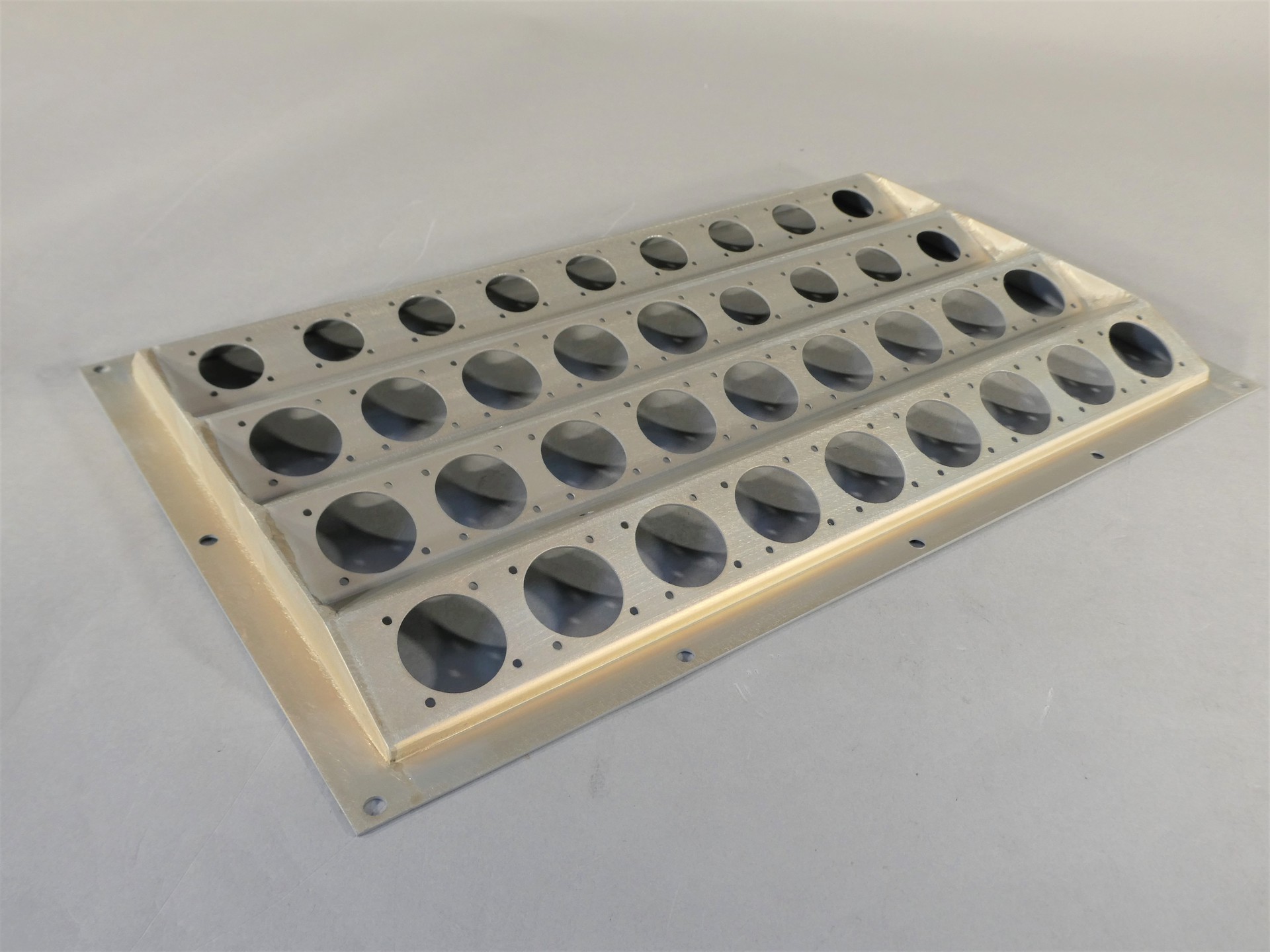

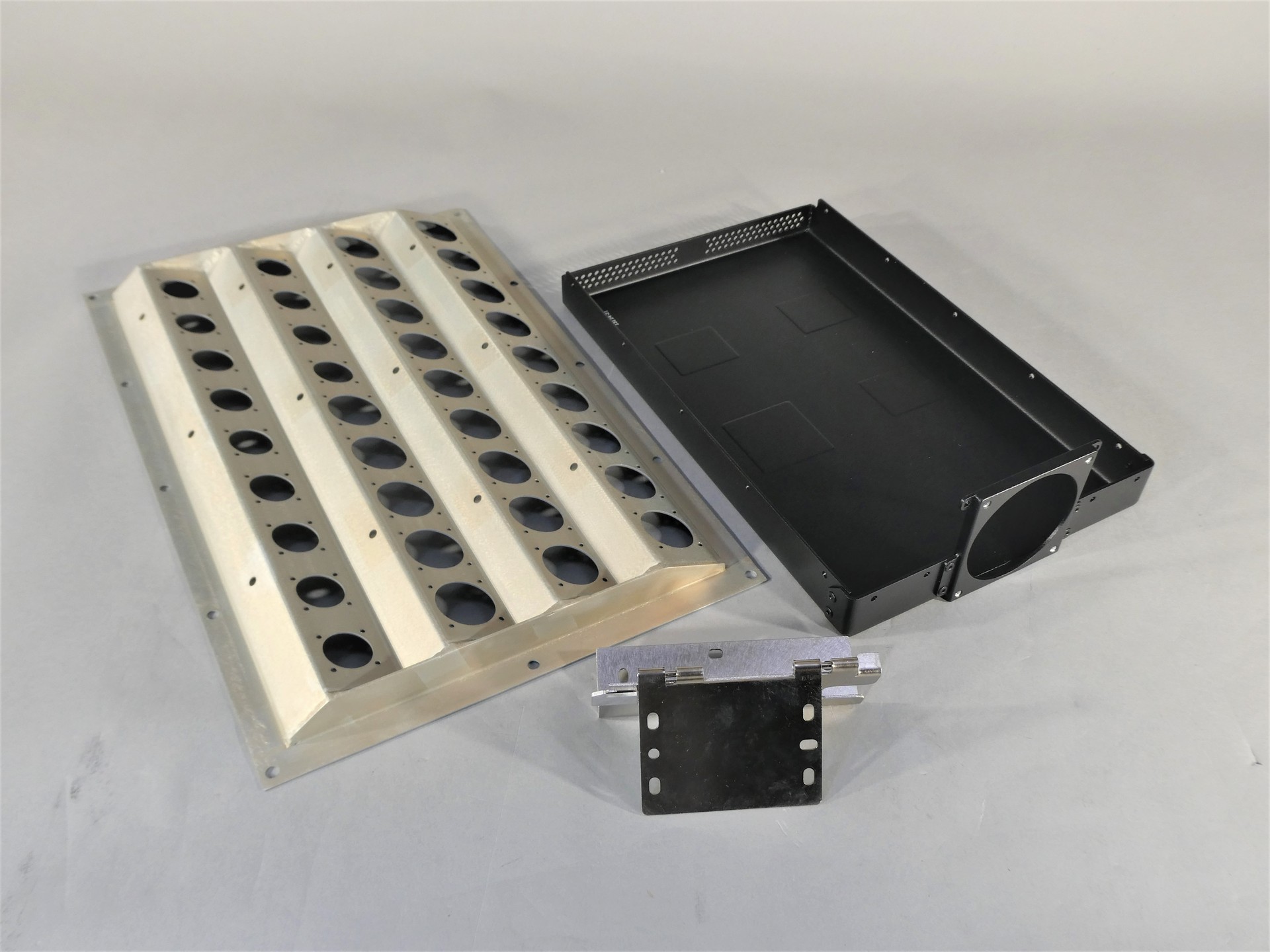

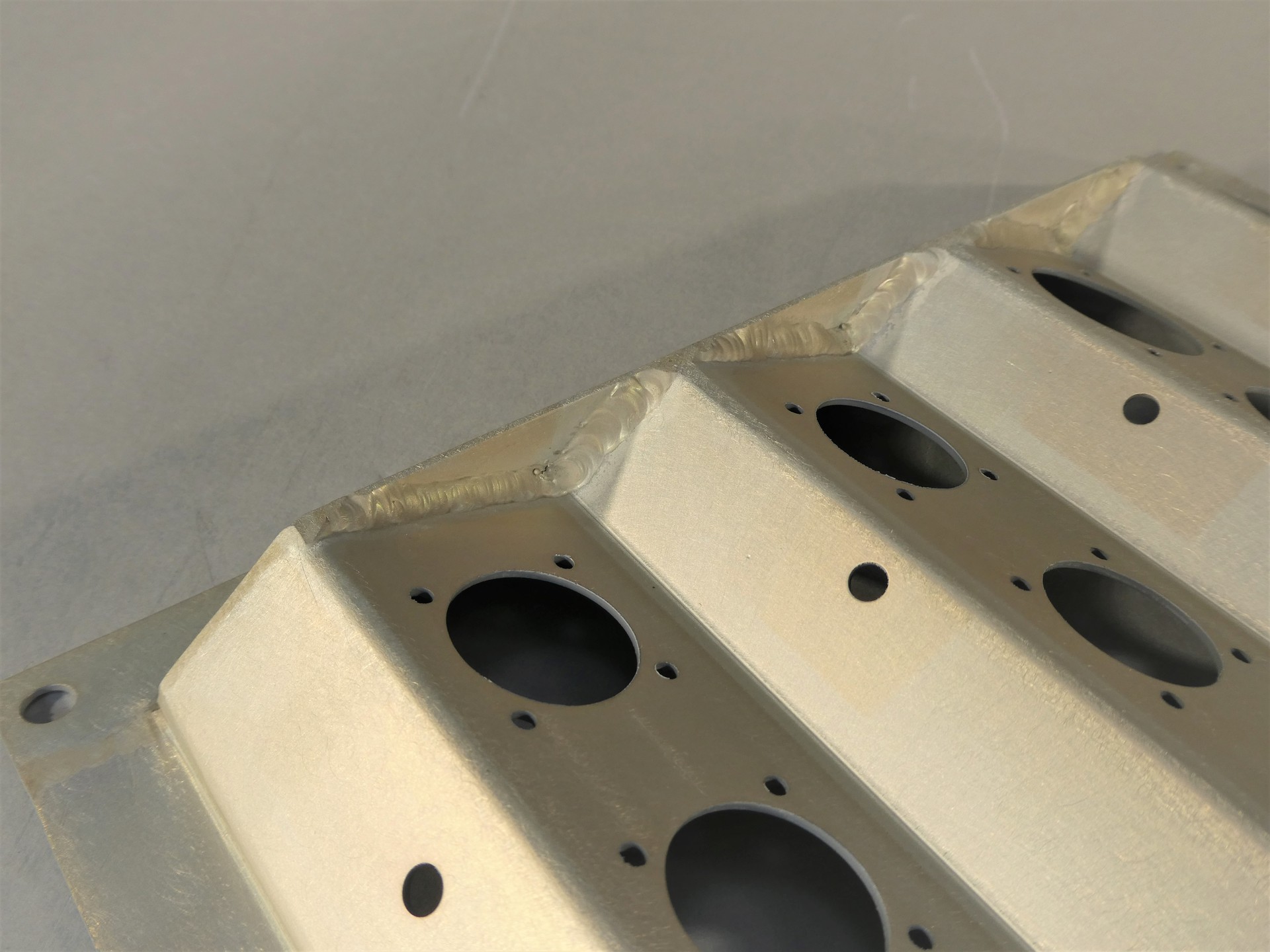

Electronic Panel

Hughes Circuits Inc. (U.S.A.)

  • ・Size: W200 x D431 x H25 mm

  • ・Accuracy: ± .25 mm

  • ・Programming time: 60 min

  • ・Processing time: 2 min/quantity

  • ・Quantity: 20

  • ・Material: Aluminum (A5052)

  • ・Thickness: 1.6 mm

  • ・Type: Production work

Process

  • CAD/CAM

  • Punch & Laser

  • Bending

  • Welding

  • Finishing
