37th Precision Sheet Metal Technology Fair

Sheet metal assemble parts (60 entries)

360° Viewer

Assemble214

Technical Encouragement Award

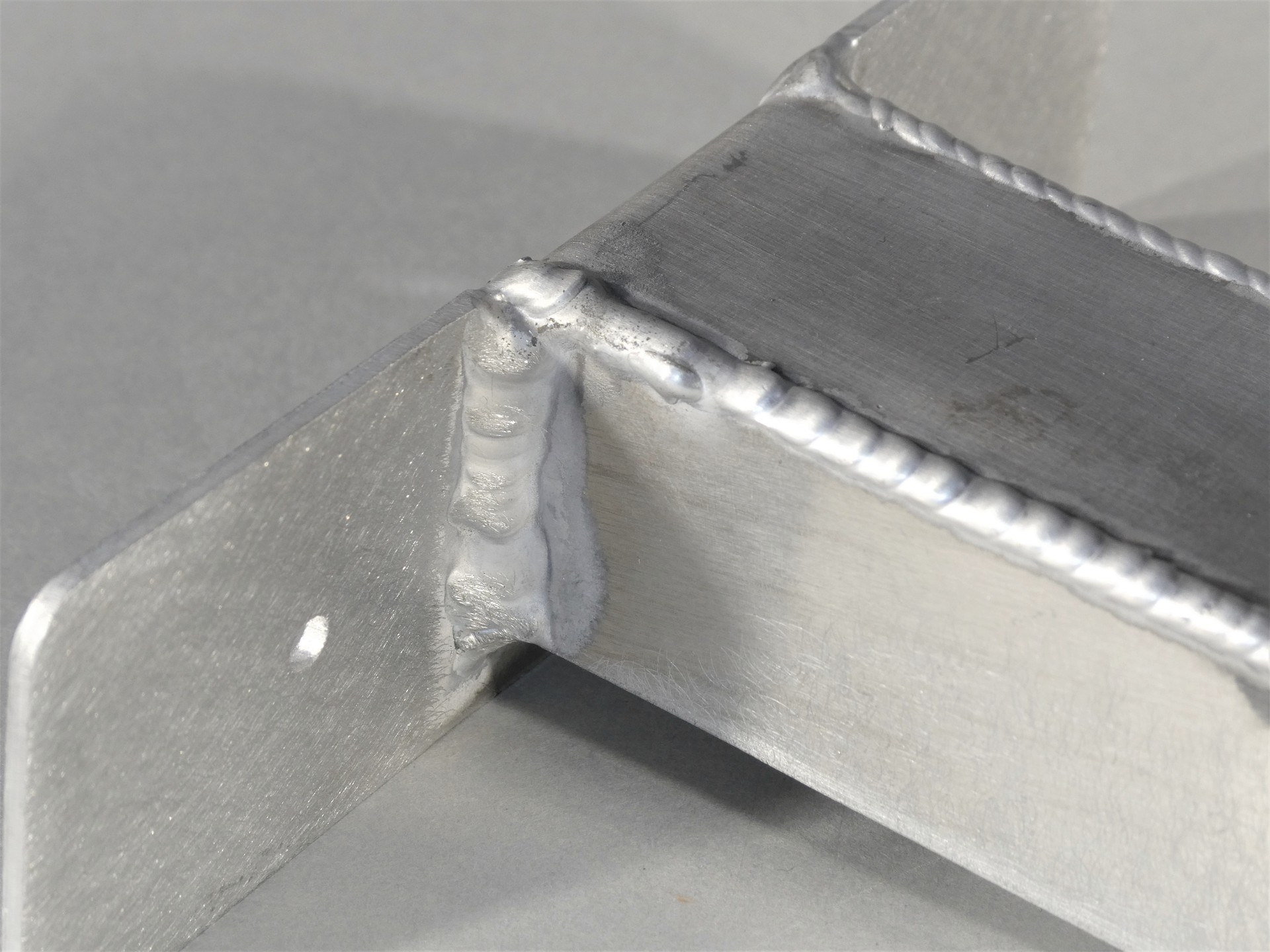

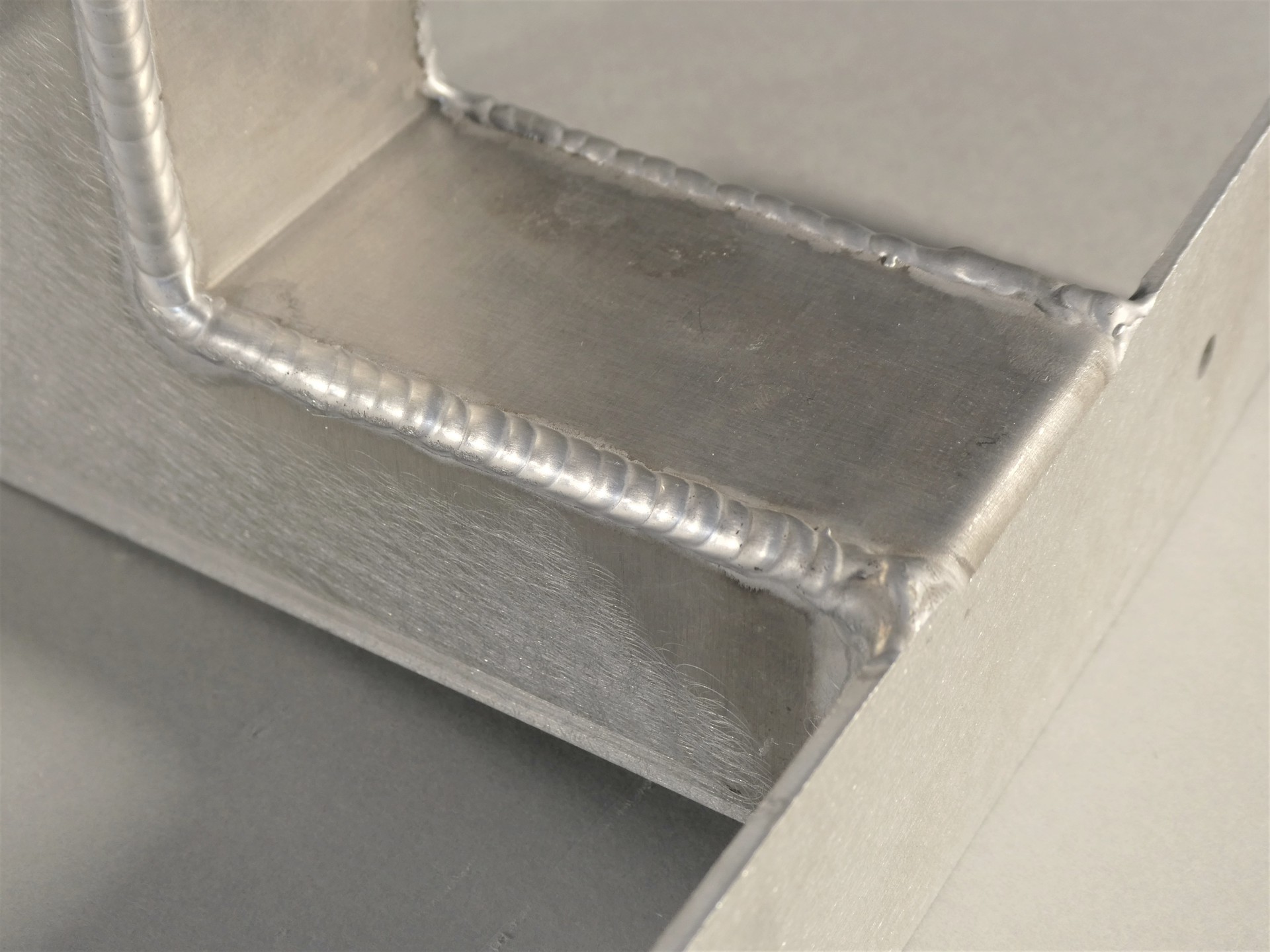

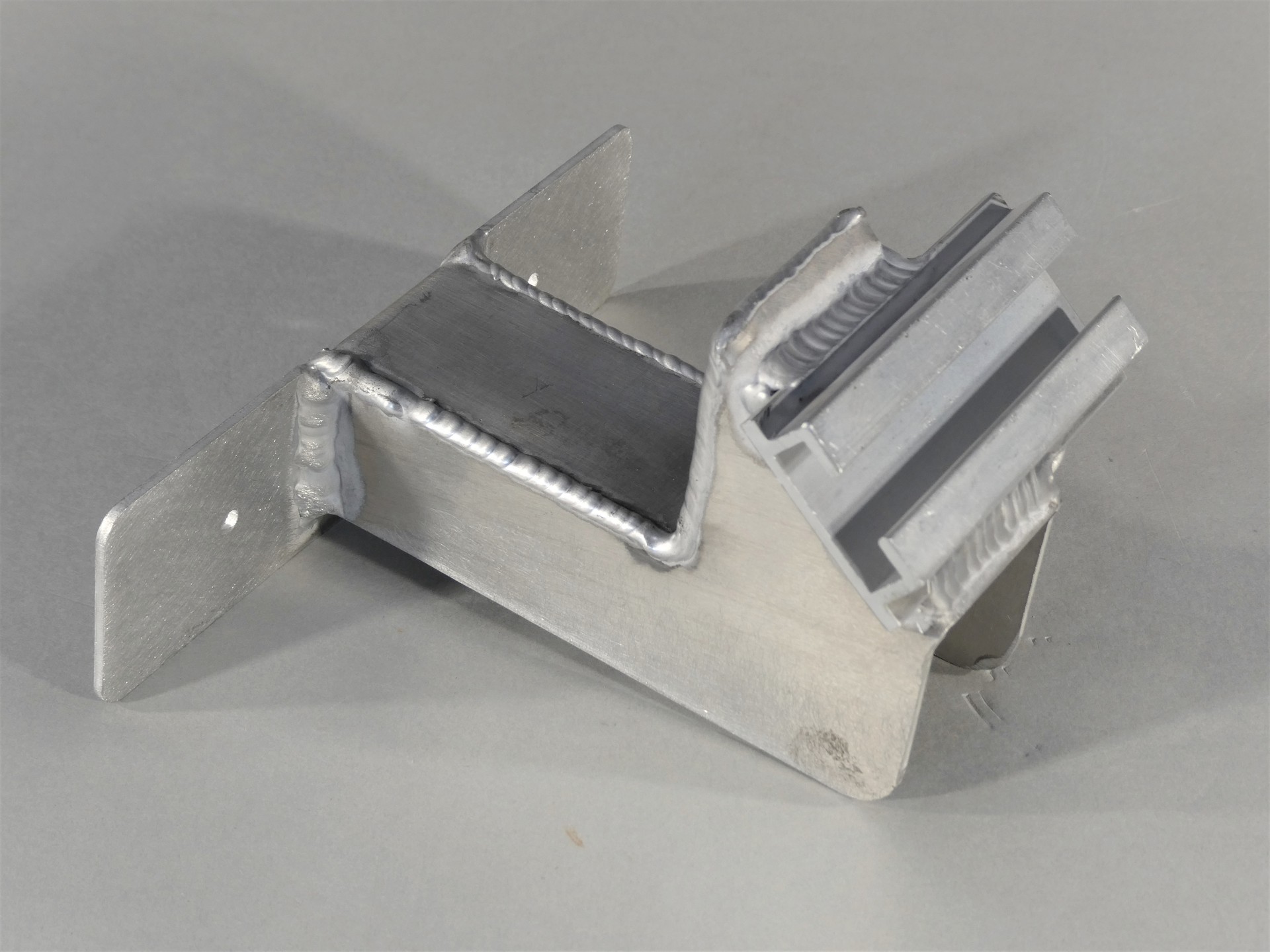

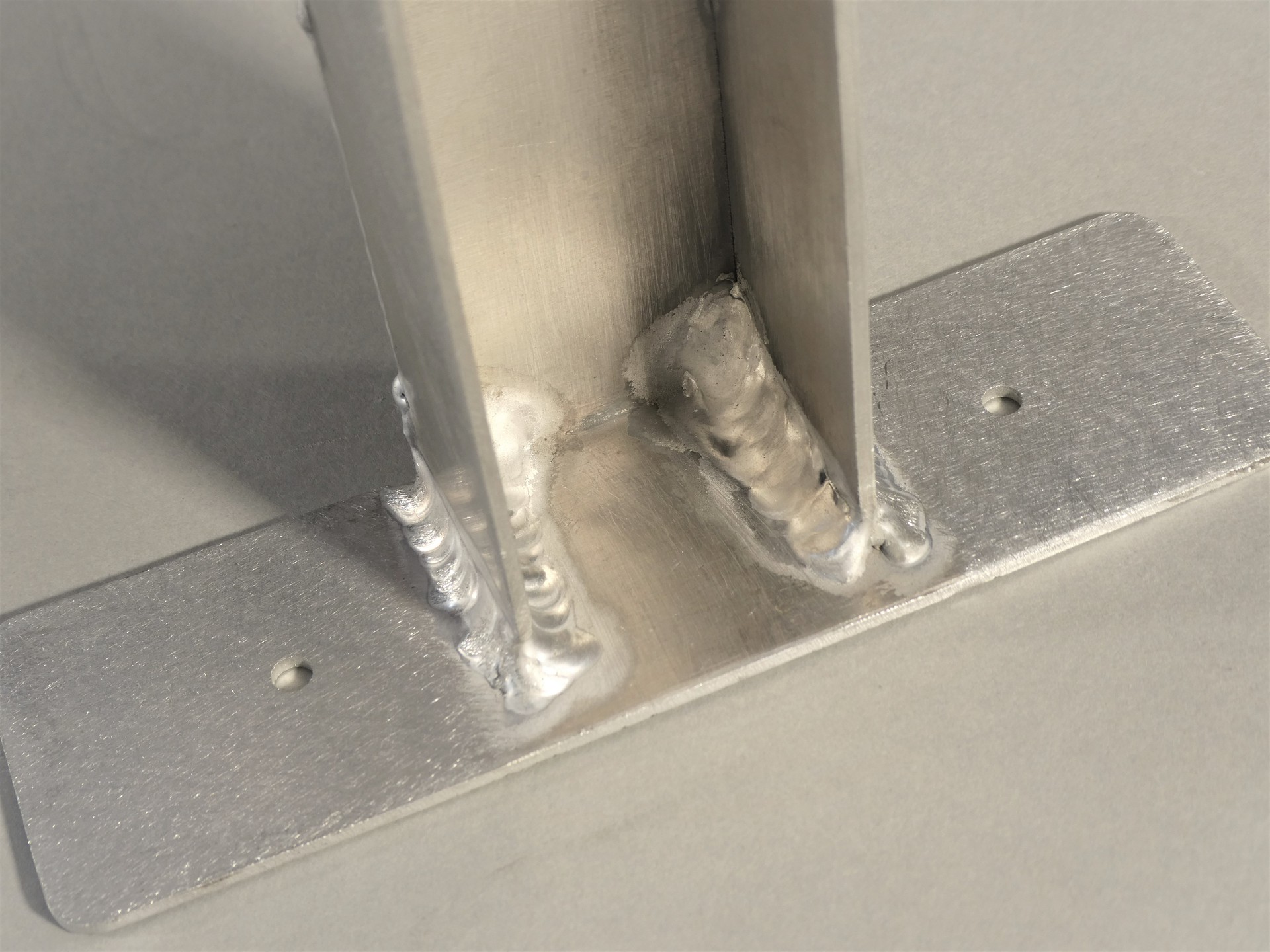

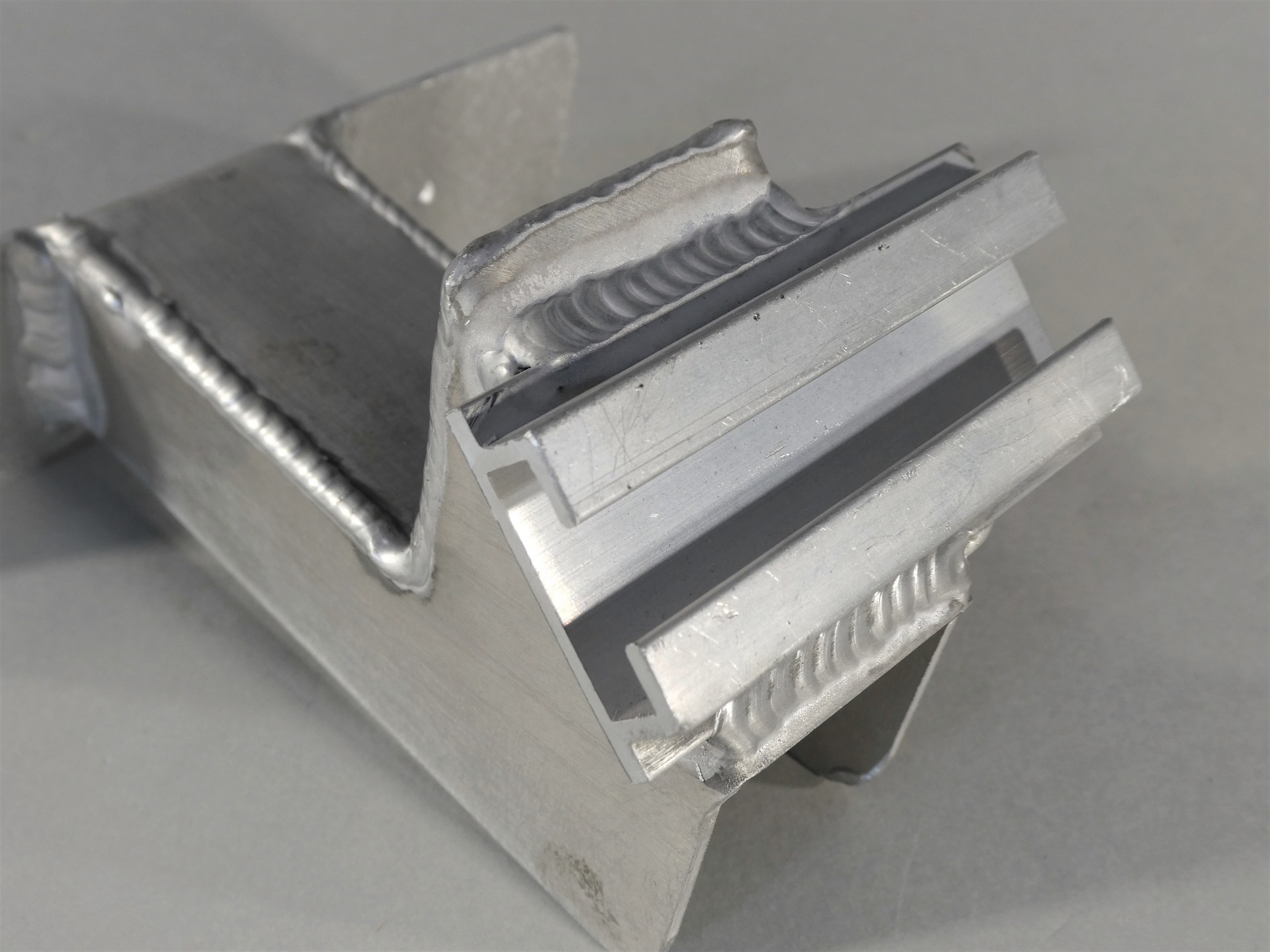

RAILWAY FITTINGS

TRIOMF SERVEIS I CONSTRUCCIONS S.L. (Spain)

  • ・Size: W140 x D80 x H115 mm

  • ・Accuracy: ± 1 mm

  • ・Programming time: 10 min

  • ・Processing time: 30 min/quantity

  • ・Quantity: 500

  • ・Material: Aluminum (A5052)

  • ・Thickness: 3 mm

  • ・Type: Production work

Process

  • 2D/3D Design

  • CAD/CAM

  • Laser-Cutting

  • Bending

  • Welding

Strengths

ACCURACY OF ASSEMBLY PARTS
