36th Precision Sheet Metal Technology Fair

Formative arts fabrication (50 entries)

360° Viewer

Formative443

Technical Encouragement Award

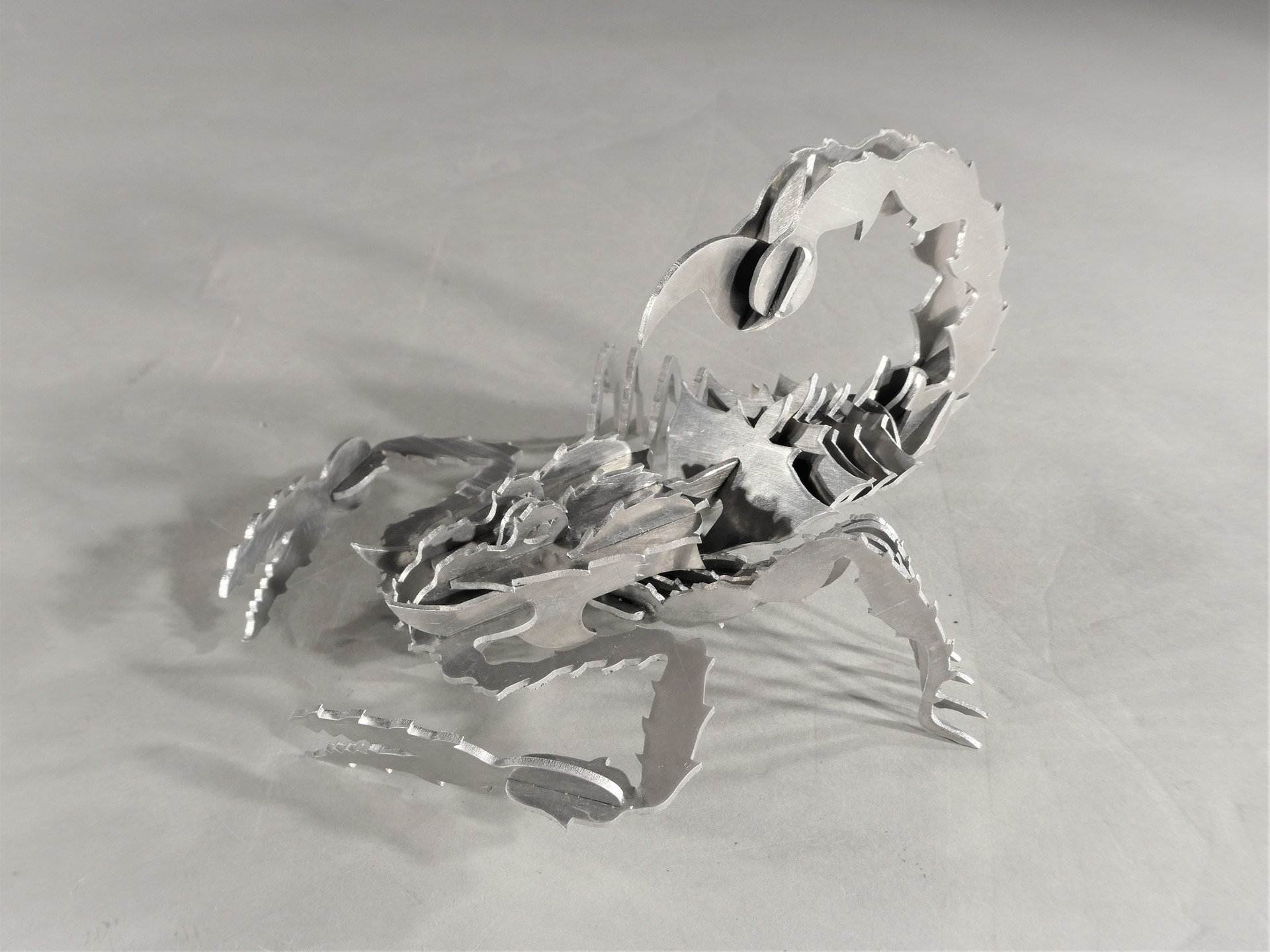

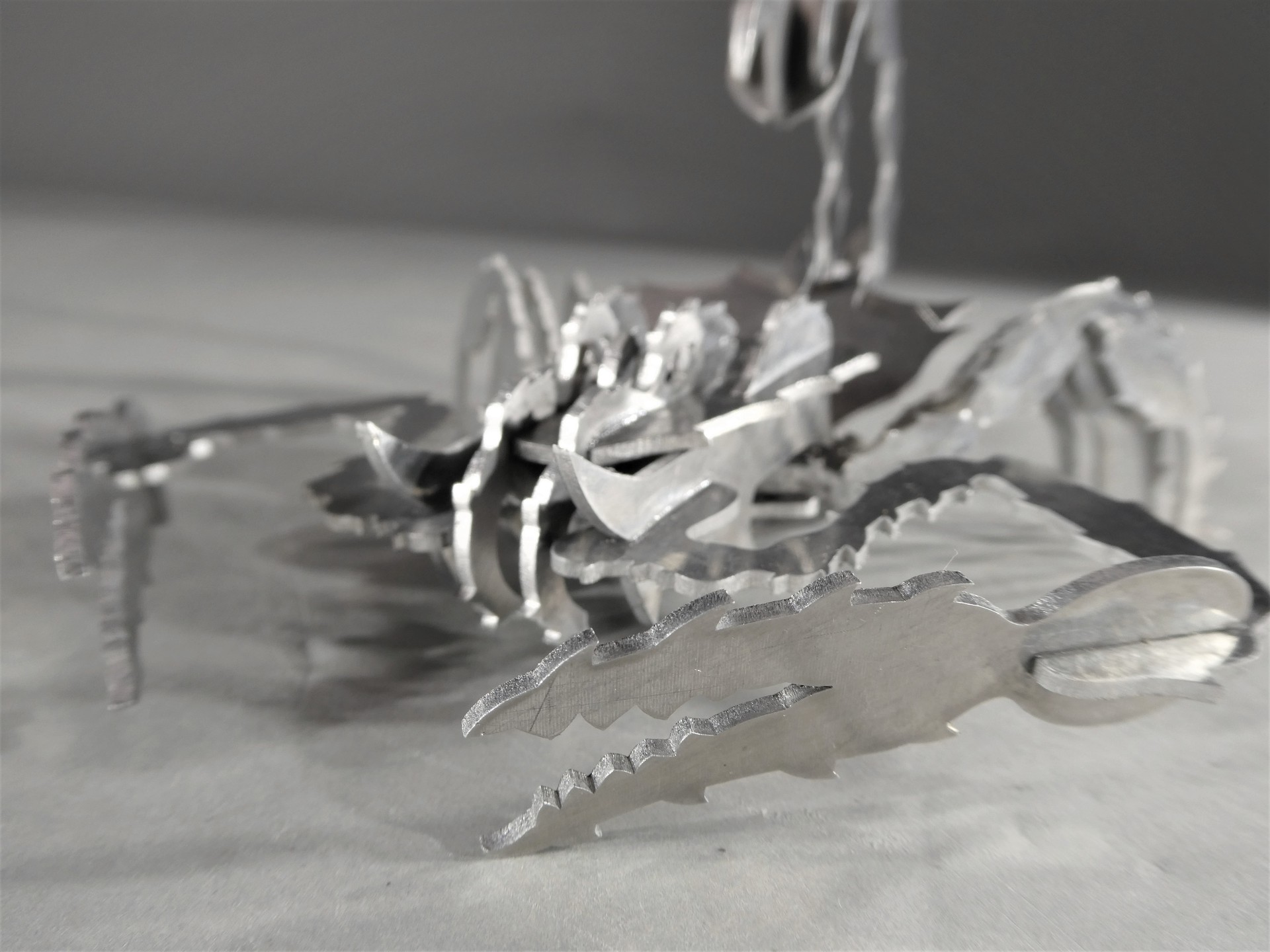

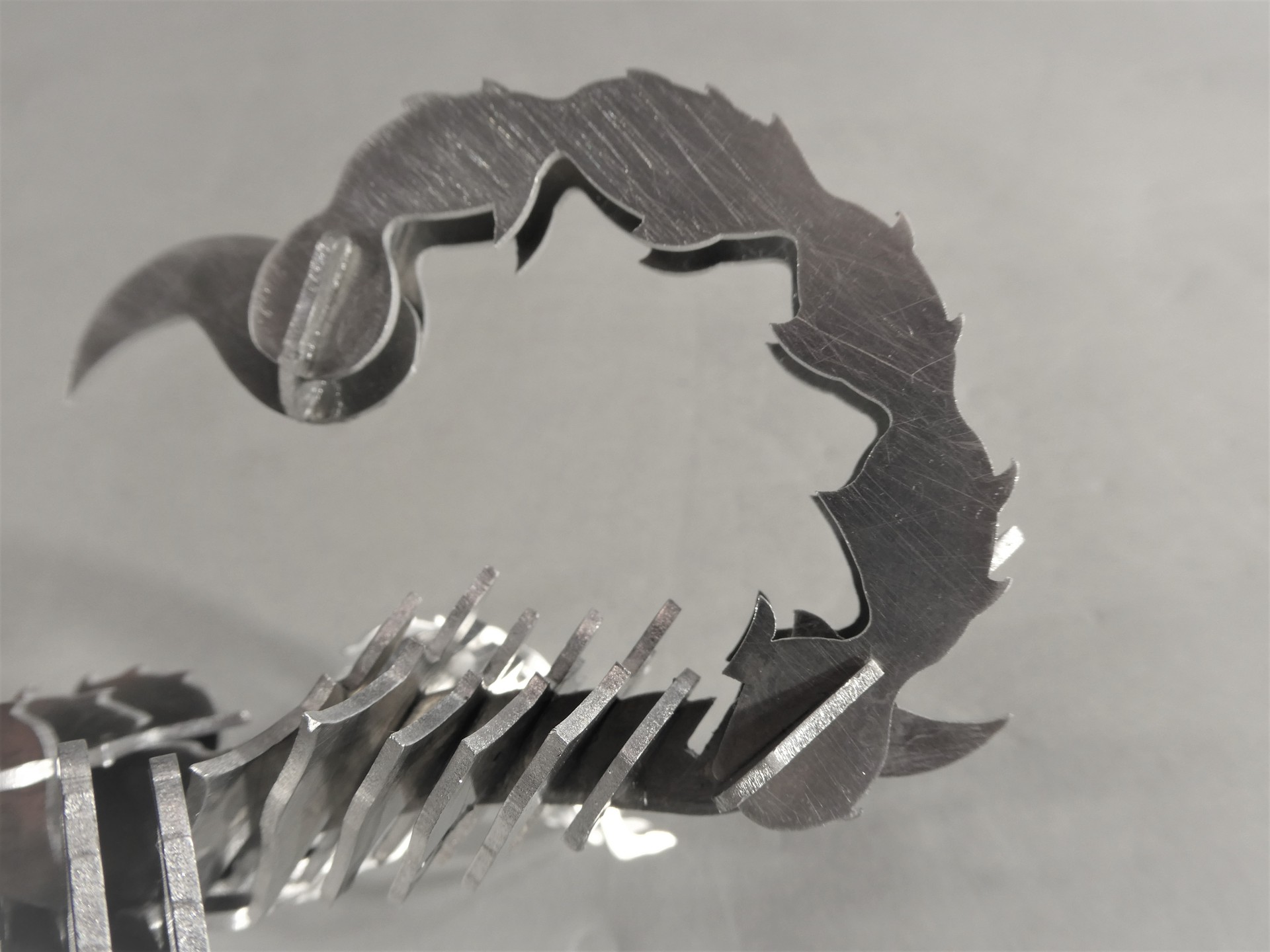

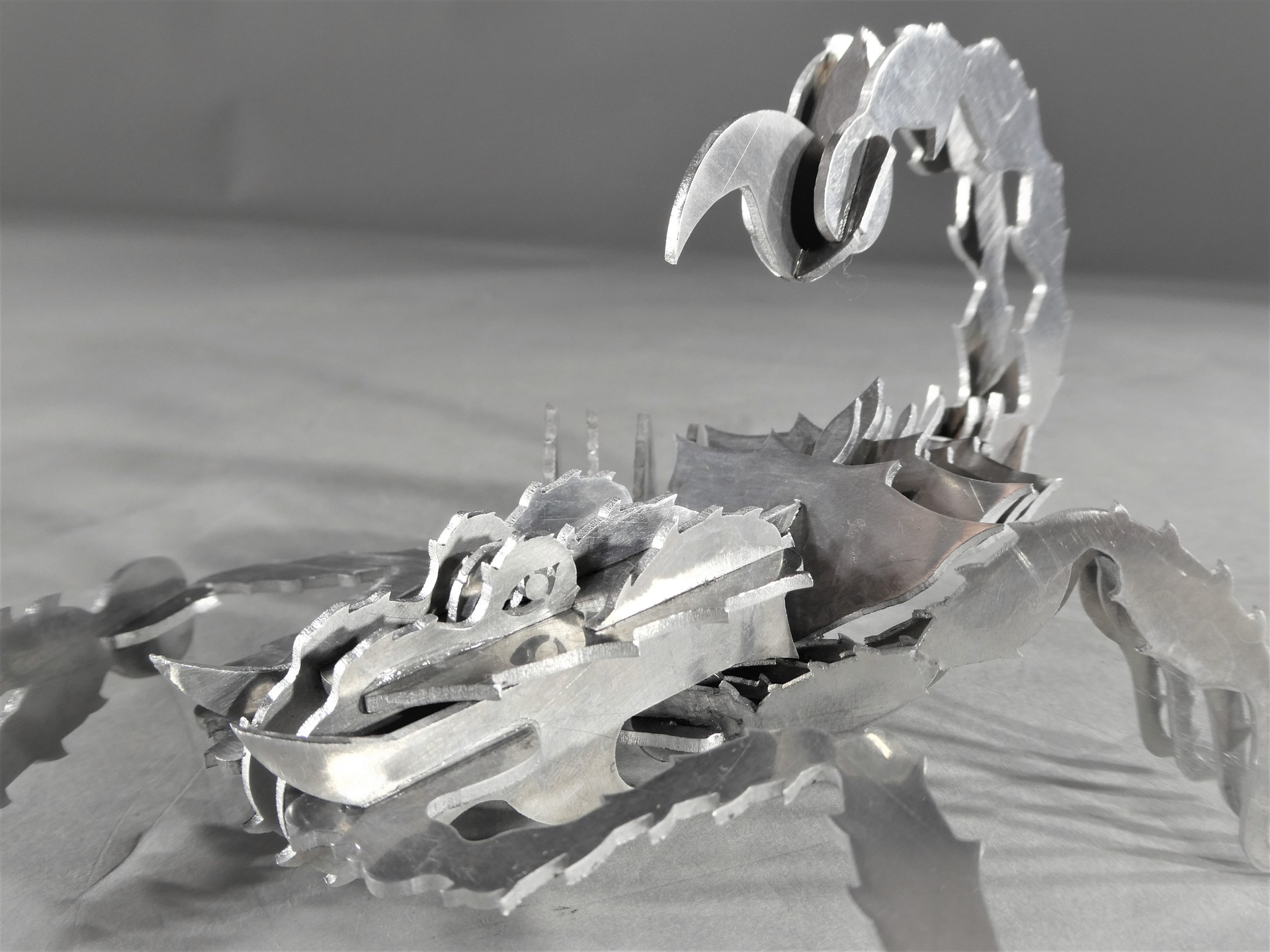

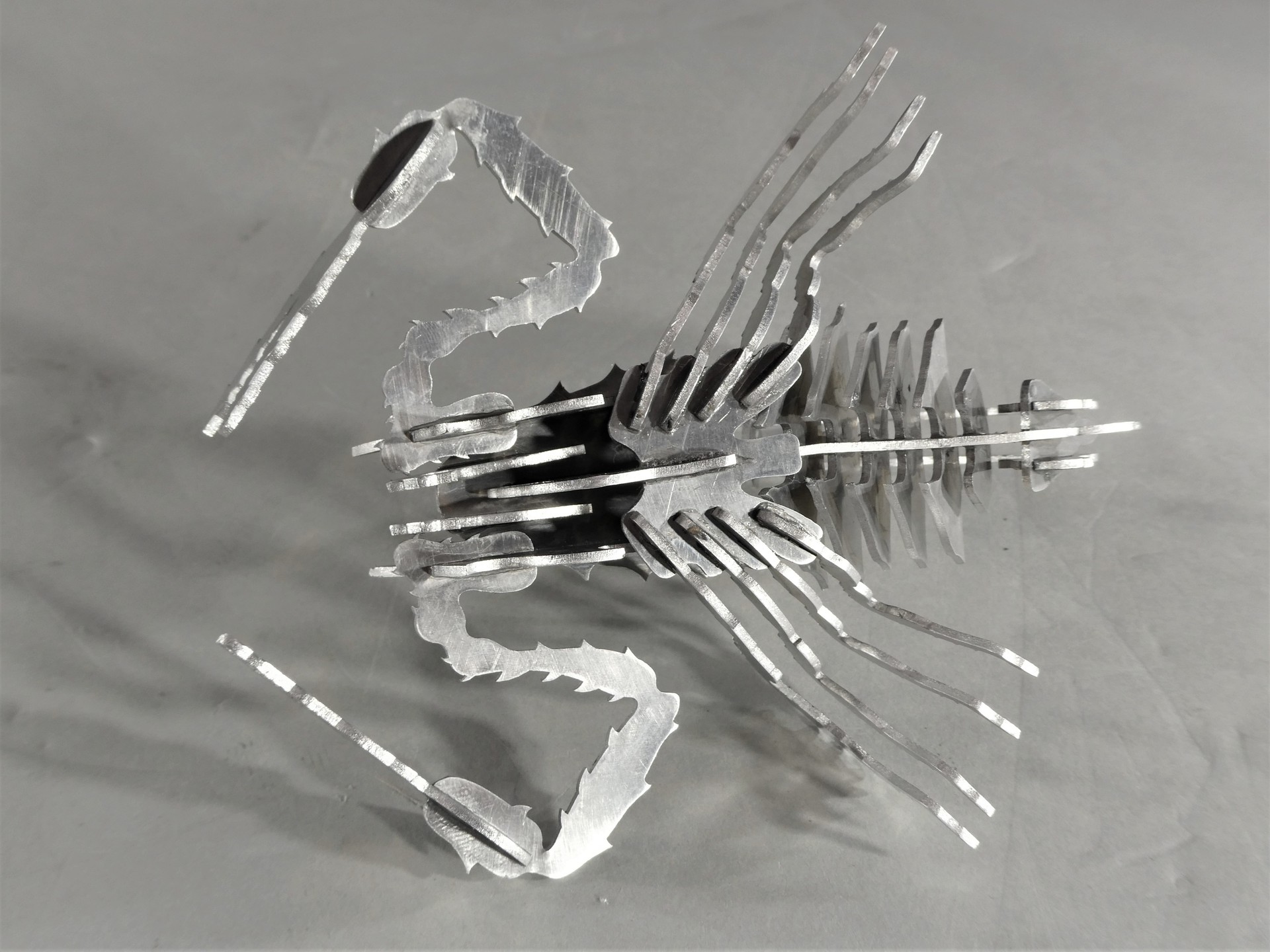

Trico Scorpion

TRICOLITE ELECTRICAL INDUSTRIES LIMITED (India)

  • ・Size: W120 x D180 x H92 mm

  • ・Accuracy: ± 0.50 mm

  • ・Programming time: 2 min

  • ・Processing time: 1 min/quantity

  • ・Quantity: 1

  • ・Material: AI-5054

  • ・Thickness: 1.50 mm

  • ・Type: Prototype

Process

  • Design(3D/2D)

  • CAD/CAM

  • Blanking

  • Fitting

  • Finish

Strengths

1. Design created by Solid Works.

2. Checked Assembly and Fitment of parts with tight Clearance using vpss 3i software 3.

3.The Scorpion is developed by innovation ideas.

4. With minimal tolerance part is assembled using push fitting.
