第38回優秀板金製品技能フェア
学生作品の部 全19作品
学生525

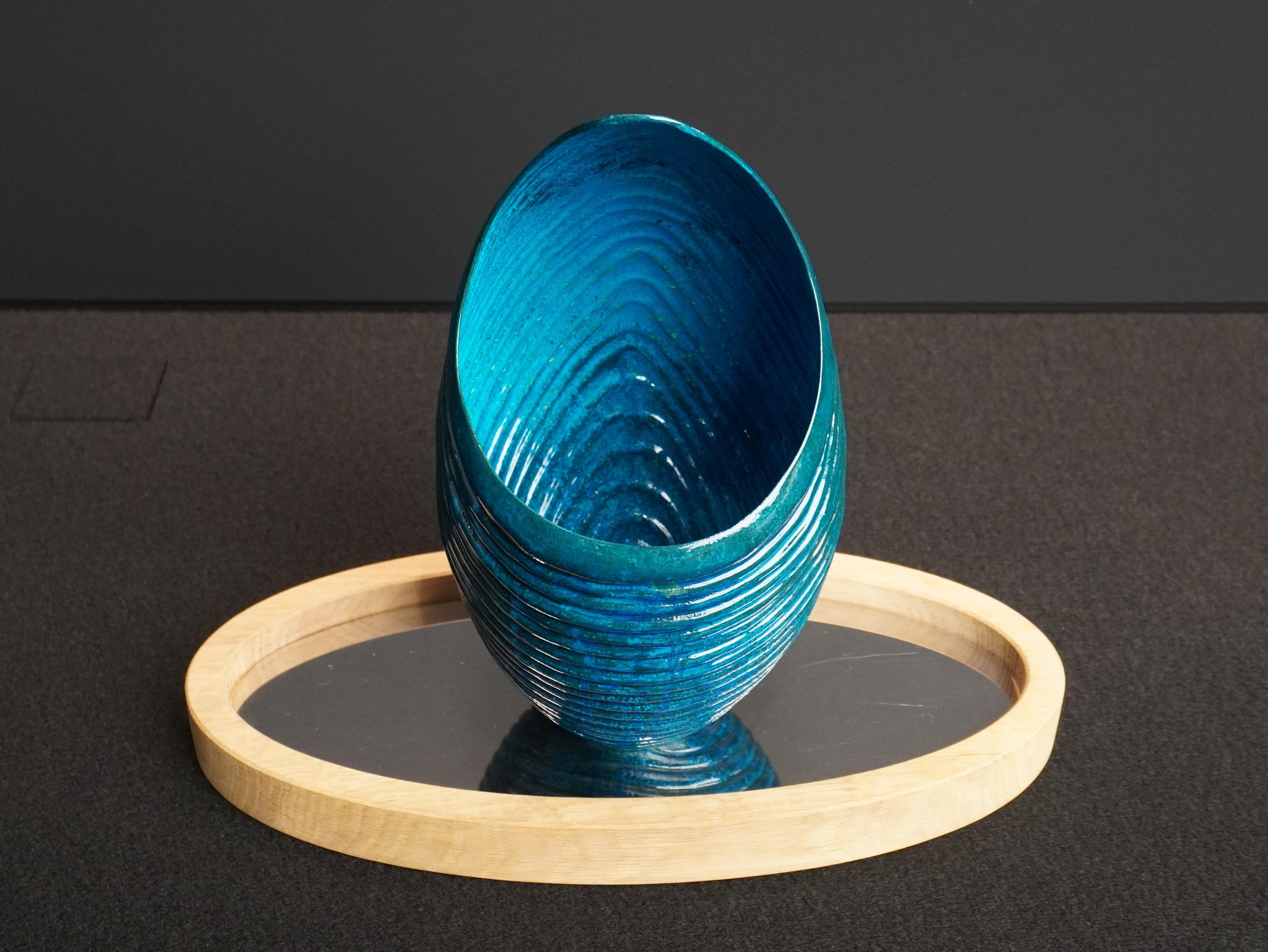

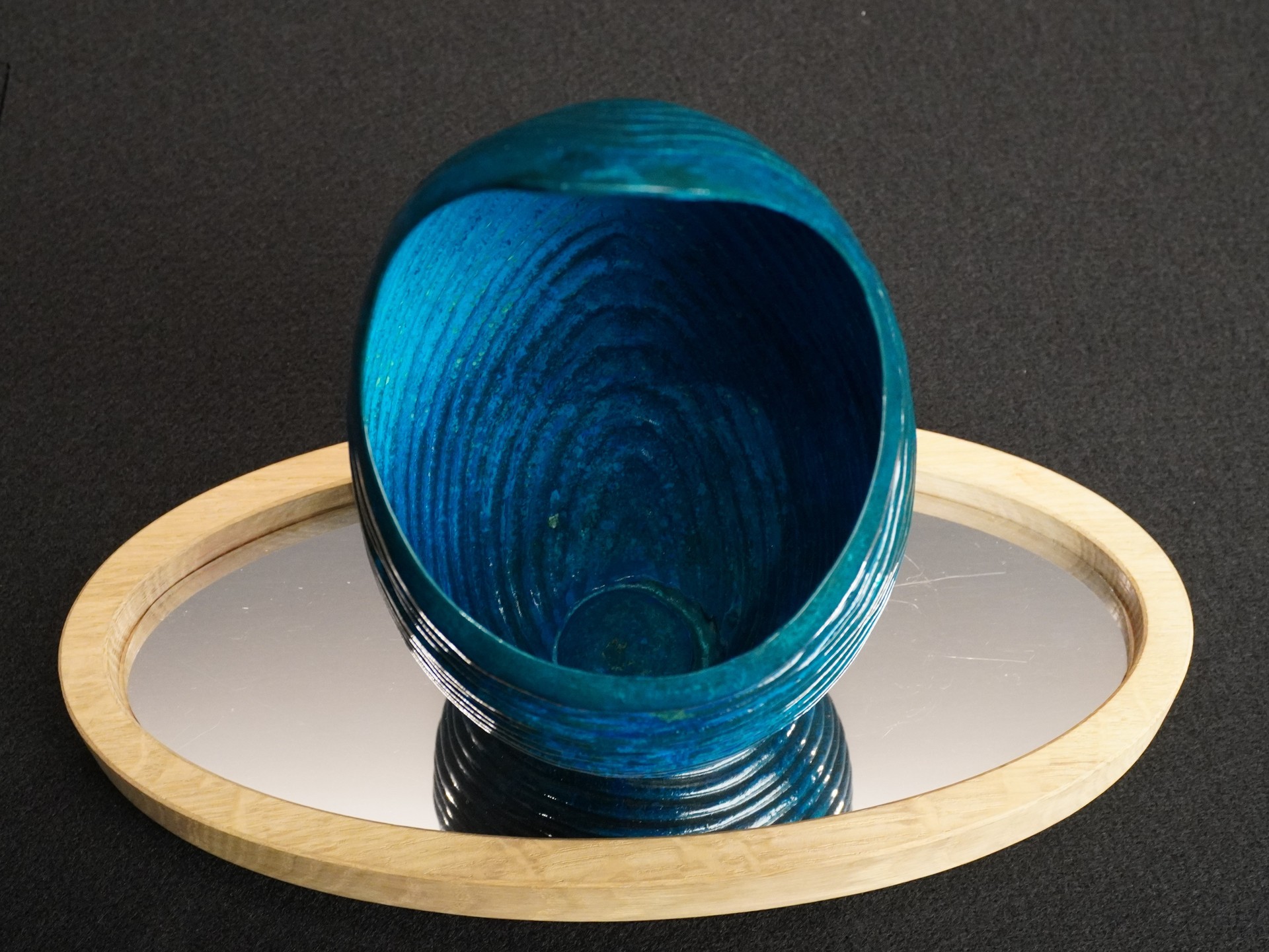

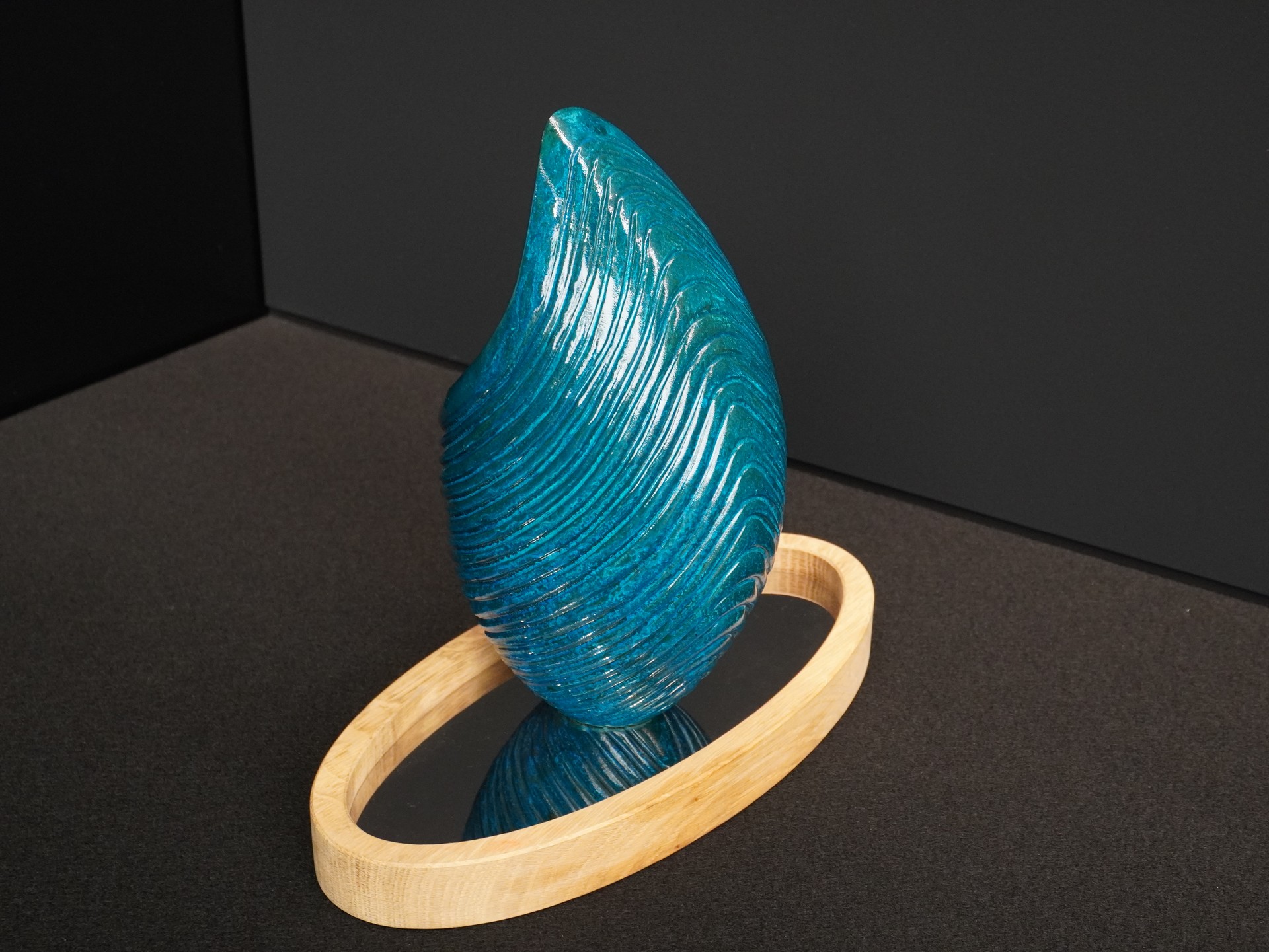

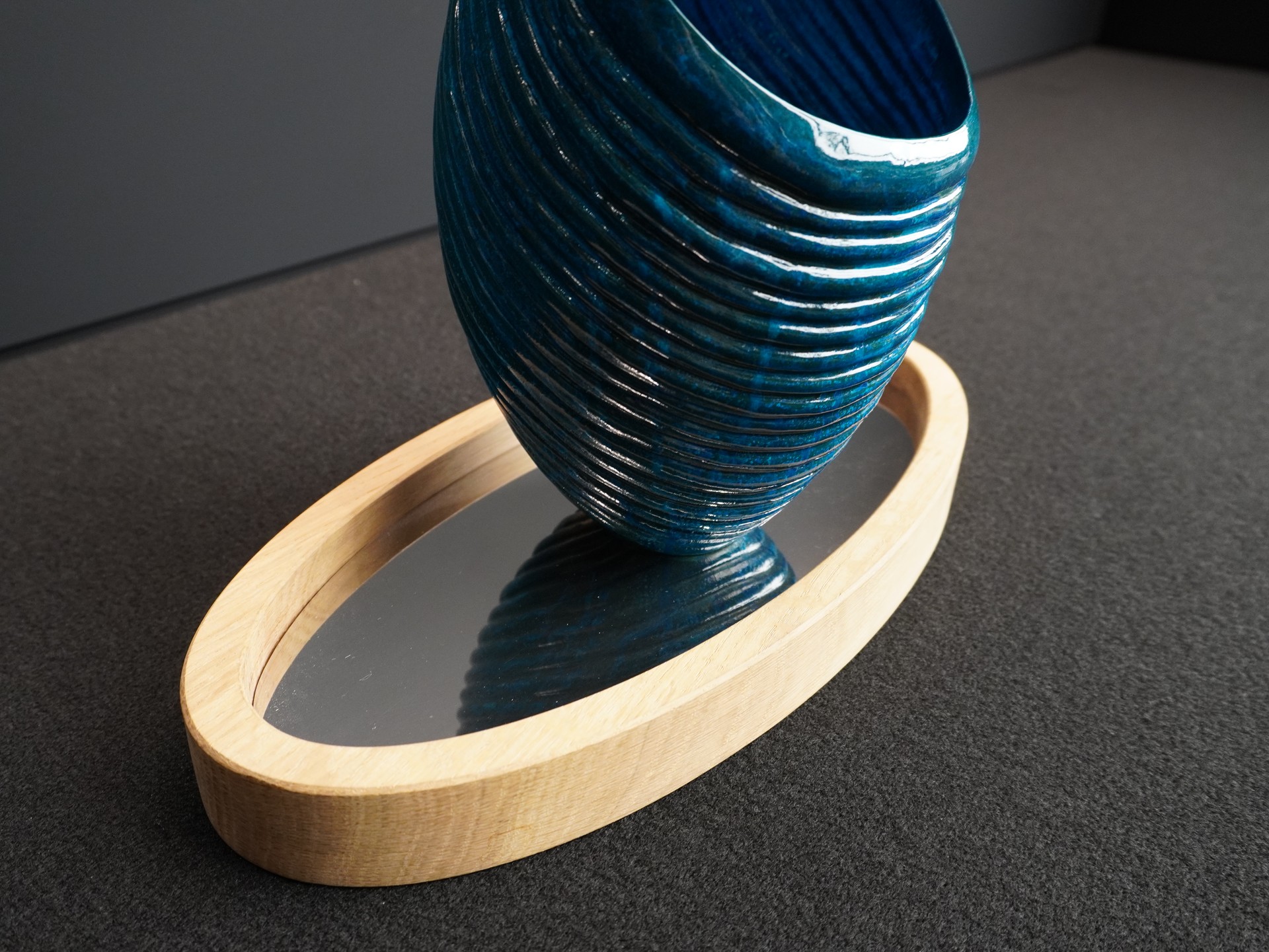

モダンな花瓶
-
・サイズ: W180 × D180 × H320 mm
-
・精度: ± 1 mm
・プログラム時間: - 分
-
・加工時間: 15000 分／個
・加工数量: 1 個
-
・材質: 銅（C1100）
-
・板厚: 1.5 mm
-
・作品種類: オリジナル品
加工工程
2D/3D設計
レーザ加工
治具（金型含む）加工
打ち出し加工
表面処理
表面仕上げ
アピールポイント
For this project, I chose to do everything in one piece.
The final shape of the copper required me to offset my shrinkage swages to obtain one side longer than the other.
Then the shrinking could begin and continue to make my material rise while following my jig.
Once the planing was finished, I first drew all the lines of my embossing to mark them more and more strongly.
The last step was to patinate the copper; I sprayed it with a solution of chlorine and salt water before sealing it for about thirty hours in a bucket with ammonia inside, we got this bluish result.
Please see attached the file with all the steps
