第36回優秀板金製品技能フェア
単体品の部 全107作品
単体003
技能賞

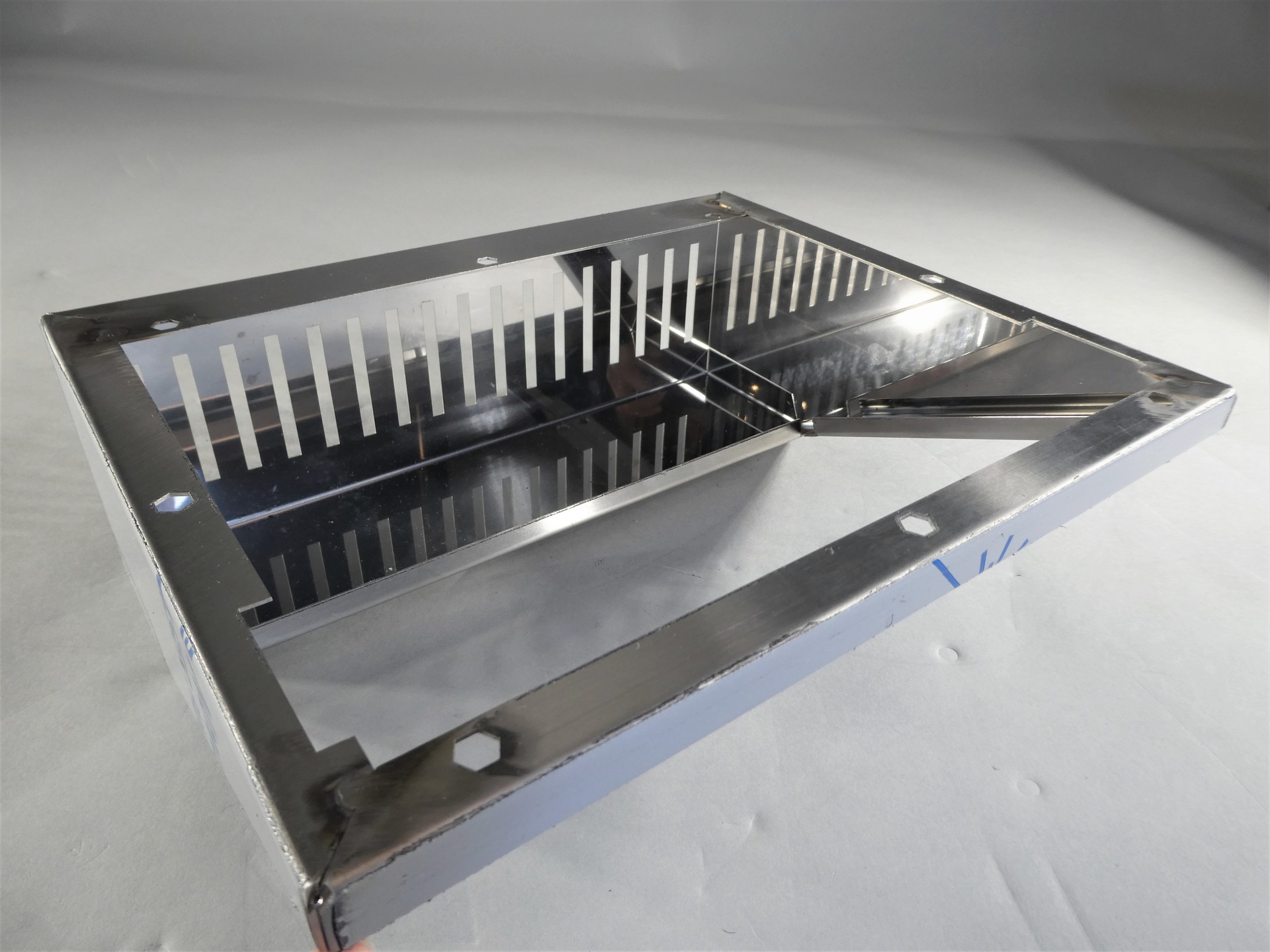

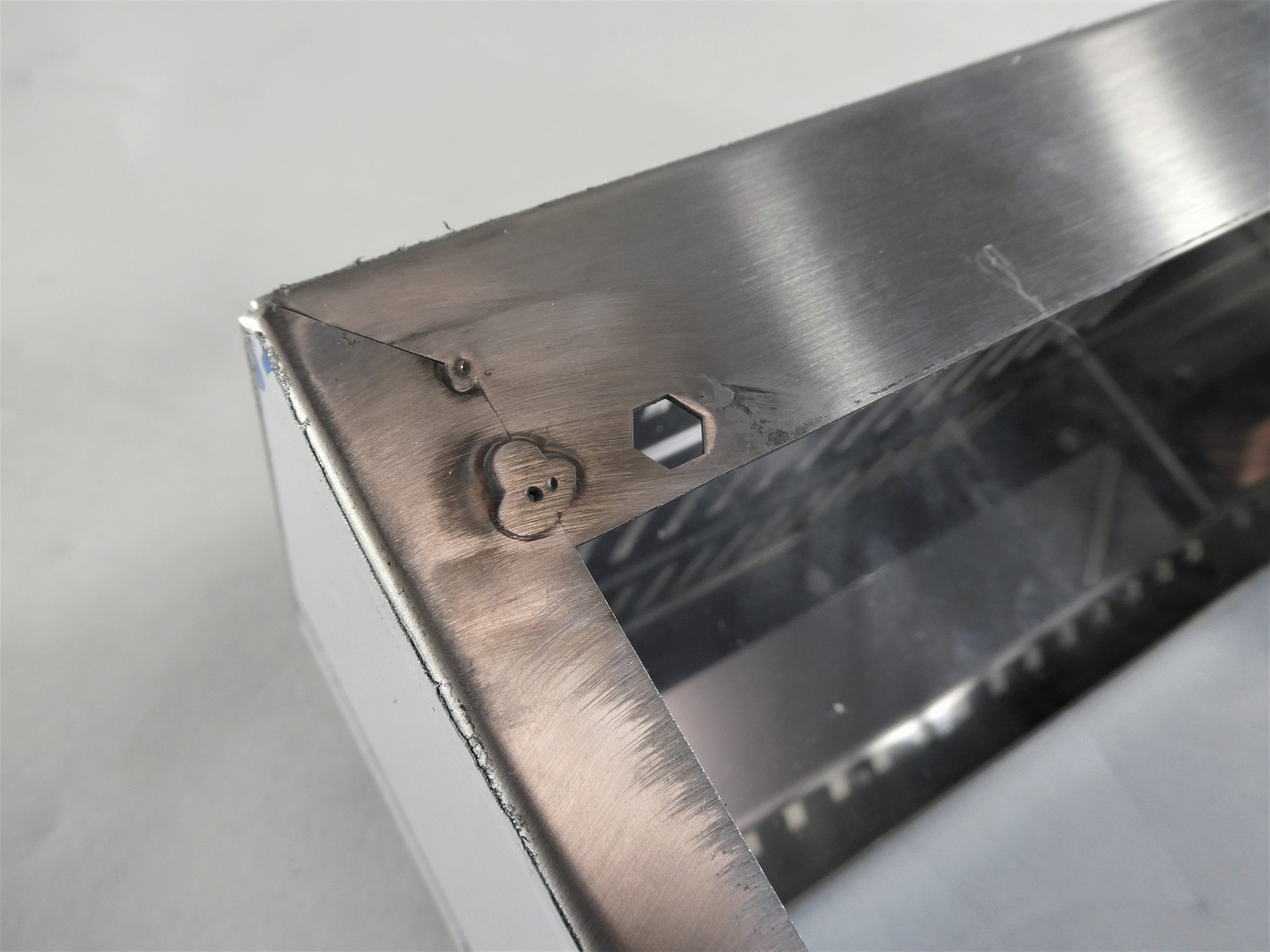

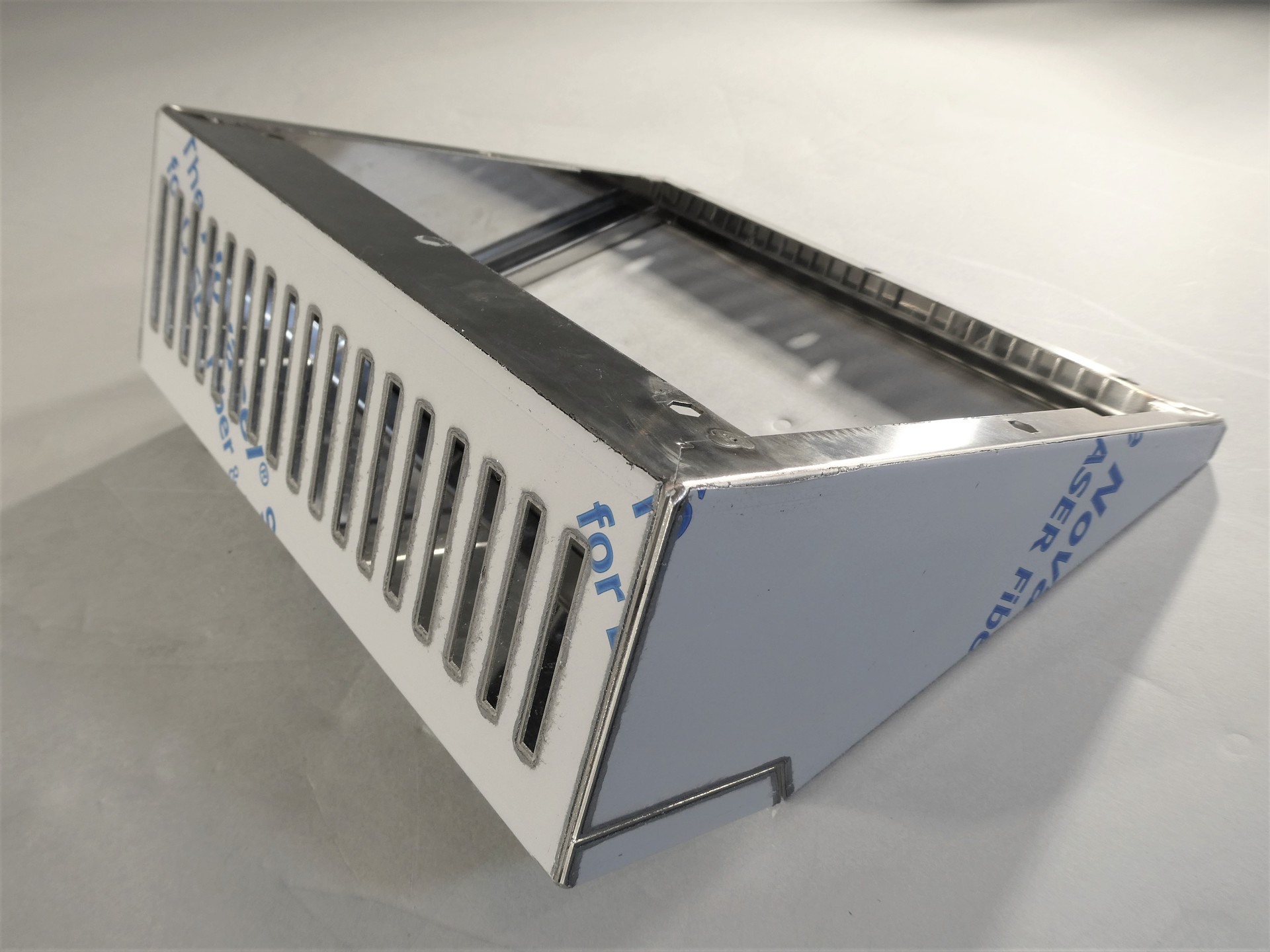

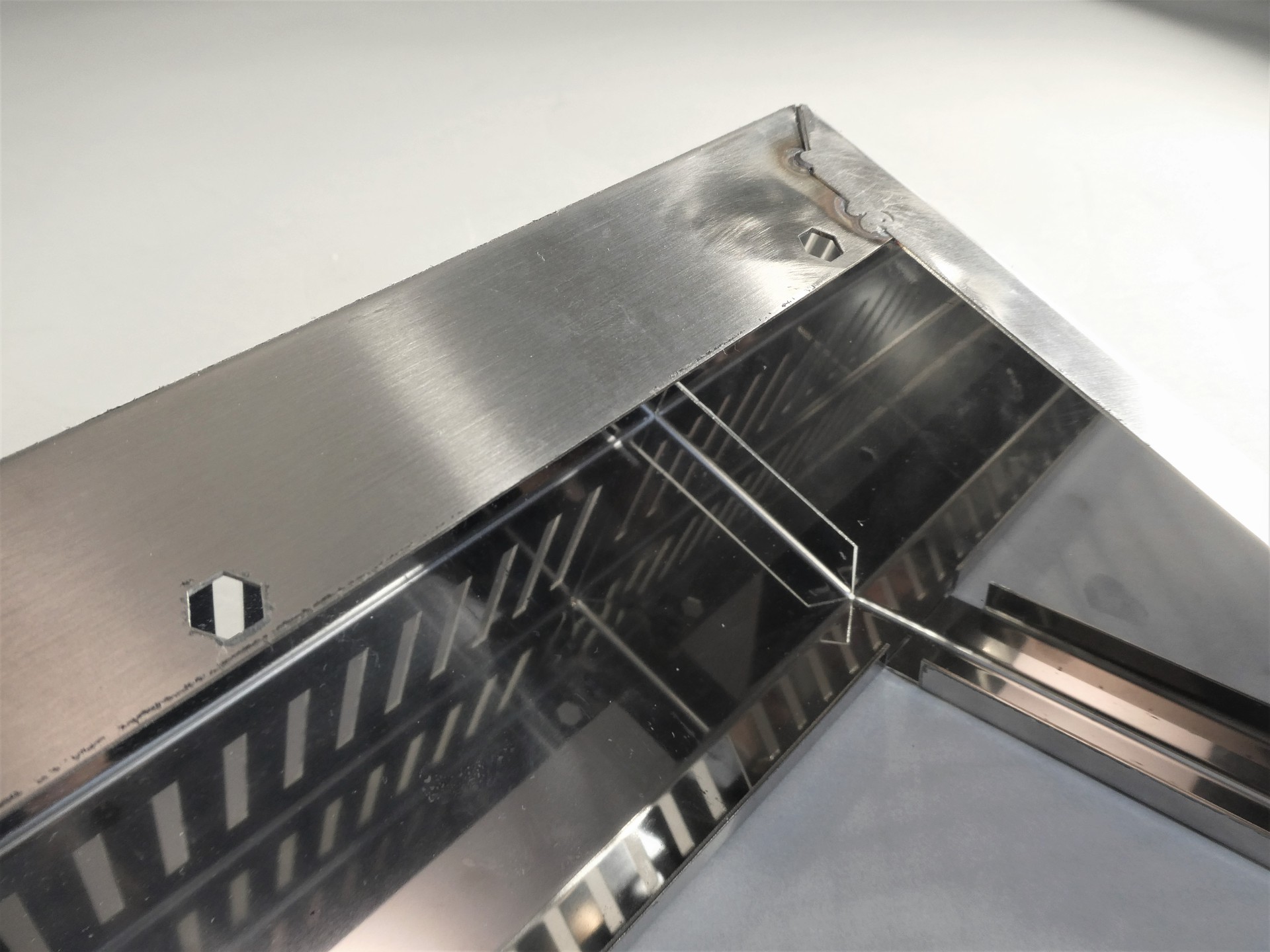

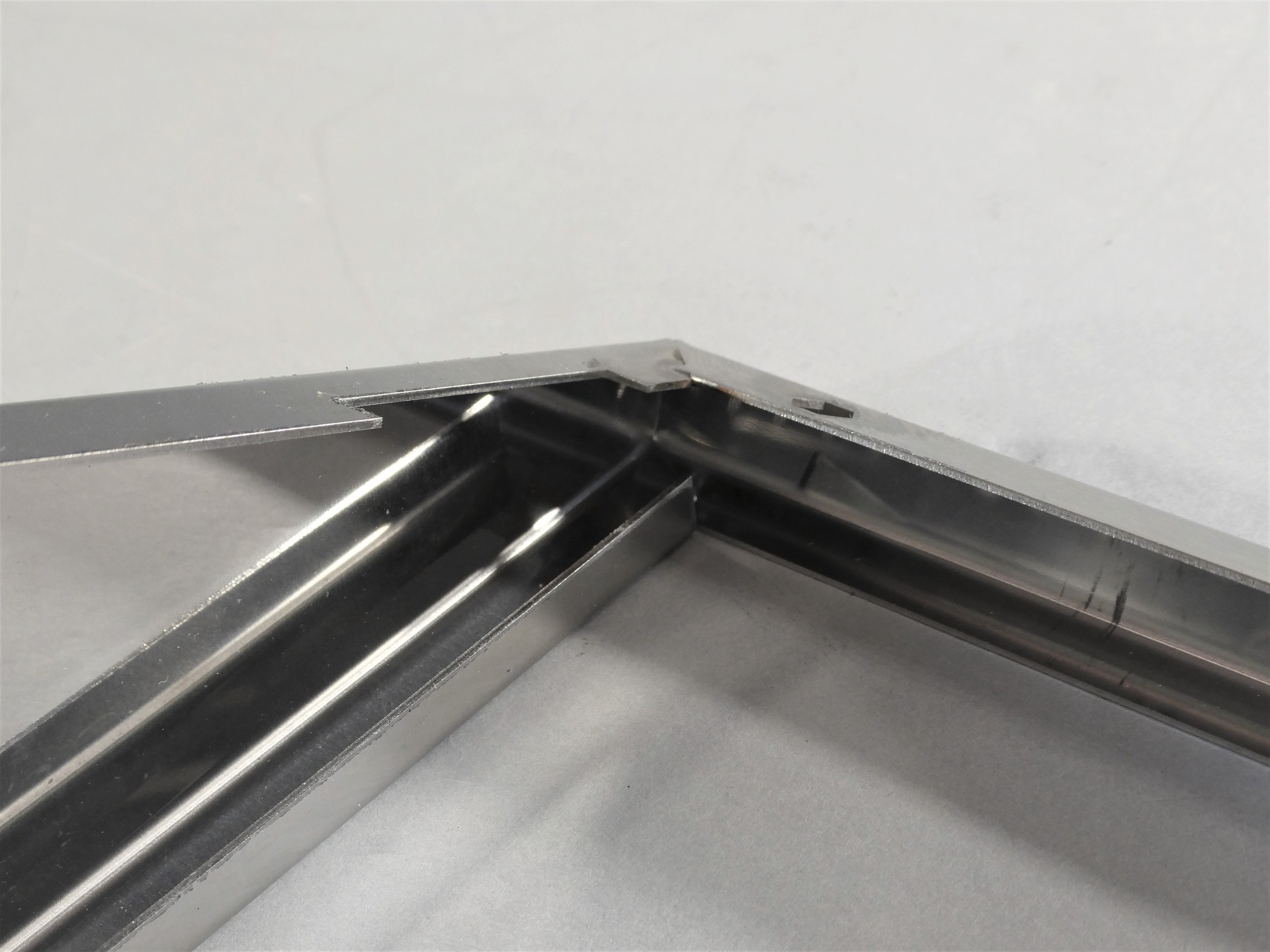

TOUCHSCREEN HOLDER
CUPPONE S.R.L. (ITALIA)
-
・サイズ: W90 × D272 × H230 mm
-
・精度: ± 0,1 mm
-
・プログラム時間: - 分
-
・加工時間: - 分/個
-
・加工数量: 1 個
-
・材質: INOX
-
・板厚: 1 mm
-
・作品種類: 量産品
加工工程
CAD/CAM
レーザ加工
曲げ
溶接
アピールポイント
This component is a touchscreen holder, useful for programming pizza ovens.
The difficulty in creating this work is in the folding sequence.
In addition, special tools are needed to get inside the different folds.
High precision is required.
