第35回優秀板金製品技能フェア
造形品の部 全41作品
造形429
技能賞
RLM-CHURCH
LASERFORM (India)
-
・サイズ: W185 × D220 × H280 mm
-
・精度: ± 1.5 mm
-
・プログラム時間: 140 分
-
・加工時間: 560 分/個
-
・加工数量: 1 個
-
・材質: SUS304
-
・板厚: 1.5 mm
-
・作品種類: 試作品
加工工程
設計
設計CAD/CAM
ブランク加工
溶接
仕上げ
アピールポイント

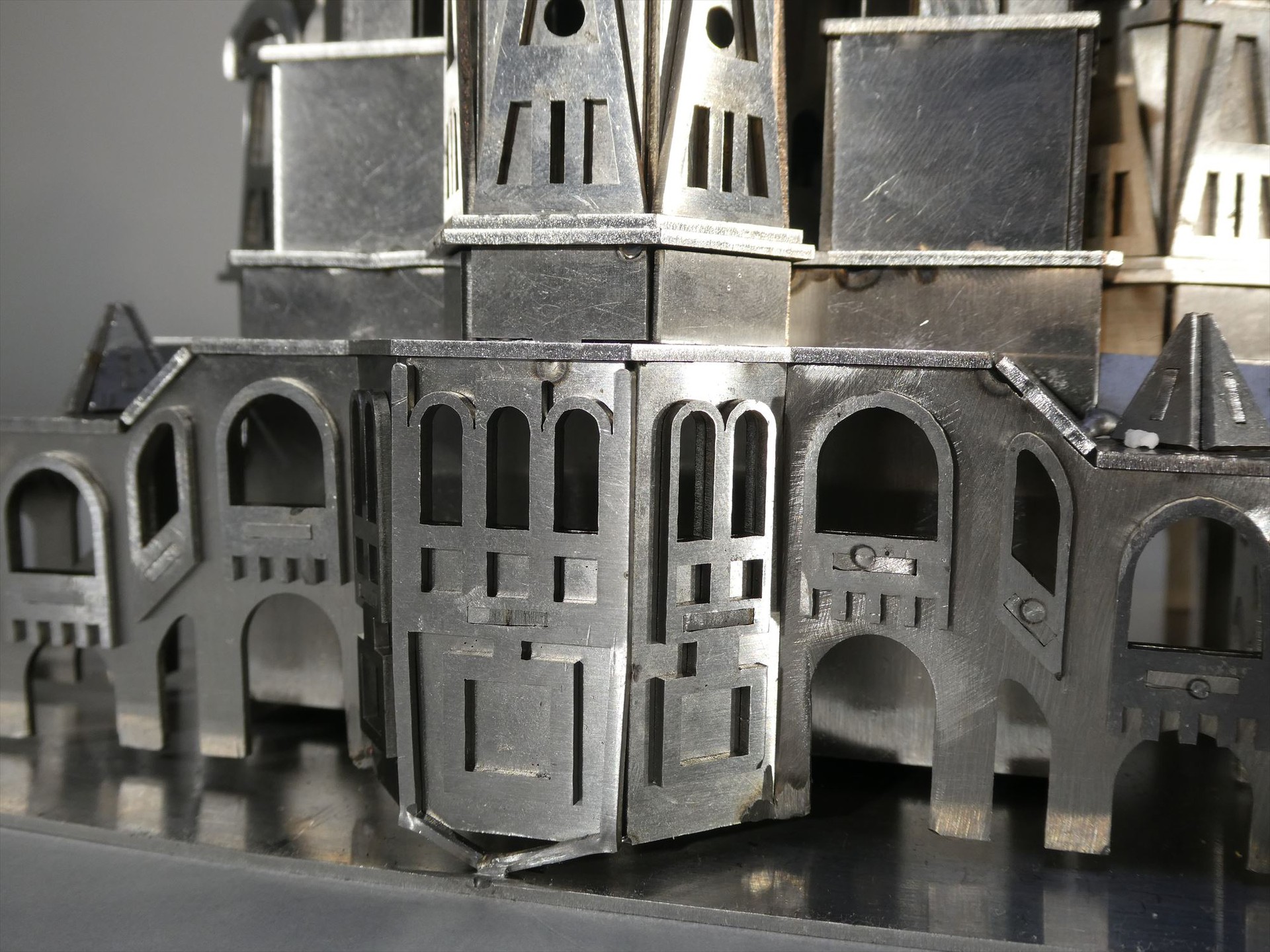

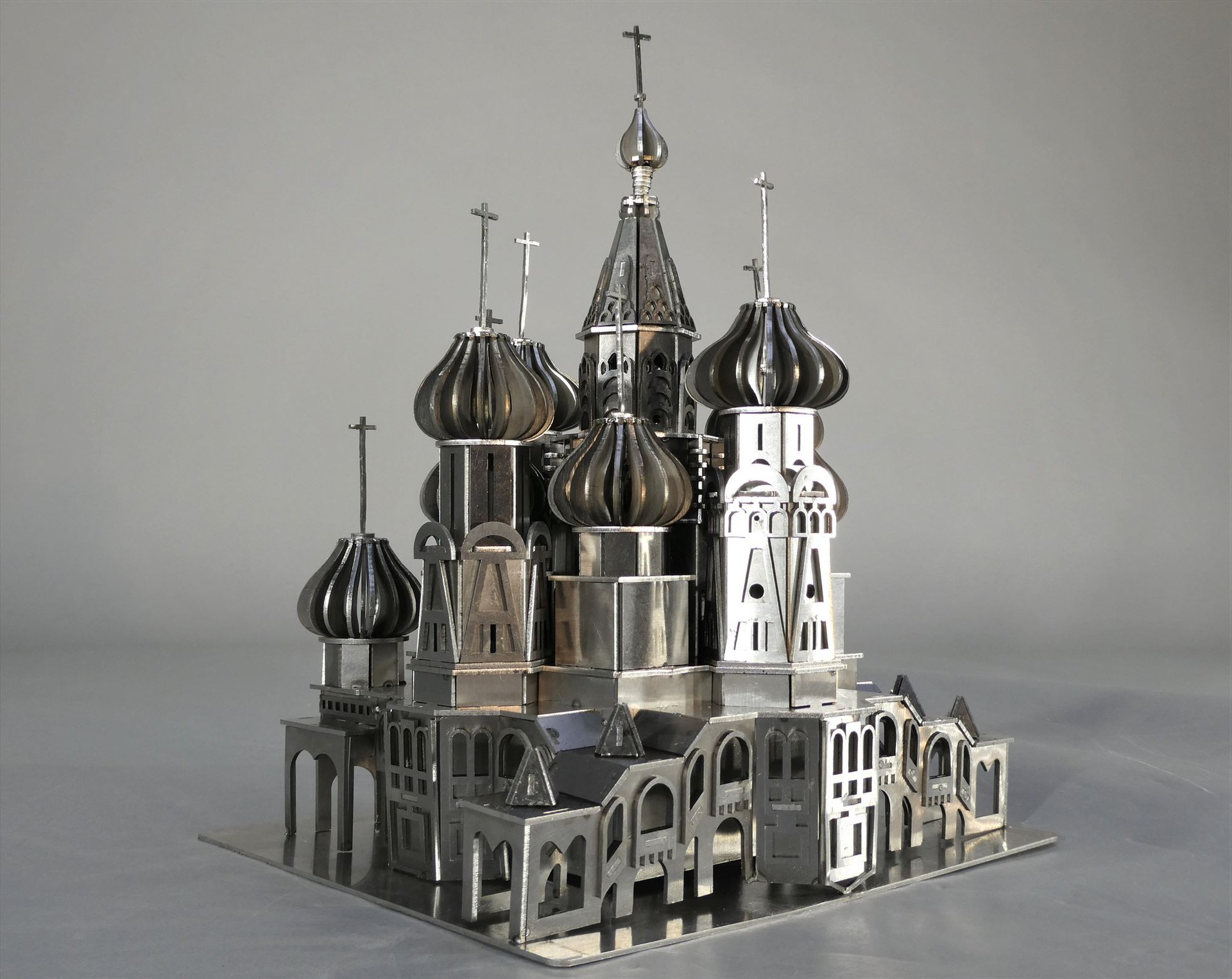

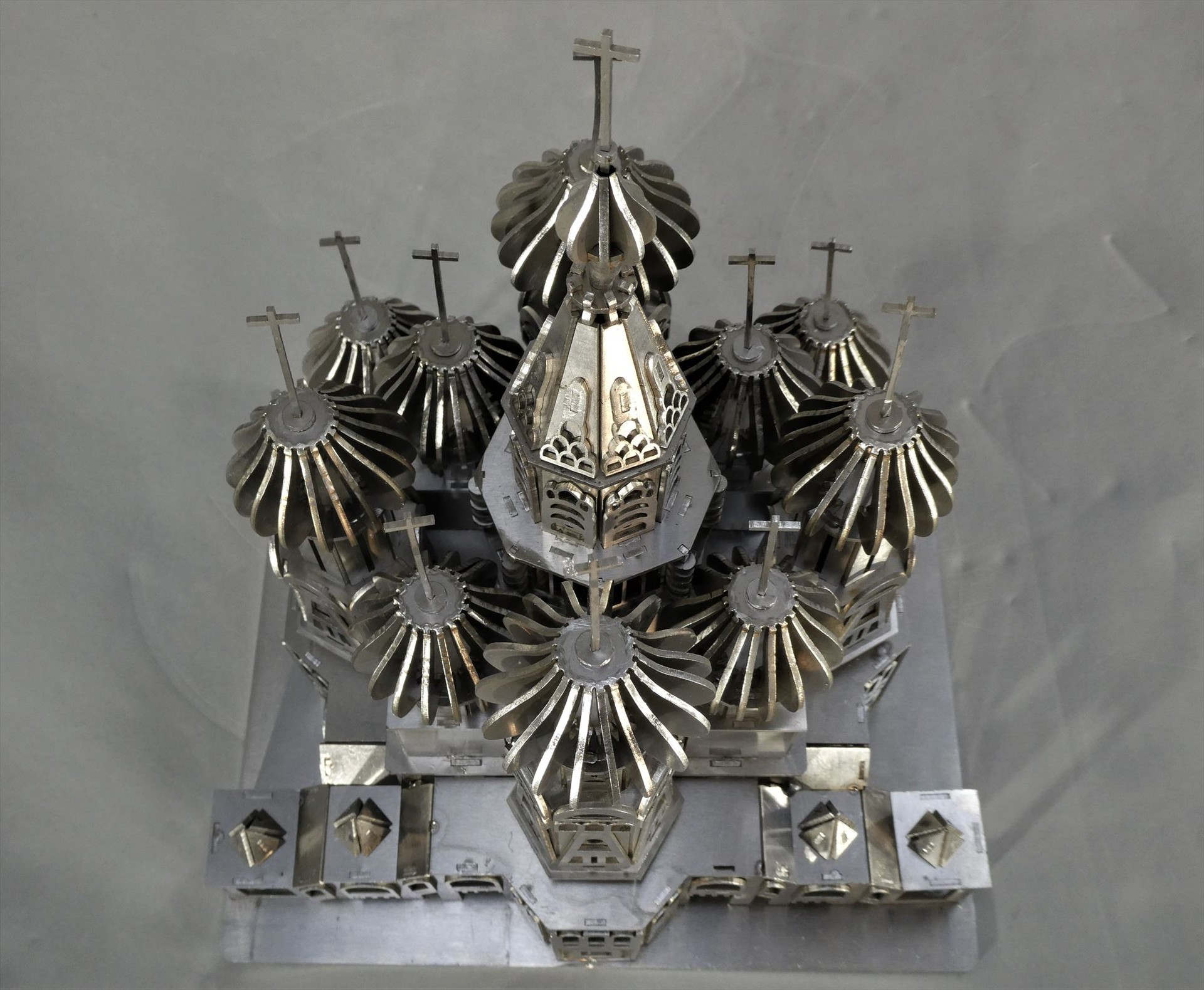

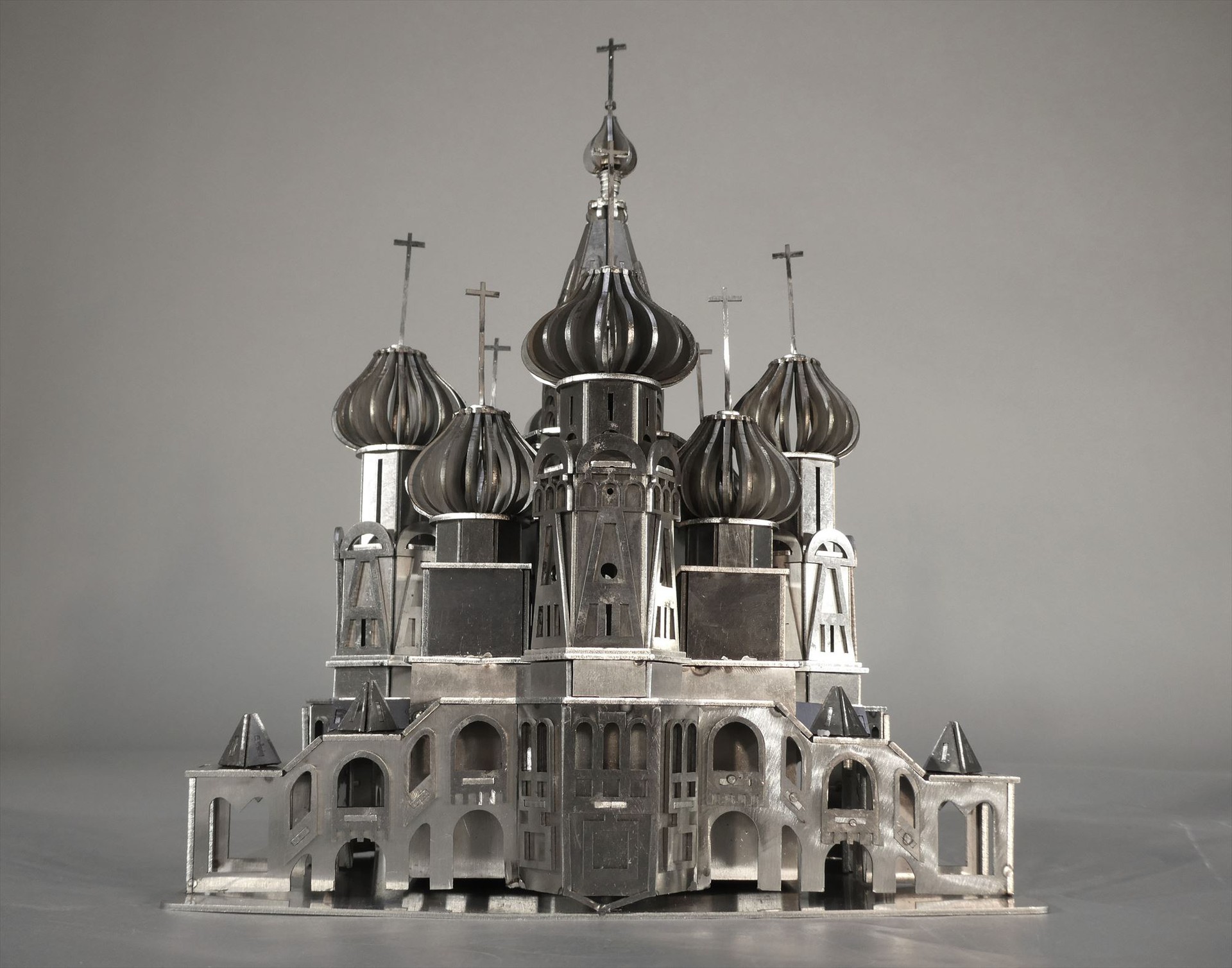

1:- CHURCH made is a 1:1 replica of ST. Petersburg Church,Russia.
2:- It shows the unique formative design and can process using sheet metal.

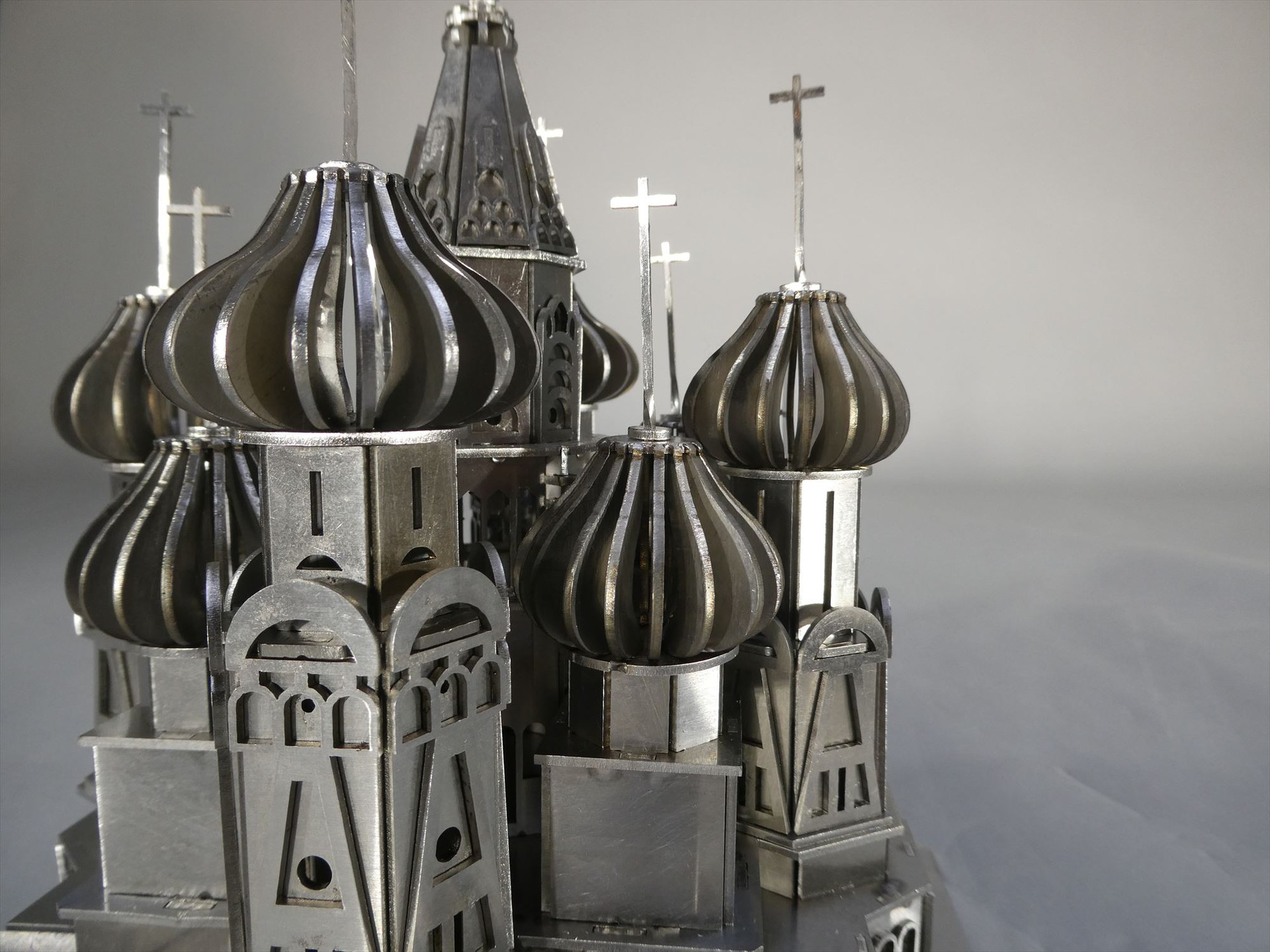

3:- the circles & crosses on the Church are a critical laser cutting parts because of lower wall thickness.
