Sheet Metal Processing

AE-NT Series

AC Servo Single Drive

Compact, eco-friendly and intelligent new turret punch press

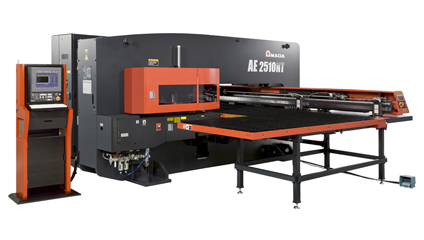

AE-NT

Developed on these results, the AE-NT series is a line of single AC servo drive turret punch press with AMADA's original "highly rigid bridge frame".

Designed with the smallest foot print of its class and yet capable of processing 4' x 8' sheets, the AE-NT series has a large capacity turret to ensure stable, high speed, high quality processing.

Various process integration functions as well as environmentally conscious design provide processing with high cost performance.

Safety Guide

ECO PRODUCTS

■ Features(1) : Achievement of stable high speed processing
Slug pulling-less punching
Fine contouring
■ Features(2) : Achievement of high quality processing
High speed deburring
Slotting
■ Features(3) : Achievement of process integration
High speed forming
Downward forming
Safety inch bending
High speed marking

Processing scene YouTube video

Processing samples

Sample 1Sample 2

Examples of system upgrades

* As a solution package, AMADA also provides customers with the optimal configuration of peripheral equipment, tooling metal molds, software and start-up support.

Specifications



Press capacity
(kN)

Maximum processing size
(mm)

Hit rate
(25mm pitch/
5mm stroke)(min-1)

Punching accuracy
(mm)

Turret
(Station)

AE-255NT

200

1270×1270

X-axis:370 / Y-axis:270

±0.1
±0.07(FA mode)

58(2AI)
51(4AI)
45(4AI)

AE-2510NT

2500×1270

X-axis:350 / Y-axis:280

*Punching accuracy is based on our data.

*For Japan domestic market.
For any inquires, please contact local AMADA branch office.
