Sheet Metal Processing

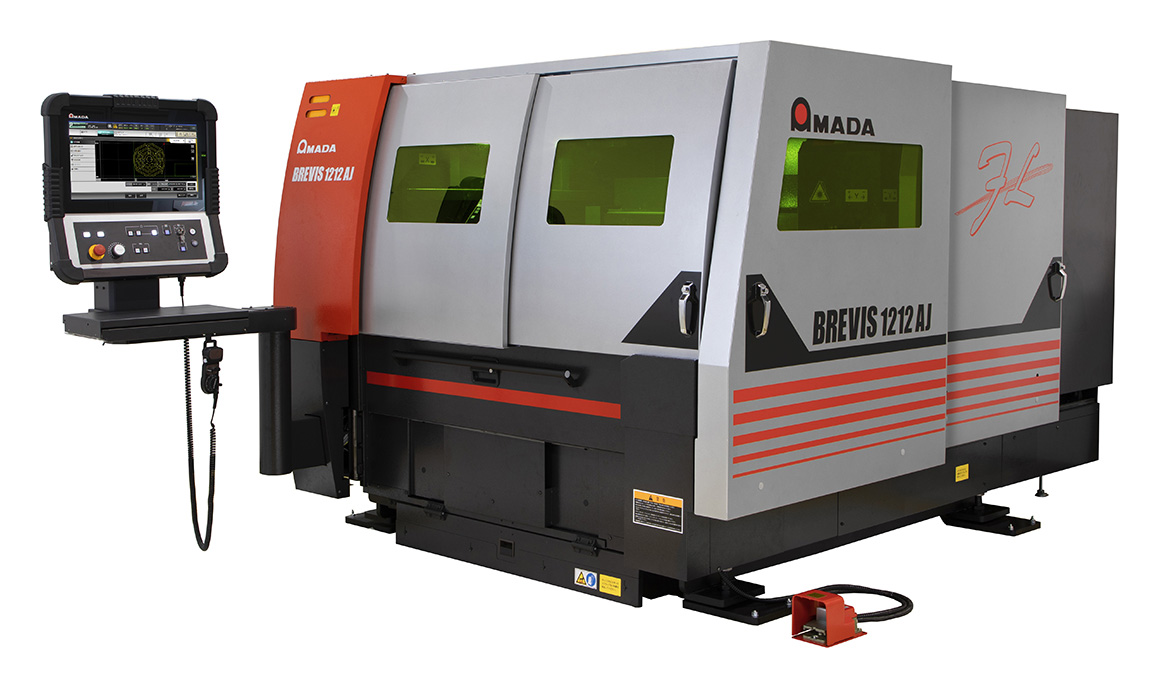

BREVIS

All-around Fiber Laser Machine

A compact fiber laser machine like never before

BREVIS is an all-around fiber laser machine that meets customer needs for cutting thin-to-thick materials.

It's a user-friendly machine that is compact and equipped with the latest features and can be used easily regardless of operator's experience.

■ Feature(1): Compact: The long-awaited compact size fiber lasers are now available! A versatile 4' × 4' size fiber laser machine achieves the same installation space as the LC-1212α series.
■ Feature(2): All-around: BREVIS can process highly reflective materials such as copper, brass, aluminum and hot-dip galvanized, which are difficult to process with a CO2 laser. Equipped with a 3kW fiber laser oscillator, it can provide a wide range cutting of thin-to-thick materials. In addition, additional processing on 3D objects can be easily processed.
■ Feature(3): User-friendly: Equipped with AMNC 3i, fully open partition and one-lens operation which enables processing the entire material range with single lens, it is easy for anyone to use. Fiber laser oscillator contributes greatly to reduce the electric power costs.

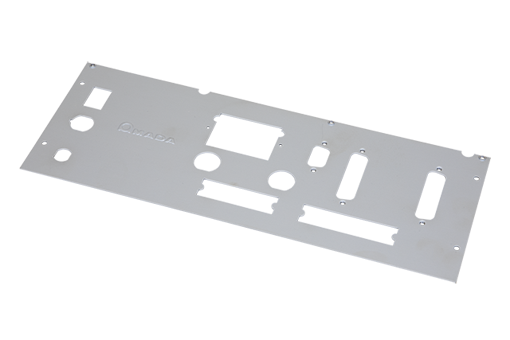

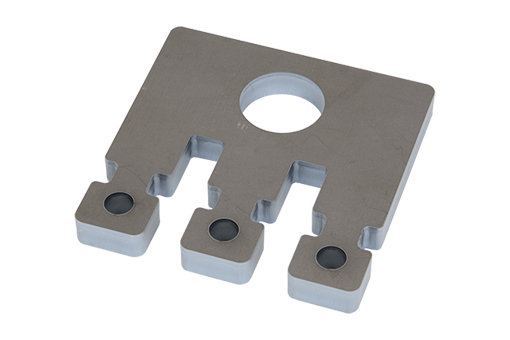

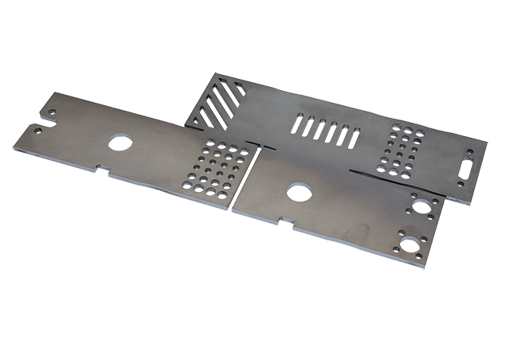

Processing samples

Material: SECC /
Thickness: 1.0 mm

Material: SS400 /
Thickness: 12.0 mm

Material: SPHC /
Thickness: 4.5 mm

	Rapid feed rate(m/min) X ： Y ： Z	Maximum processing size(mm) X × Y × Z	Oscillator Rated laser power (W)
BREVIS-1212AJ	40：40：60	1270×1270×200	3000

For any inquires, please contact local AMADA branch office.
