37th Precision Sheet Metal Technology Fair

Welding fabrication (23 entries)

Welding323

Technical Encouragement Award

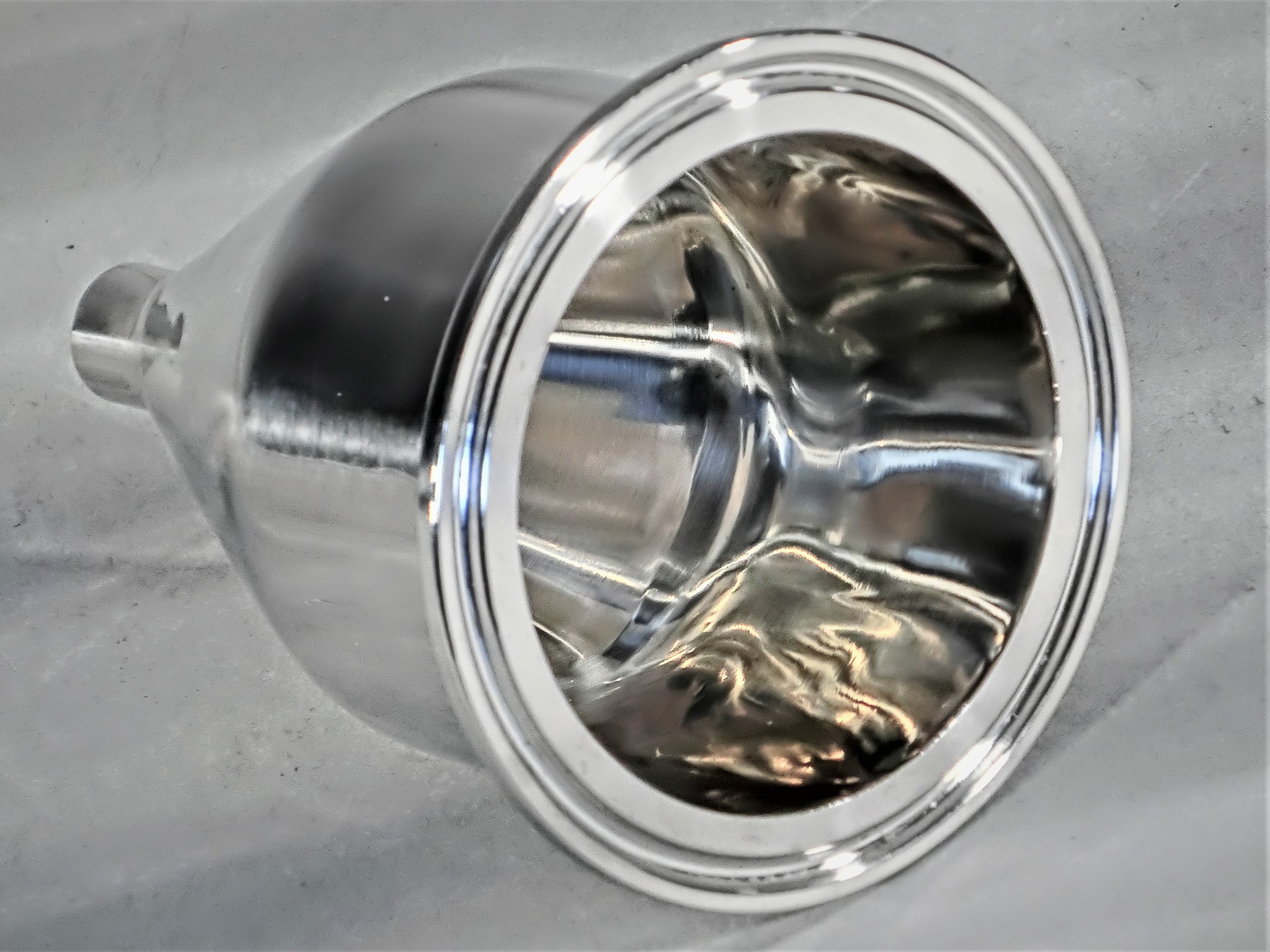

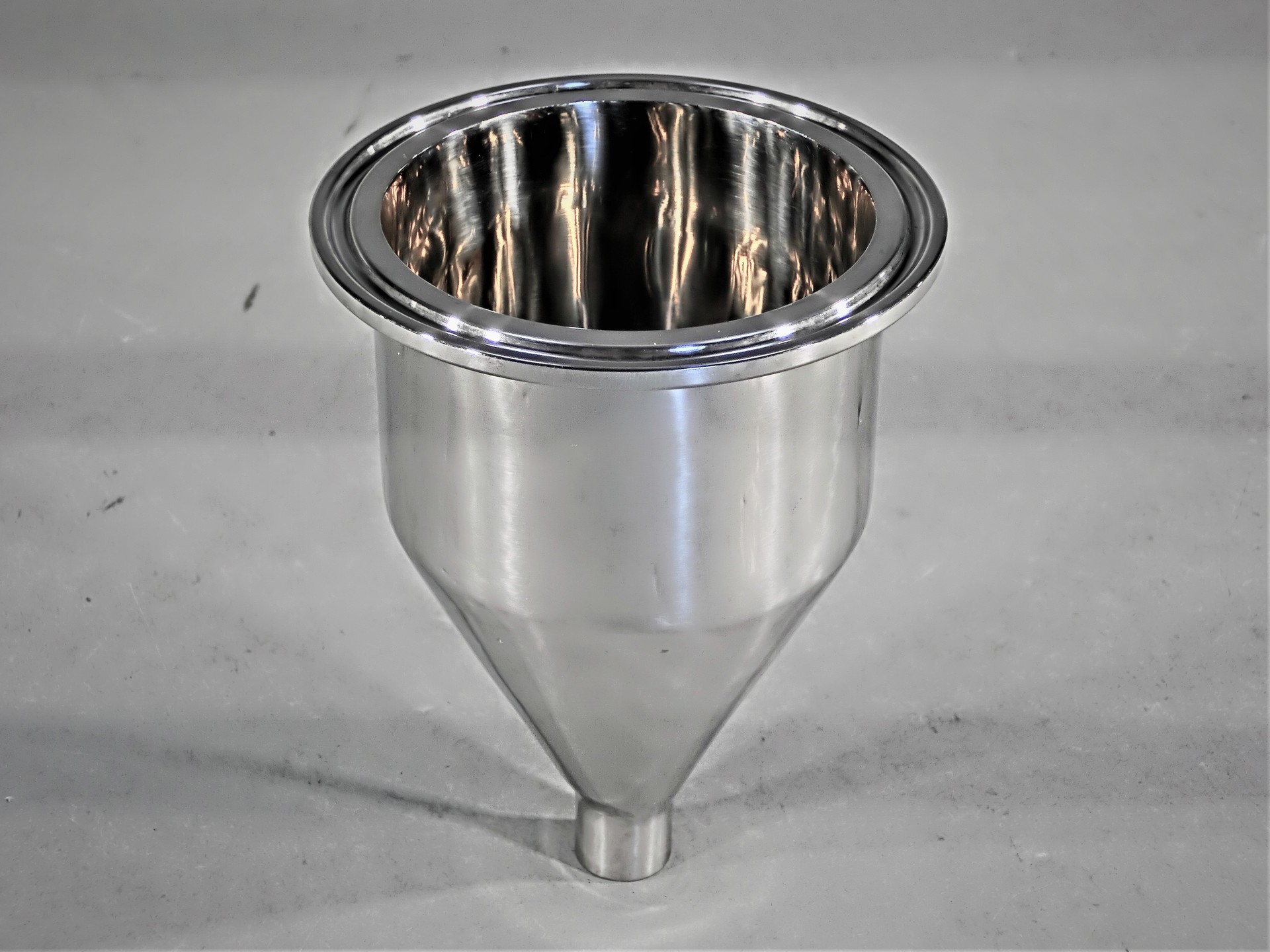

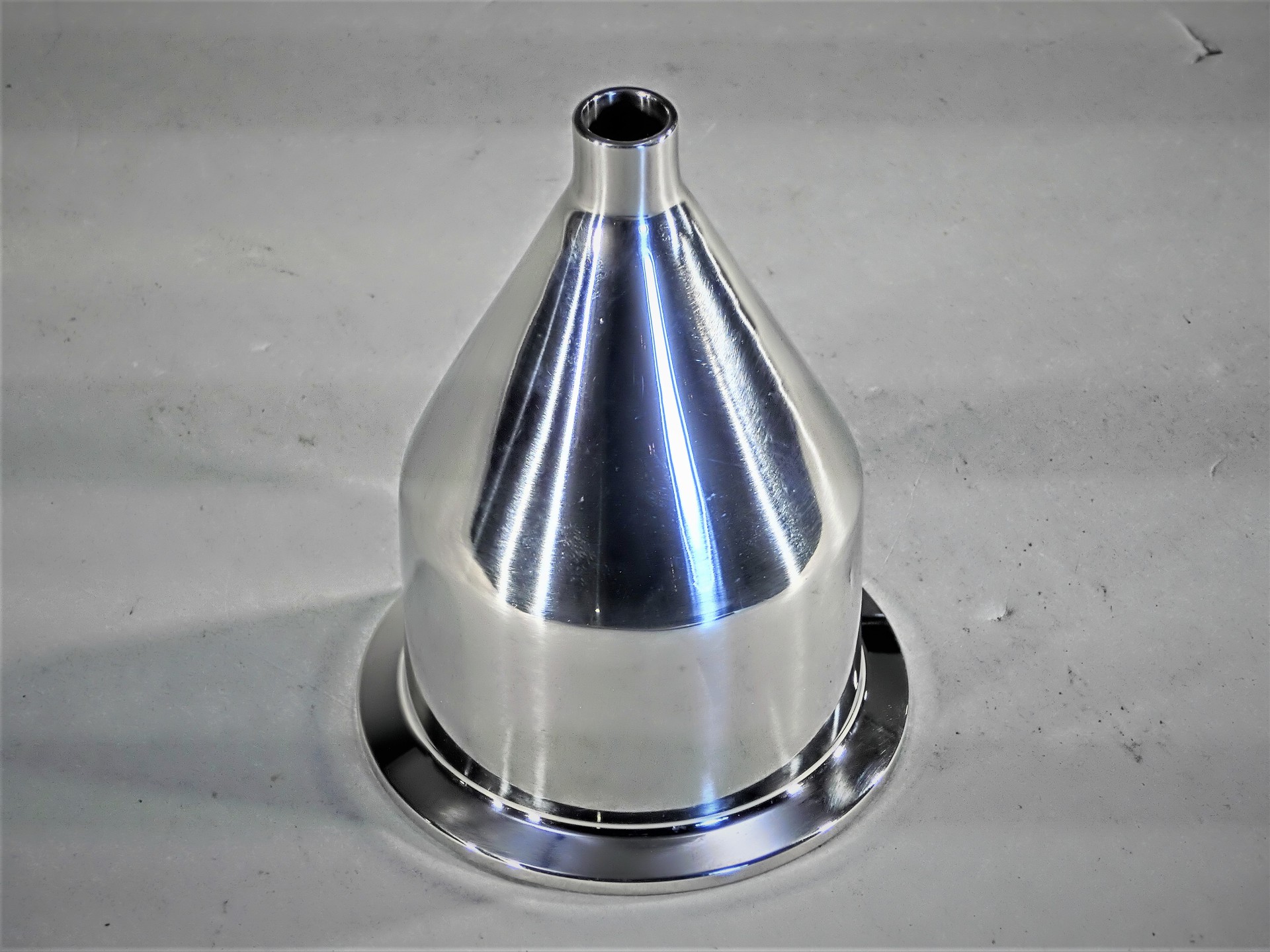

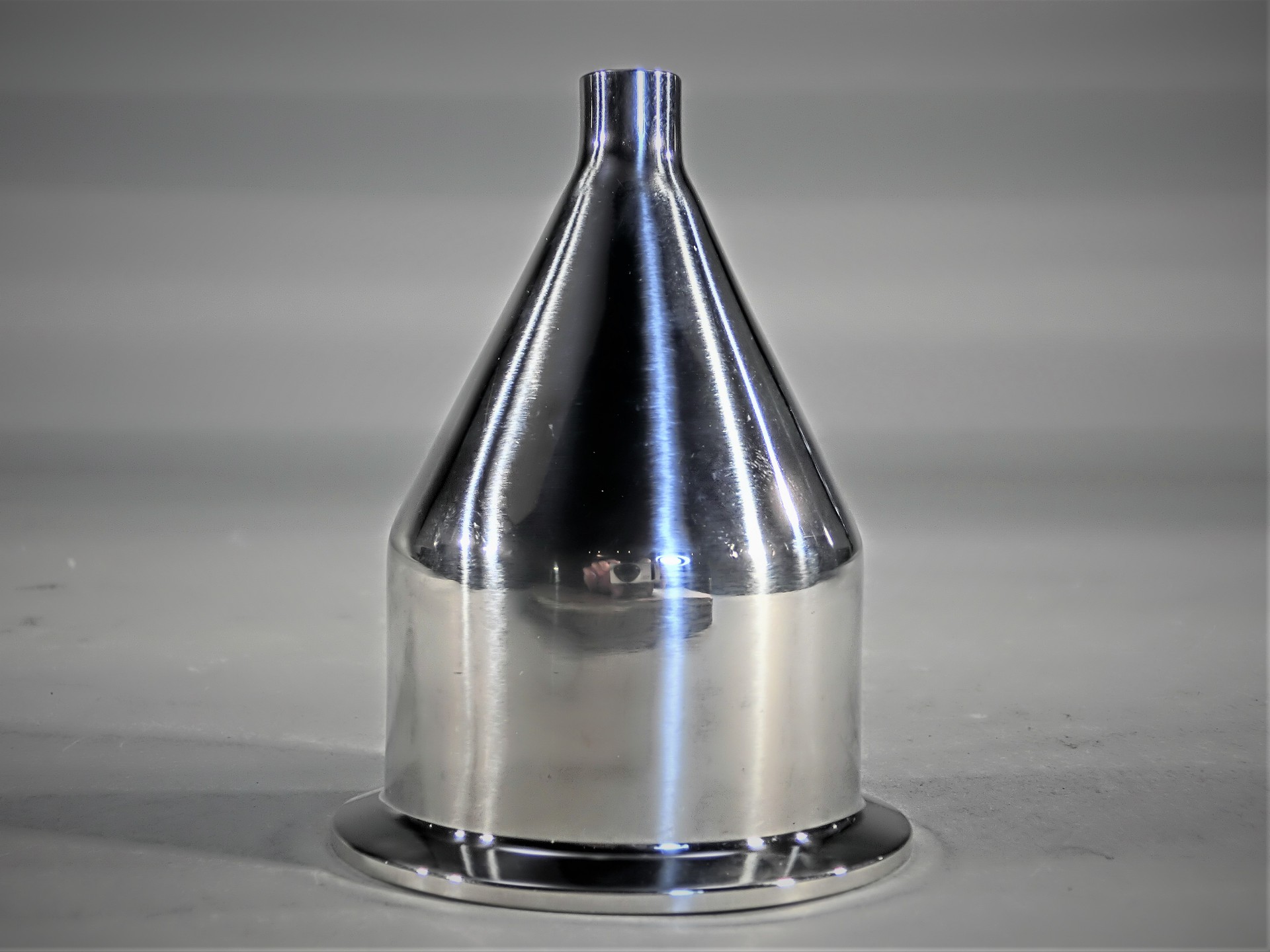

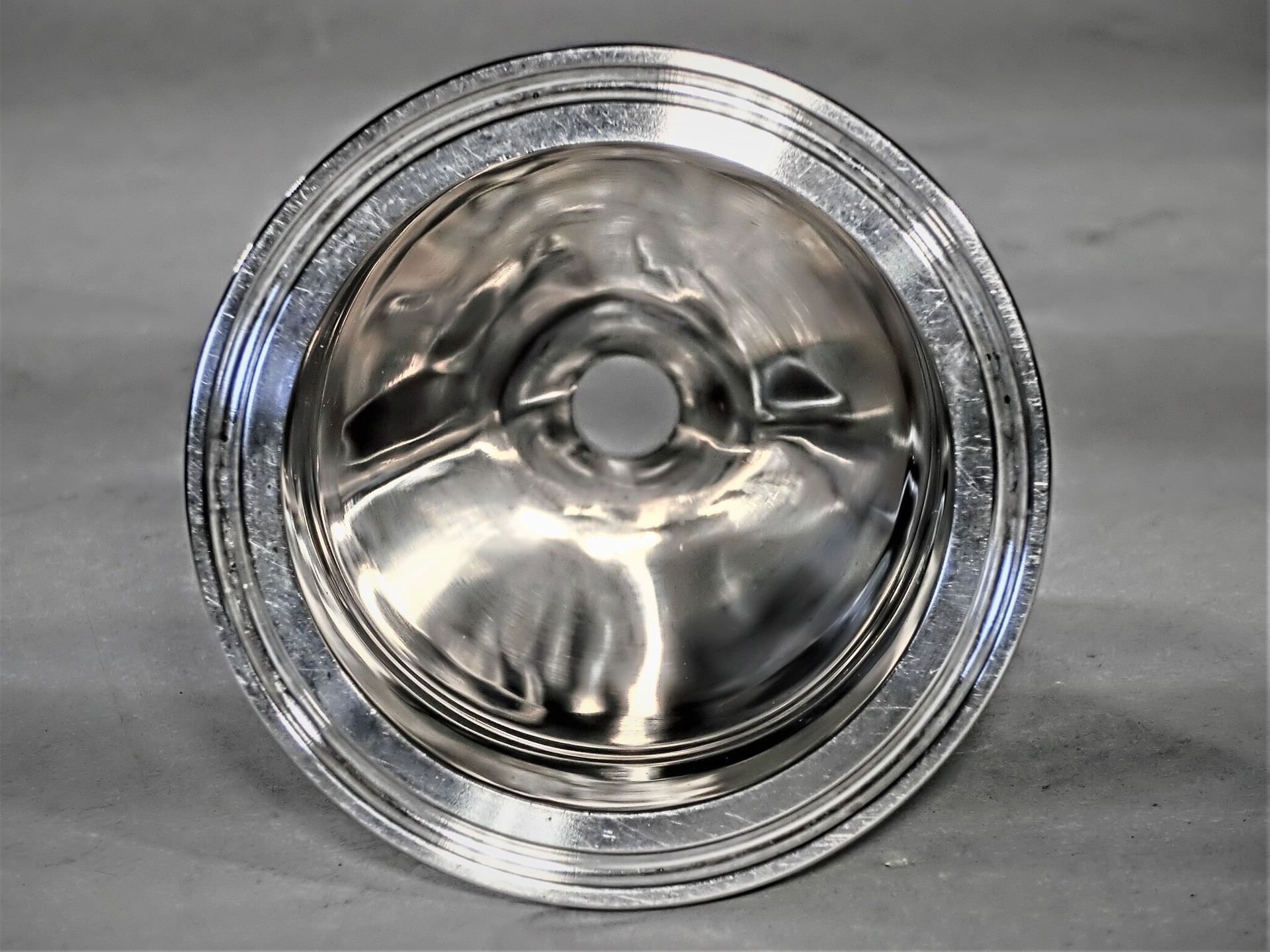

Nozzle sample

okudakougyou Co., Ltd. (Aichi, Japan)

  • Size: W75 x D75 x H100 mm

  • Accuracy: ± 0.3 mm

  • Programming time: 60 min

  • Processing time: 120 min/quantity

  • Quantity: 1

  • Material: Stainless steel (SUS430)

  • Thickness: 1.5 mm

  • Type: Prototype

Process

  • Planning

  • 2D/3D Design

  • Programming

  • Laser-Cutting

  • Bending

  • 機械加工

  • Welding

  • Surface Finishing

Strengths

機械加工品と板金加工とパイプをTIGによるひずみの少ない熔接を実施し仕上げ処理をしました。
